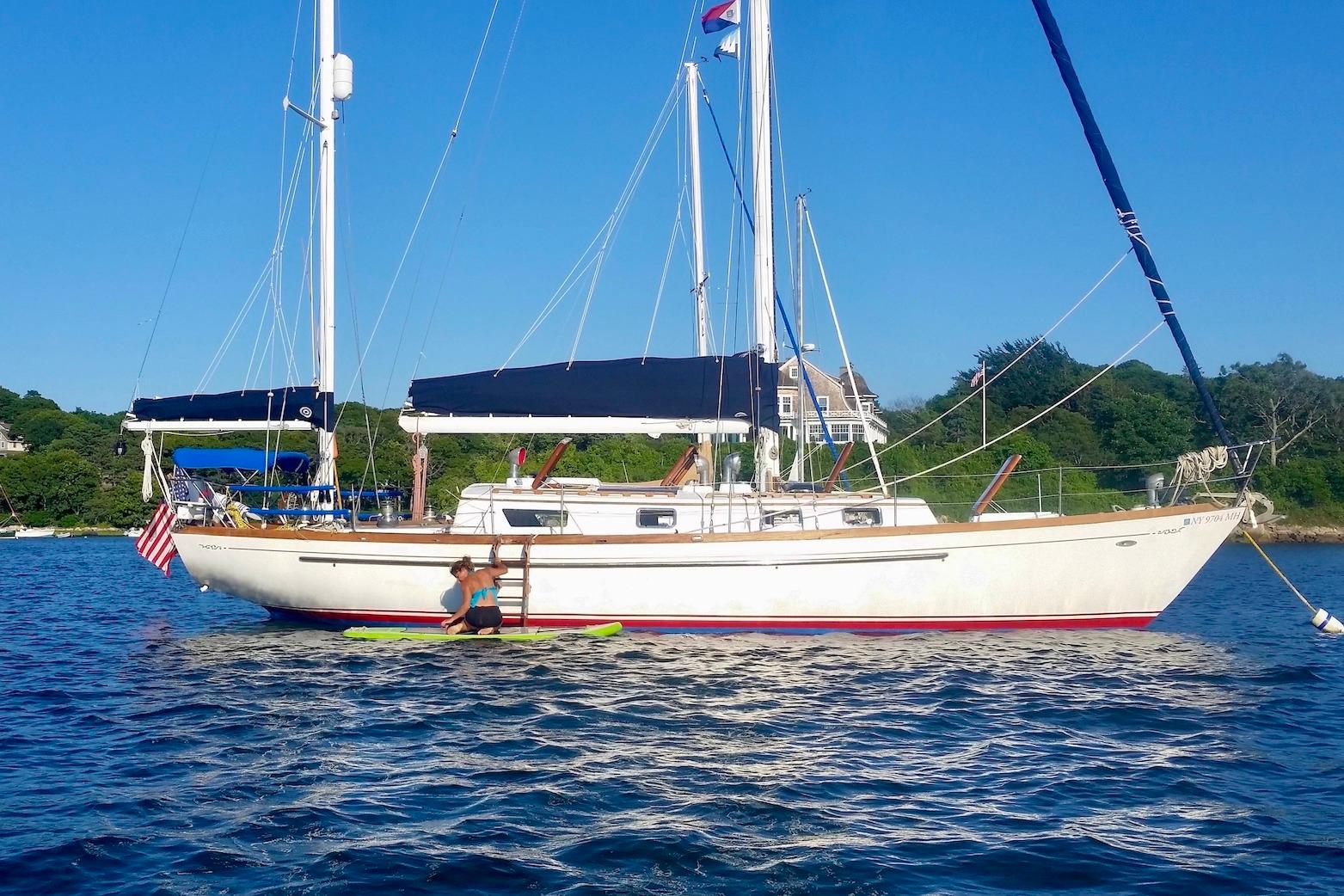

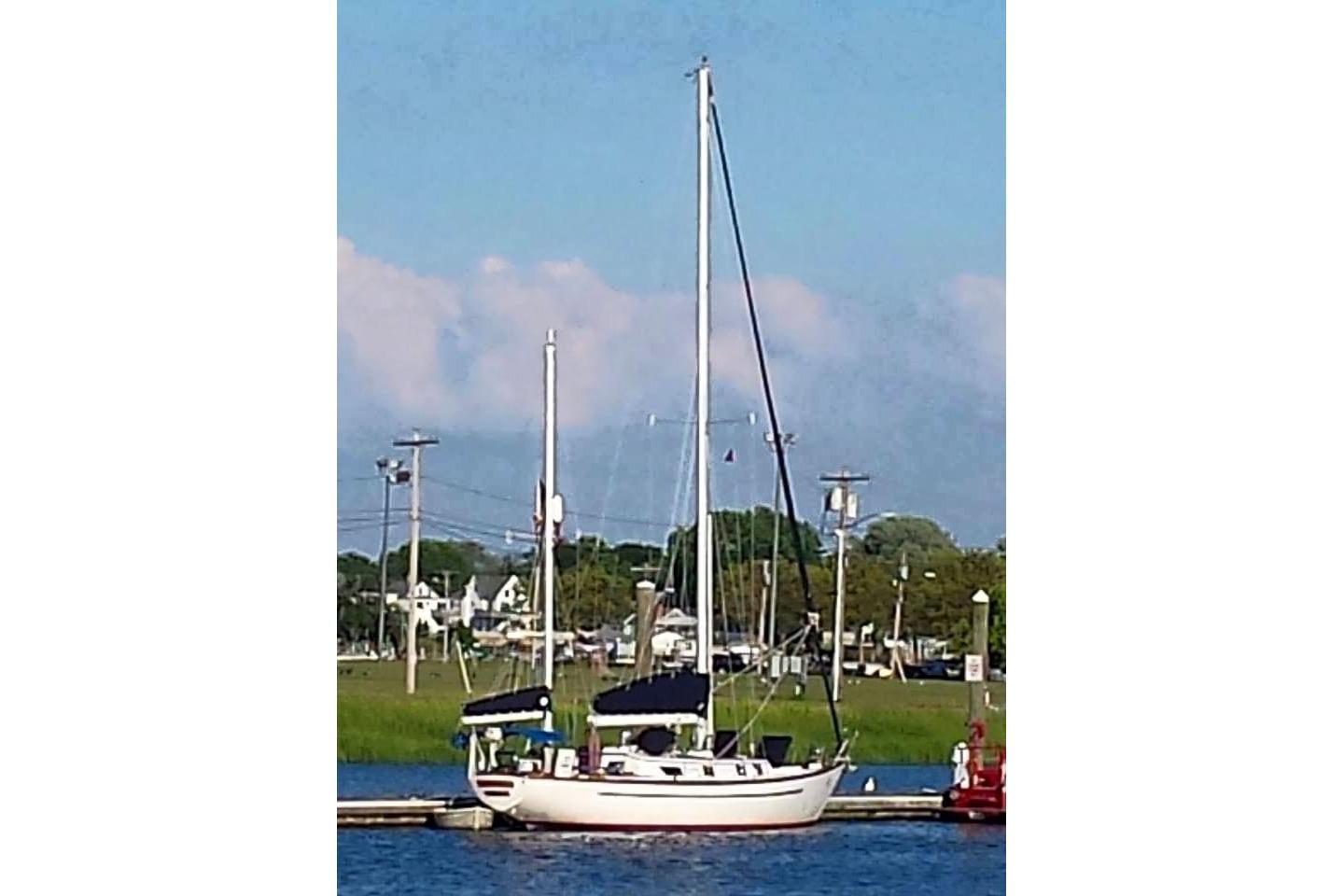

1977 Cheoy Lee Offshore 41 ketch
Yacht price :
- Overview
- Specifications
- Gallery
- Descriptions
Overview

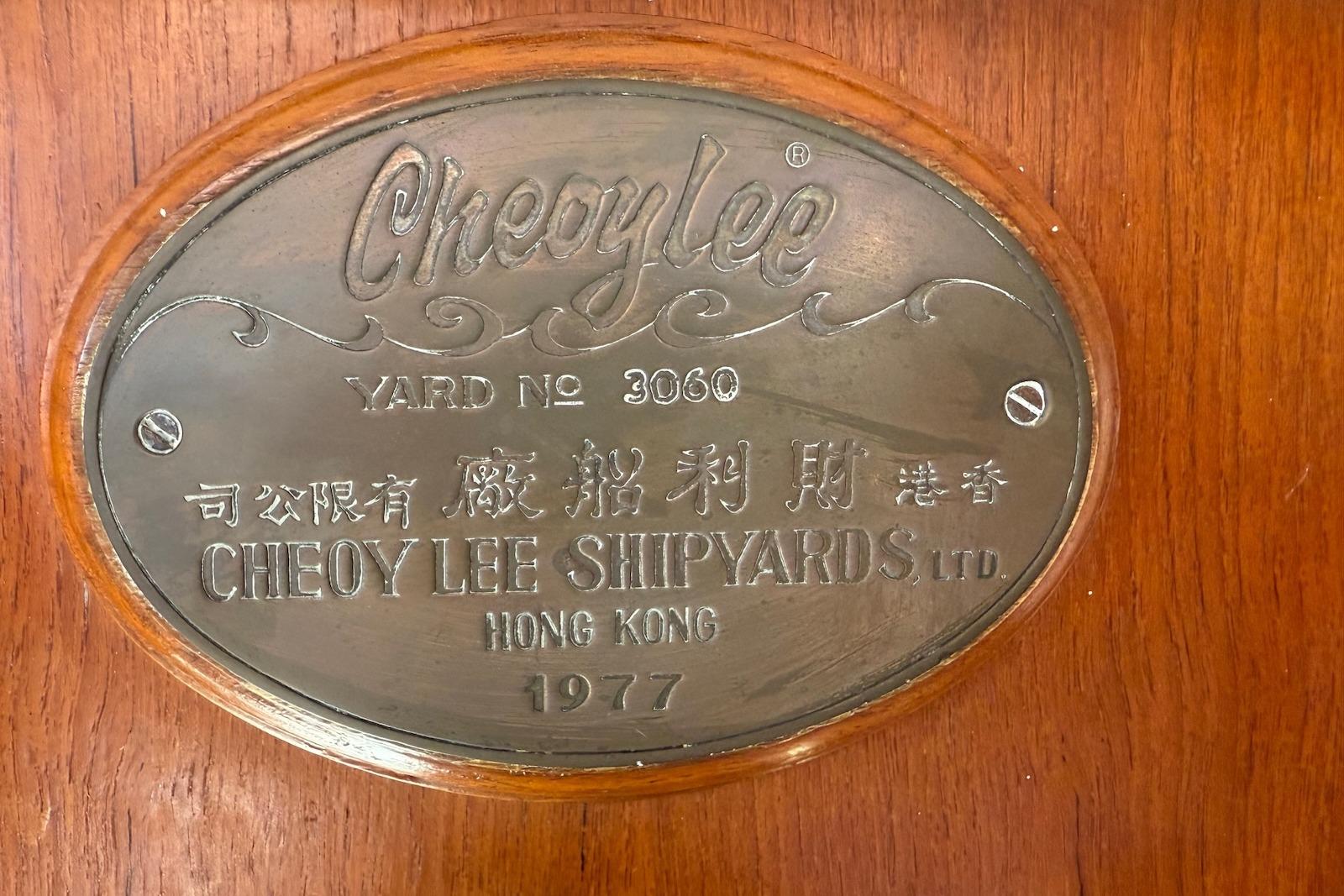

RAY RICHARDS DESIGNED, HULL NUMBER 3060, FIN KEEL WITH RUDDER ON
SKEG. ENCAPSULATED LEAD KEEL.

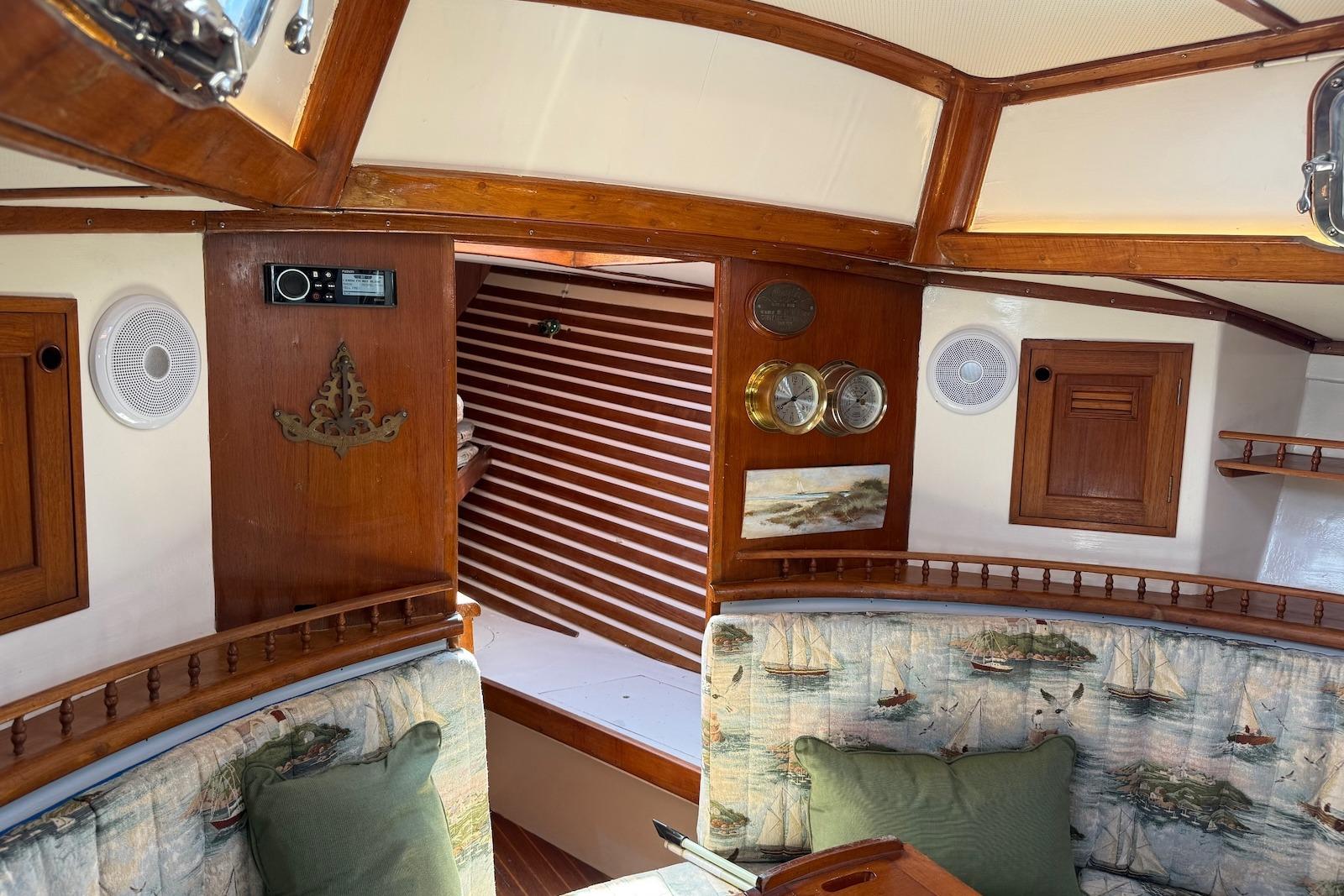

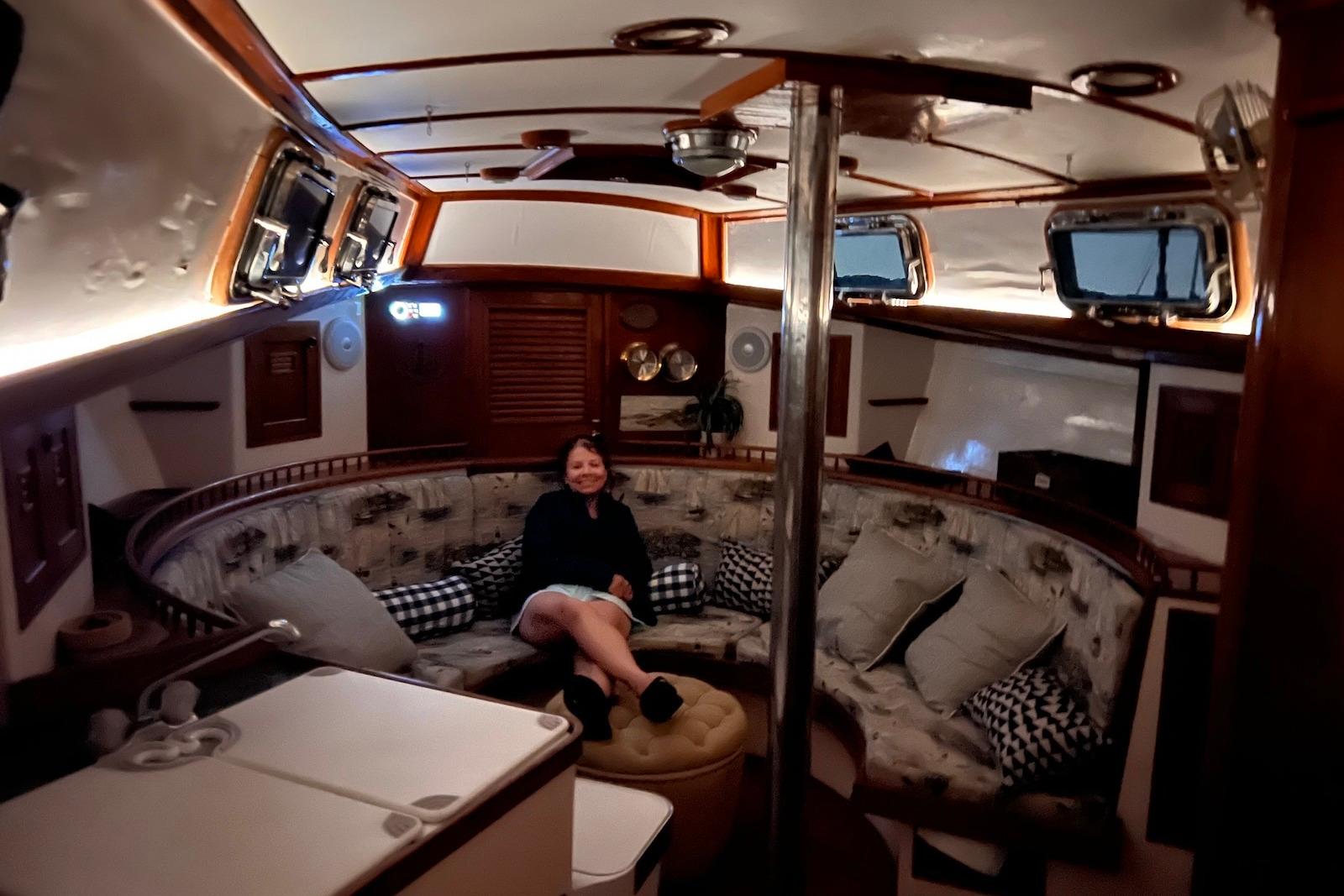

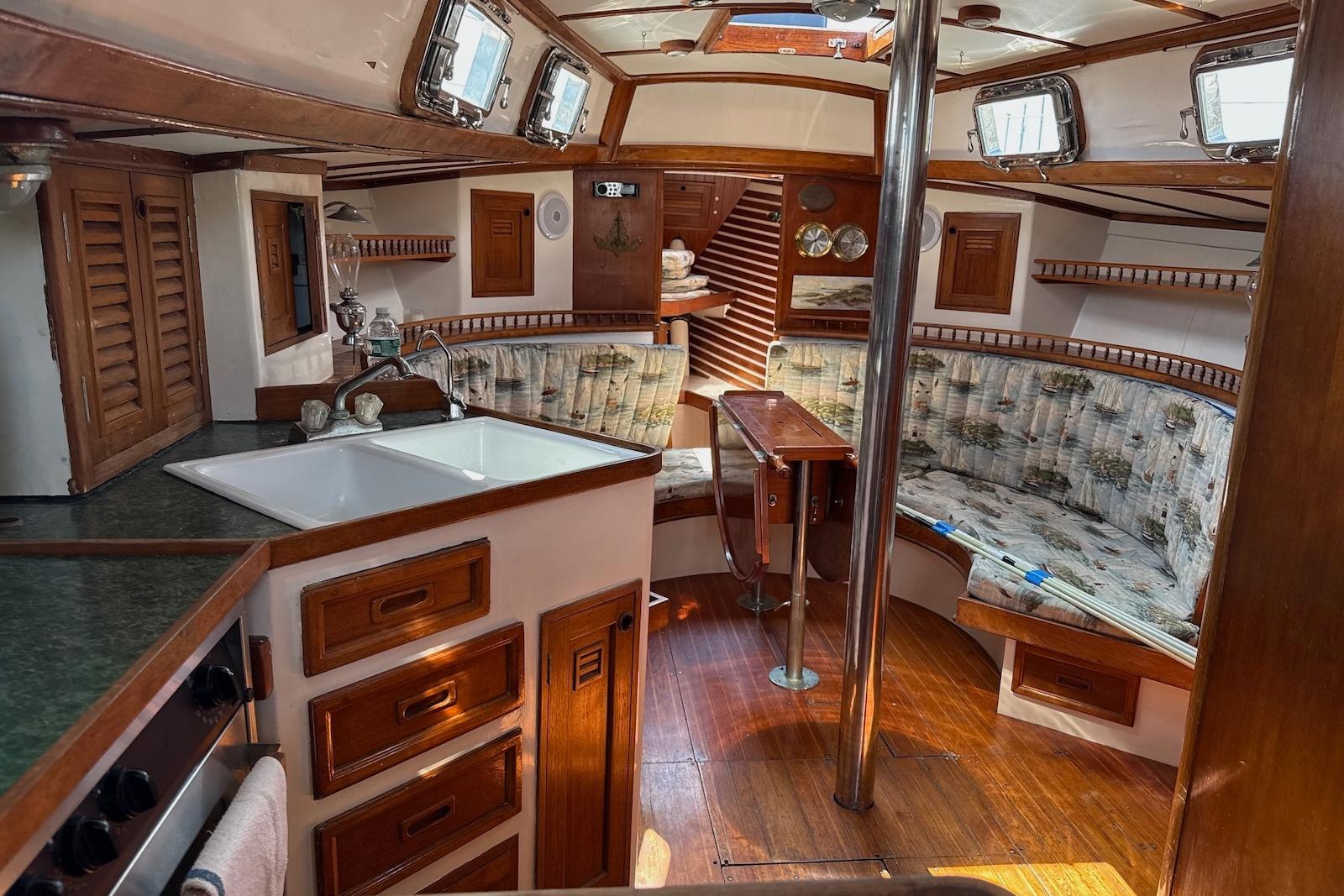

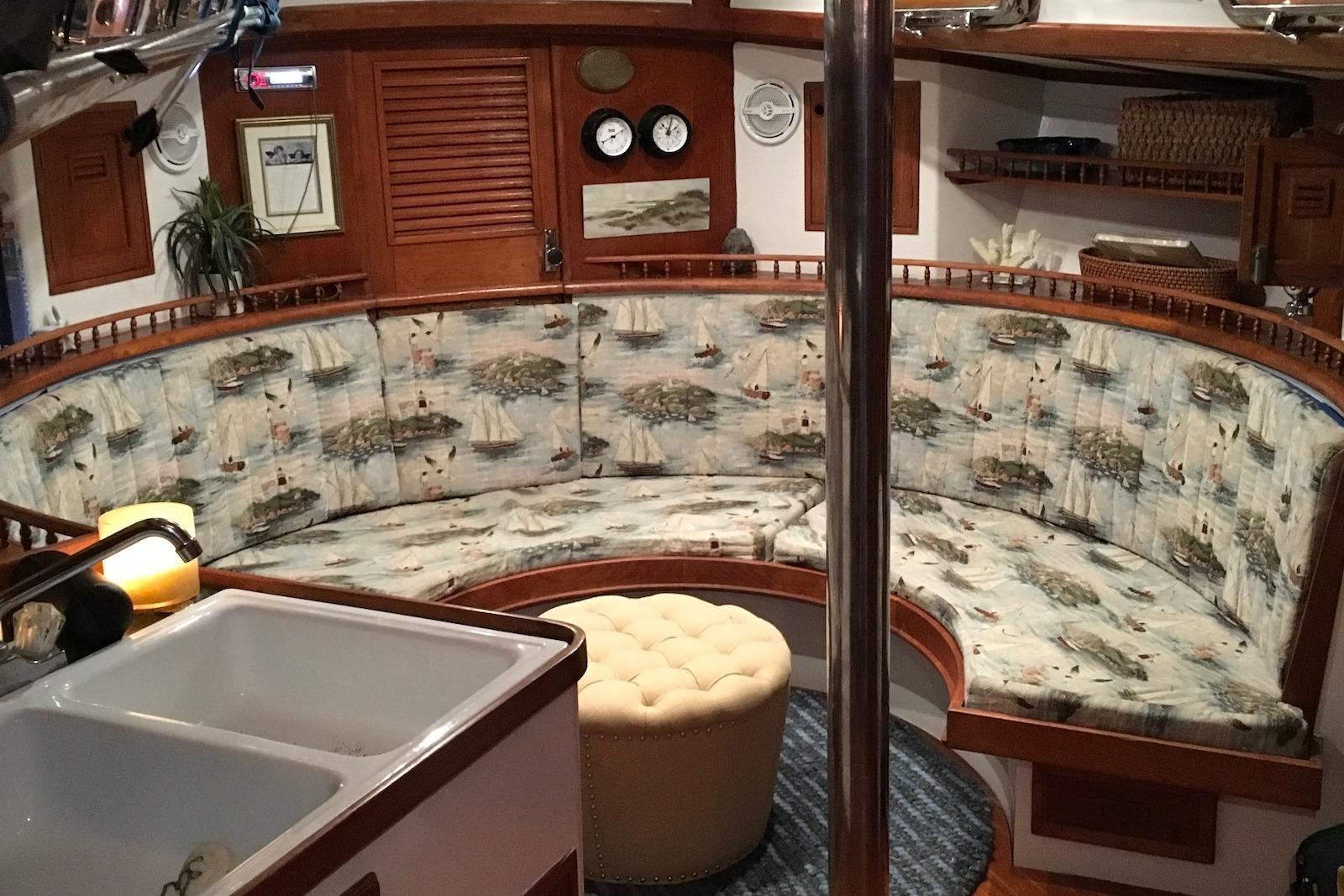

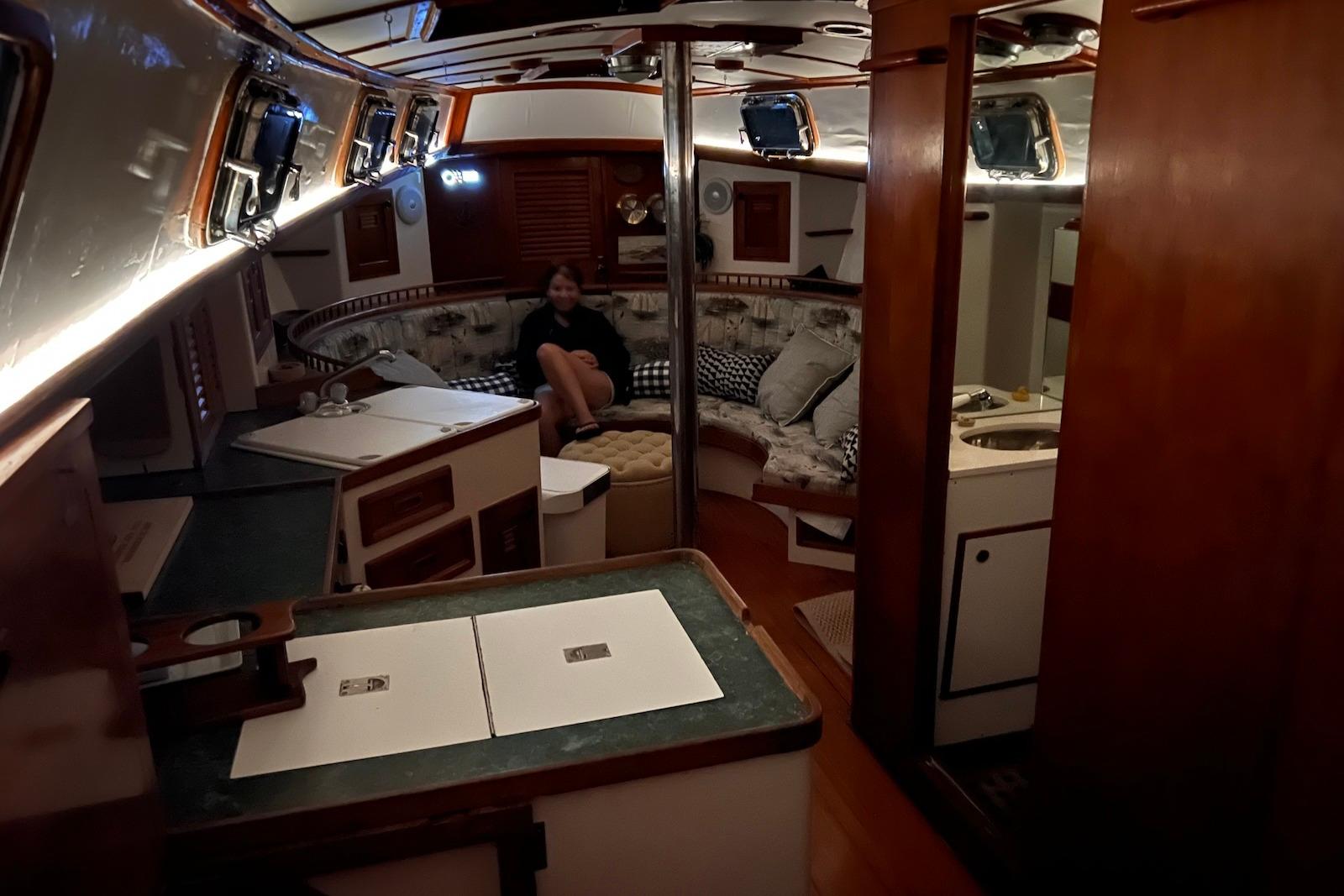

MASTHEAD KETCH WITH MIZZEN. UNIQUE CIRCULAR SETTEE IN MAIN SALON.
CABIN SLEEPS 7.

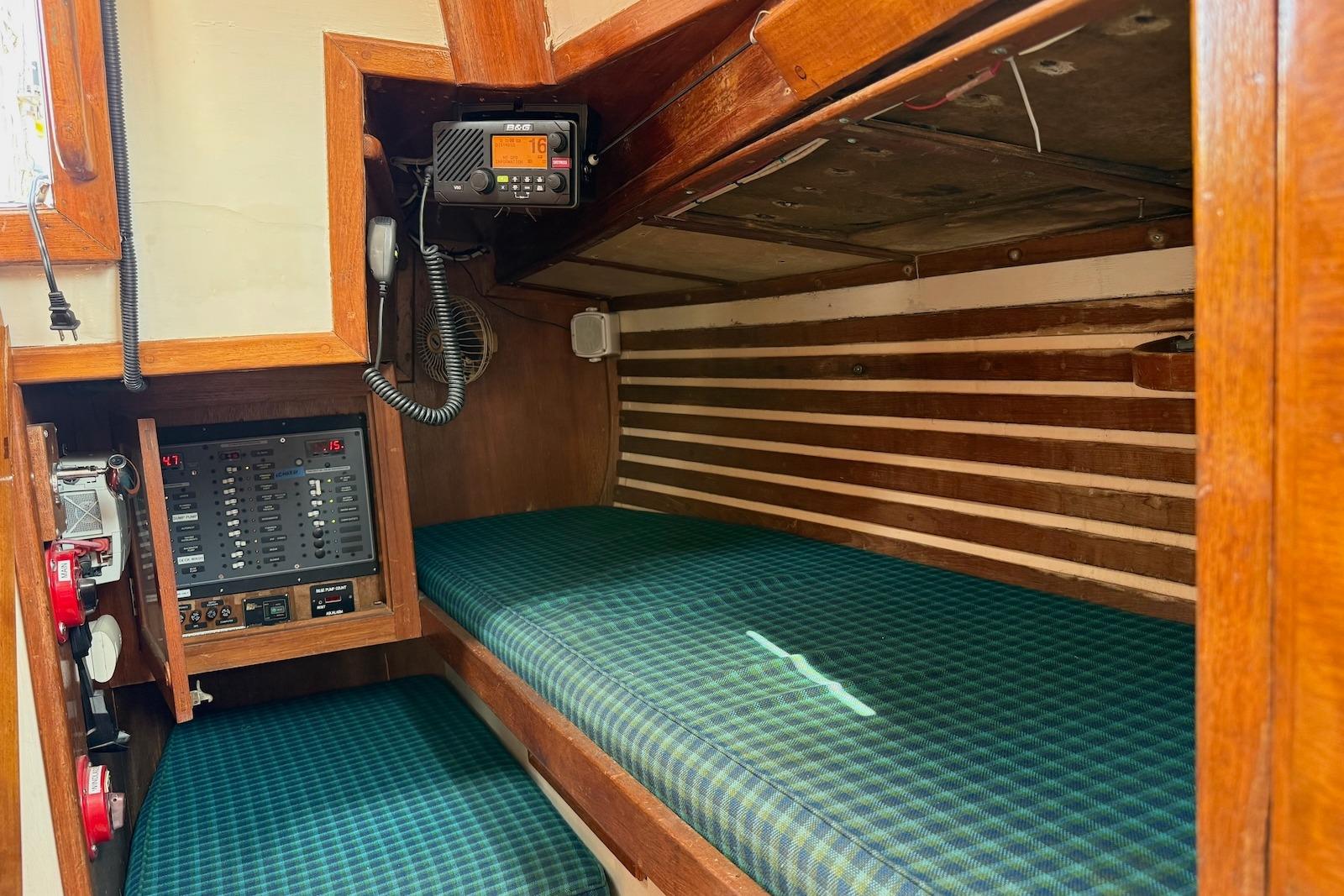

PILOT BIRTH (1) , OWNERS STATEROOM WITH EN SUITE HEAD (2), OVER &
UNDER V BIRTHS (2), CIRCULAR SETTEE (2).
LOA 40.92', LWL 32.50, BEAM 12.75, SAIL AREA 880; DISPLACEMENT 21,130
LBS., BALLAST 8,900 LBS.
DRAFT 6', SOLID FIBERGLASS HULL, MAHOGONY DECK CORE,
50 GALLONS OF FUEL, 130 GALLONS OF WATER, NEW 45 GALLON HOLDING
TANK

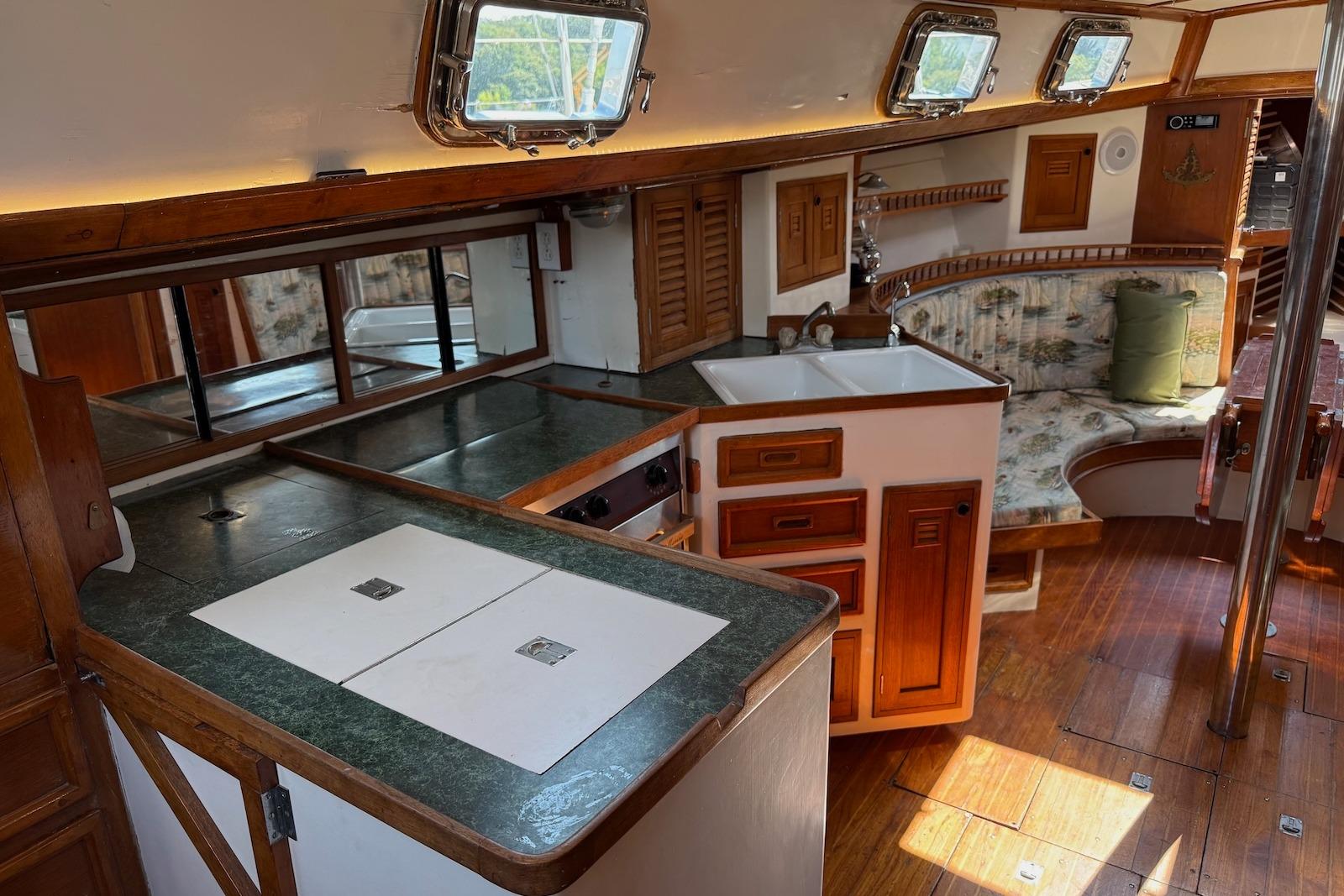

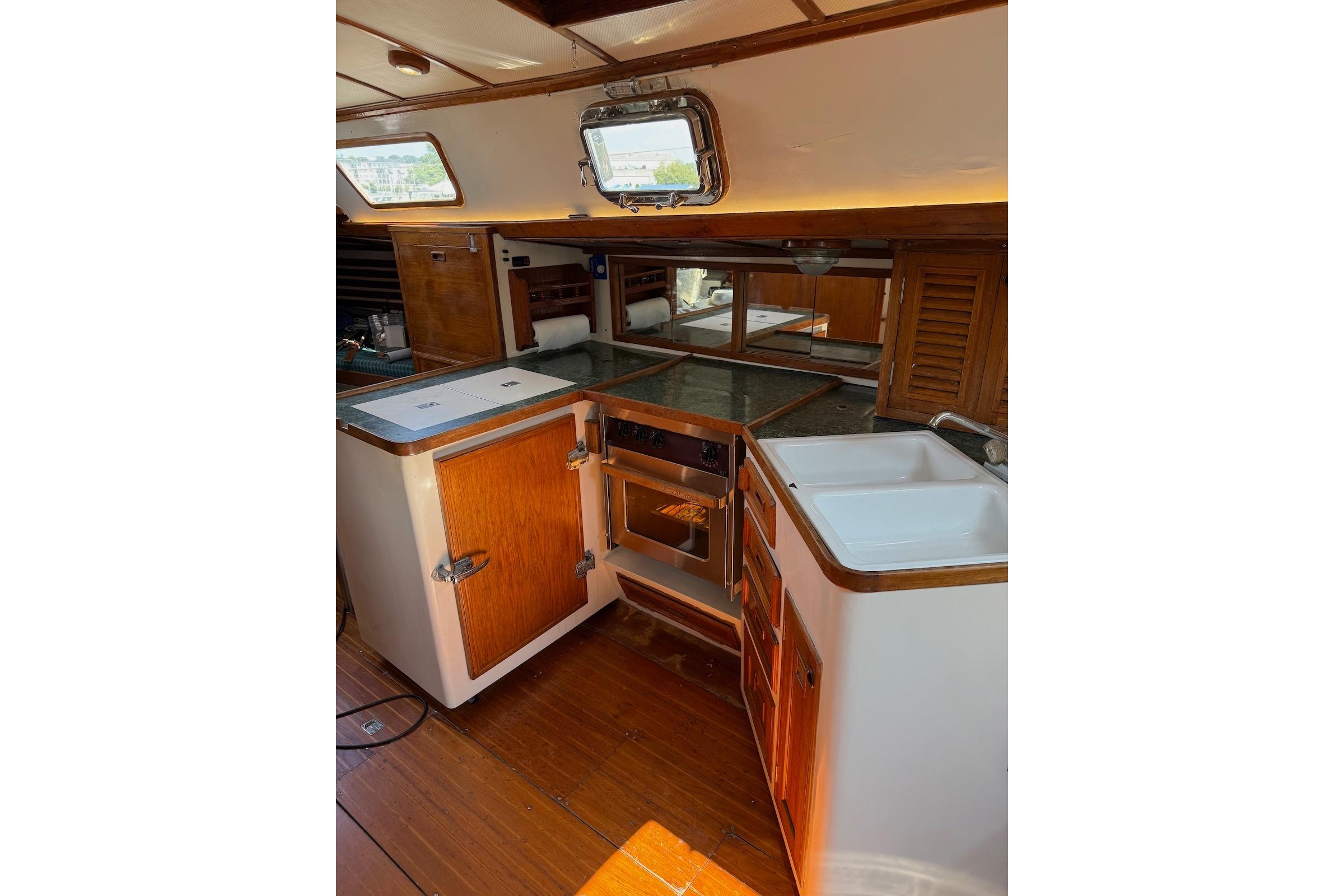

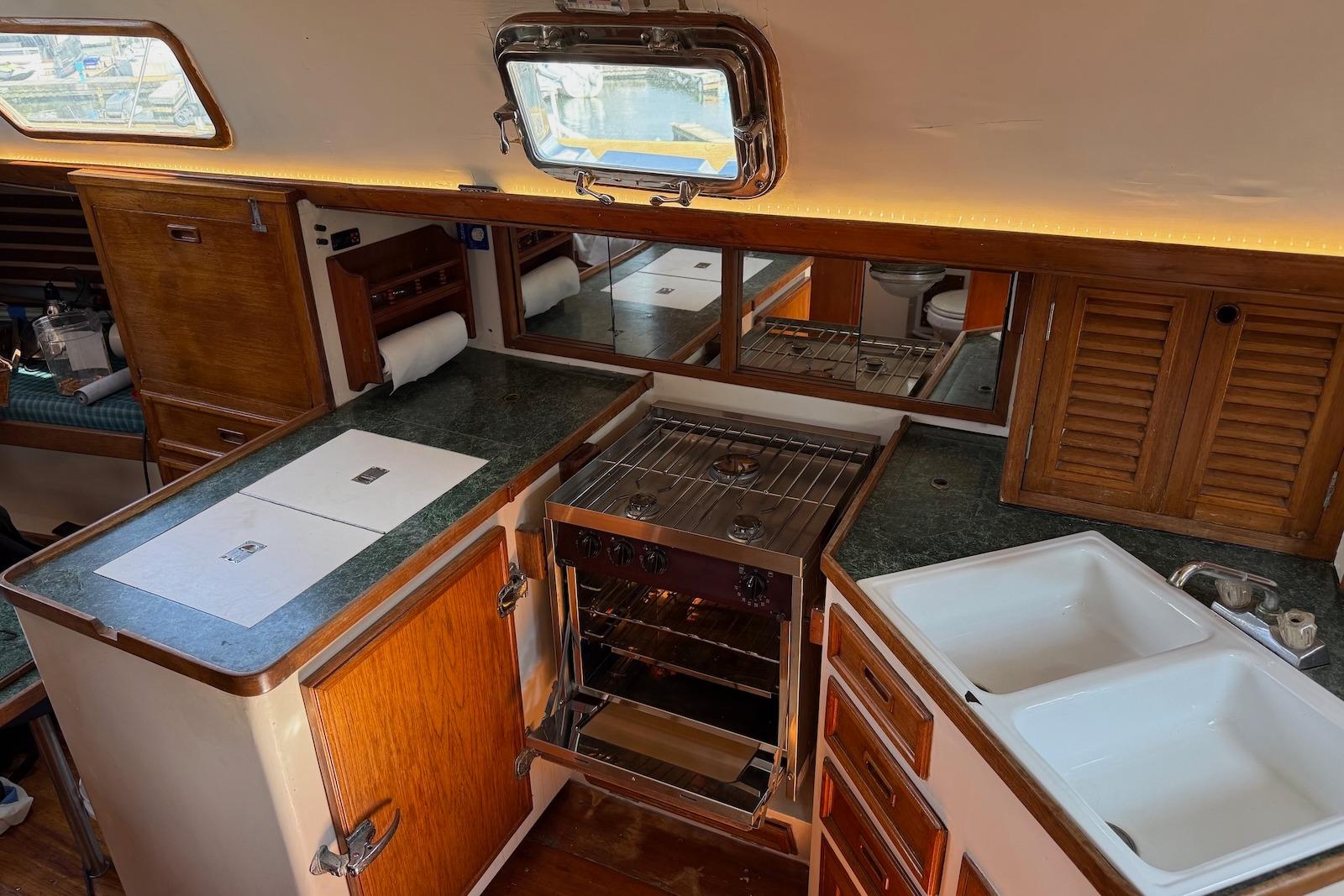

FORCE 10 MARINE PROPANE STOVE AND THREE BURNER TOP. LARGE PROPANE
TANK IN DEDICATED LOCKER BELOW HELM SEAT
EMERGENCY PROPANE SHUT OFF SWITCH
WATER HEATER, HEATED FROM ENGINE OR FROM SHORE POWER
30 AMP SHORE POWER CABLE

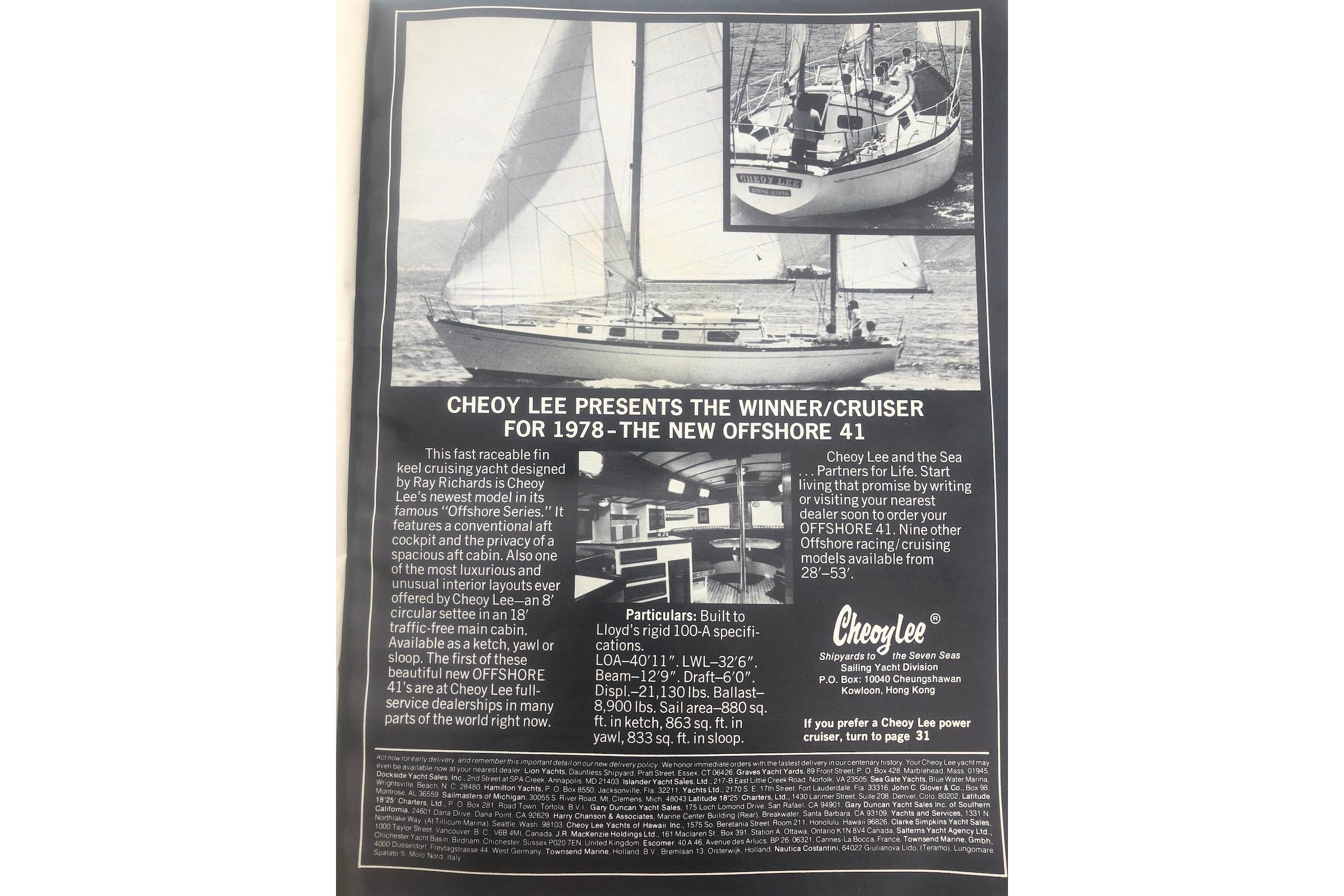

SHE WAS THE HIT OF THE 1977 NEW YORK SAILBOAT SHOW BECAUSE OF HER
UNIQUE AND SPACIOUS DESIGN.
2 0 2 5
NEW HEADLINER IN V-BIRTH. NEW TEAK TRIM INSTALLED
LIGHT SANDED AND PAINTED BOAT BOTTOM WITH 2 COATS INTERLUX MICRON
CSC - GREEN
APPLIED TWO COATS SEMCO TEAK SEALER TO ALL EXTERNAL TEAK.
(TOW RAIL, PORT TRIM, COCKPIT TRIM, EYEBROW, BOW AND WINCH PADS)
2024
GENOA SAIL WASHED, CHECKED AND RESTITCHED AS NEEDED
MAINSAIL WASHED, CHECKED AND RESTITCHED AS NEEDED
MIZZEN SAIL CHECKED AND RESTITCHED AS NEEDED
TWO REEF POINTS ADDED TO MAINSAIL
NEW AQUA STAR WATER FILTER SYSTEM (NEEDS INSTALLING)
2 0 2 3
REMOVED THE OLD PERKINS 4108 DIESEL, GEARBOX, EXHAUST, SHAFT,
STUFFING BOX & PROP
CLEANED FAIRED AND PAINTED BILGE WITH BILGE COAT
INSTALLED BETA 38 DIESEL ENGING. CURRENTLY 100 HOURS
NEW TMC GEARBOX
NEW EXHAUST SYSTEM AND MUFFLER
NEW CUTLASS BEARING
NEW 1-1/2' SHAFT AND PYI DRIPLESS STUFFING BOX
NEW FOUR BLADE BRONZE FOLDING VARI PROP
NEW STAINLESS EXHAUST RISER
NEW COCKPIT GEAR SHIFTER AND CABLES
NEW BETA COCKPIT ENGINE PANEL W/ KEY START, TACHOMETER, OIL
PRESSURE, TEMPERATURE AND VOLTS.
NEW NMEA HUB INSTALLED
NEW ZUESS 10" CHART PLOTTER AT HELM
NEW B&G GPS AND COMPASS
NEW B&G WS WINDPAK INSTRUMENTS, SPEED, DIRECTION
NEW B&G WS 310 DEPTH SENSOR PACK SOUNDER
NEW B&G V-50 RADAR DOME 20 ON MIZZEN MAST
NEW B&G VHF RADAR WITH AIS. (AIS NEEDS TO BE SET UP)
NEW BI-COLOR DIMMABLE DECK LIGHTS ON MAIN MAST SPREADERS (2)
REPLACED ORIGINAL KEEL GARBAR DRAIN WITH NEW FITTING
ADDED REFLECTIVE TAPE STRIPES TO BOTH MASTS FOR NIGHT TIME
DISCOVERY
REPLACED FREEZER CONDENSOR PLATE AND INSTALLED NEW SMART
CONTROLLER
REPLACED SPILL OVER FAN FOR REFRIGERATOR
LEAK CHECKED AND RE CHARGED FRIGABOAT K-50 COMPRESSOR WITH KEEL
COOLER
RE VARNISHED TEAK DISTROYER STEERING WHEEL
REVARNISHED TEAK COCKPIT FOLDING TABLE
NEWLY RECOVERED NAVIGATION SEAT IN CABIN
CPT AUTO HELM, BELT DRIVEN, REPLACED WITH NEW
2022
DROPPED RUDDER, REFIT BRONZE RACK & PINION STEERING SYSTEM
REMOVED STEERING PEDESTAL CLEANED, GREASED & INSPECTED ALL
INTERNAL PARTS
REMOVED & CLEANED STEERING QUADRANT AND IMPROVED WHEEL STOPS ON
BOTH SIDES
REPLACED PACKING MATERIAL ON RUDDER FITTING
POWDER COATED BINNACLE AND REINSTALLED
REFILLED COMPASS WITH OIL AND REPLACED COMPASS LIGHT
CUSTOM MADE BINNACLE BACKING PLATE INSTALLED
RE-CHROMED ALL 5 COWELS
REINFORCED COCKPIT SOLE WHERE WATER INTRUSION OCCURRED.
REINFORCED MIZZEN MAST STEP.
INSTALLED NEW FUSION MSRA 70 MARINE STEREO. SIX SPEAKERS IN TOTAL, 4
IN CABIN, 2 IN COCKPIT
INSTALLED CUSTOM BLUE SEA SYSTEMS COCKPIT SWITCH PANEL FOR
EXTERIOR LIGHTING
INSTALLED MANUAL BILGE PUMP AND ASSOCIATED HOSES IN COCKPIT
REFINSHED COCKPIT. SANDED, FAIRED AND PAINTED ALL AREAS.
NEW PORT AND STARBOARD CUSTOM, DIMMABLE CABIN LED STRIP LIGHTING
INSTALLED IN GRAB RAIL
NEW SCANDVIK LIGHTING FIXTURES ADDED IN OWNERS CABIN, V BIRTH AND
ELECTRICAL PANEL
NEW CUSTOM MADE DODGER NAVY BLUE SUNBRELLA
NEW CUSTOM MADE BIMINI NAVY BLUE SUNBRELLA
NEW GRAY WATER BILGE SYSTEM WITH NEW GROCO THRU HULL INSTALLED
(BILGE NEEDS RE INSTALLING)
4 NEW D-30 BATTERIES INSTALLED
2 0 2 0
REINFORCED BOTH BOW CLEATS WITH STARBOARD BACKING PLATES AND NEW
FASTENERS
REPLACED ORIGINAL QUICK WINDLASS WITH A MAXWELL 1500
NEW DECK MOUNTED WINDLASS FOOT SWITCHES INSTALLED, BOTH UP &
DOWN
NEW MANTUS 65# STAINLESS STEEL ANCHOR
NEW MANTUS STAINLESS STEEL SWIVEL
NEW 275 FEET OF ACCO G-4 HI TEST 5/16 GALVANIZED ANCHOR CHAIN
OPENED, CLEANED FUEL TANK AND REPLACED ACCESS PANEL GASKET
REPLACED COCKPIT SCUPPER HOSES PORT & STARBOARD
2 0 1 9
REMOVED MAIN AND MIZZEN MAST AND BOOM, SANDED PRIMED AND PAINTED
ALL
REMOVED ALL STANDING RIGGING AND REPLACED WITH NEW
REMOVED ALL 12 CHAINPLATES AND ASSOCIATED HARDWARE AND REPLACED
WITH NEW
REWIRED MASTHEAD TRI-LIGHT / ANCHOR LIGHT FIXTURE
REPLACED VHF ANTENNA
ALL FOUR MAHOGANY HATCH FRAMES REVARNISHED AND WEATHER
STRIPPING REPLACED
NEW COMBINATION STEAMING/DECK FIXTURE REWIRED AND INSTALLED
NEW IMTRA DIMMABLE, TWO COLOR, COCKPIT AND DECK LIGHT FIXTURES,
WITH SWITCH AT HELM

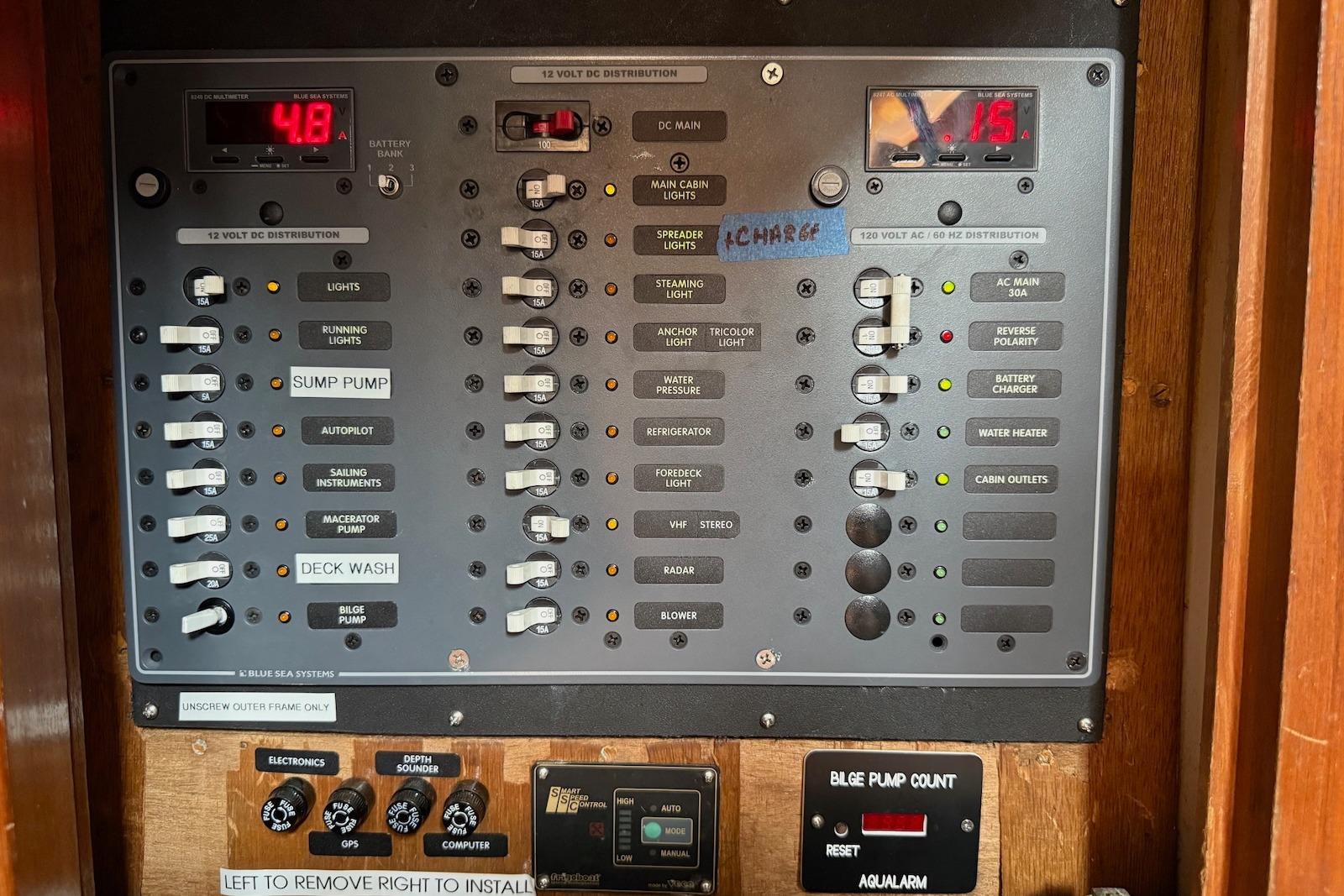

NEW BLUE SEA SYSTEMS MASTER ELECTRICAL PANEL. NEW AND IMPROVED
WIRING
2018
NEW SHORE POWER BREAKER INSTALLED

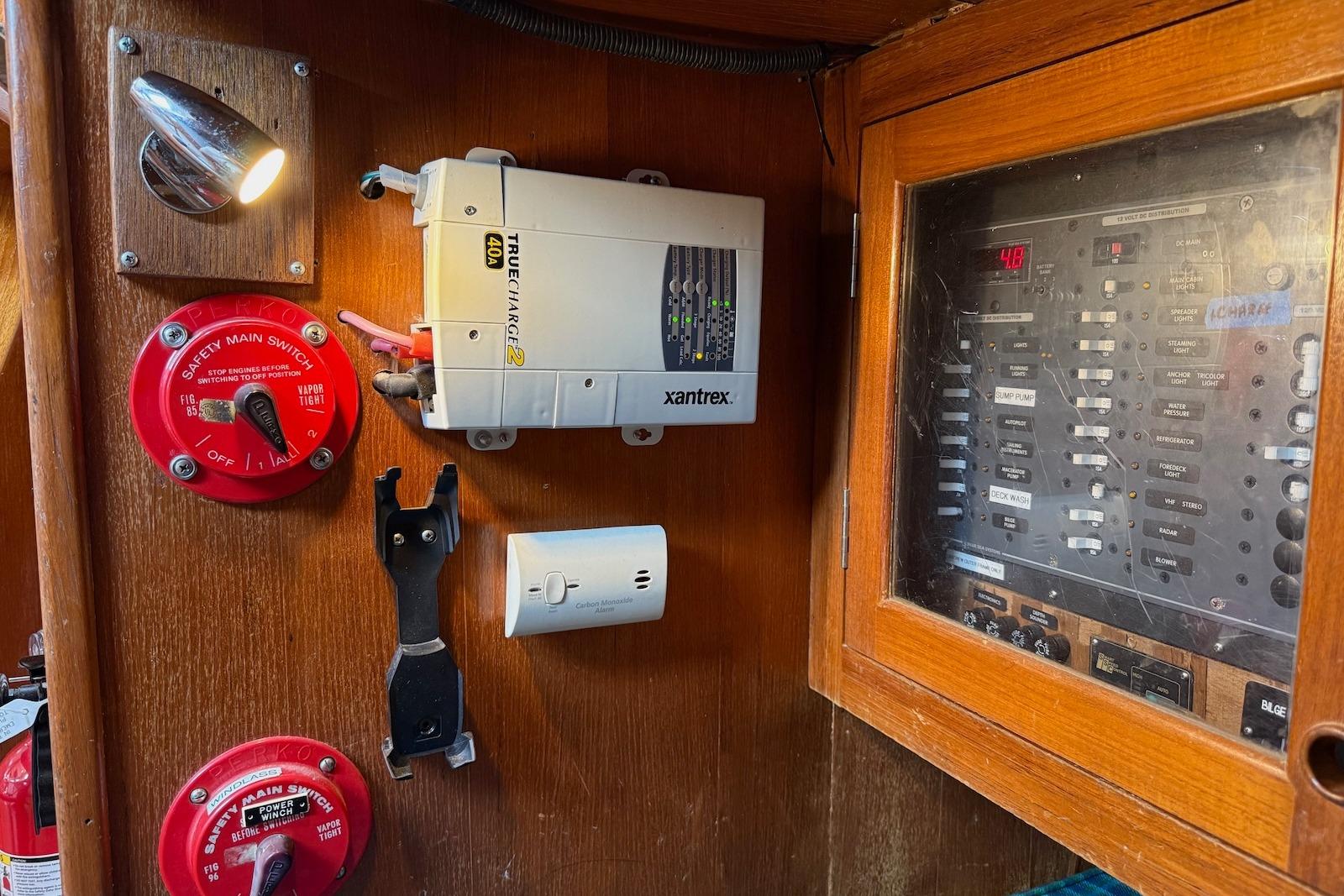

NEW XANTREX TRU-CHARGE2 40 AMP BATTERY CHARGER
NEW CUSTOM MADE THICK, CLOSED CELL FOAM COCKPIT CUSHIONS WITH
STERN BACK REST
NEW CUSTOM STERN PERCH SEAT CUSHIONS
2017

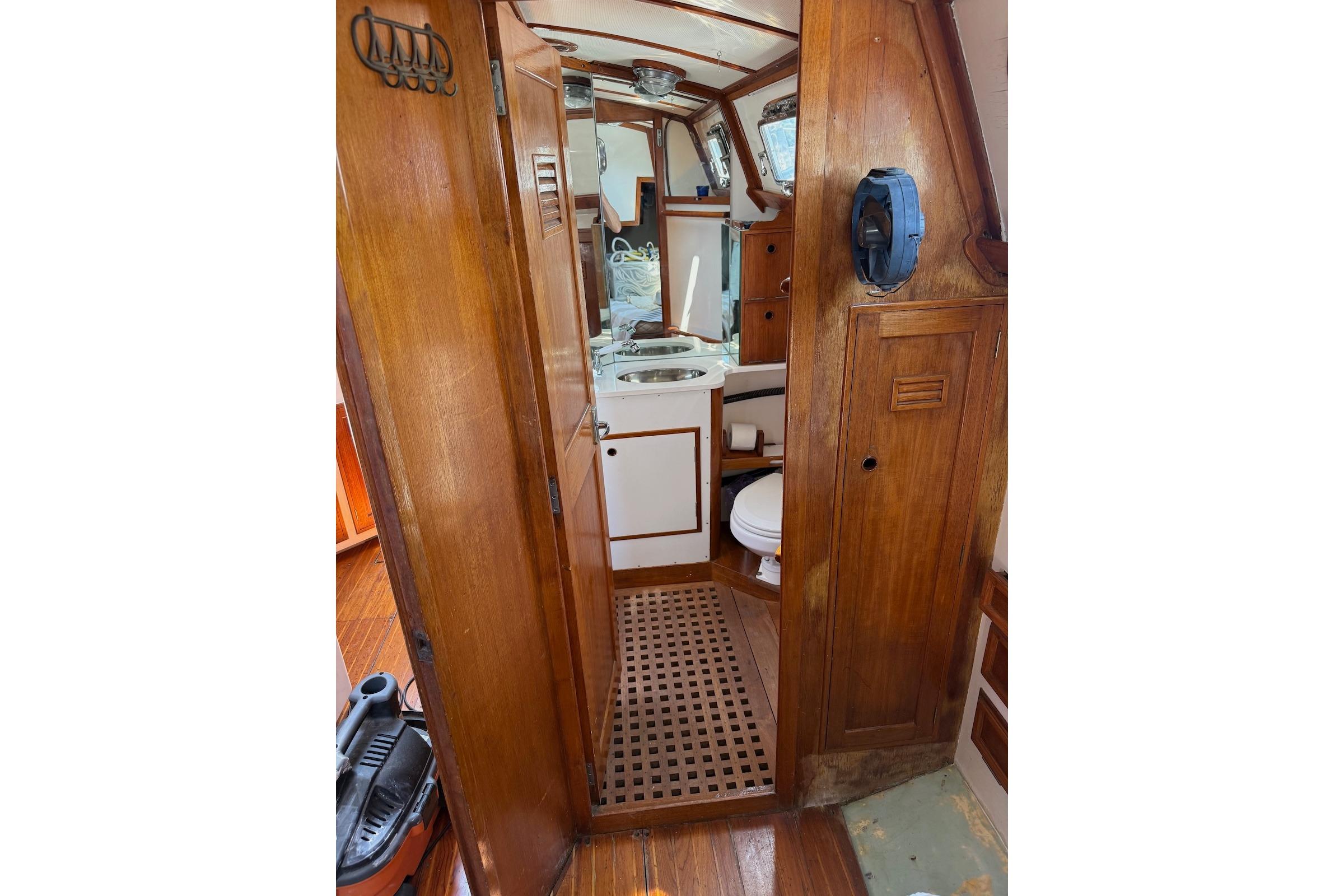

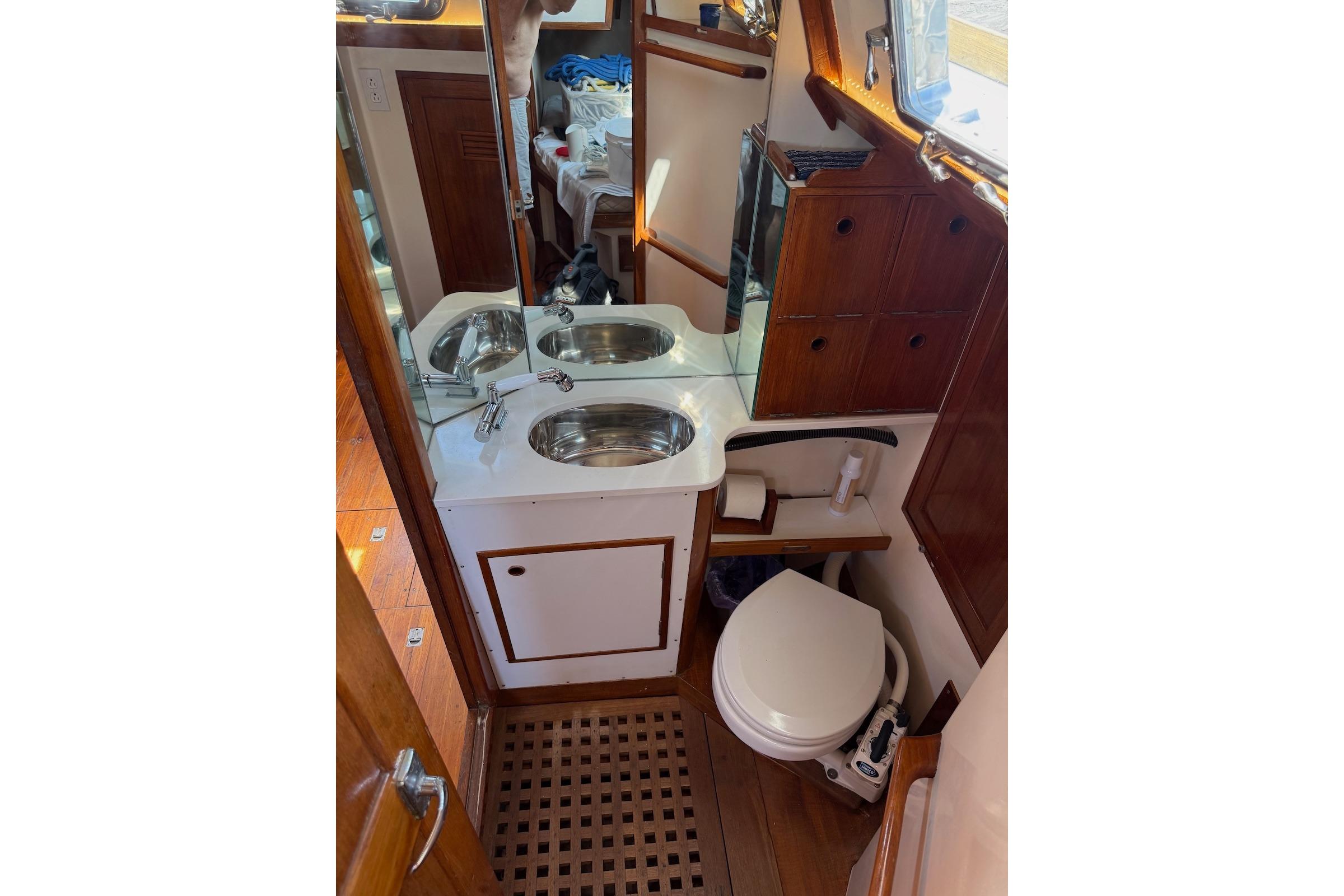

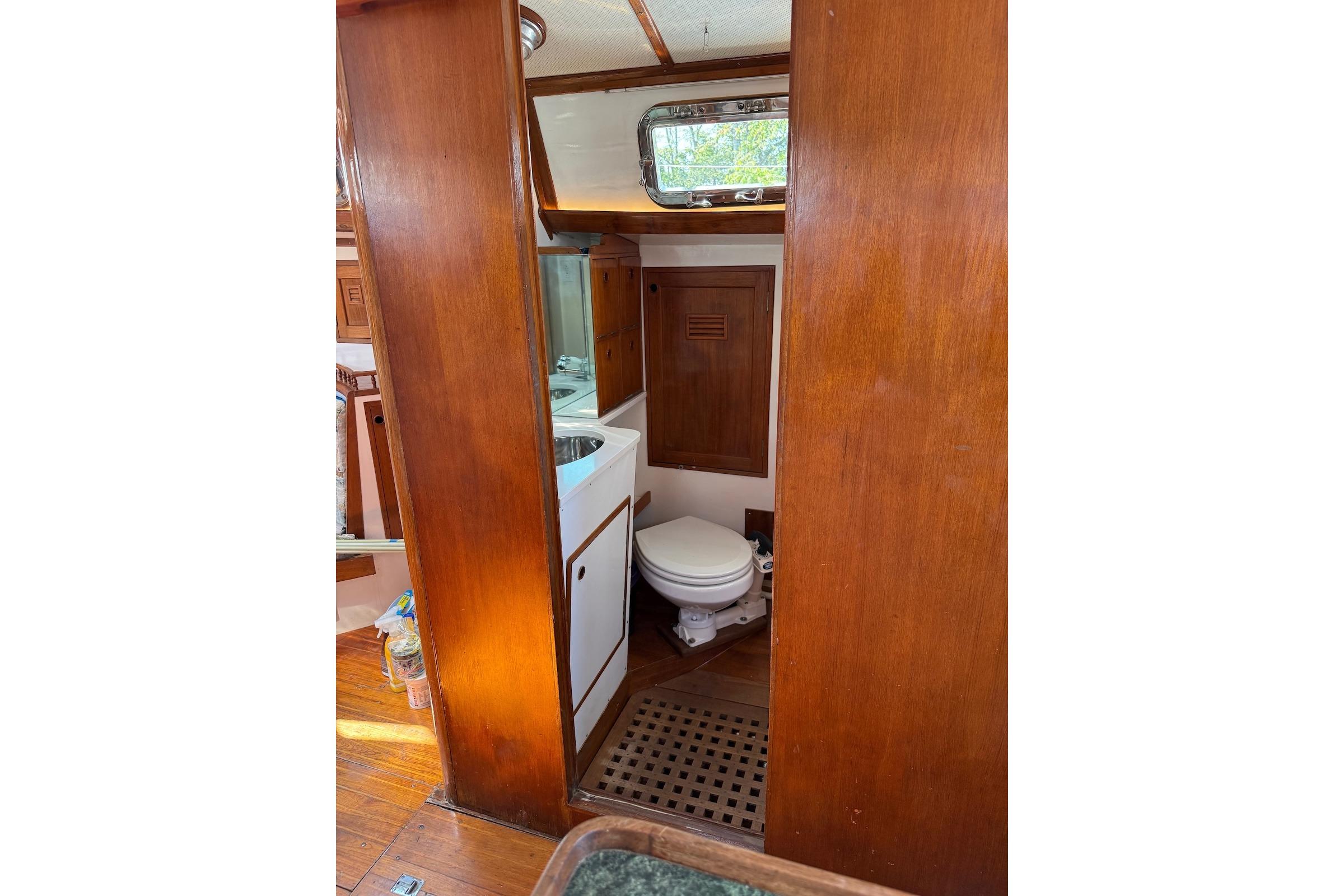

COMPLETE HEAD REFIT
NEW LARGE JABSCO TOILET BOWL, SEAT AND COVER
NEW WASTE LINES TO TANK
NEW 45 GALLON HOLDING TANK
NEW HOLDING TANK, MACERATOR PUMP, THRU HULL AND SWITCH.
NEW QUARTZ CUSTOM MADE COUNTER TOP
NEW DEEP OVAL STAINLESS SINK
CUSTOM FIT WRAP AROUND VANITY MIRROR
NEW SCANDVIK COMBINATION FAUCET / SHOWER HEAD
REMOVED ORIGINAL TEAK COCKPIT SEAT COVERING.
FAIRED AND SEALED COCKPIT SEATS
REPLACED OLD TEAK WITH GLUED DOWN SYNTHETIC FLEXI-TEAK
NEW CUSTOM MADE NEIL PRYDE SAIL BAGS / LAZY JACK SYSTEM FOR MAIN
AND MIZZEN IN NAVY BLUE
NEW CUSTOM MADE HATCH COVERS (4) IN NAVY BLUE
NEW CUSTOM MADE TEAK WHEEL COVER AND COCKPIT COVER IN NAVY BLUE
NEW CUSTOM MADE COCKPIT TEAK TABLE COVER IN NAVY BLUE
2016
NEW CUSTOM FOLDING MATTRESS IN OWNERS STATEROOM
2014 - 2015
PURCHASED NEW CUSTOM 4 PIECE DELUXE WINTER COVER WITH 10" SKIRT
COVER USED EVERY WINTER FOR TEN YEARS.
Specifications
Basic Information
- Manufacturer:
- Cheoy Lee
- Model:
- Offshore 41 ketch
- Year:
- 1977
- Category:
- Sail
- Condition:
- Used
- Location:
- Glen Cove, NY, US
- Vessel Name:
- Boat Type:
- Cruisers, Ketch
- Hull Material:
- Fiberglass
- Designer:
Dimensions & Weight
- Length:
- 41 ft - 12.5 meter
- LOA:
- 47 ft 8 in - 14.53 meter
- Beam:
- 18 ft 3 in - 5.56 meter
- Draft - max:
- - meter
- Bridge Clearance:
- Dry Weight:
Engine
- Make:
- Model:
- Engine(s):
- 0
- Hours:
- Cruise Speed:
- Range:
- Engine Type:
- Drive Type:
- Fuel Type:
- Horsepower:
- (Individual), (combined)
- Max Speed:
Tank Capacities
- Fuel Tank:
- Gallon(s) - tank(s)
- Fresh Water Tank:
- Gallon(s) - tank(s)
- Holding Tank:
- Gallon(s)
Accommodations
- Total Cabins:
- Total Berths:
- -
- Total Heads:
Gallery
Descriptions
Disclaimer
The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
