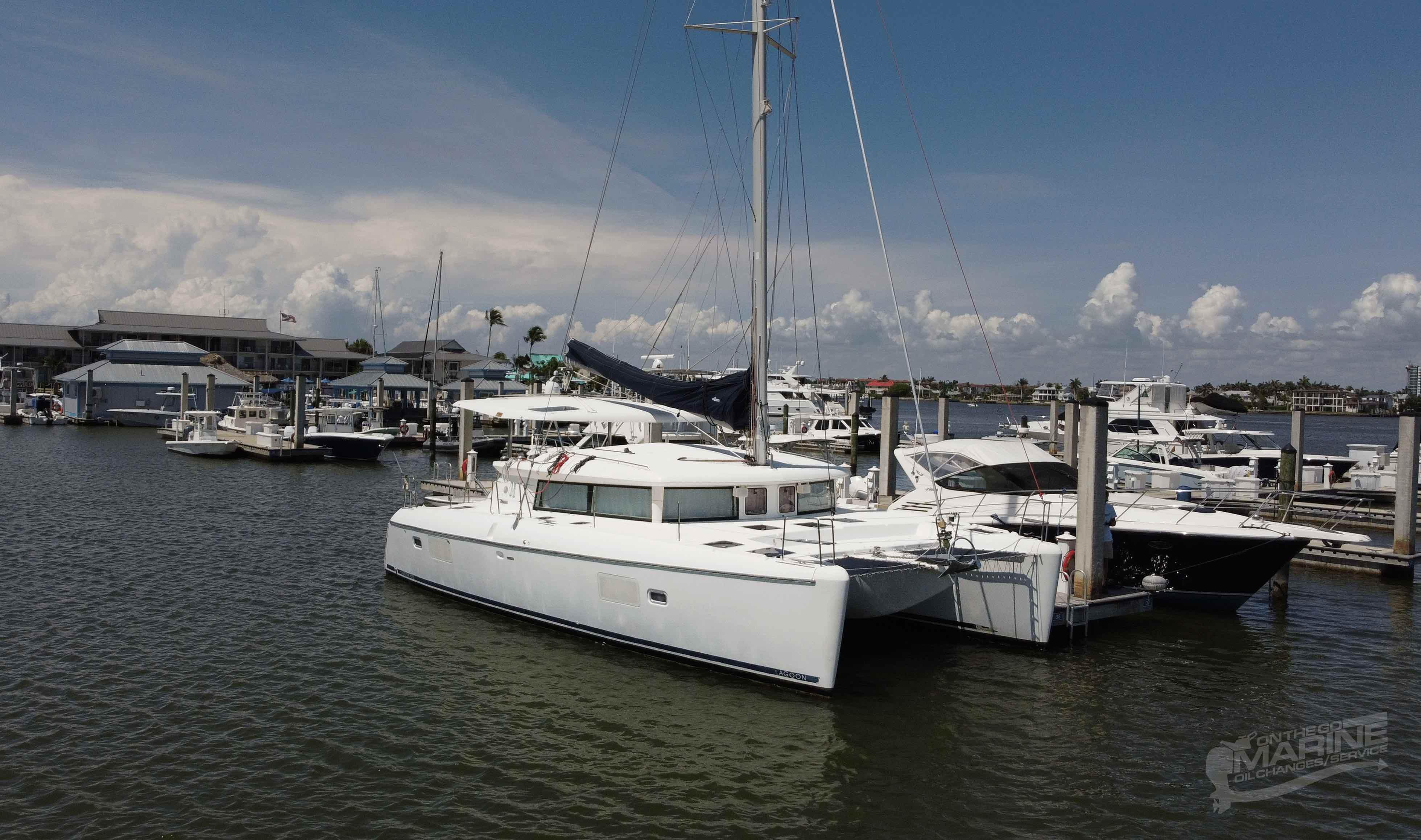

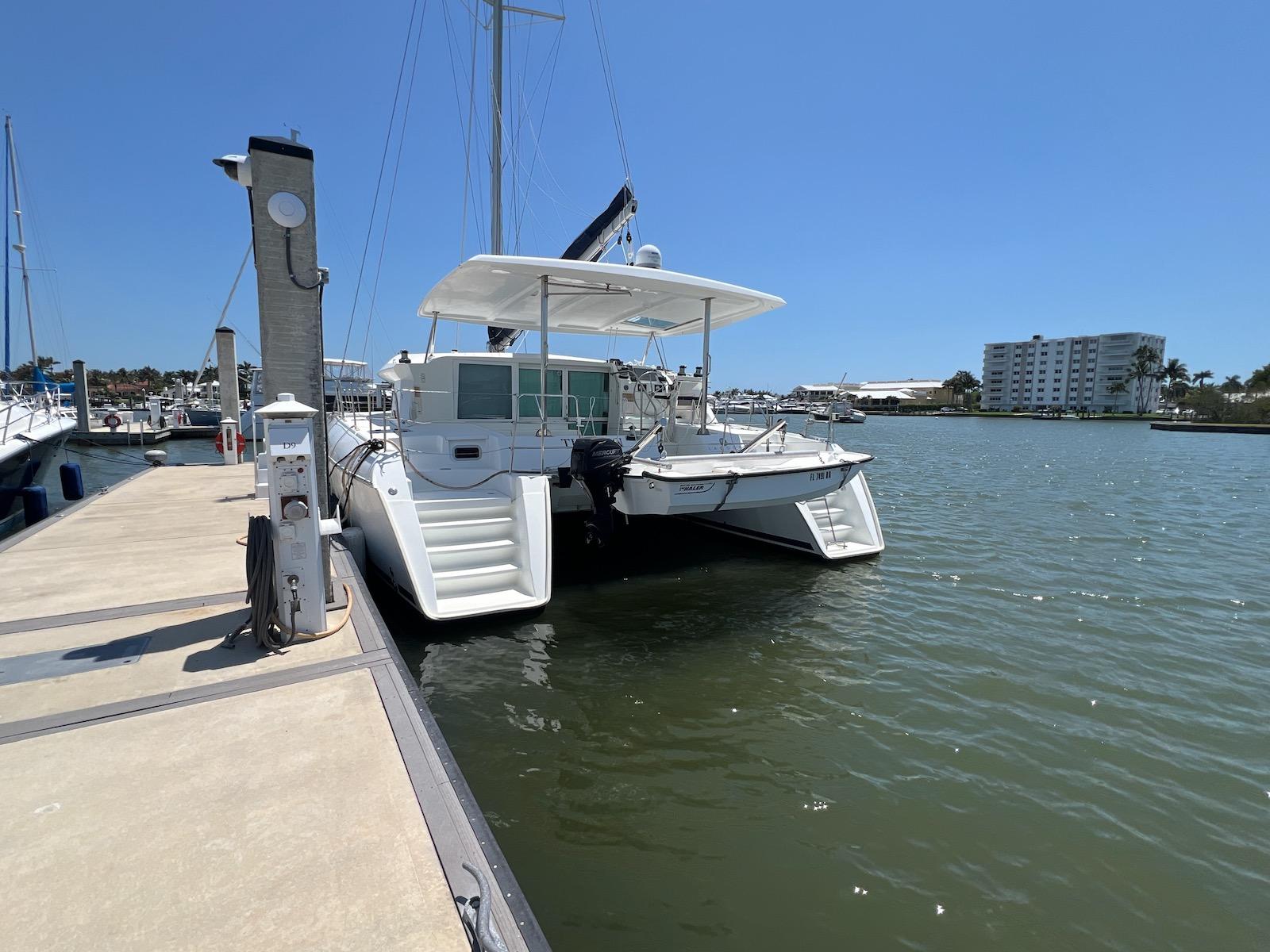

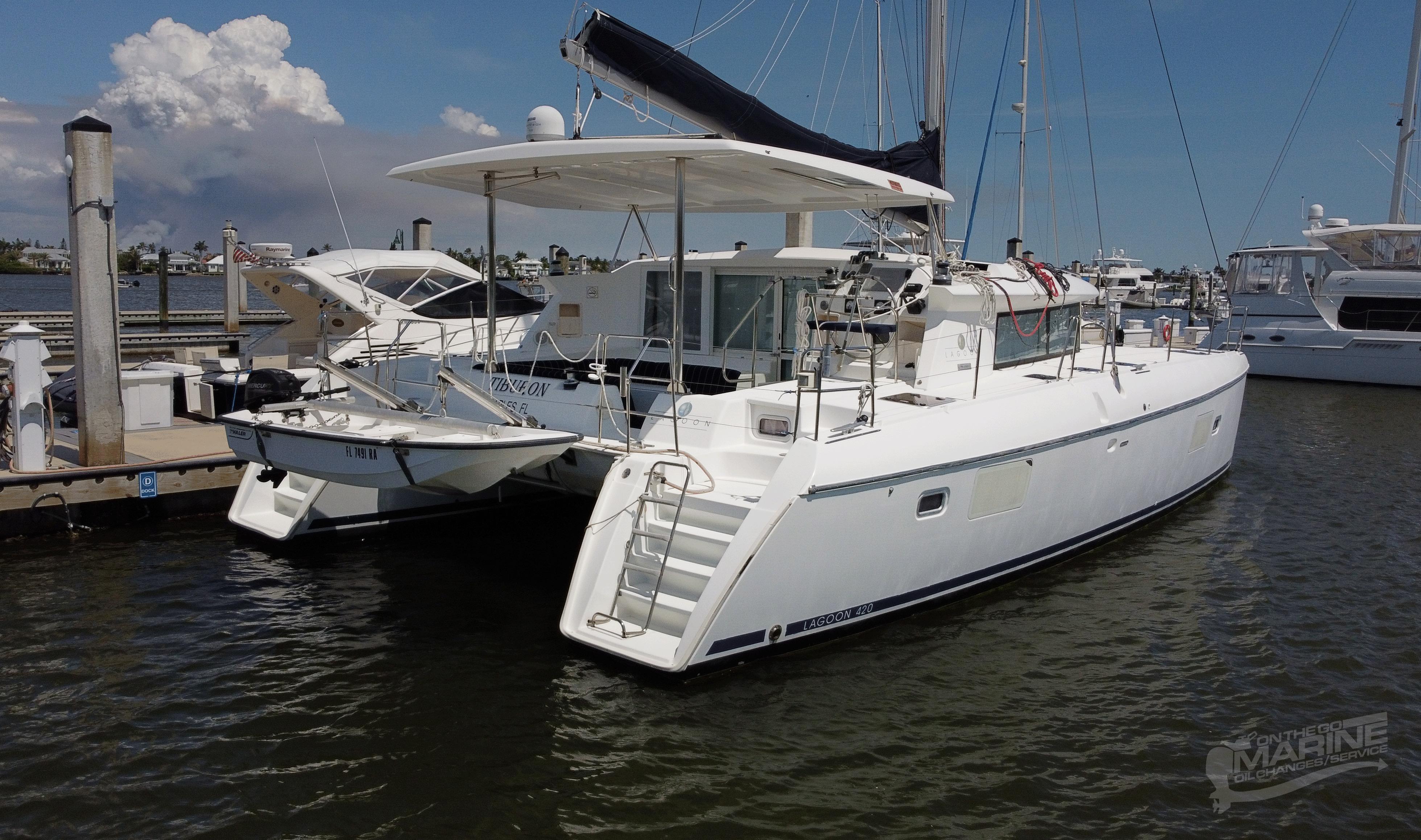

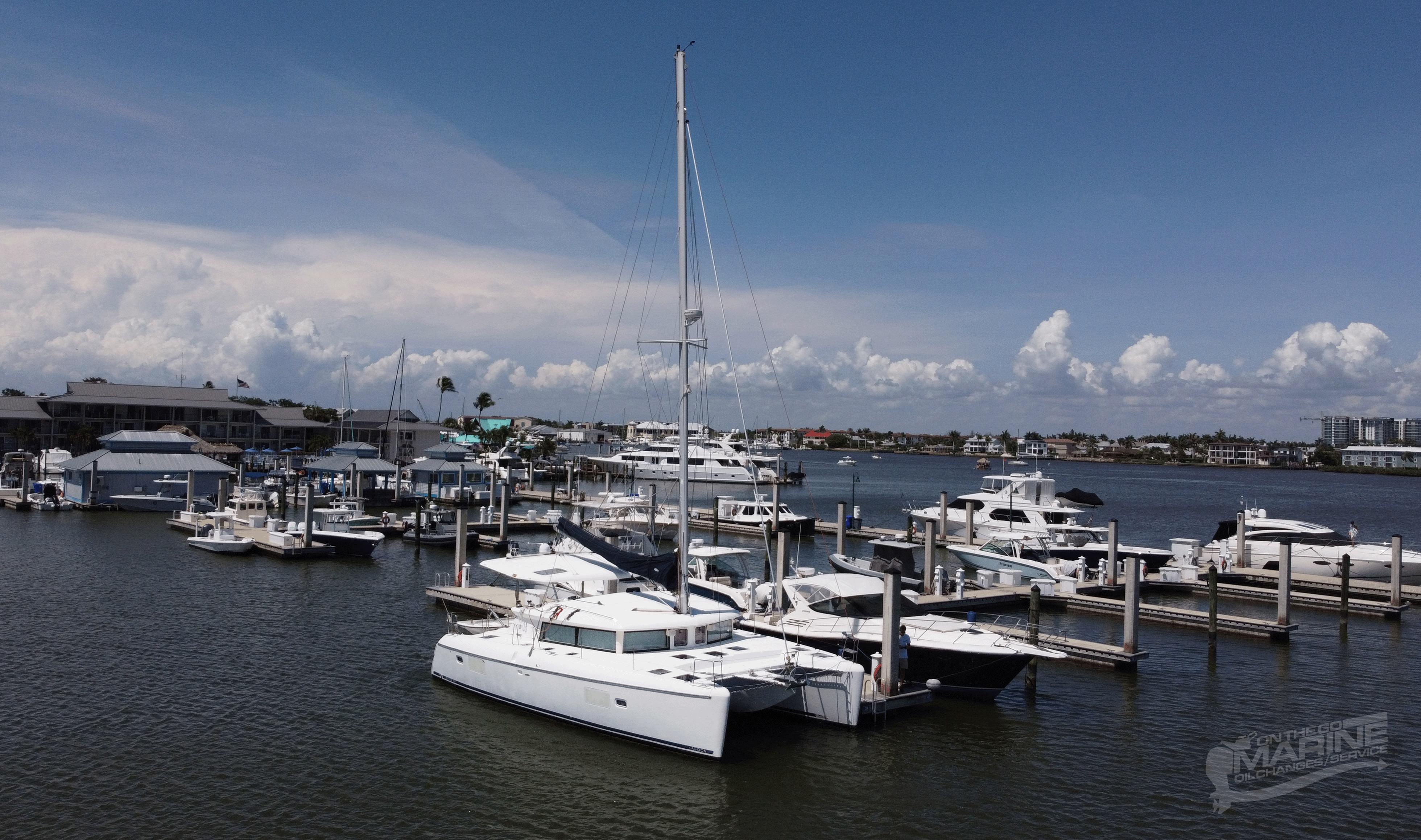

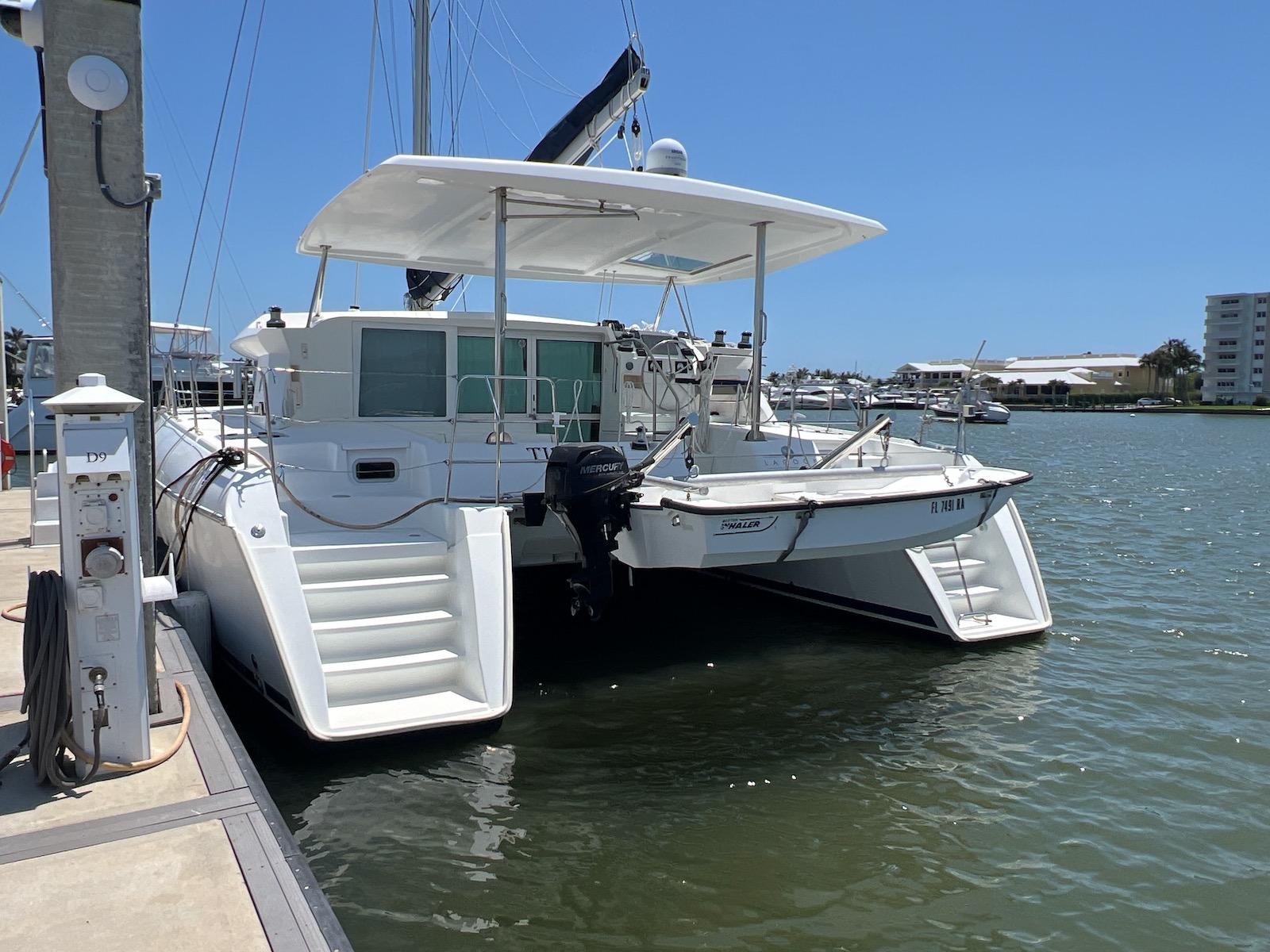

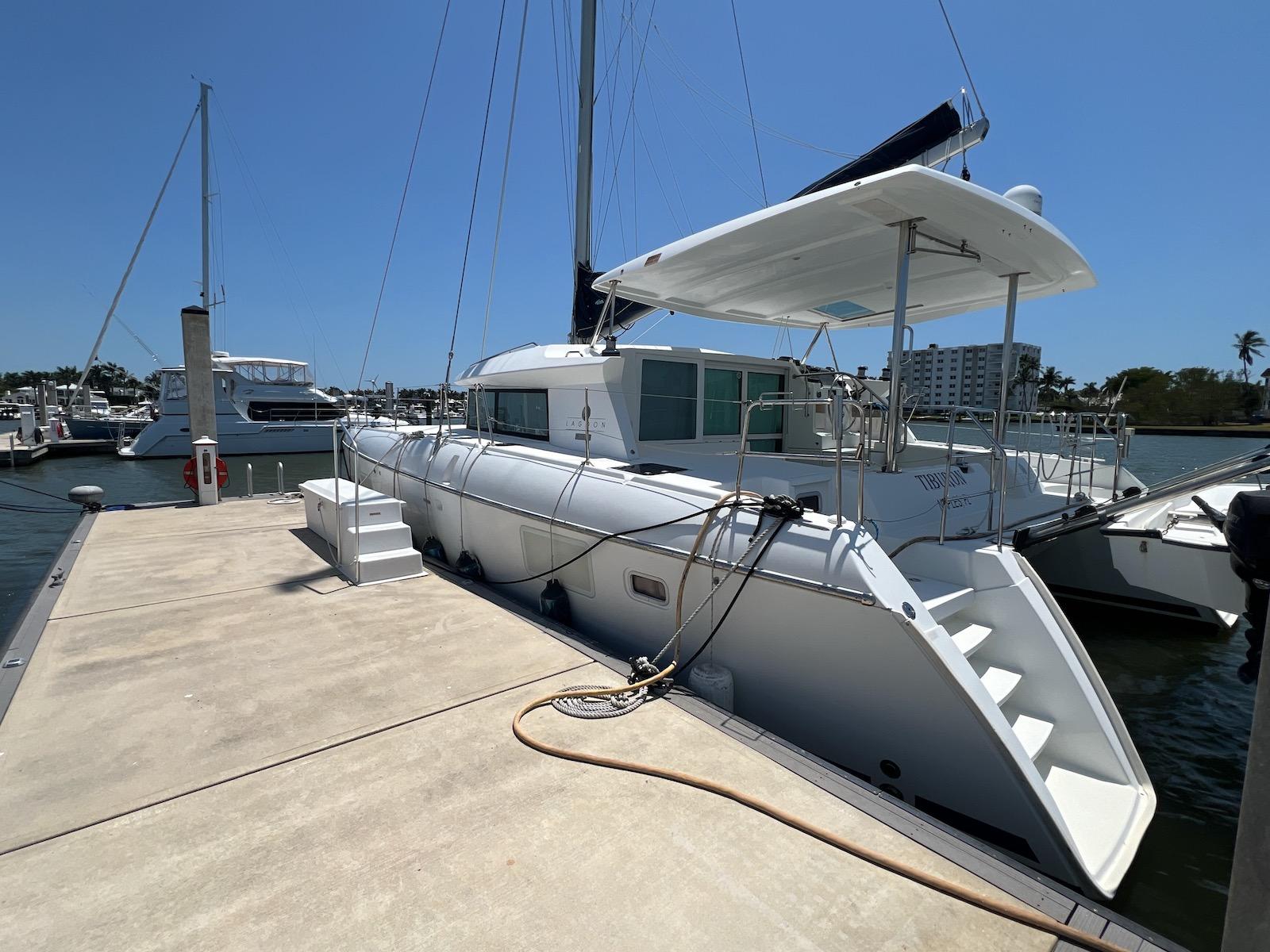

2008 Lagoon 420

Immaculate example of Lagoon 420 Catamaran - Owner's Suite-3 Cabin, 3 Head model with massive salon. Meticulous owner open checkbook Full electronics including Raymarine Chartplotter, Radar, Autopilot, Wind, and Depth at Helm AND Nav Station. Fully Battened Main with Stack Pack for easy handling. Two Genoas-110 and 130. Hard top over spacious outside seating with new table. Four Marine Air A/C systems. Onan 11 KW Generator. Dinghy Davits and Boston Whaler hard dinghy with 20HP Outboard. Two electric winches, Windlass-everything needed for living aboard and cruising!

Recent sail drive replacement to new Myanmar sail drive 60’s 2022

Recent  standing rigging replacement

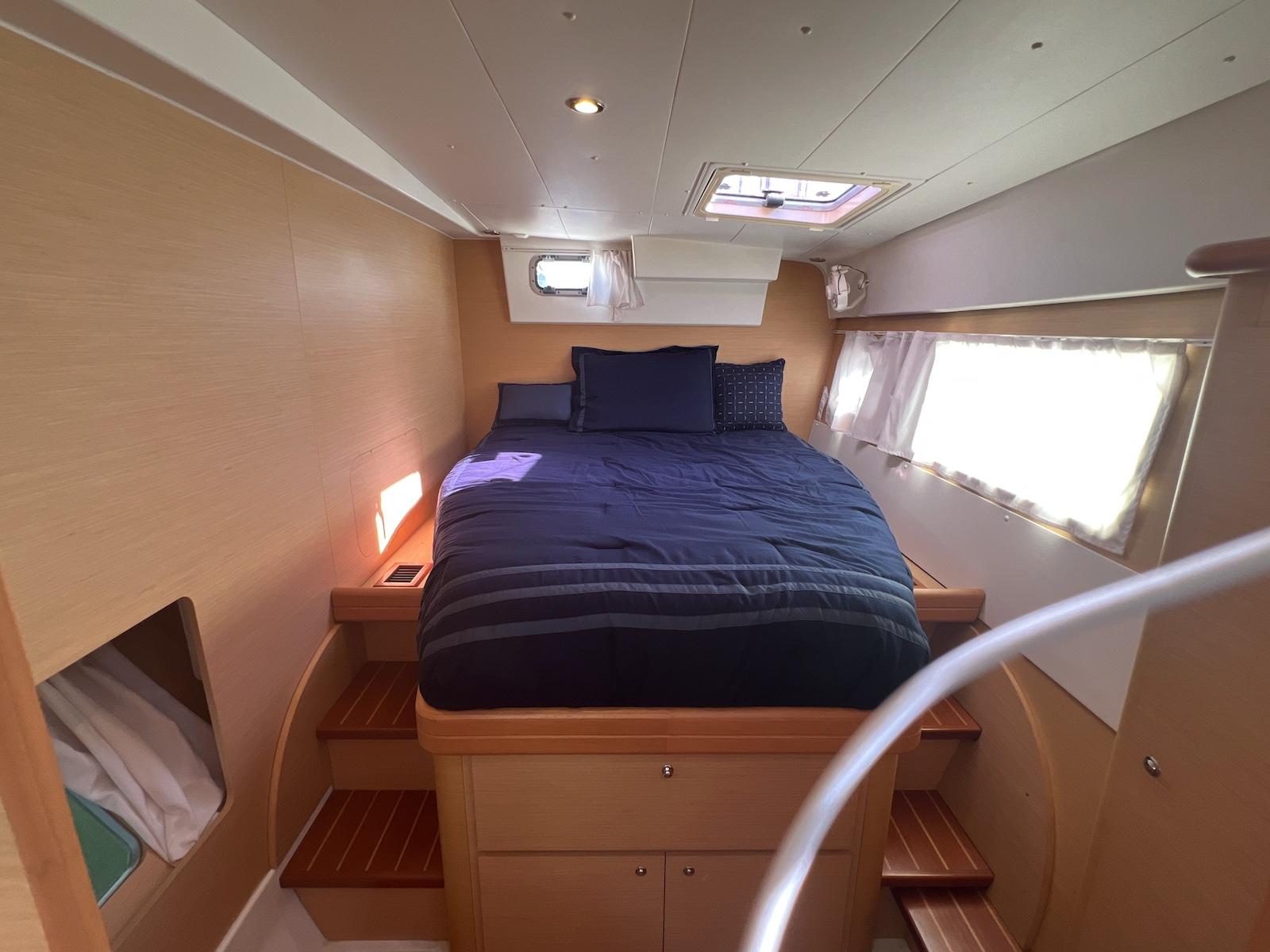

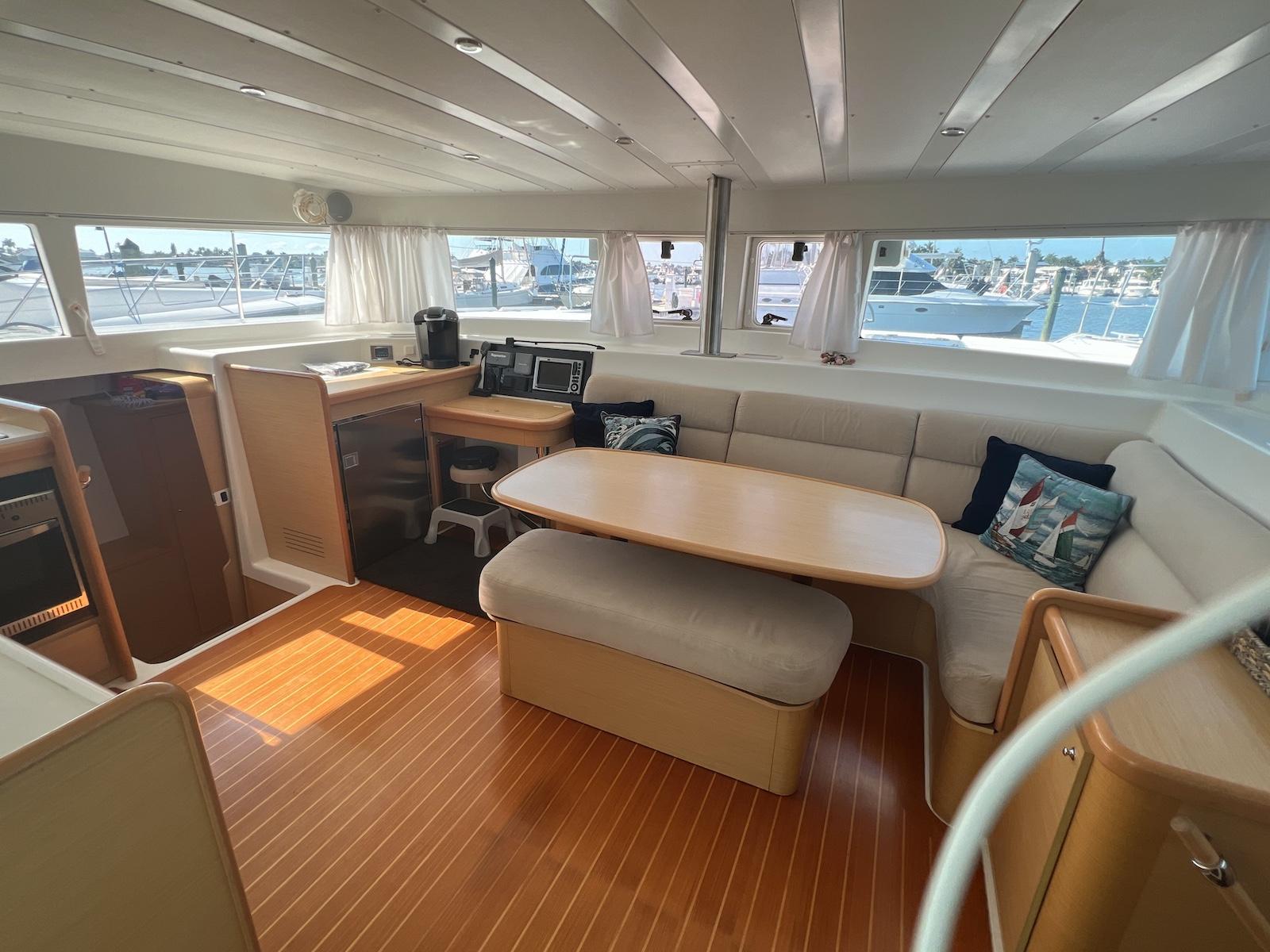

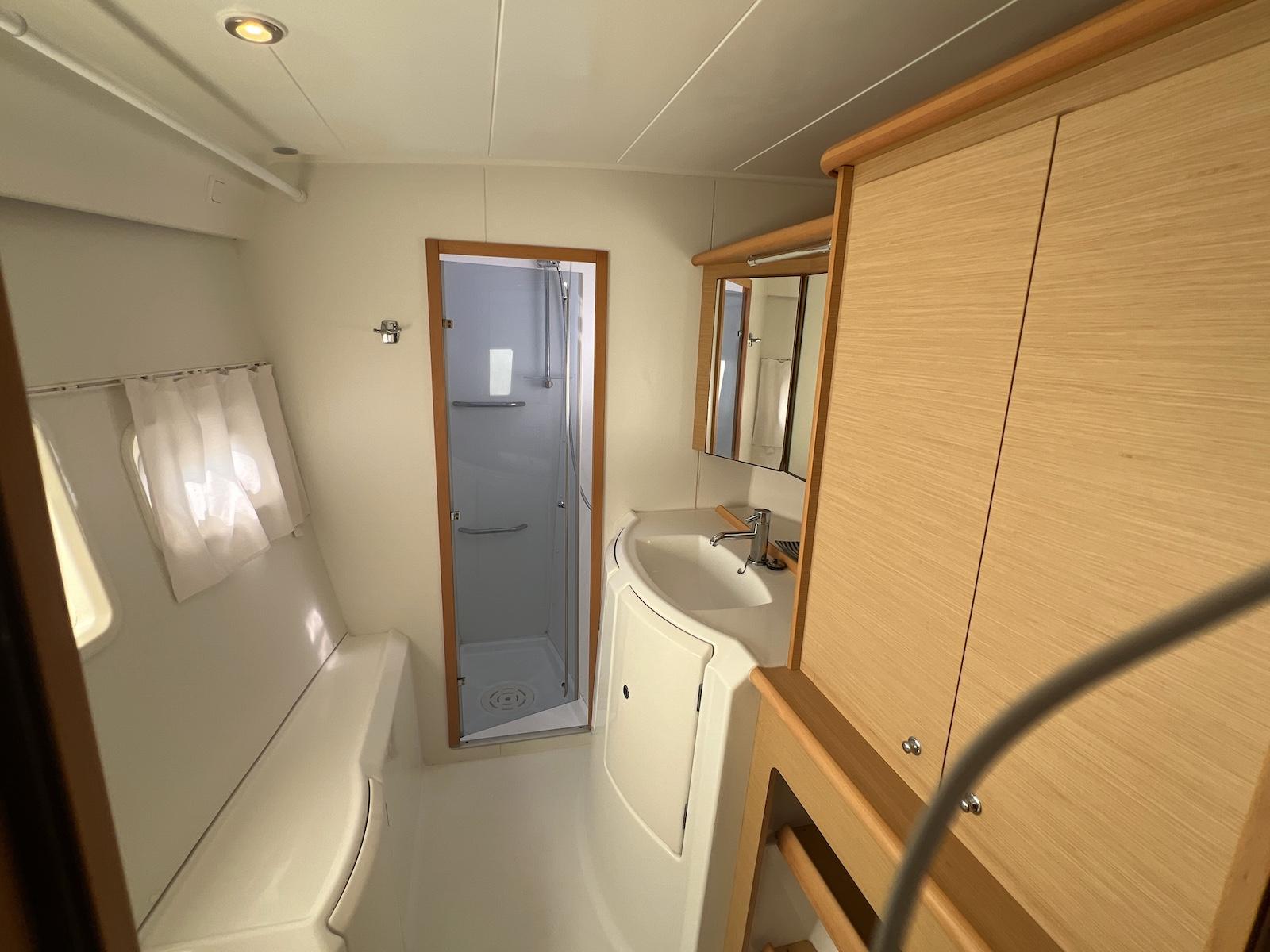

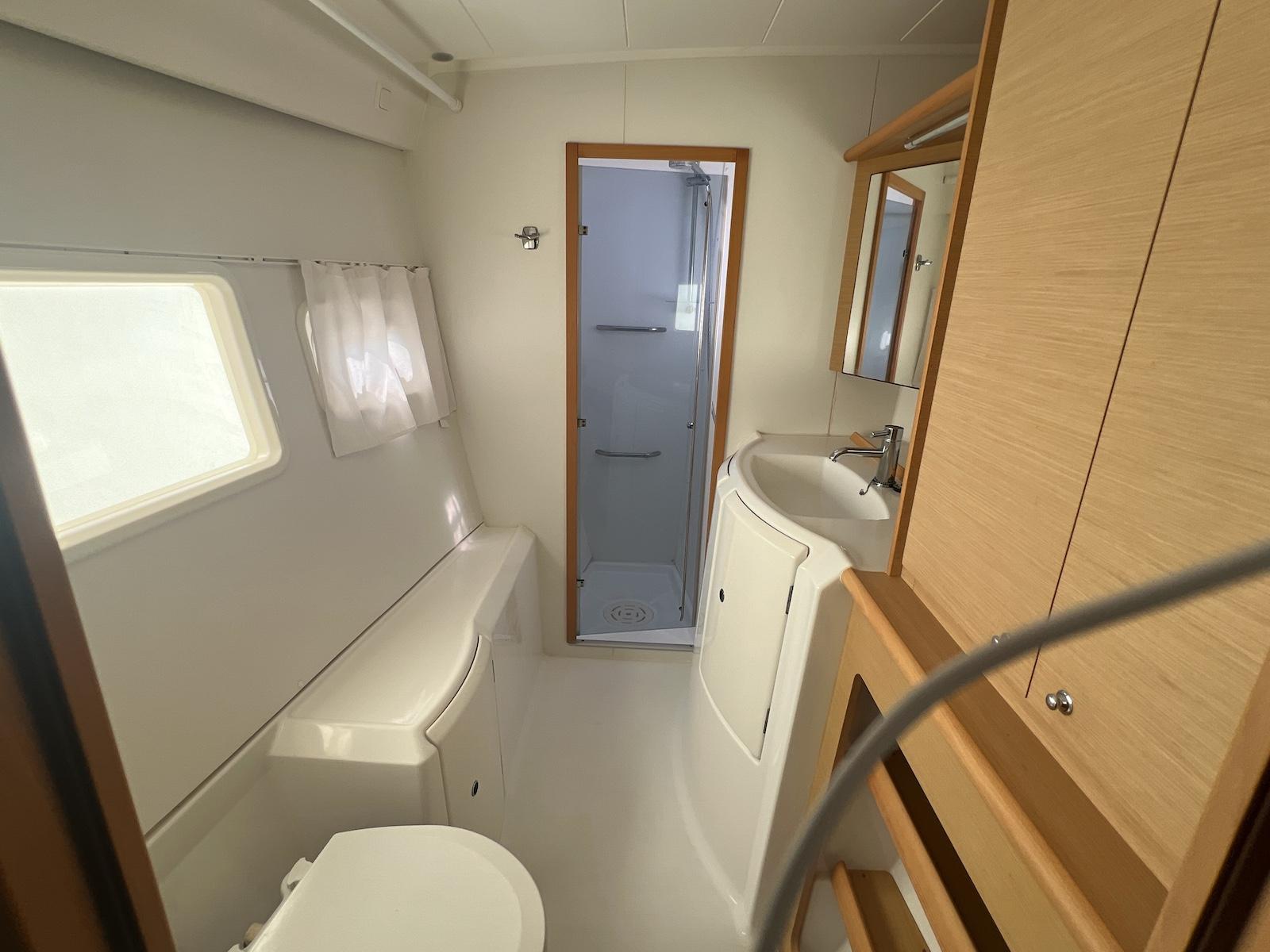

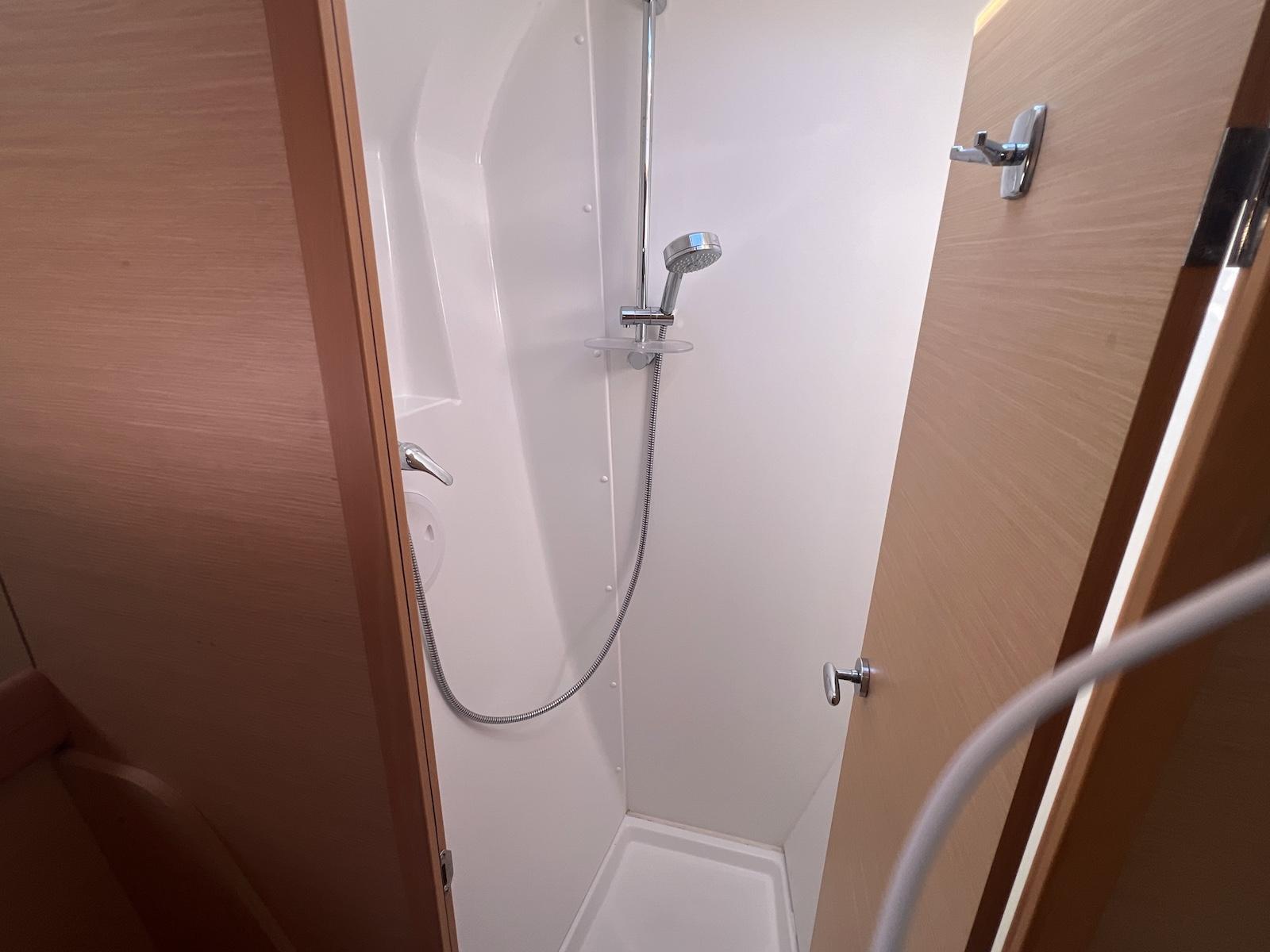

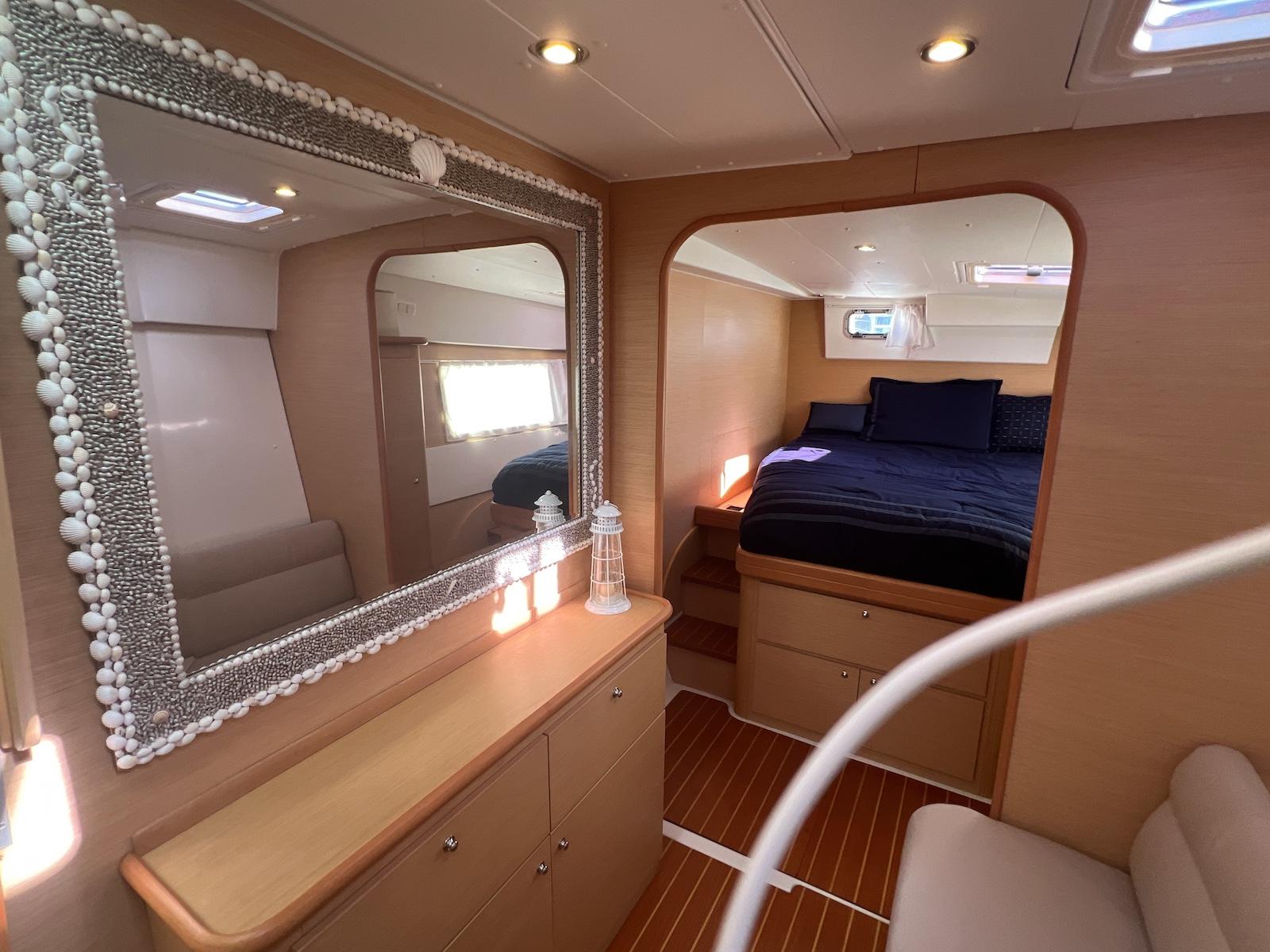

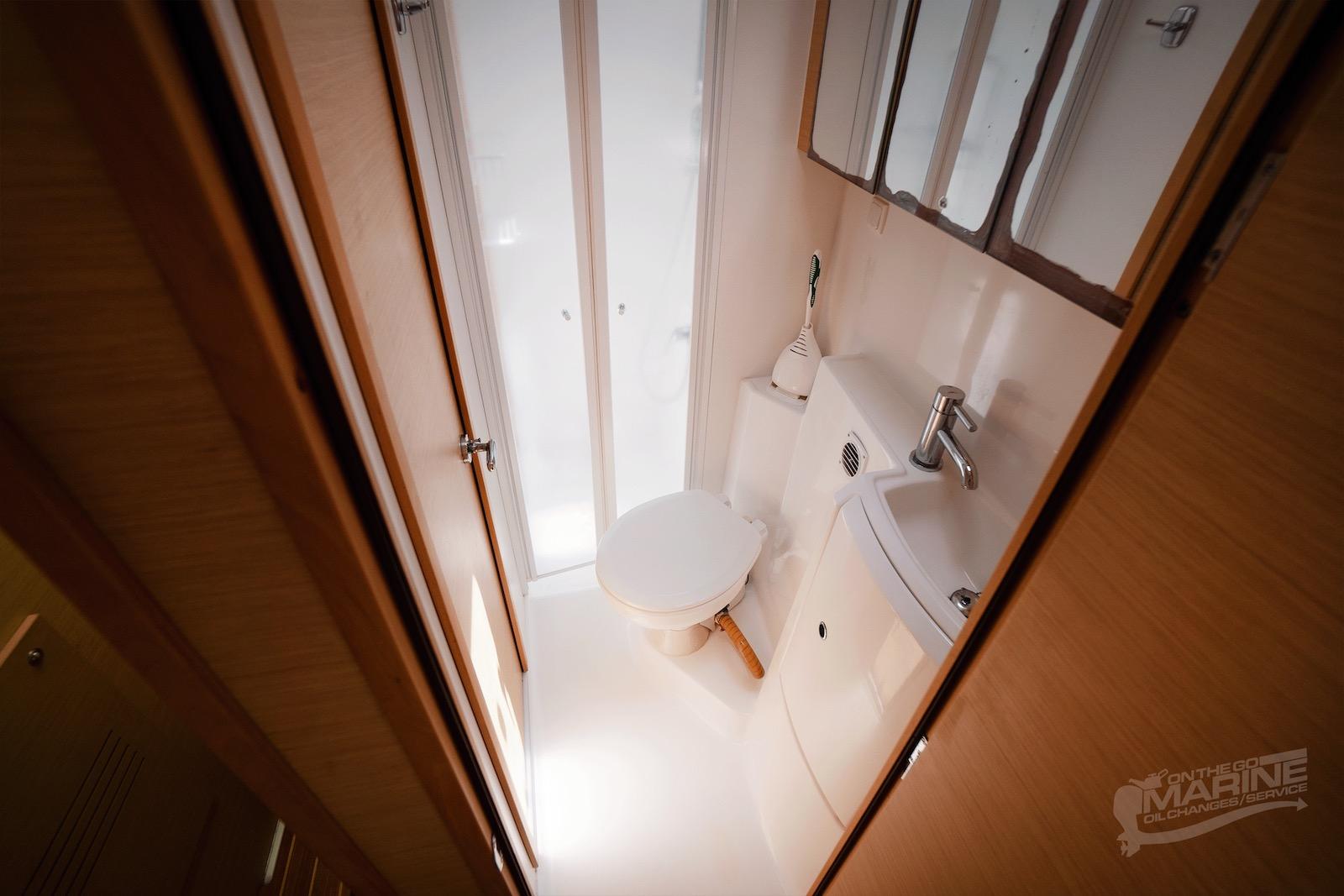

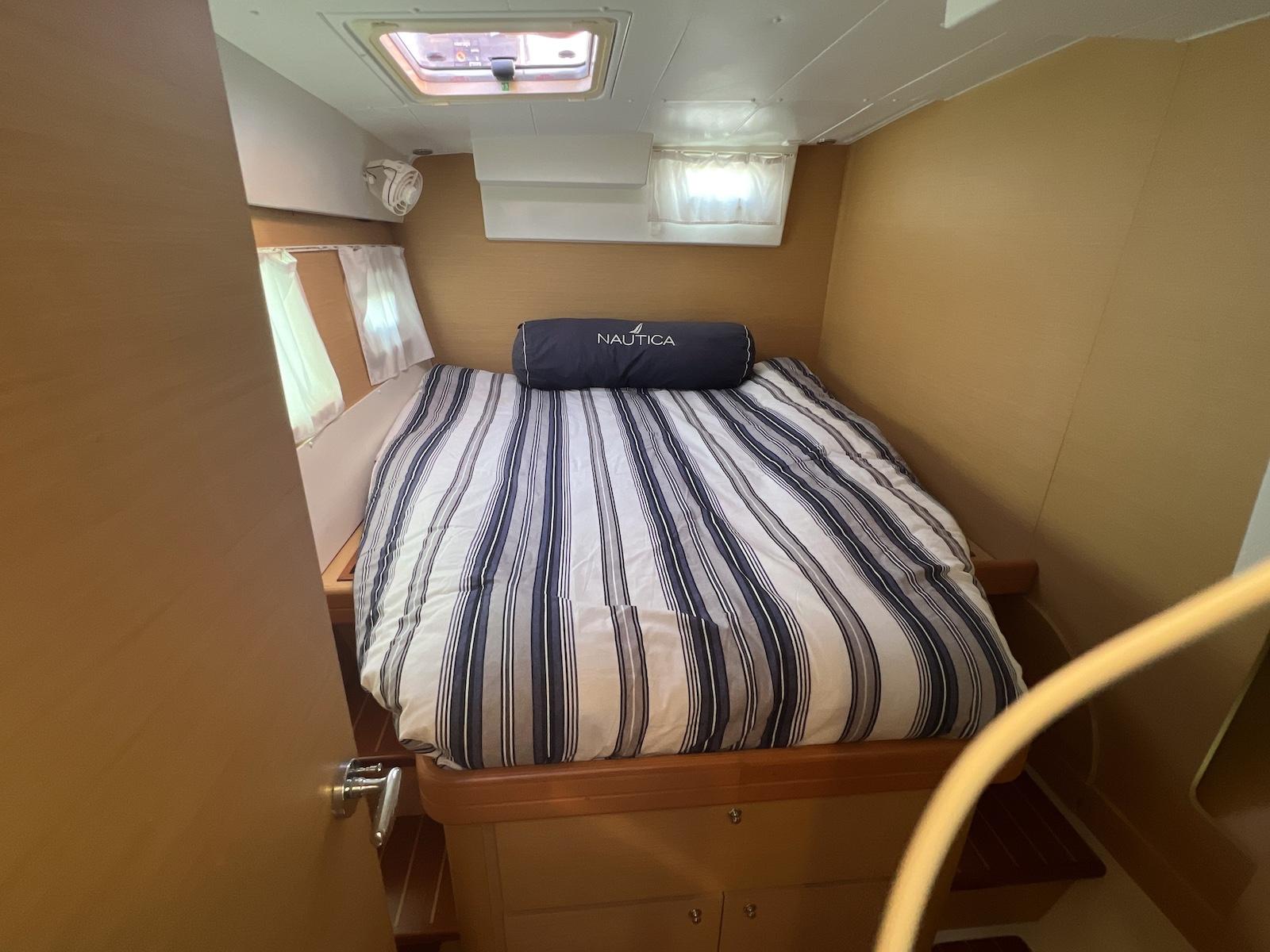

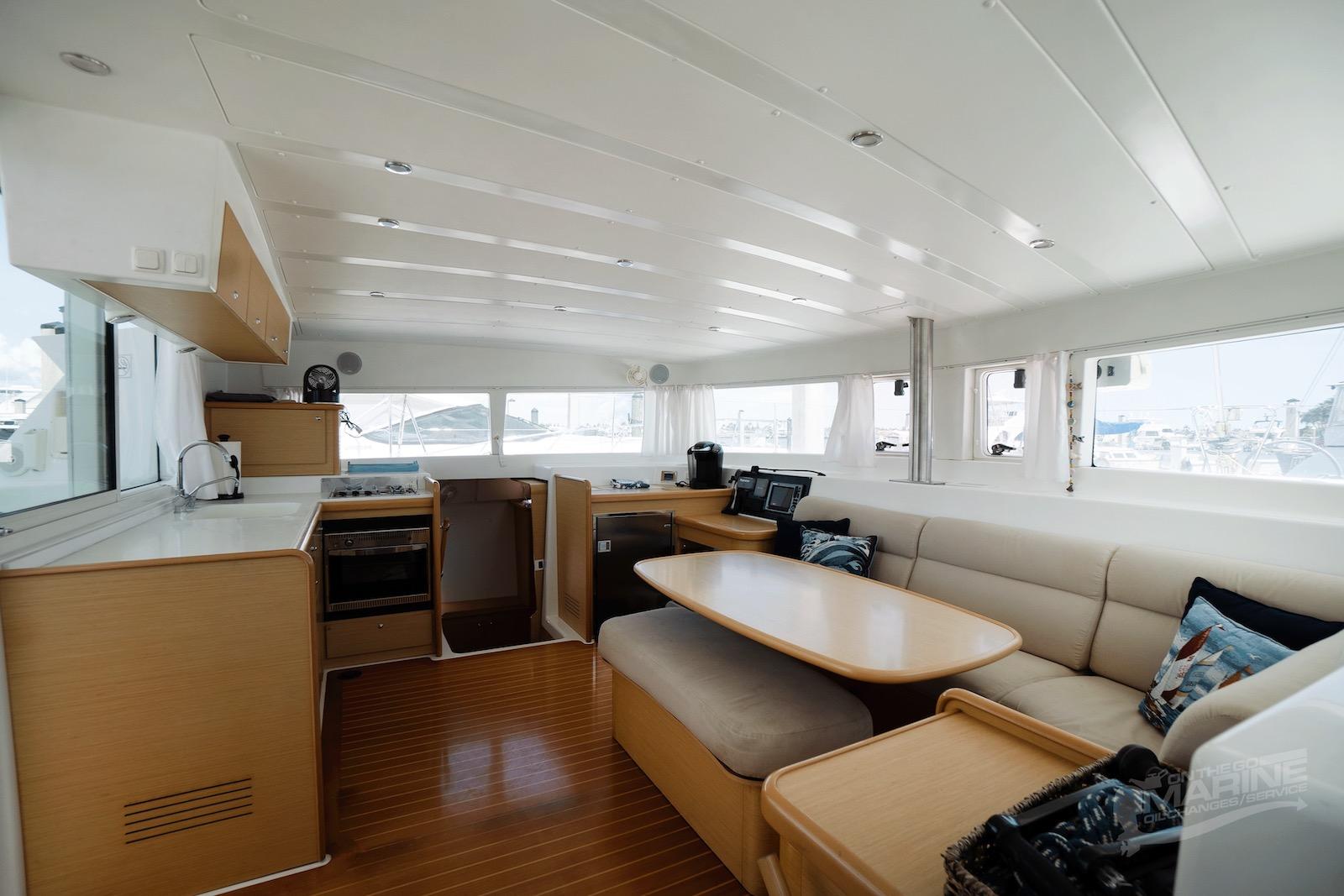

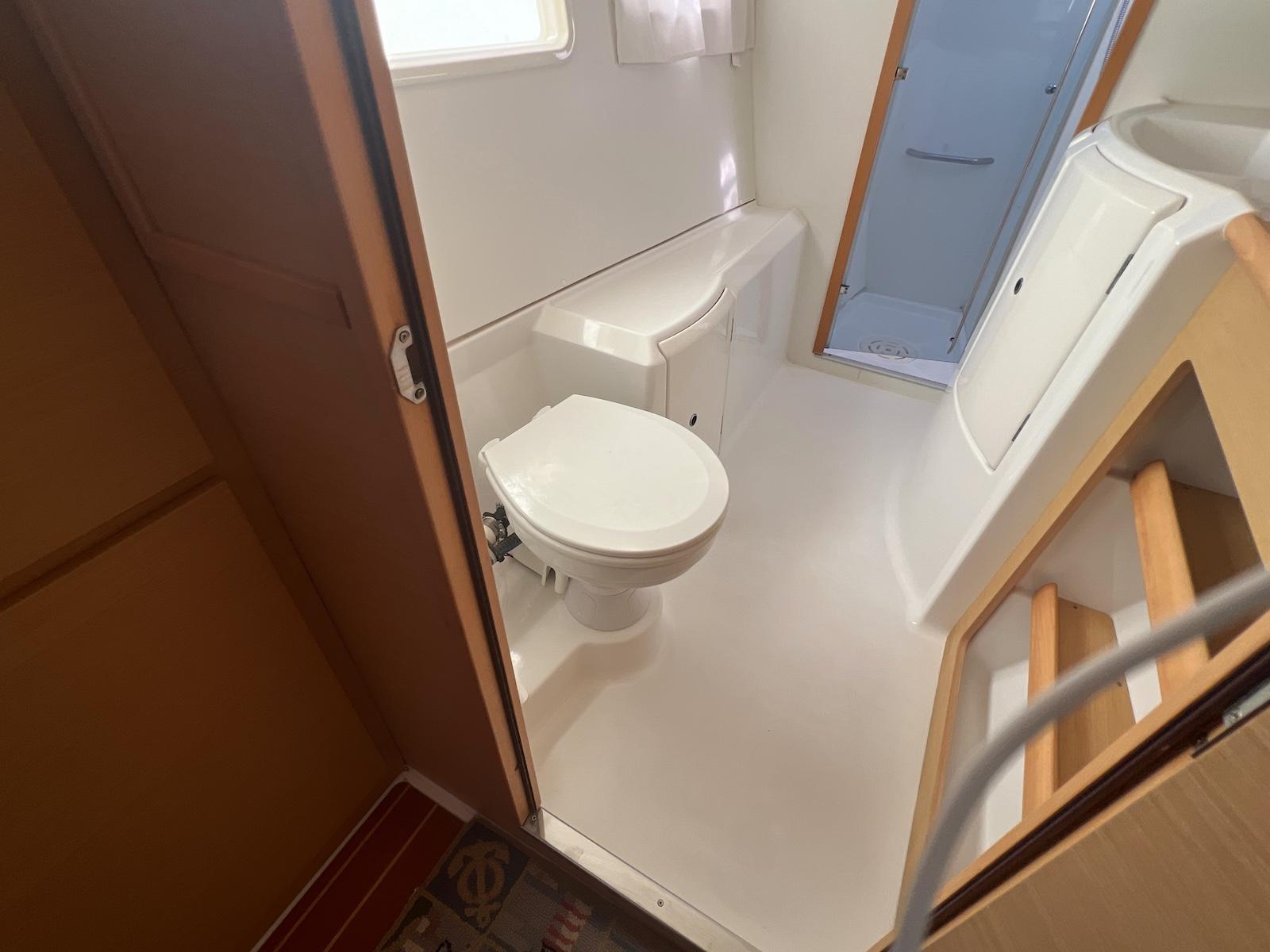

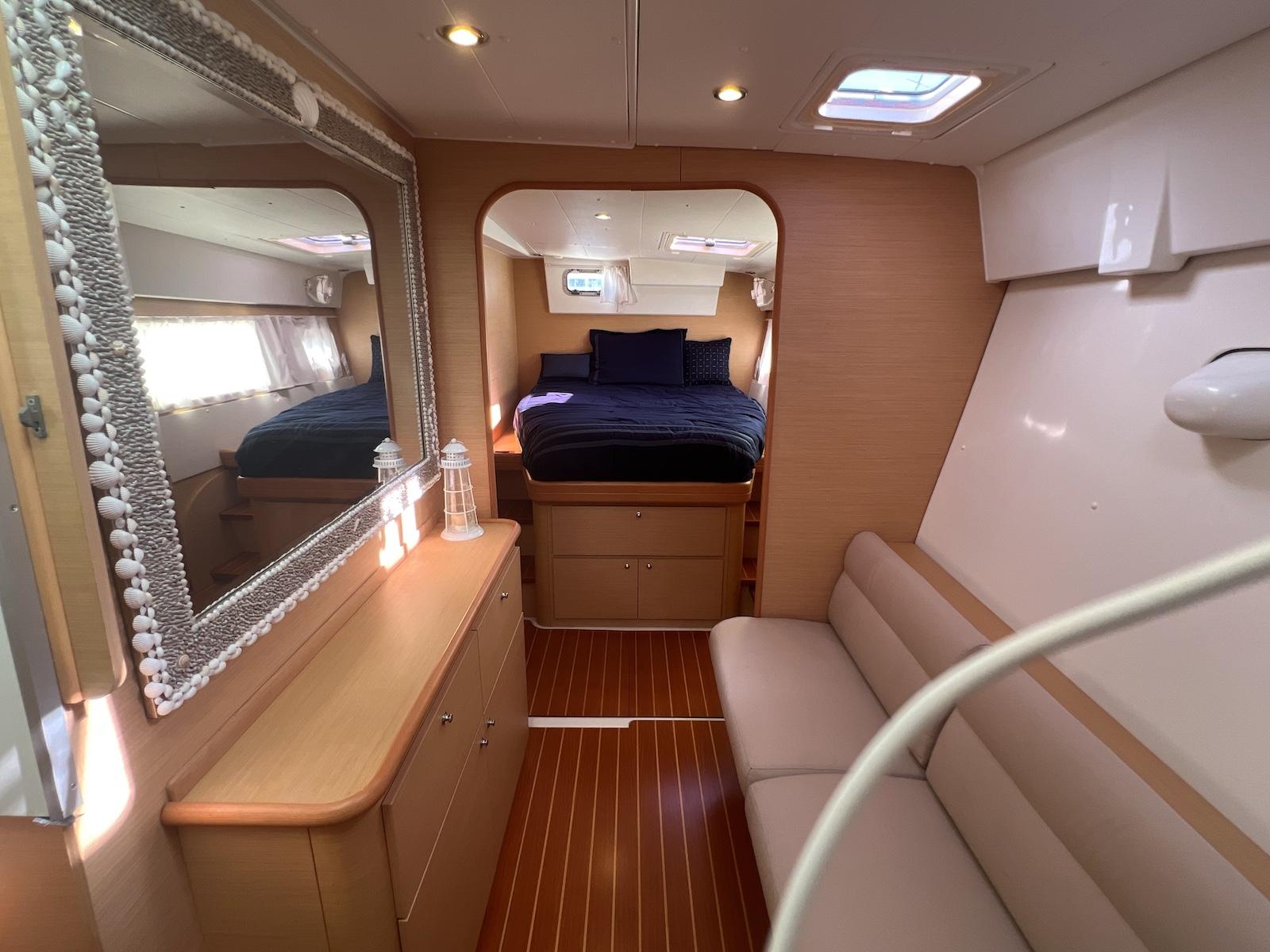

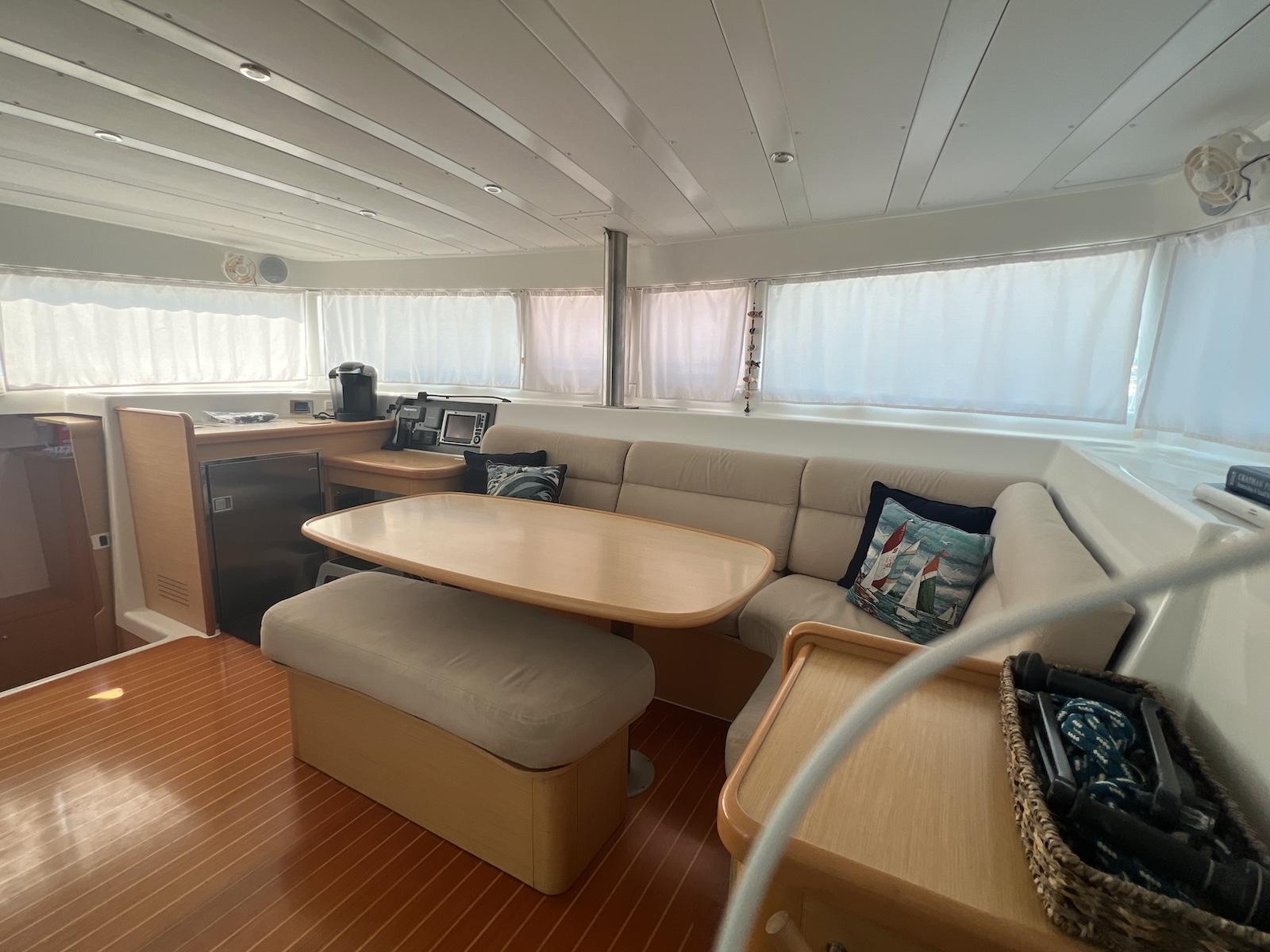

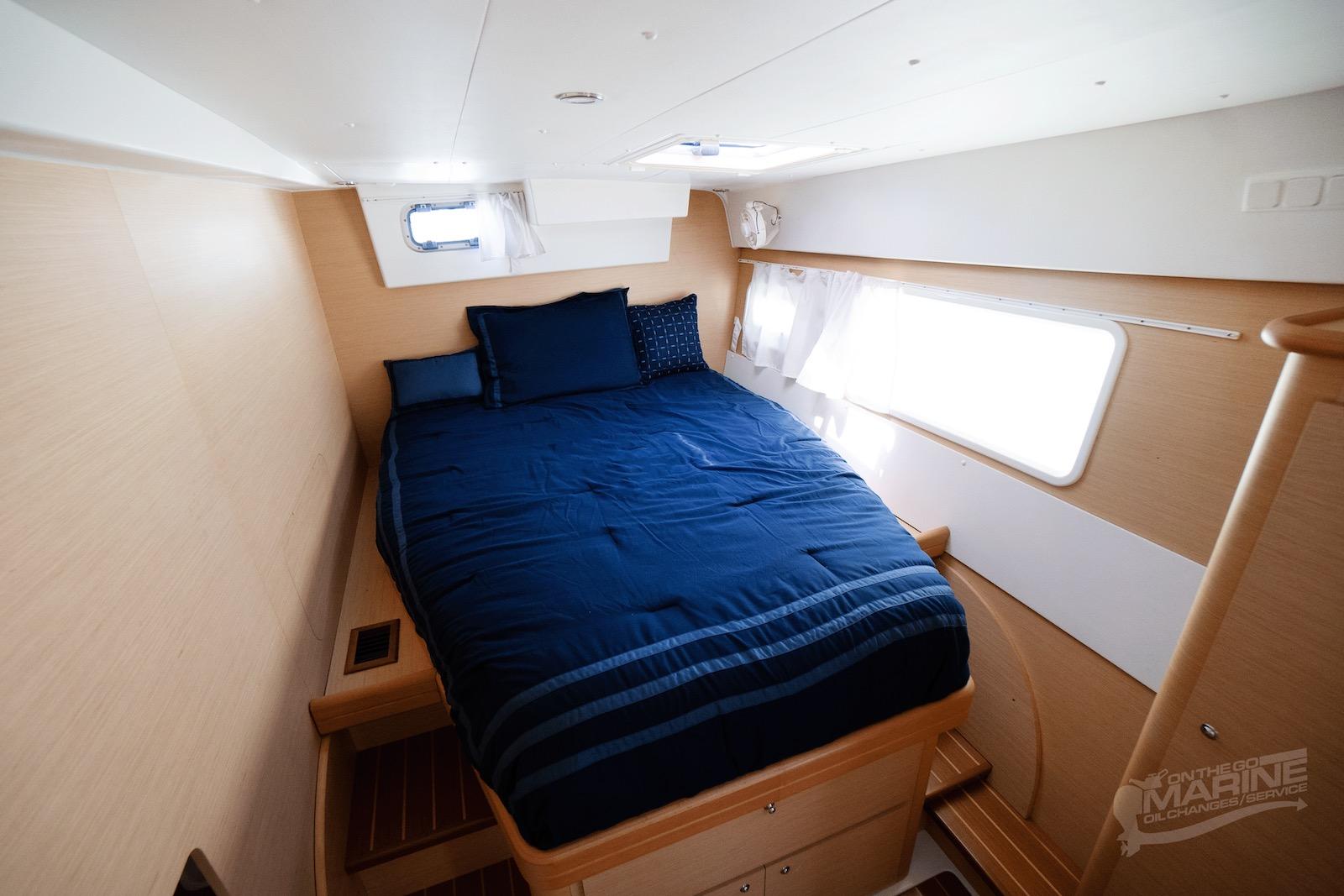

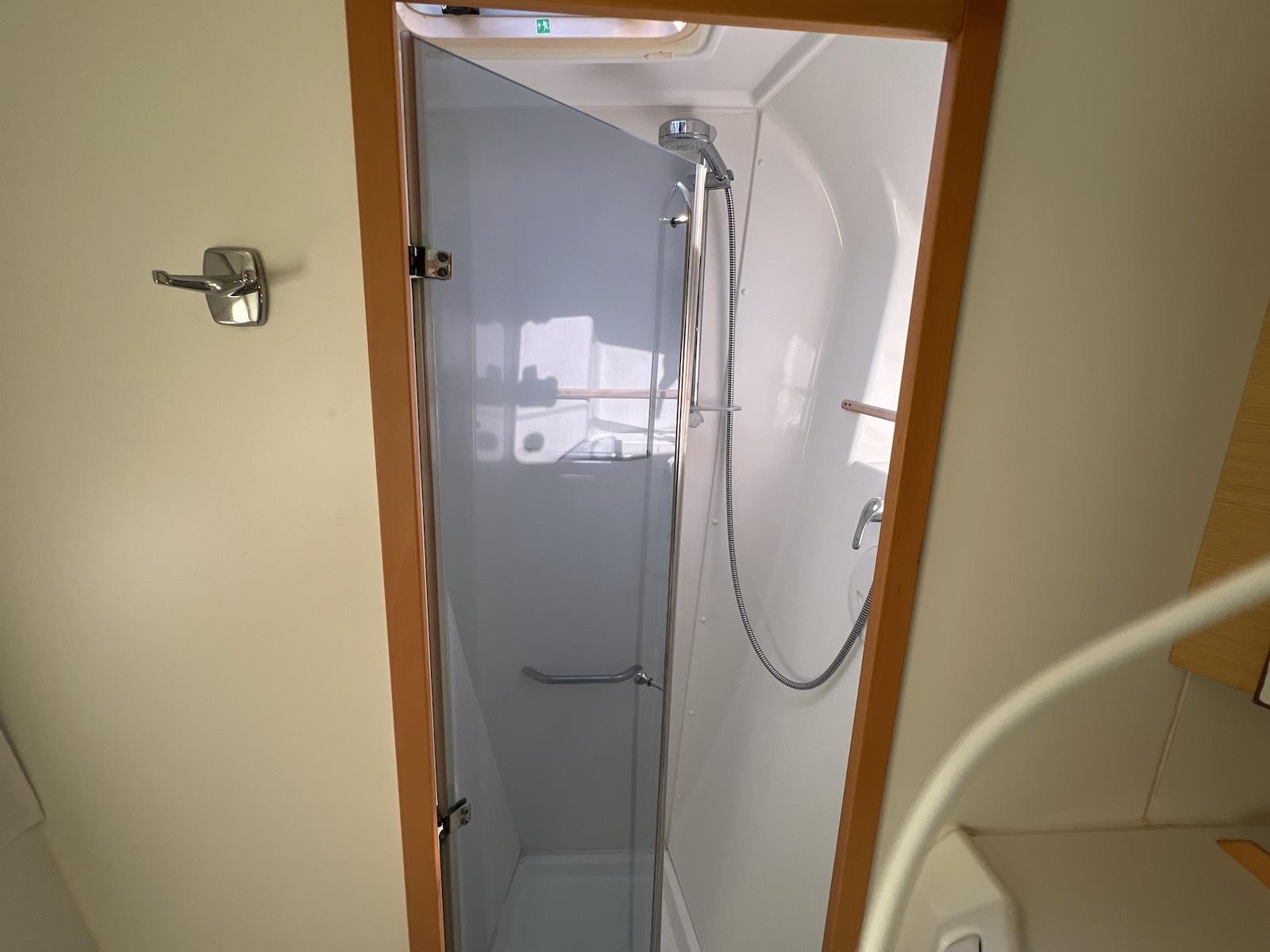

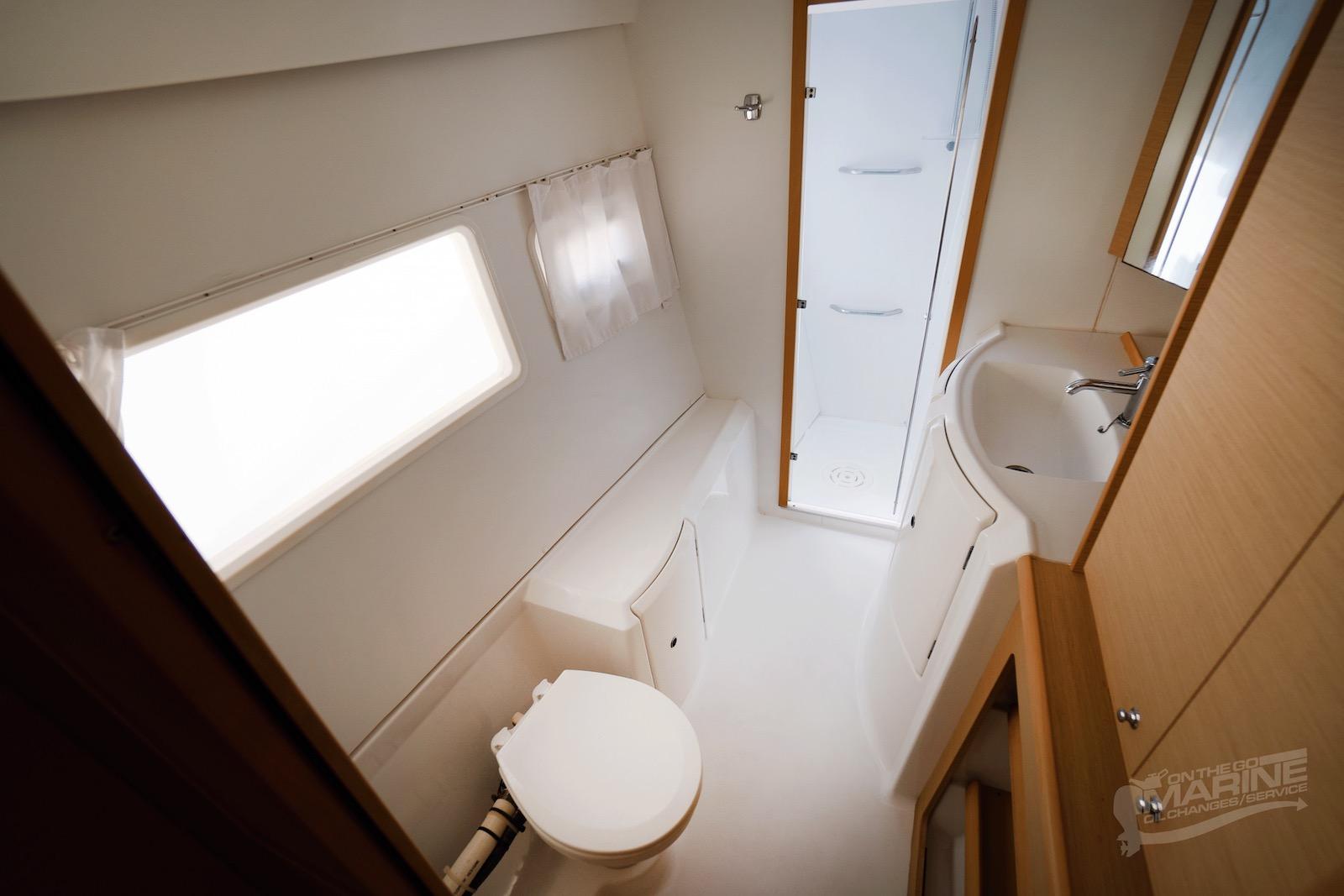

Salon is huge, new Corian Counter with Integral large and deep sink. New Isotherm Refrigerator and Freezer. Owner's Suite has spacious head and shower and massive storage. Three large pedestal beds provide comfort for all aboard.

Just detailed including buff and wax-you can't miss seeing this one if you are looking for an exceptional catamaran!

Basic Information

Dimensions & Weight

Engine

Tank Capacities

Accommodations

Detailed Specs

Specs

Keel: Twin Keel

Dimensions

LOA: 41 ft 4 in

Beam: 24 ft 7 in

LWL: 40 ft 4 in

Maximum Draft: 4 ft 3 in

Headroom: 6 ft 7 in

Engines

Total Power: 40 HP

Engine 1:

Engine Brand: Yanmar

Year Built: 2008

Engine Model: 3JH4E

Engine Type: Inboard

Engine/Fuel Type: Diesel

Propeller: Folding propeller

Drive Type: Sail drive SD60

Engine Power: 40 HP

Engine 2:

Engine Brand: Yanmar

Year Built: 2008

Engine Model: 3JH4E

Engine Type: Inboard

Engine/Fuel Type: Diesel

Propeller: Folding propeller

Drive Type: Sail drive SD60

Tanks

Fresh Water Tanks: 2 (90 Gallons)

Fuel Tanks: 2 (80 Gallons)

Holding Tanks: 2 (20 Gallons)

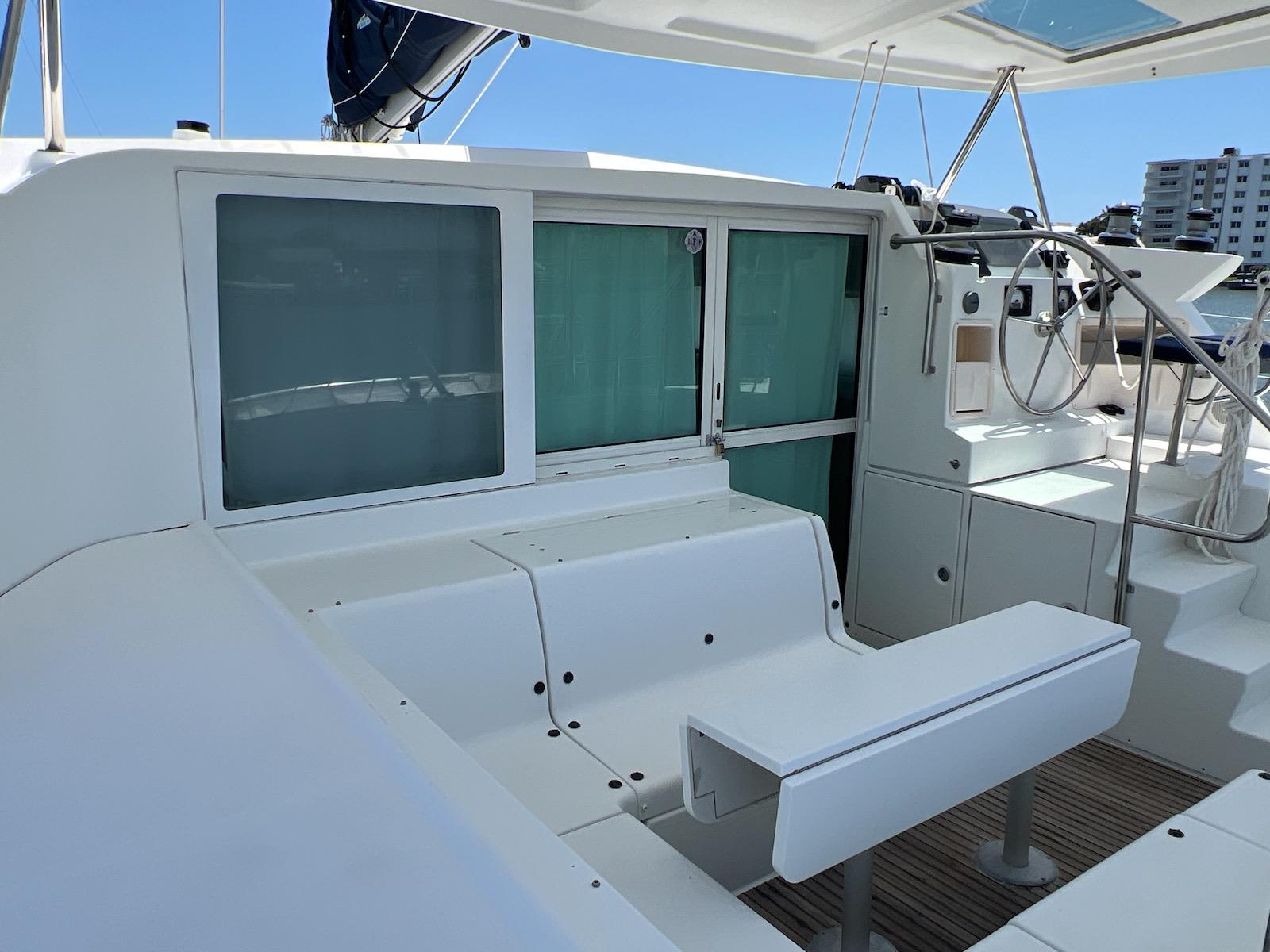

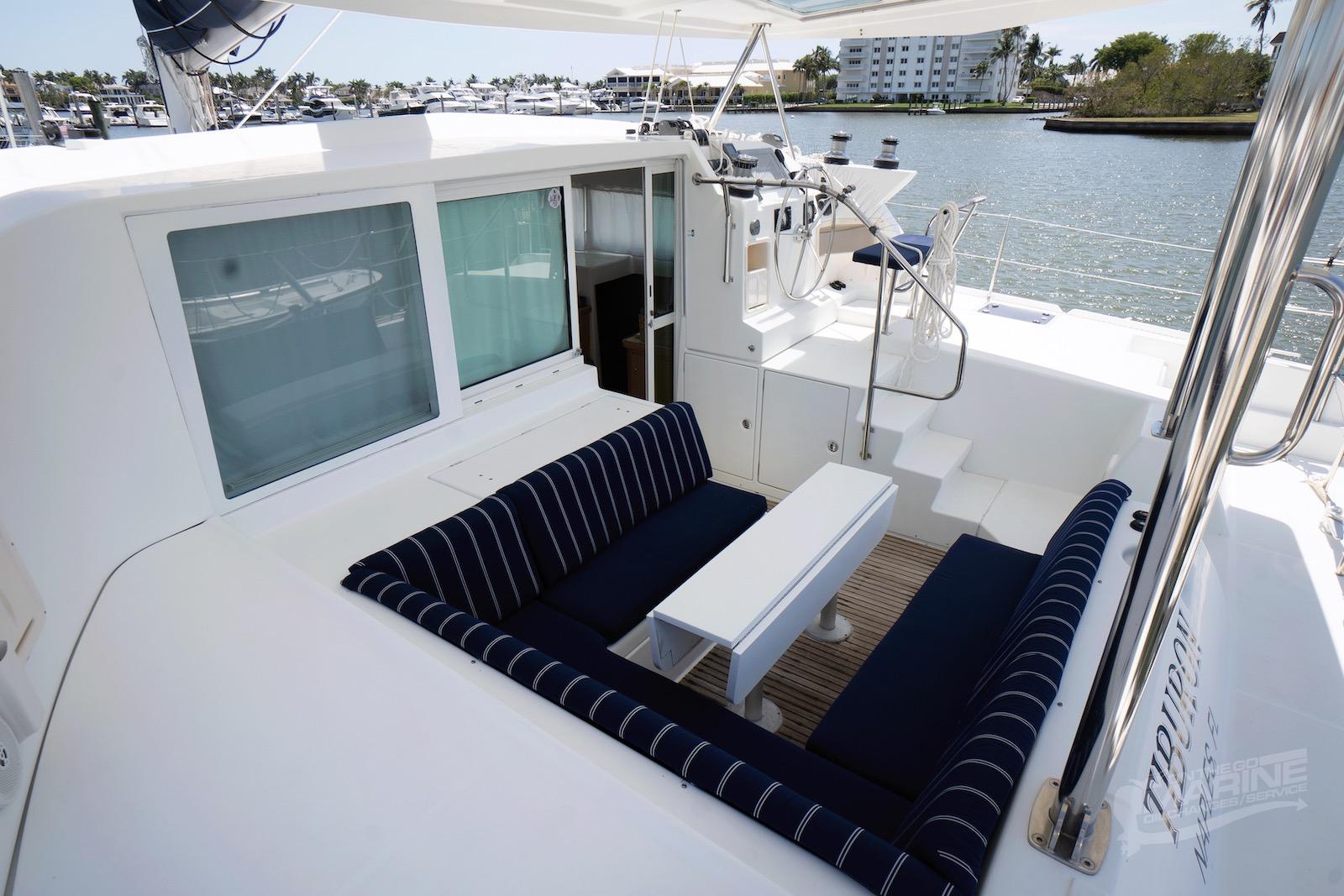

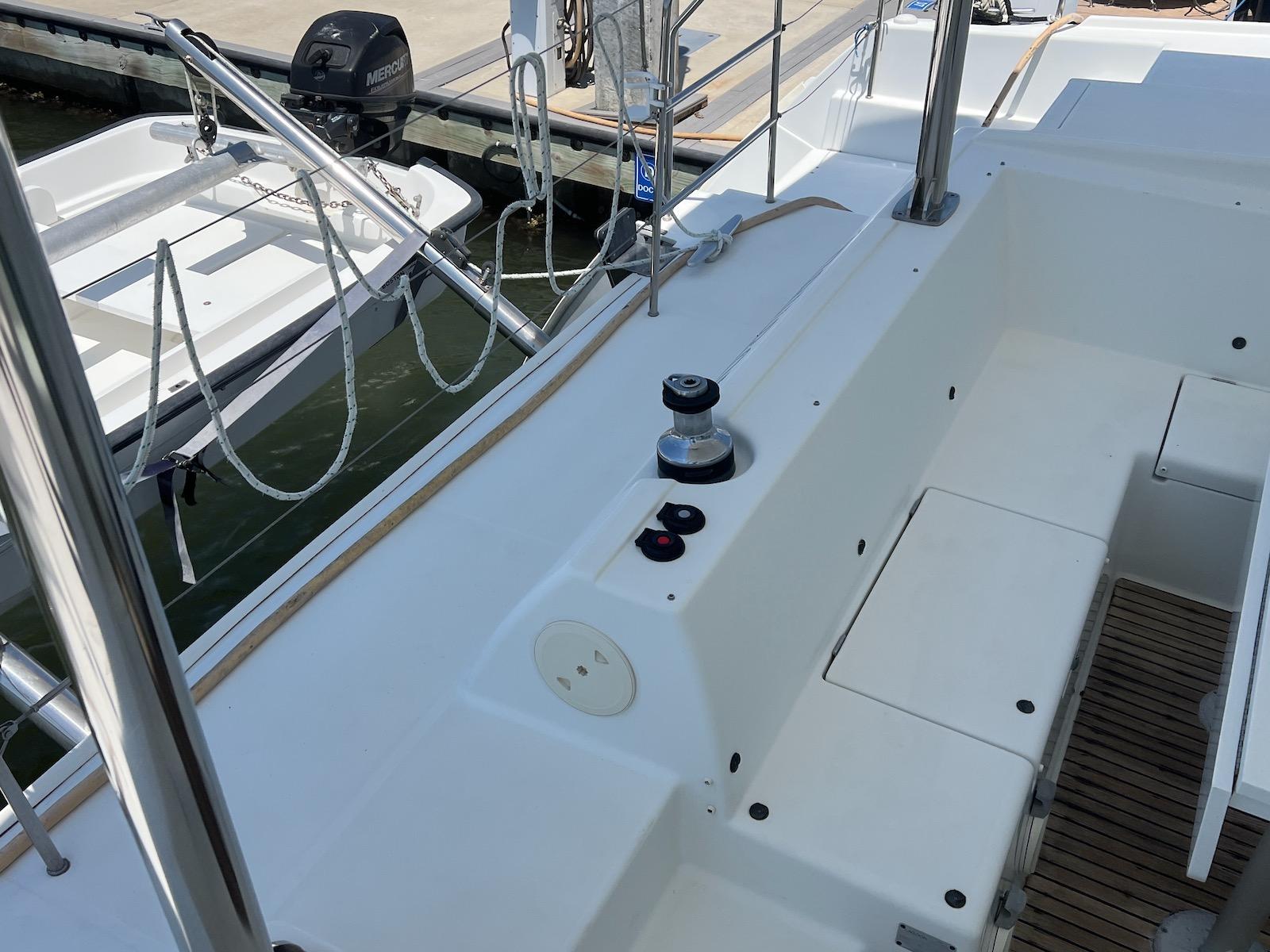

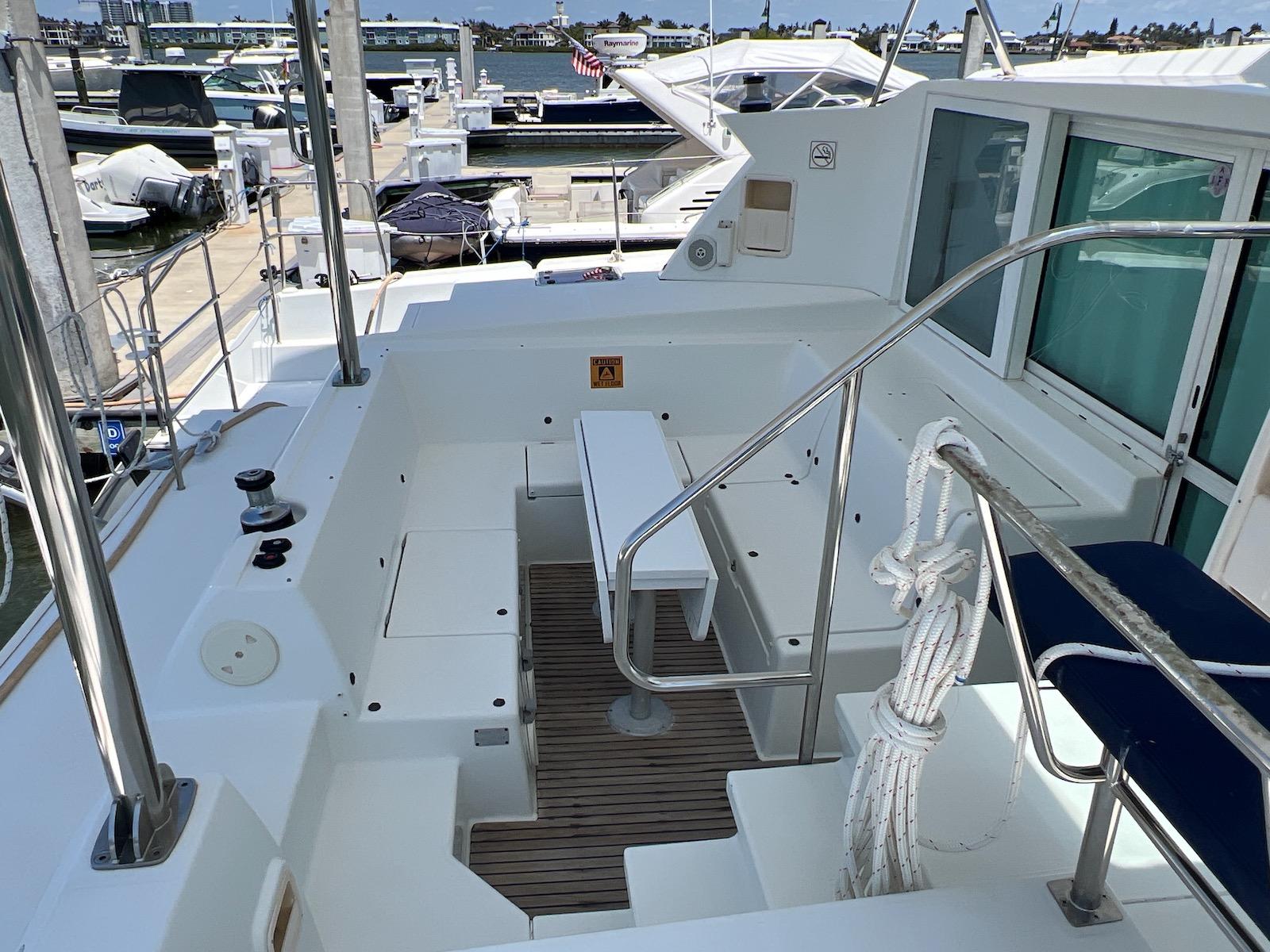

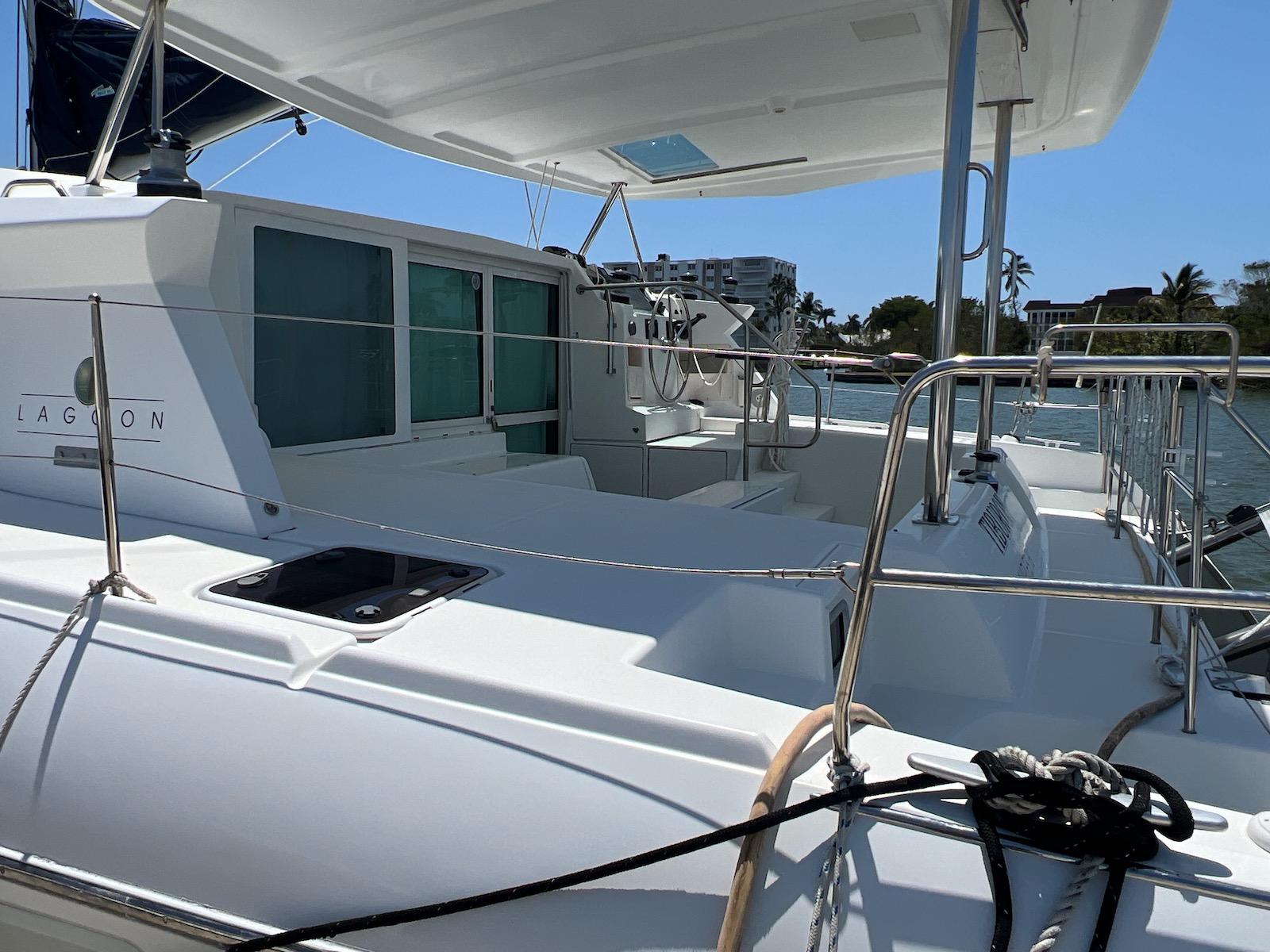

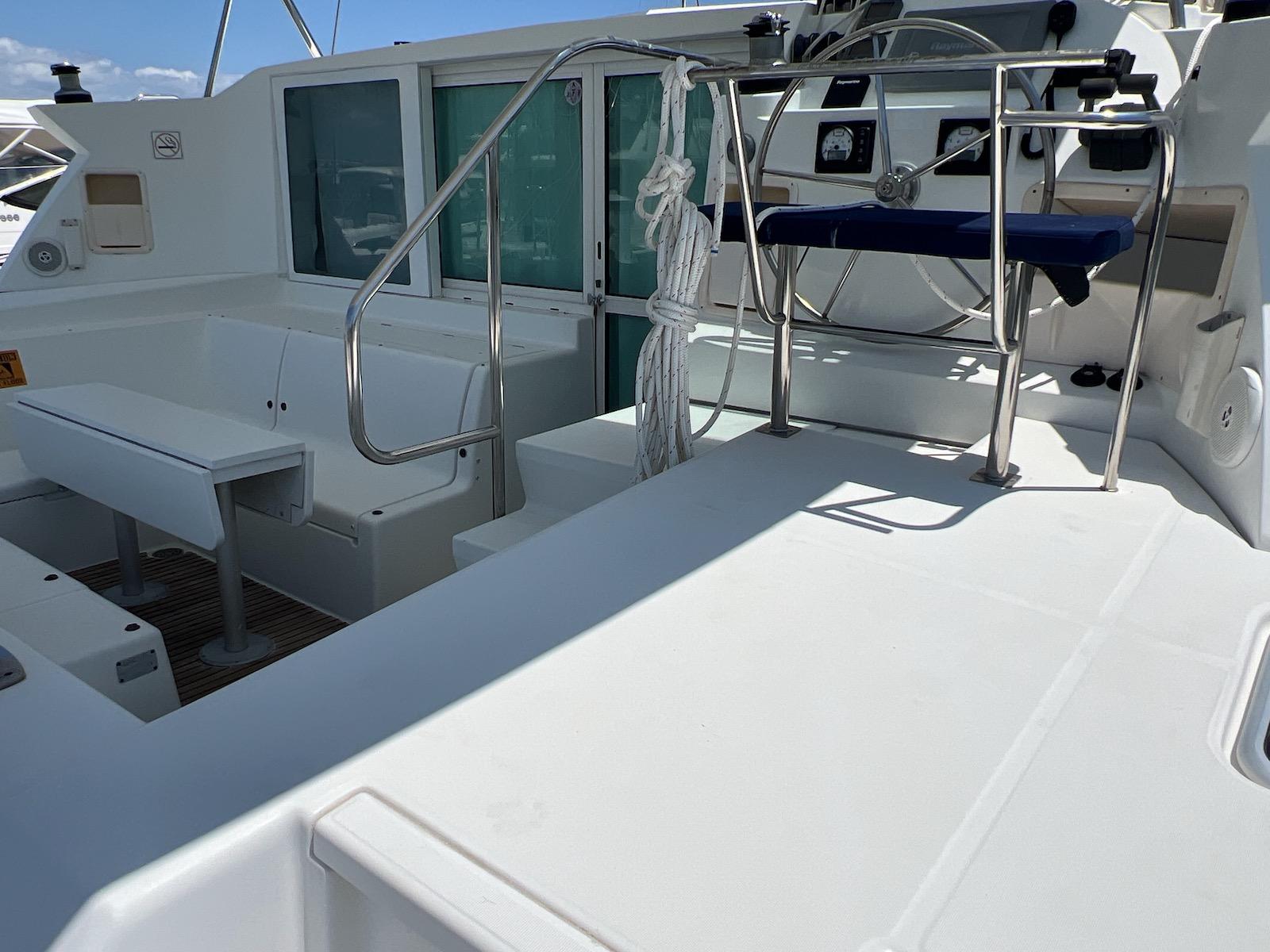

Cockpit

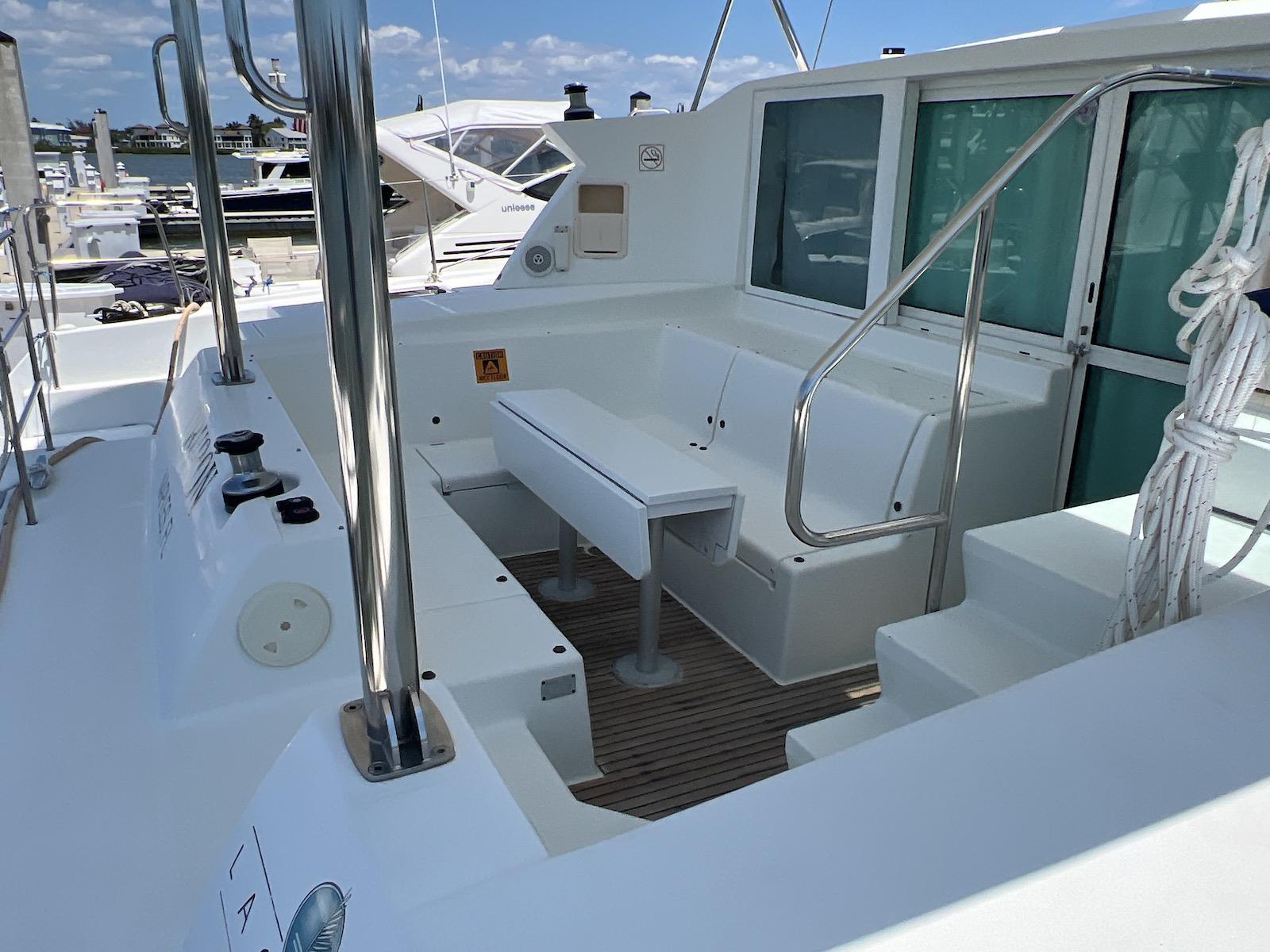

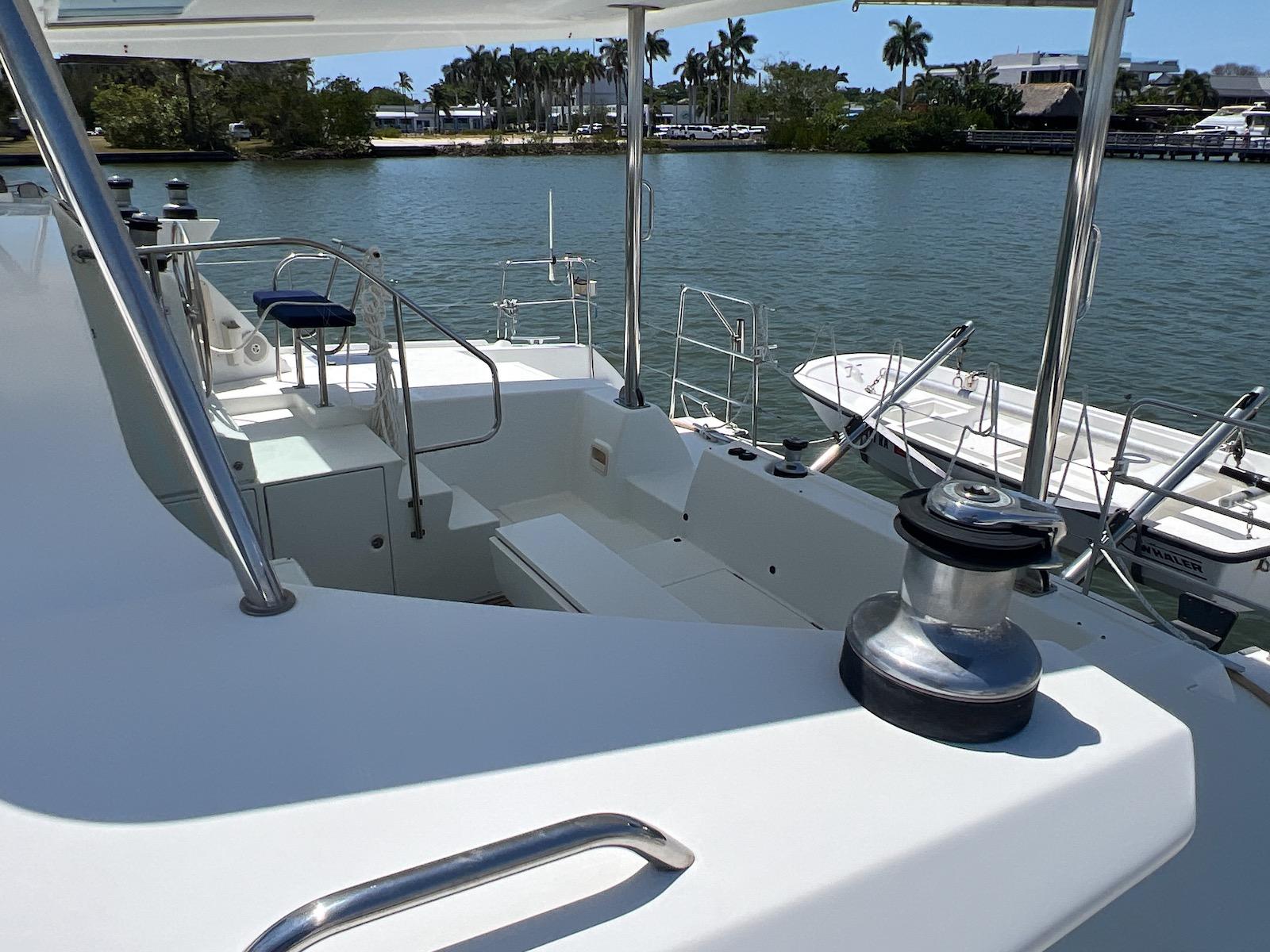

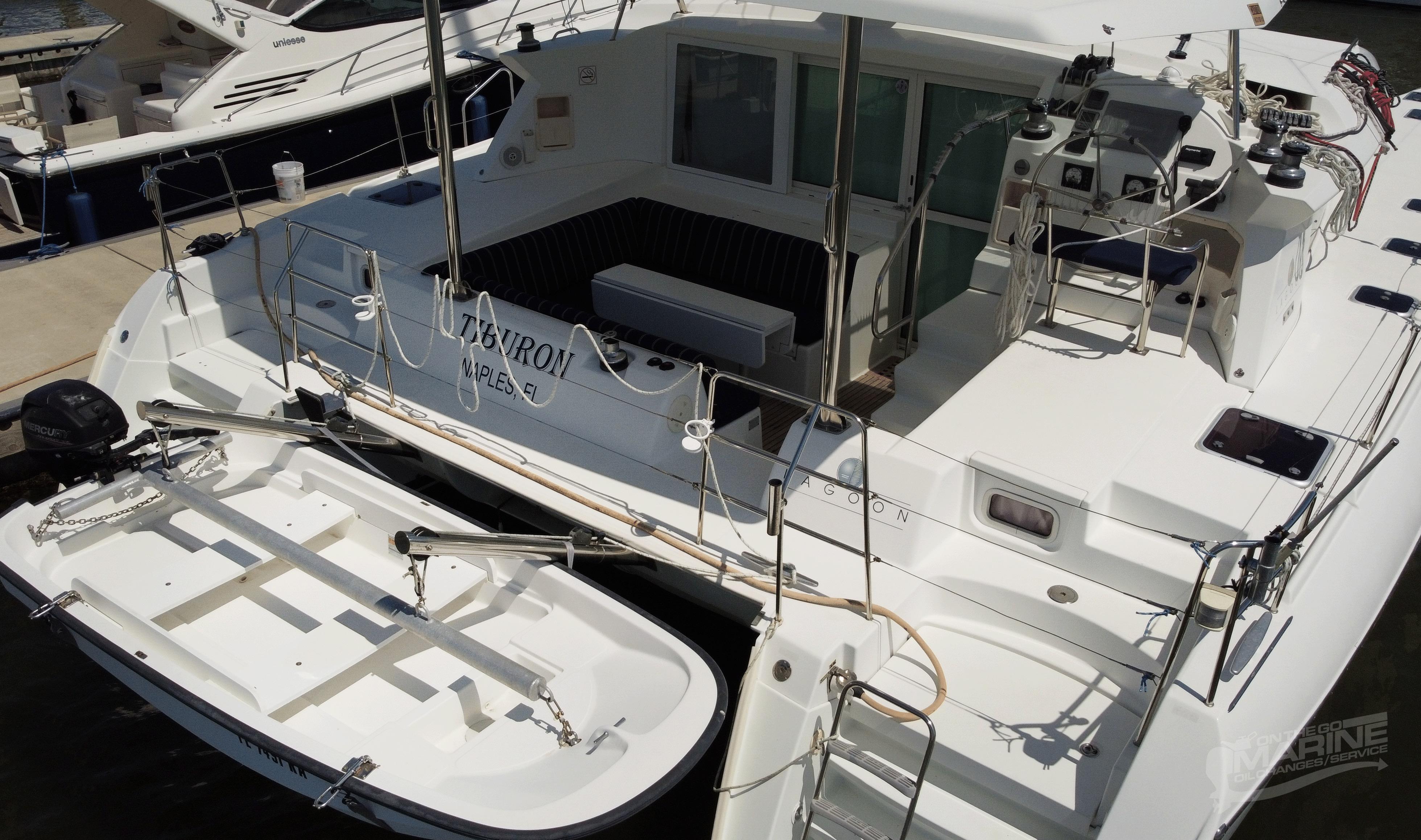

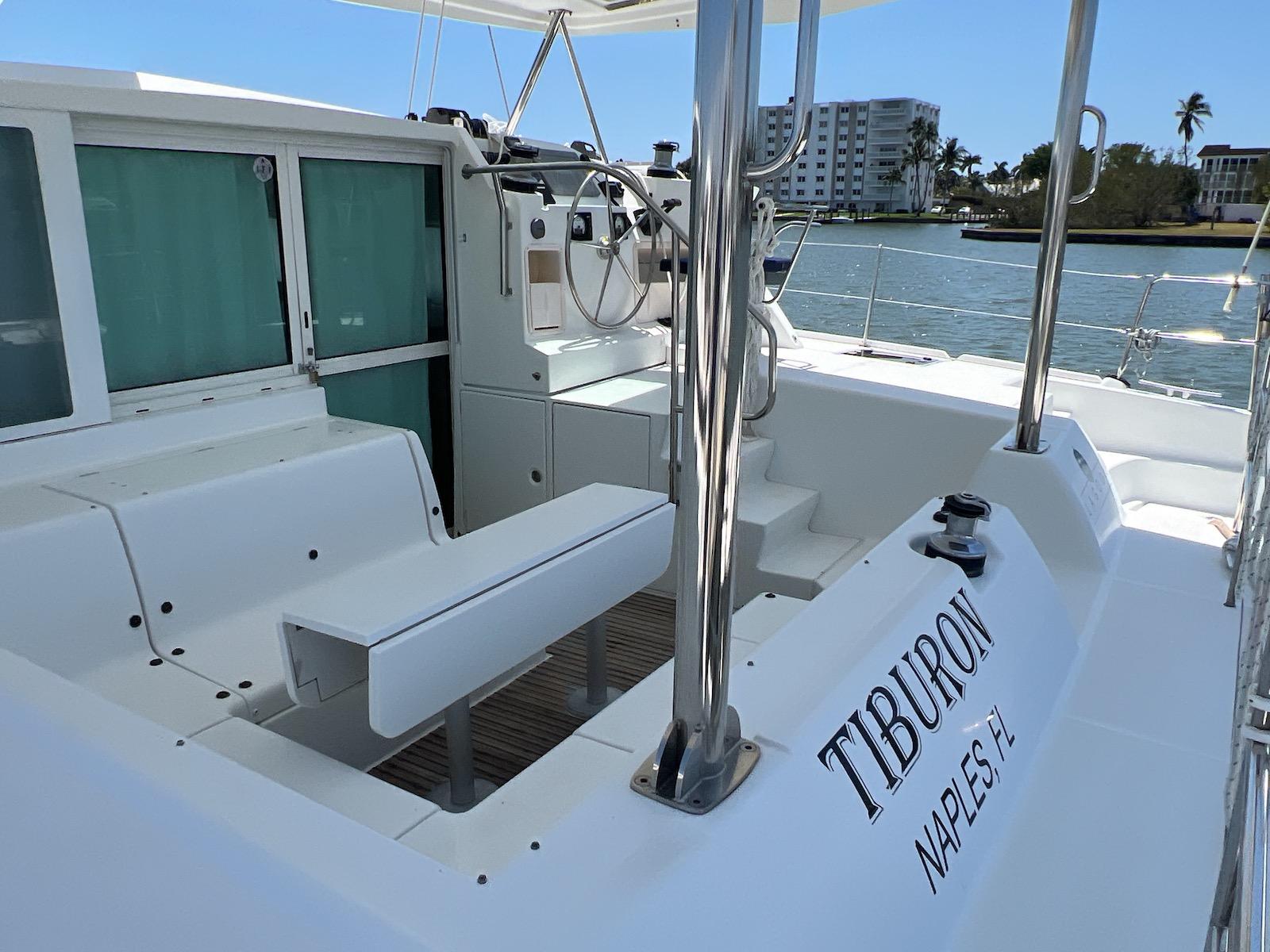

1.    Cockpit useable as outdoor salon, accessible via a stern walkway connecting both transoms

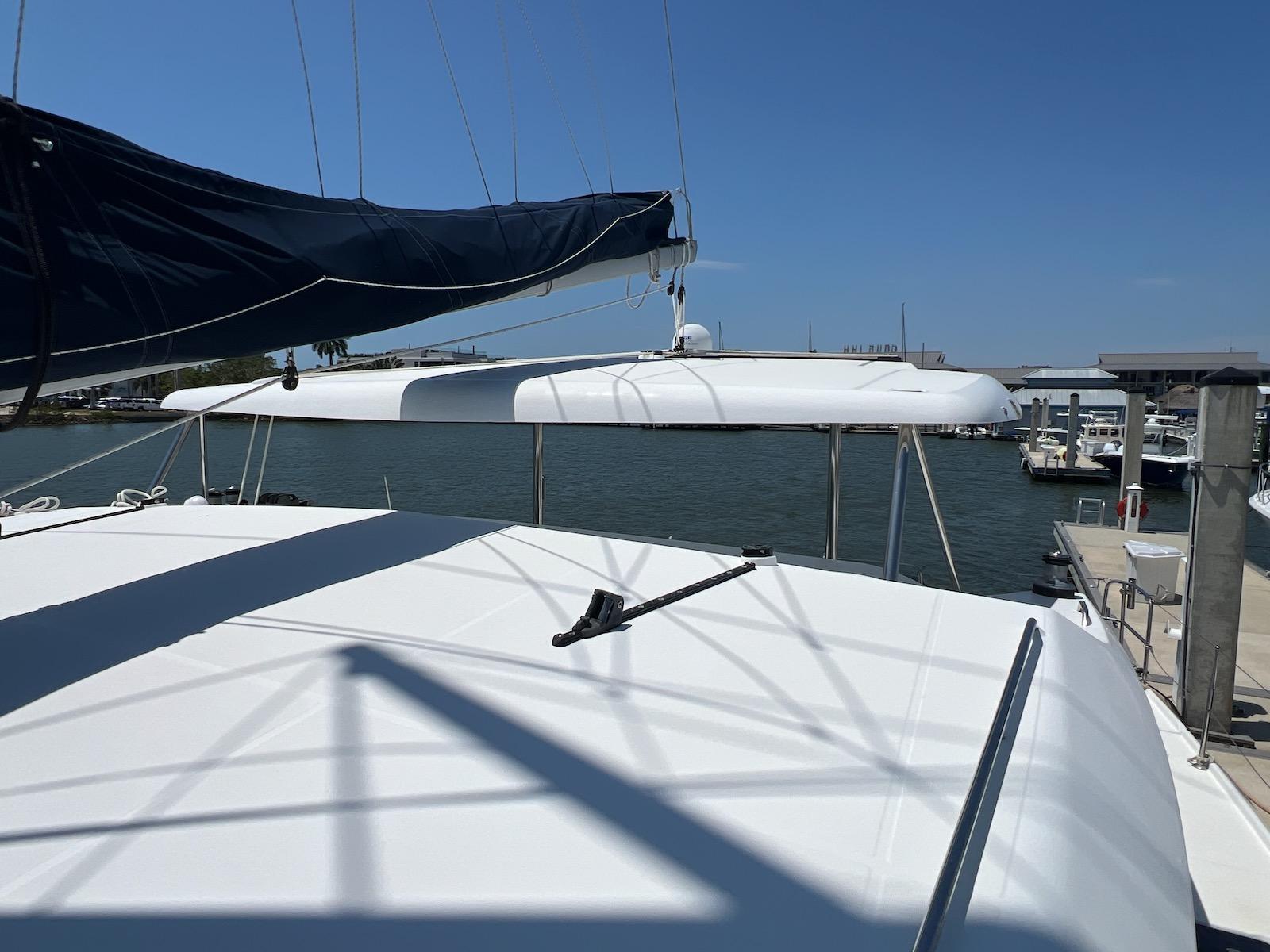

2.    Hard top bimini with integral lighting

3.    Self-bailing cockpit with teak grate

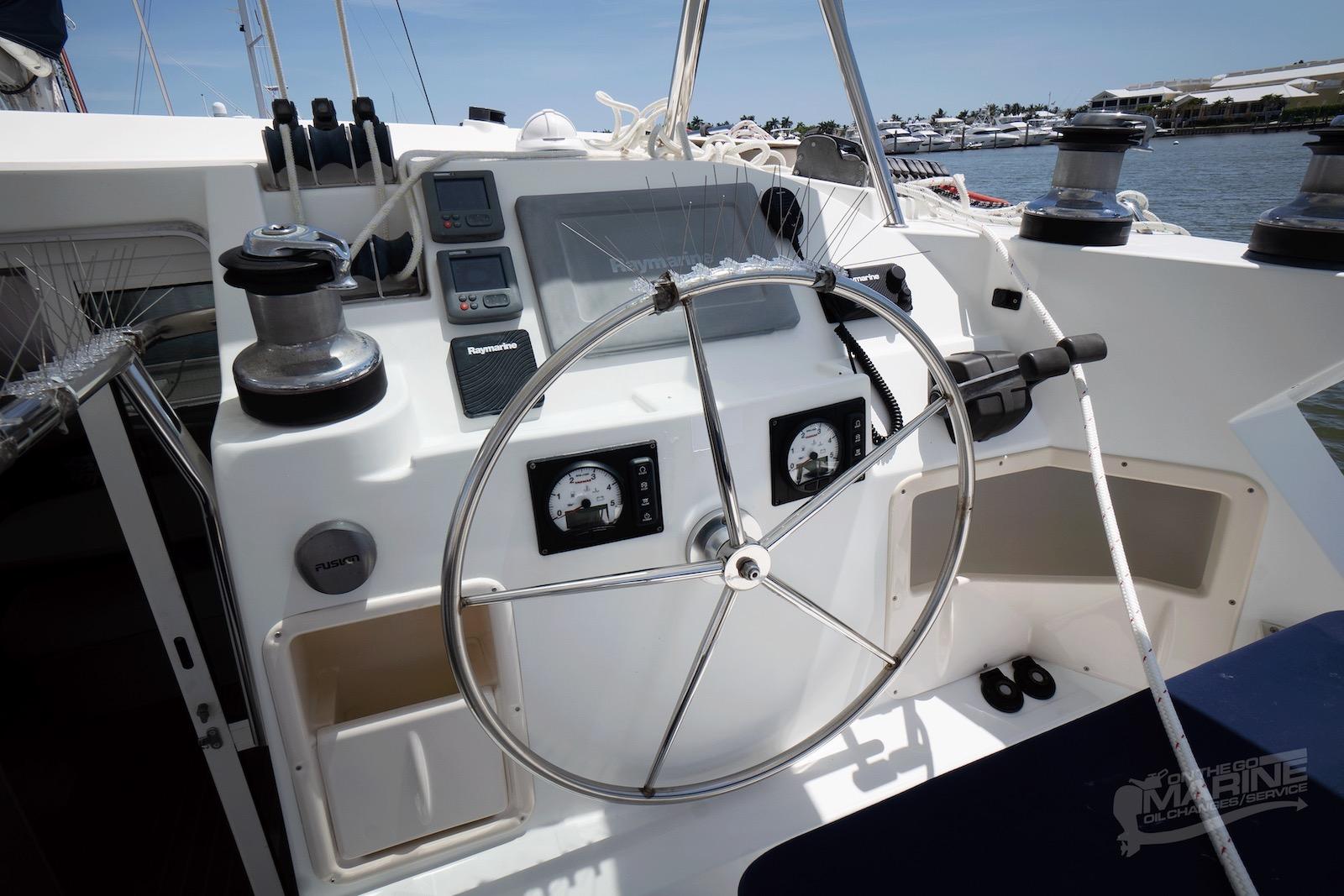

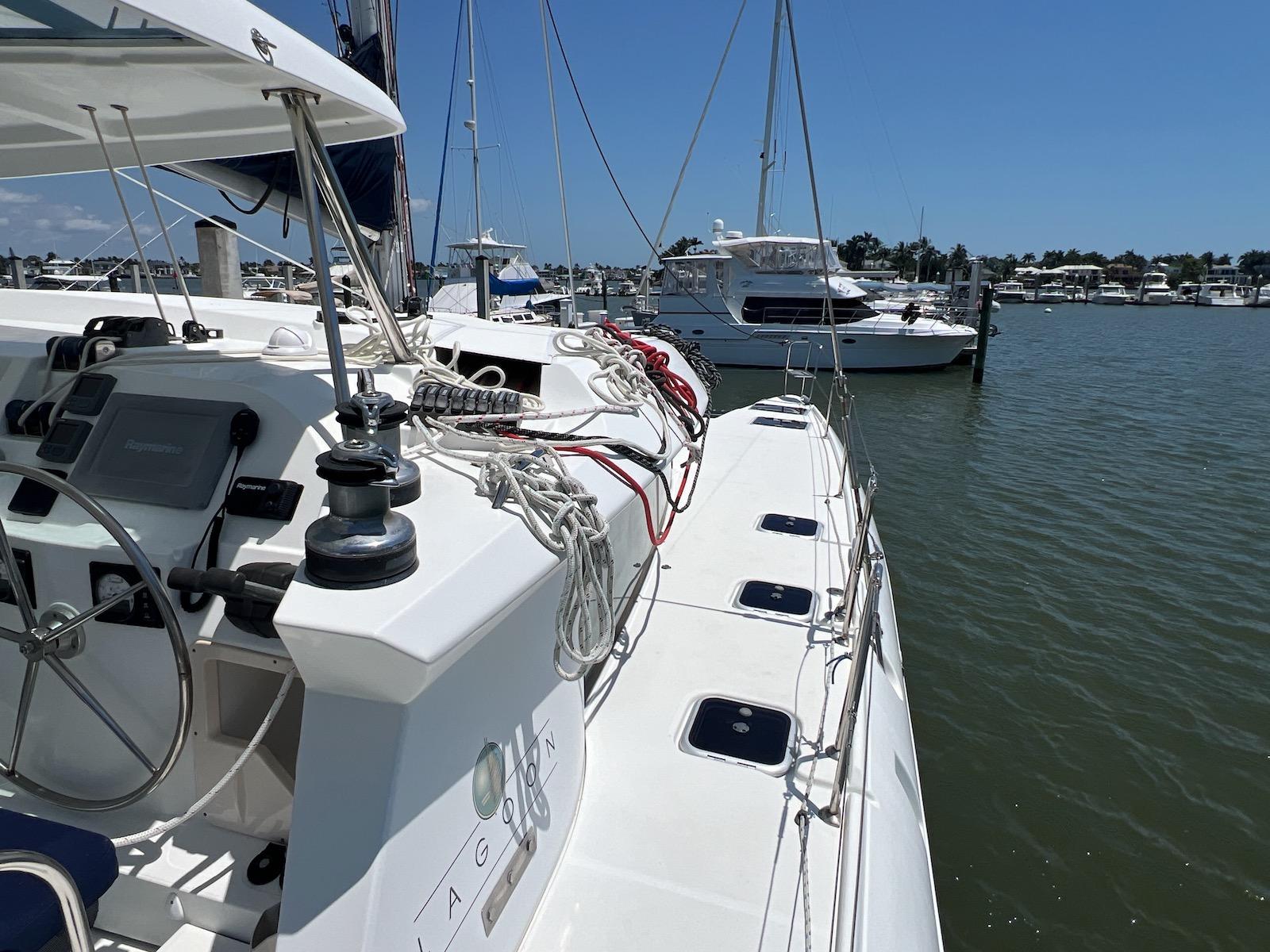

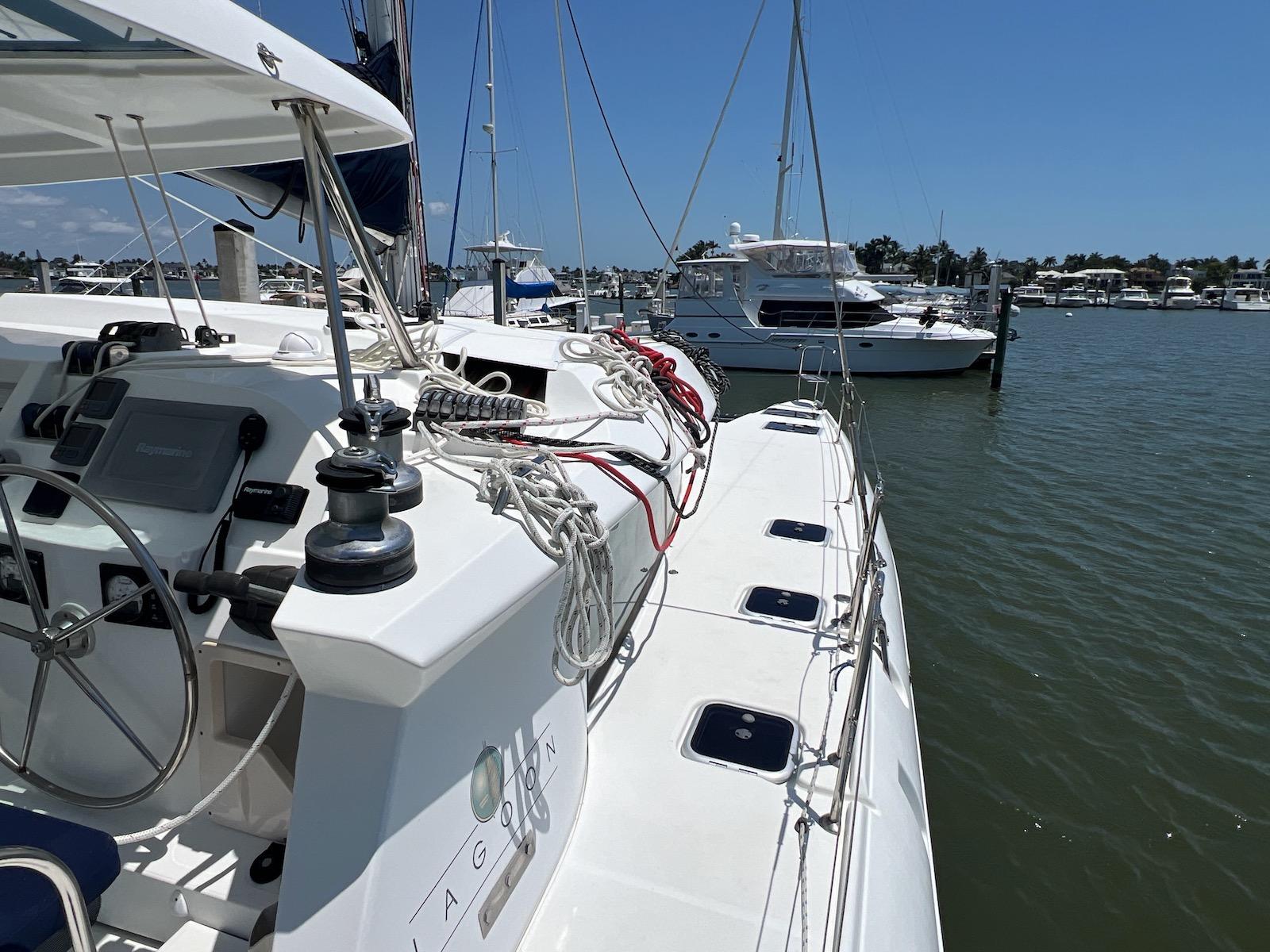

4.    Helm station on starboard roof bulkhead including: motor throttle controls, motor control panels, steering compass, room for electronic instrument installation, leather covered steering wheel, double helm seat with cushions, access steps from cockpit with s/s handrail, 3 line storage compartments

5.    Steering system: cable steering, composite shaft rudders, emergency tiller

6.    U-shape seating area with generator & technical compartment

7.    Large table with folding leafs added in 2014

8.    All lines lead to cockpit with 3 Harkin 46 Winches, one electric, and an electric Harkin 40 aft

9.    Generous Storage throughout. Engines accessible from stern of each hull.

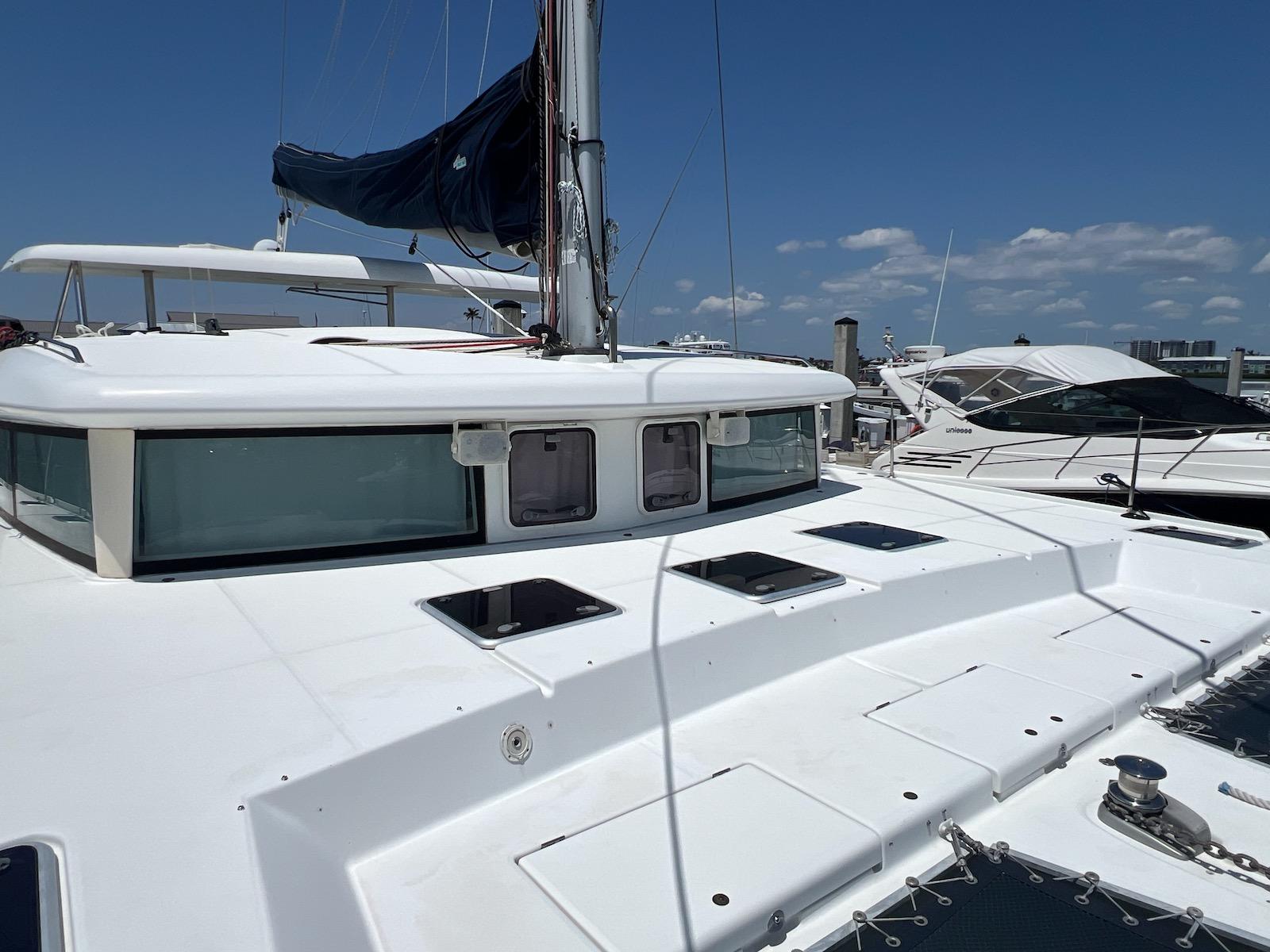

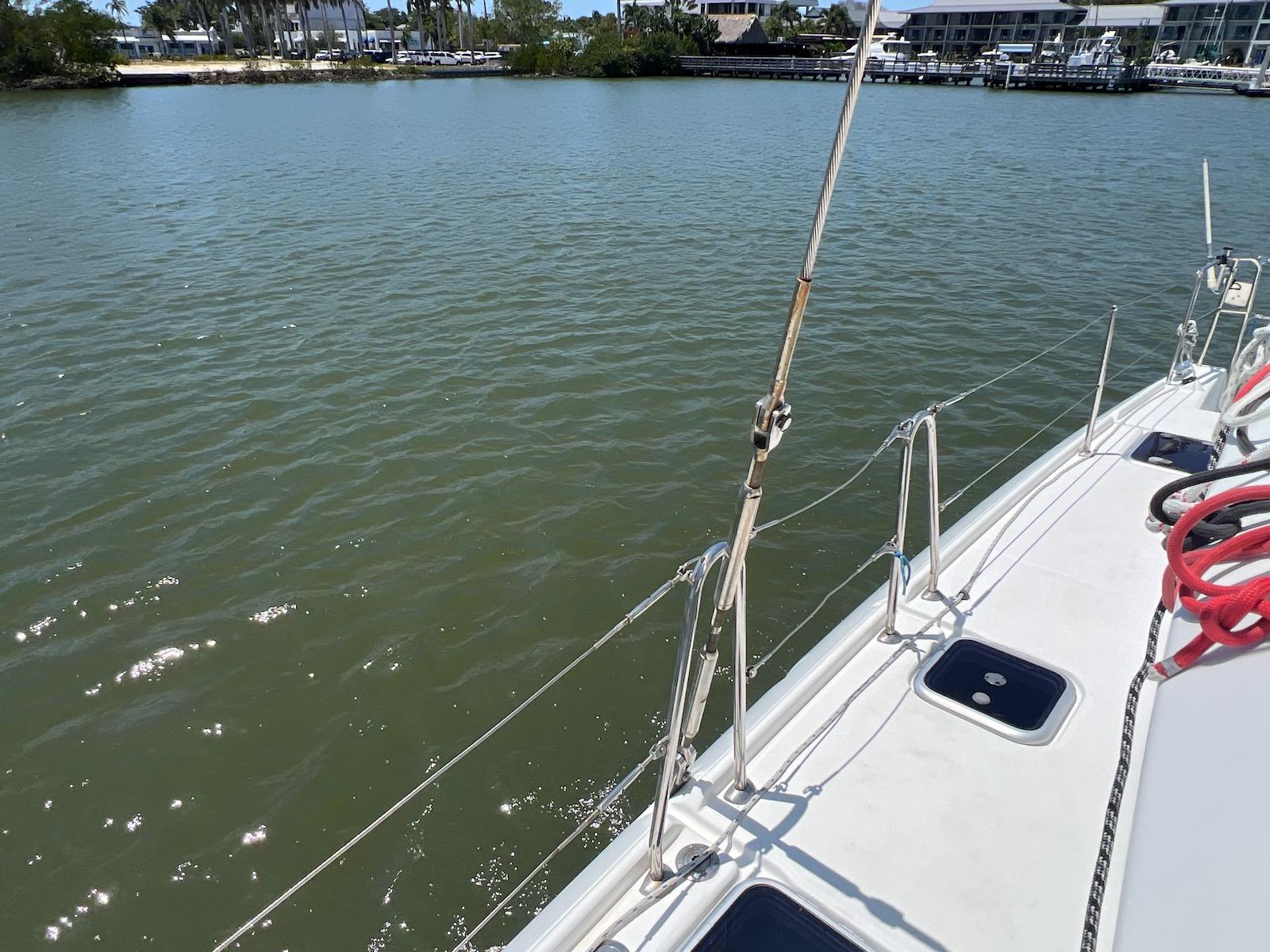

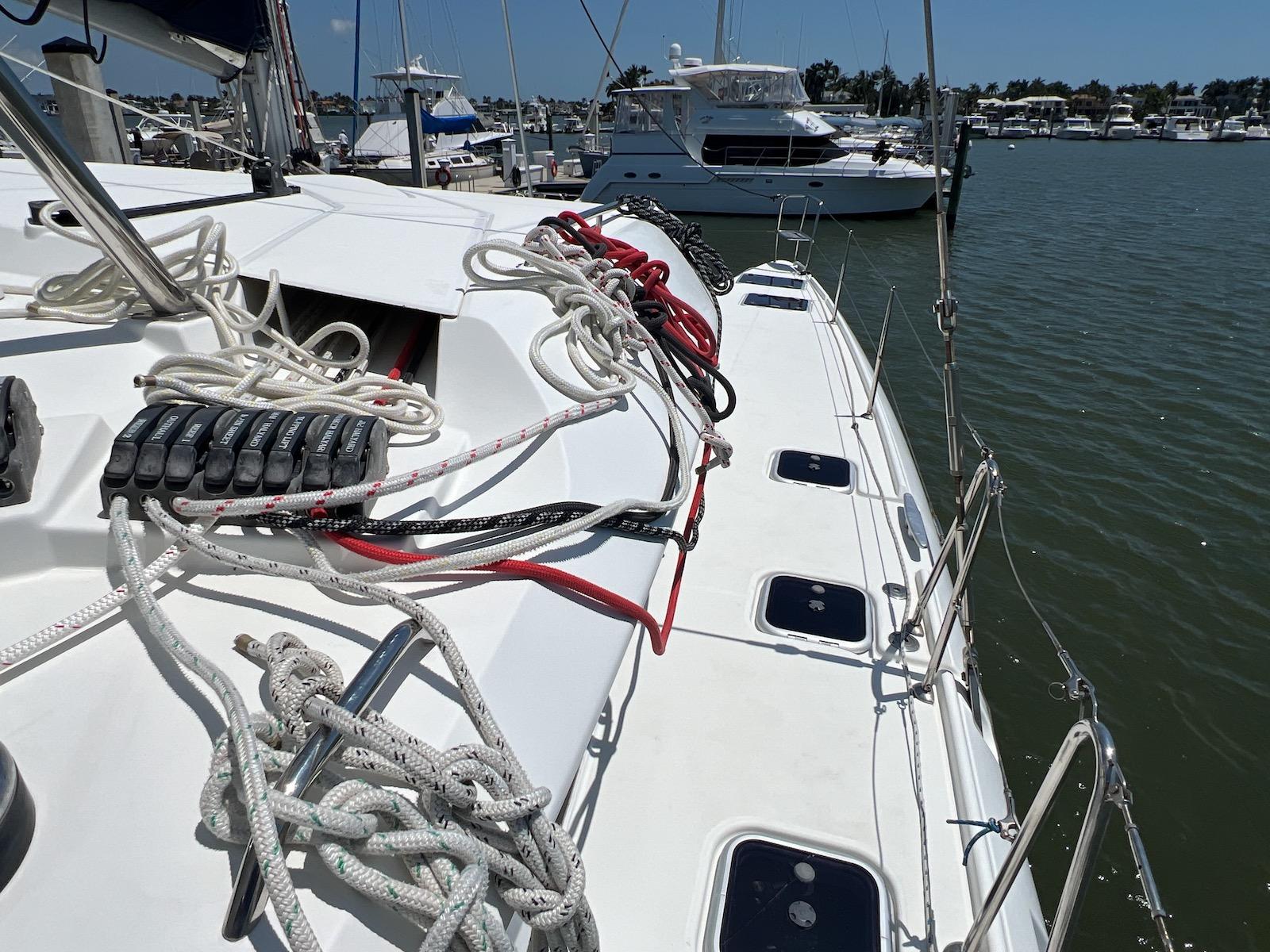

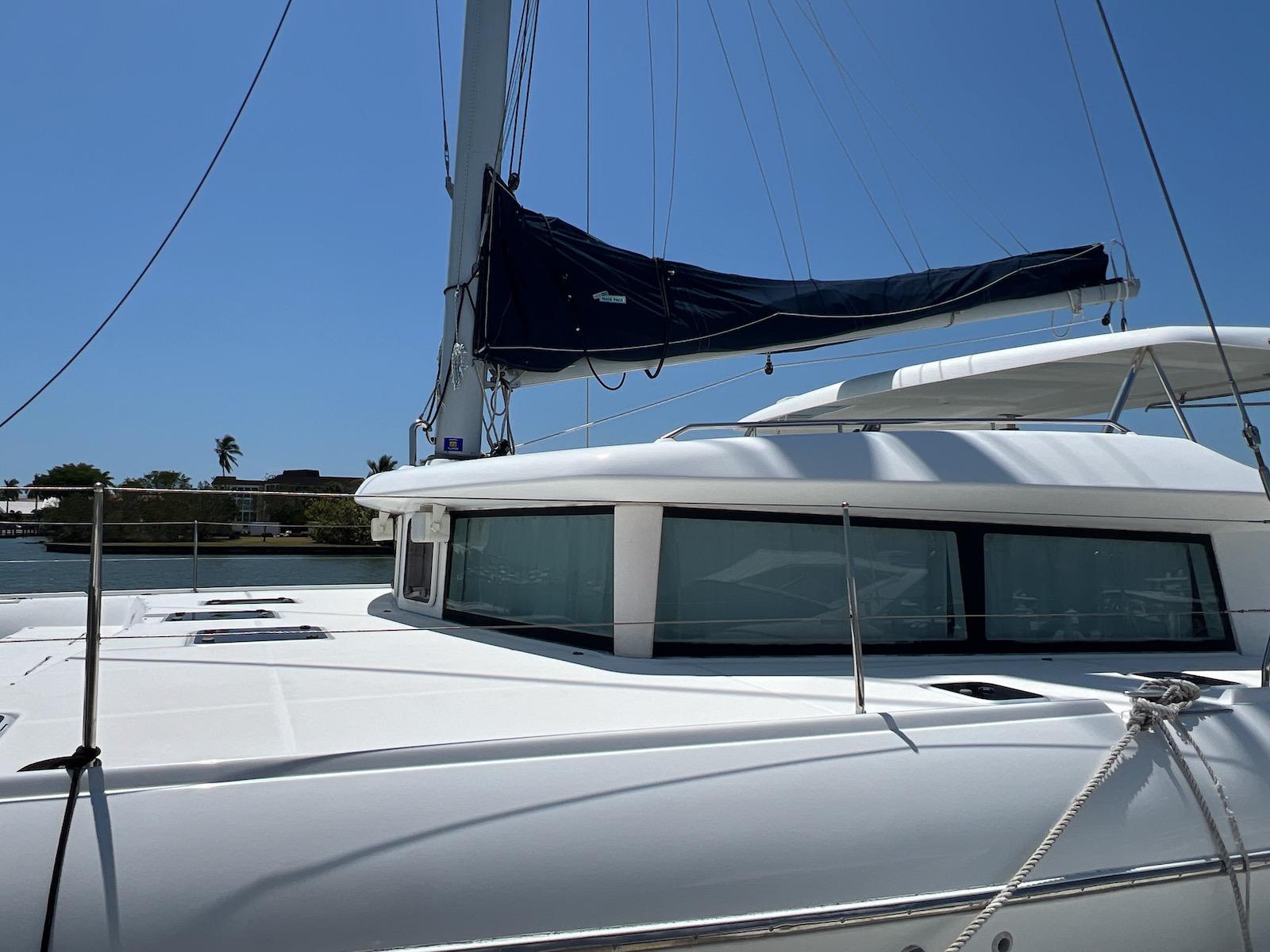

Above deck

All detailed, compounded, waxed and buffed 5/25

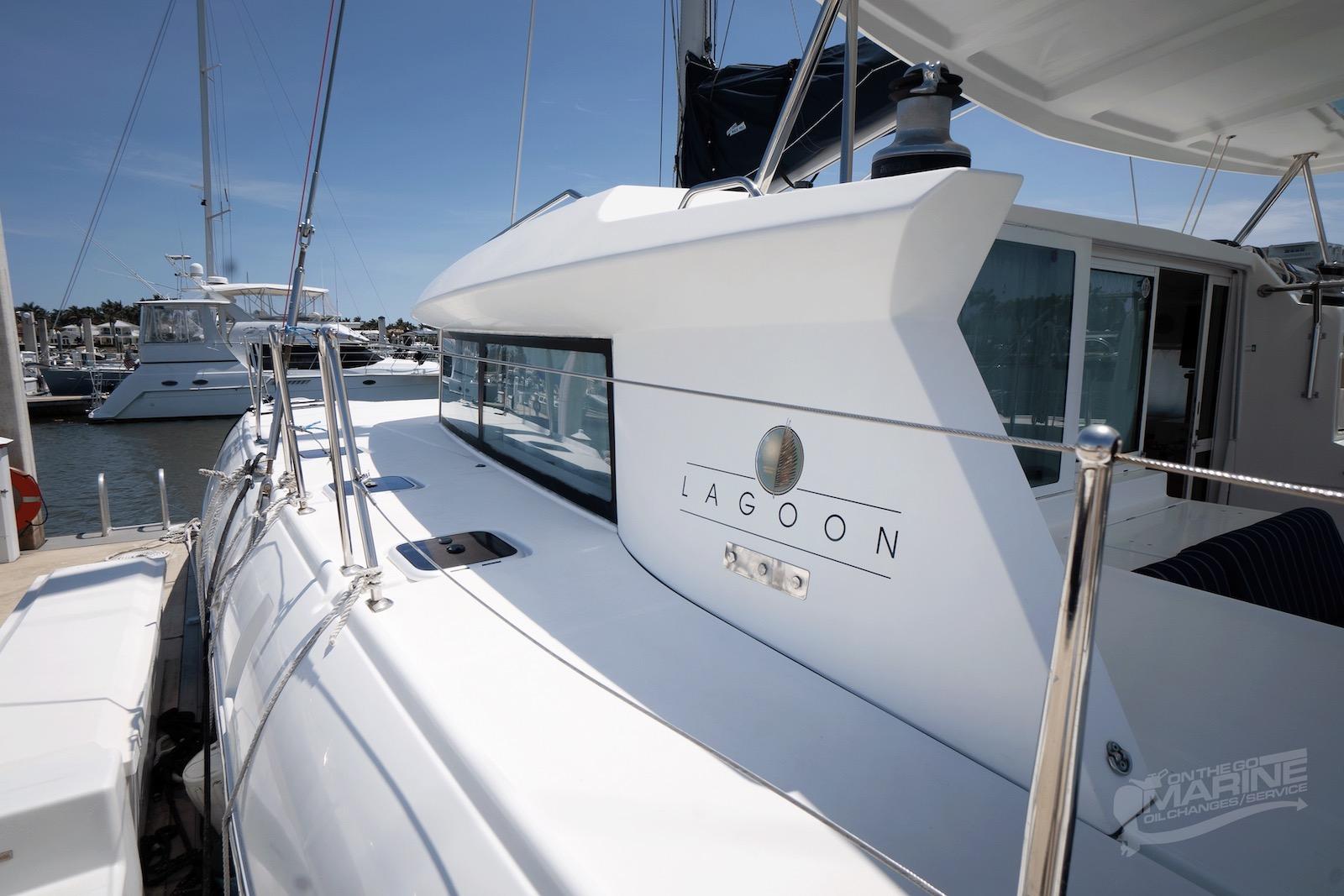

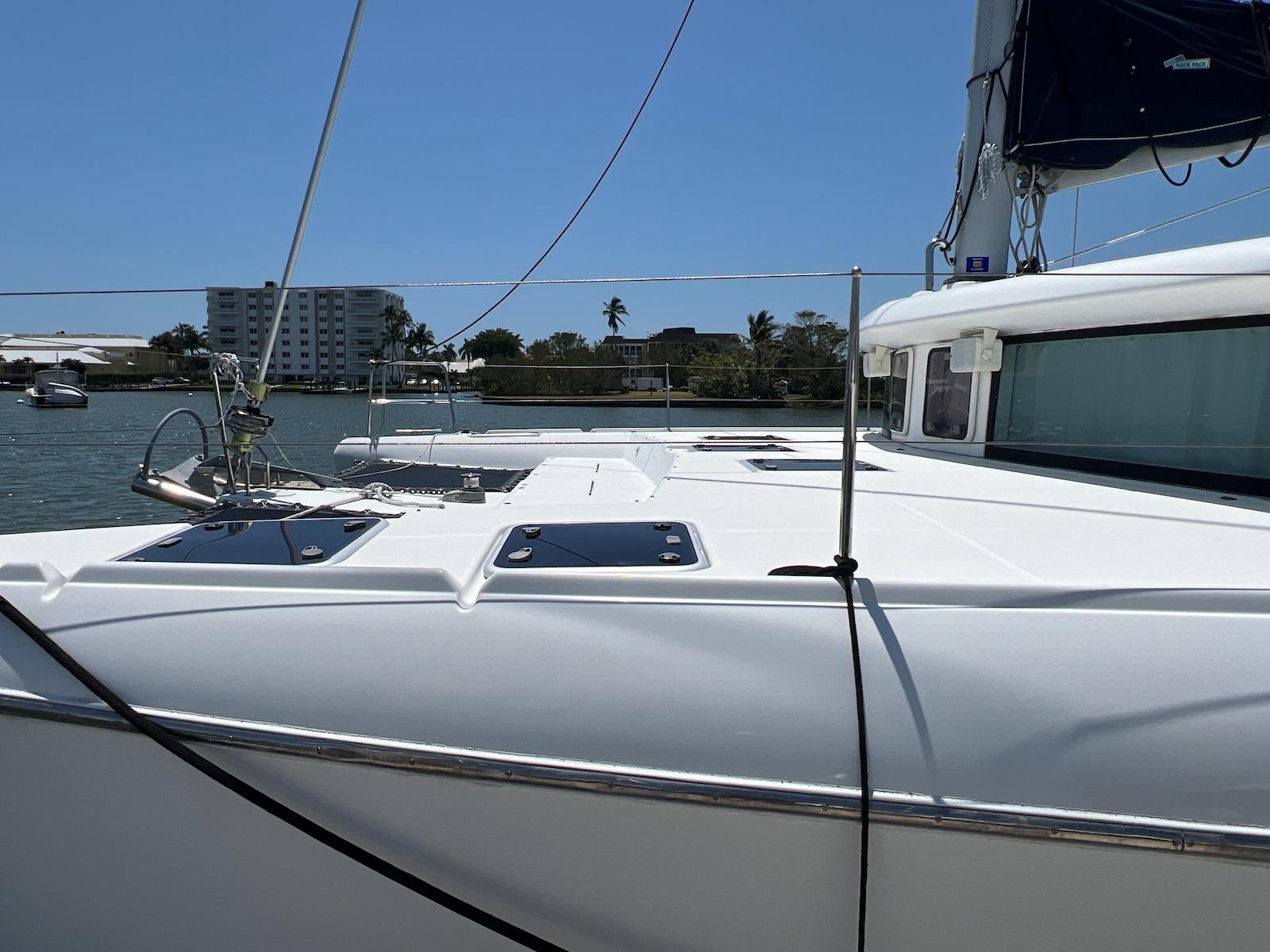

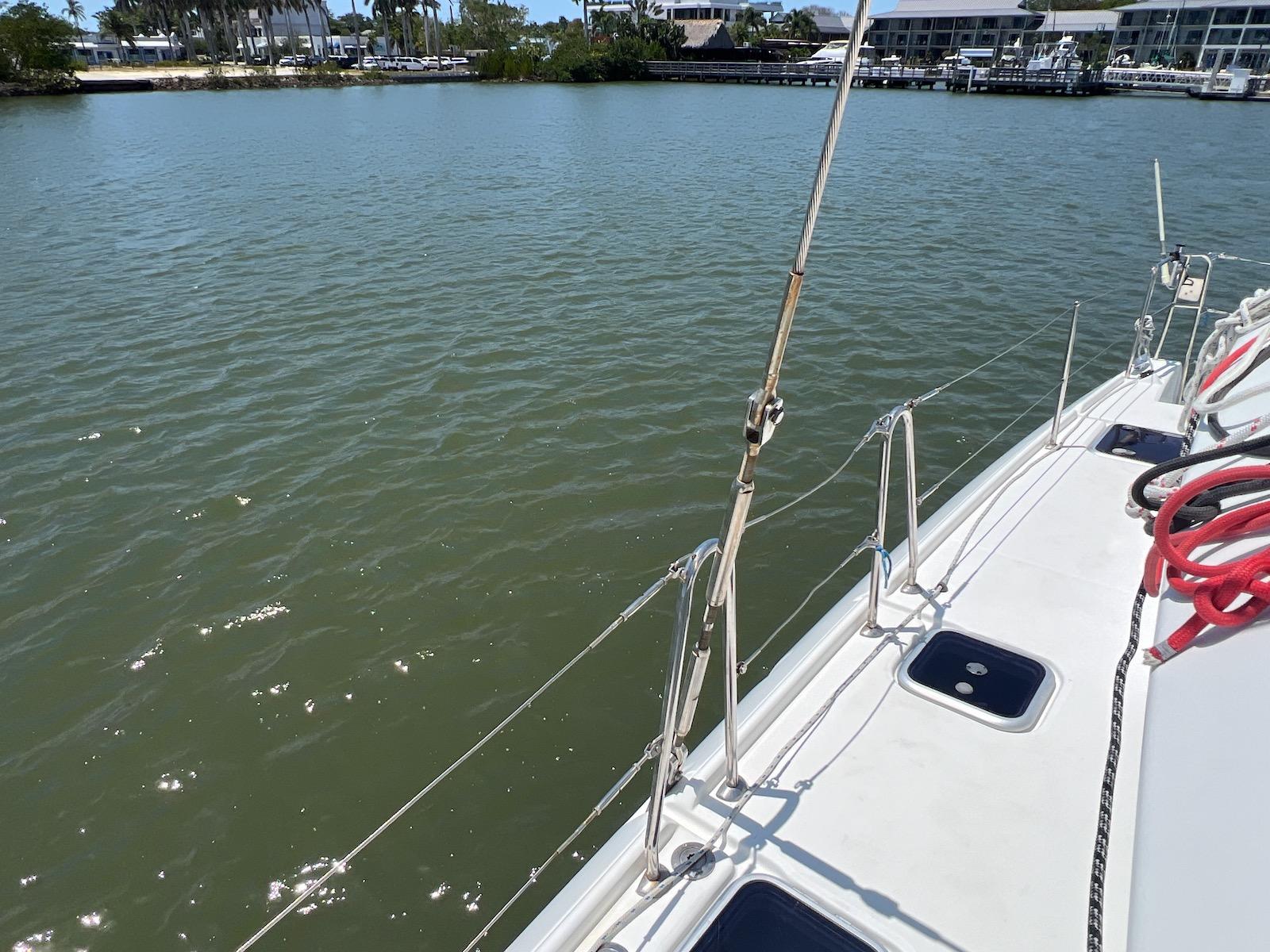

A new look, a longitudinal beam that includes the mooring gear, a rigid bimini, a tall rig, a gullwing shaped bridgedeck and an overlapping genoa. The deck is uncluttered so moving around is easy: wide sidedecks, flush deck hatches, plenty of lockers. The aft deck allows passage from one transom to the other without going back up in the cockpit and access o the dinghy davits and dinghy. There are many ways to enjoy life on board the Lagoon 420: the cockpit with its large benchseats and a table is protected from the sun and the bad weather by a rigid bimini top with optional sides and back panels, the twin seats helm station was designed for sailing with a reduced crew. all the control lines can be handled by one person from the helm station, freeing the other living spaces for the guests. The foredeck is exclusively dedicated to relaxation. Electric winches by the helm and aft are welcome additions.

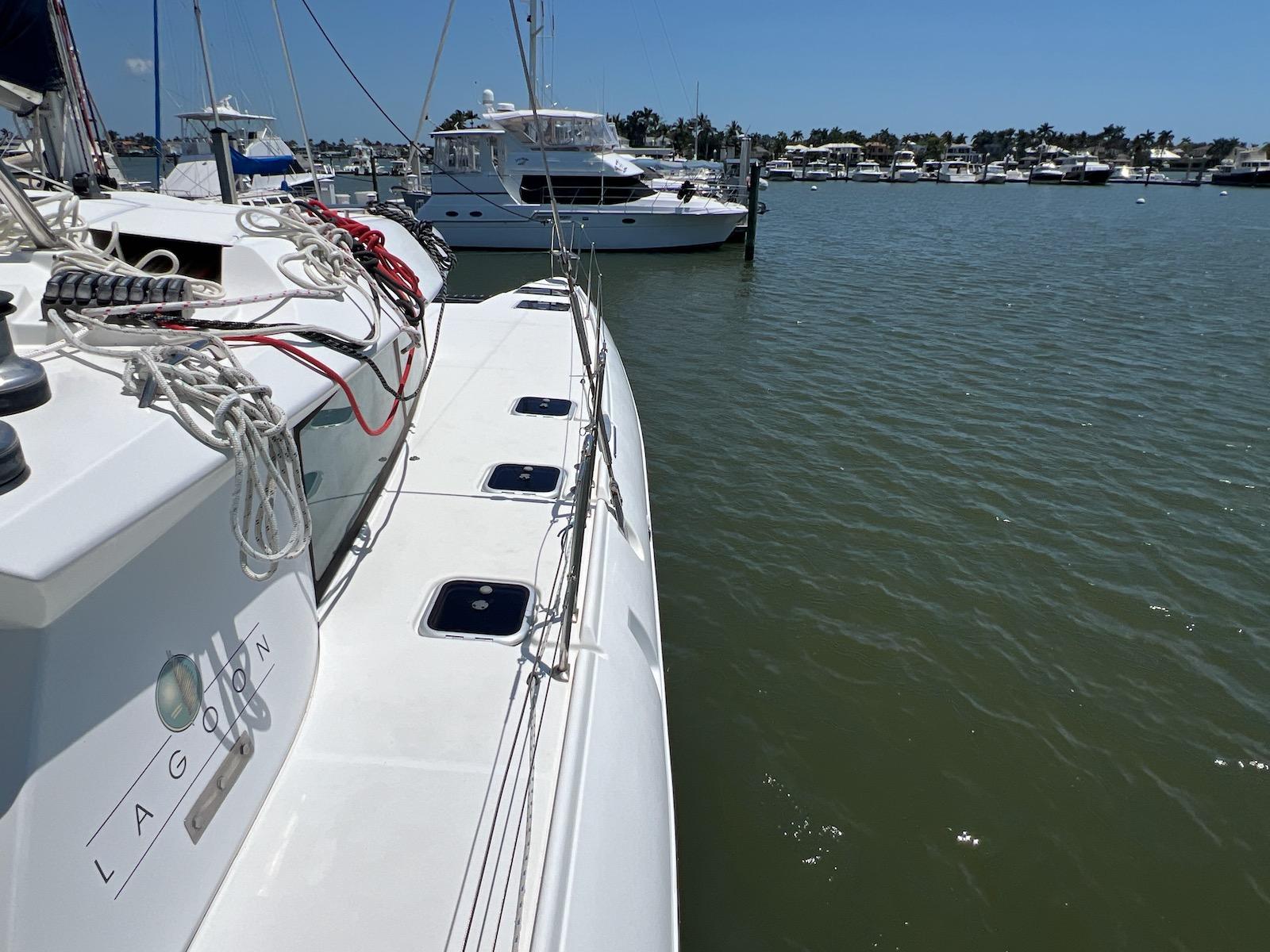

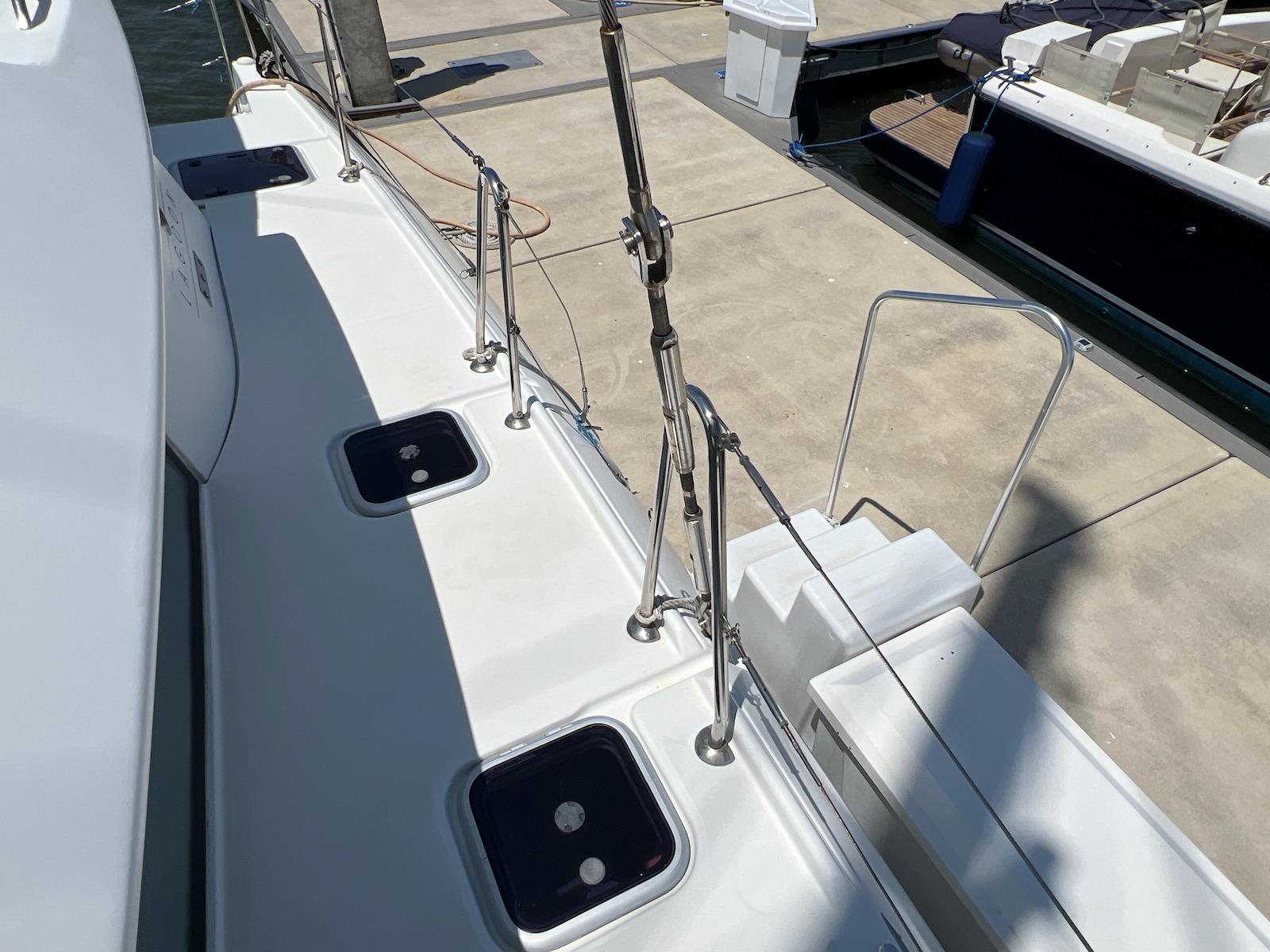

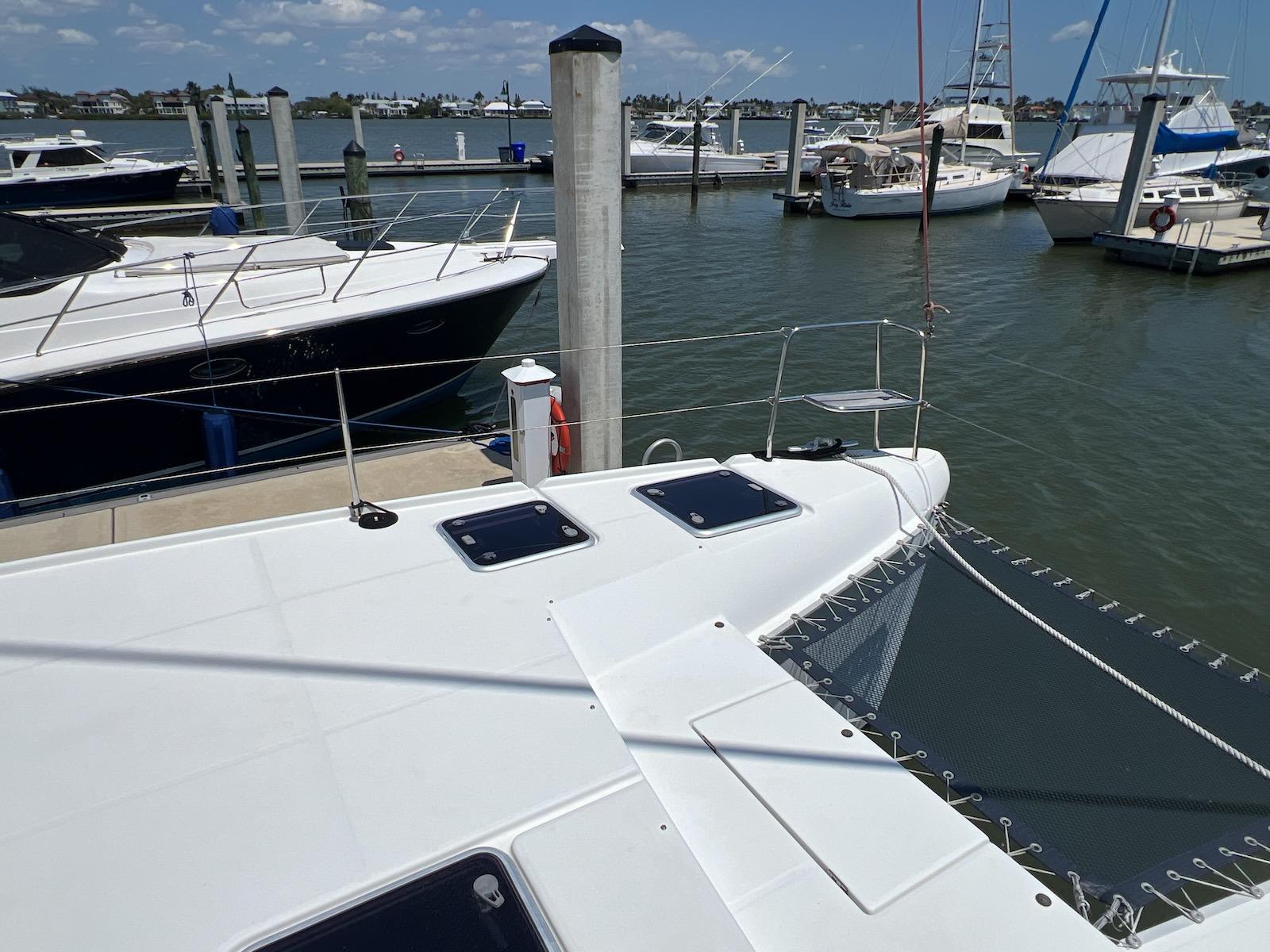

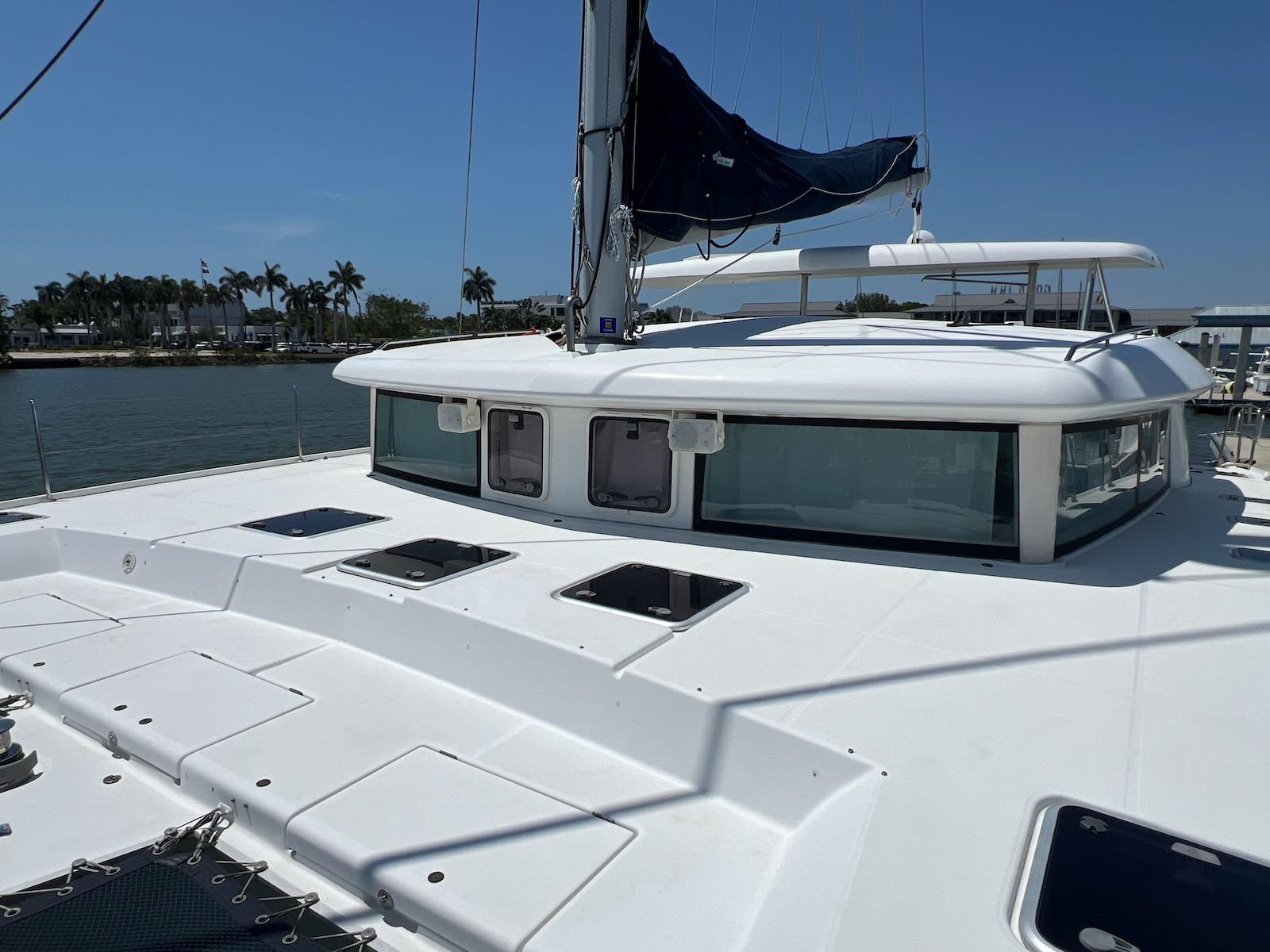

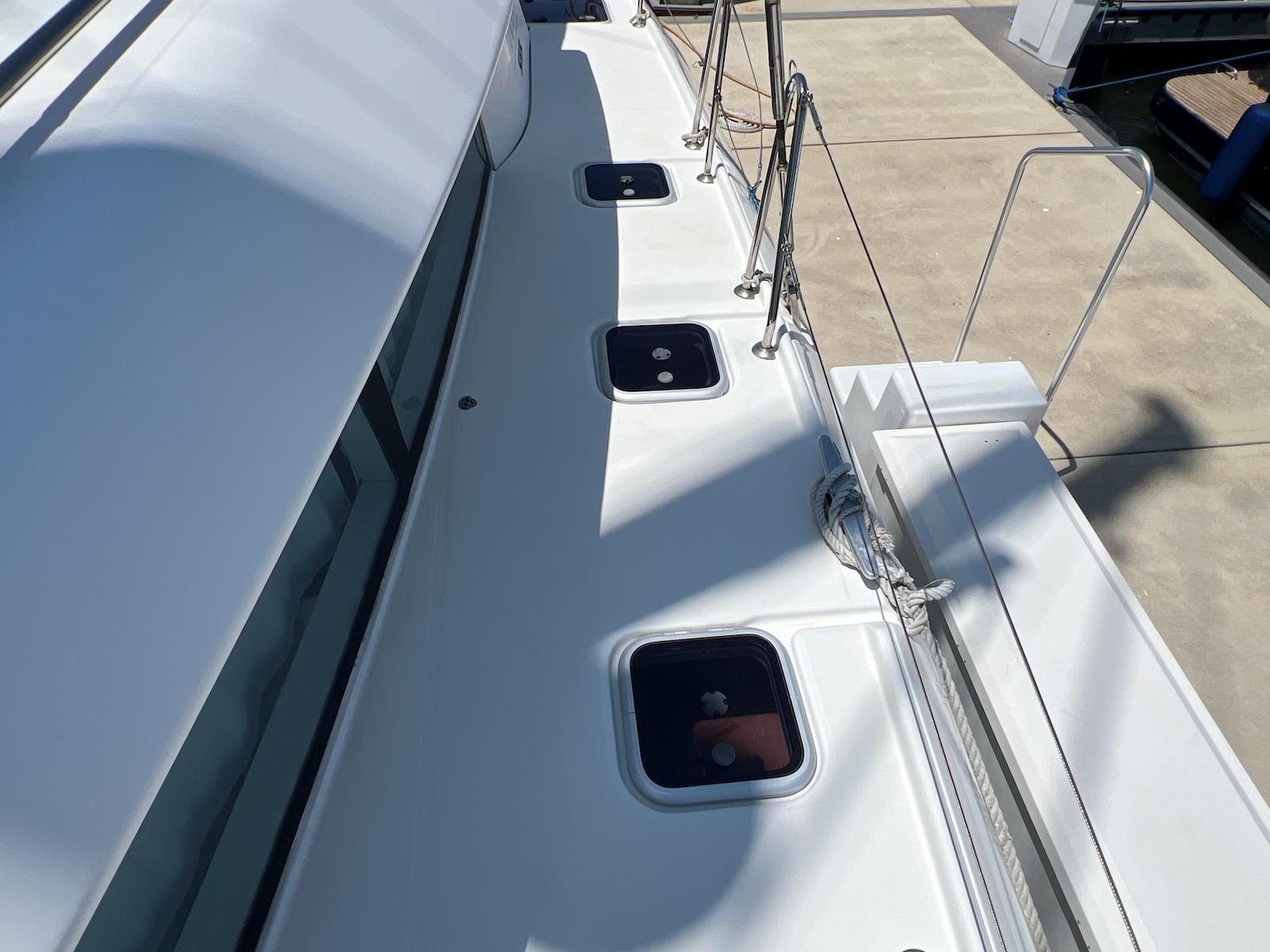

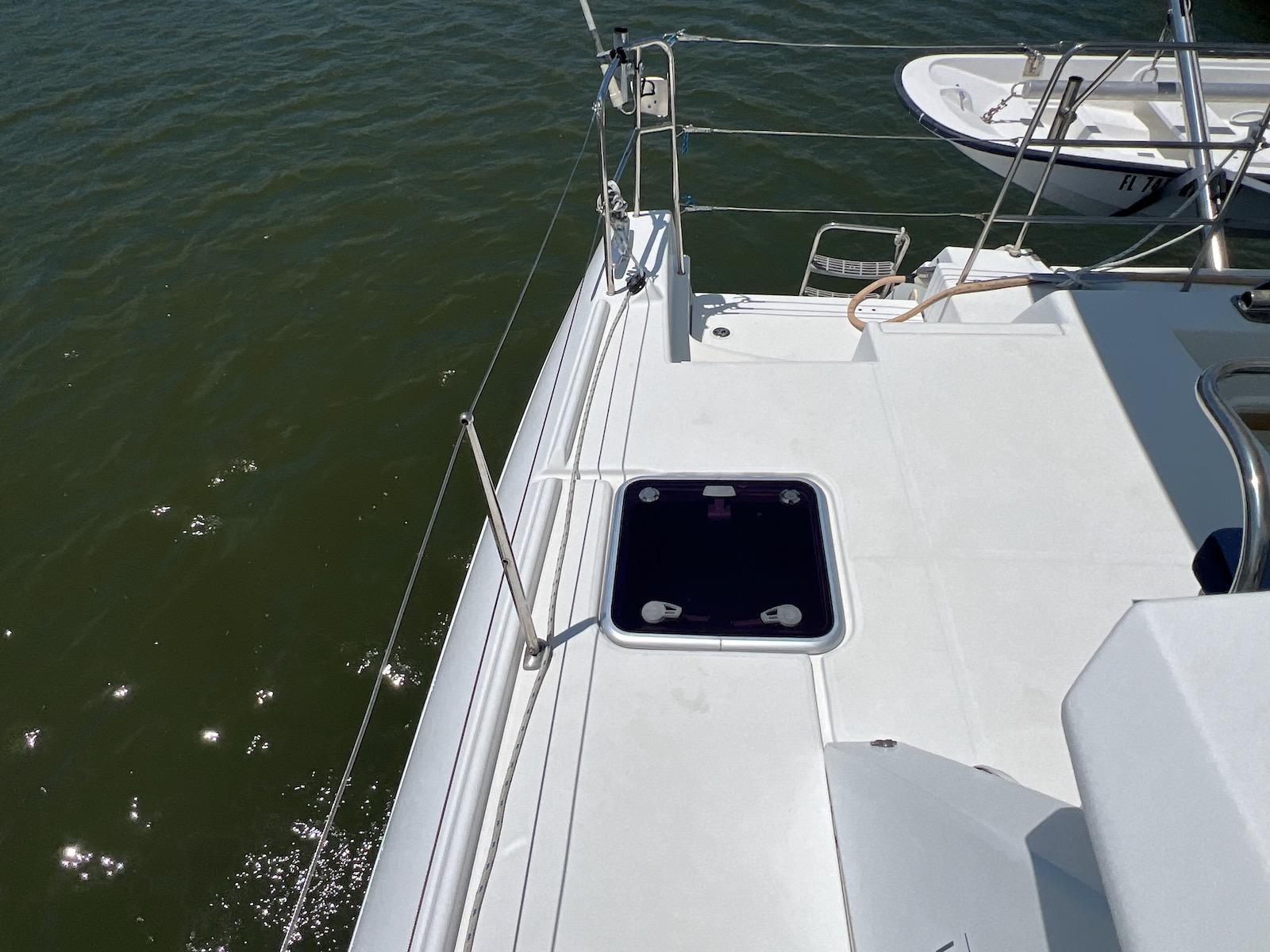

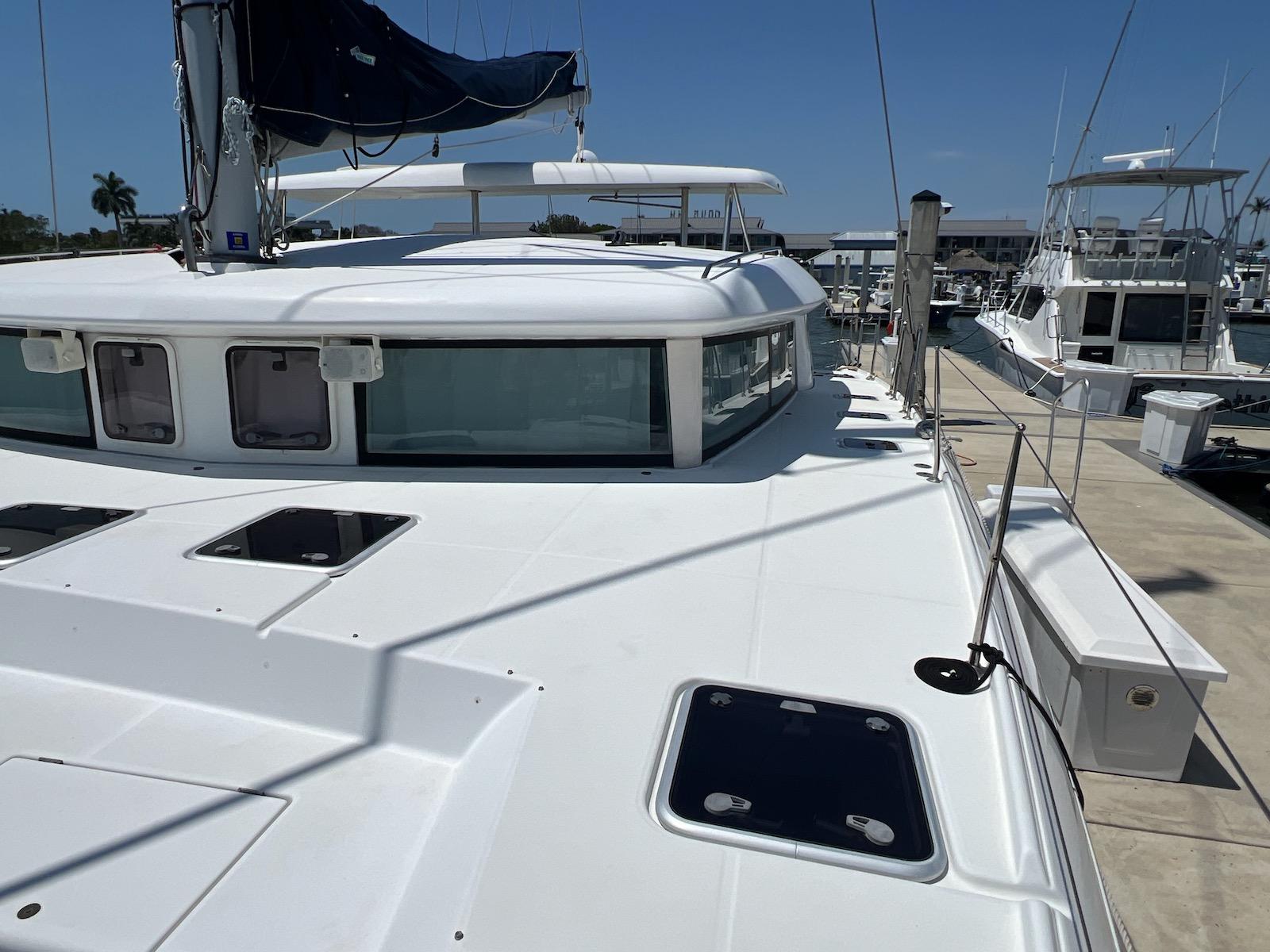

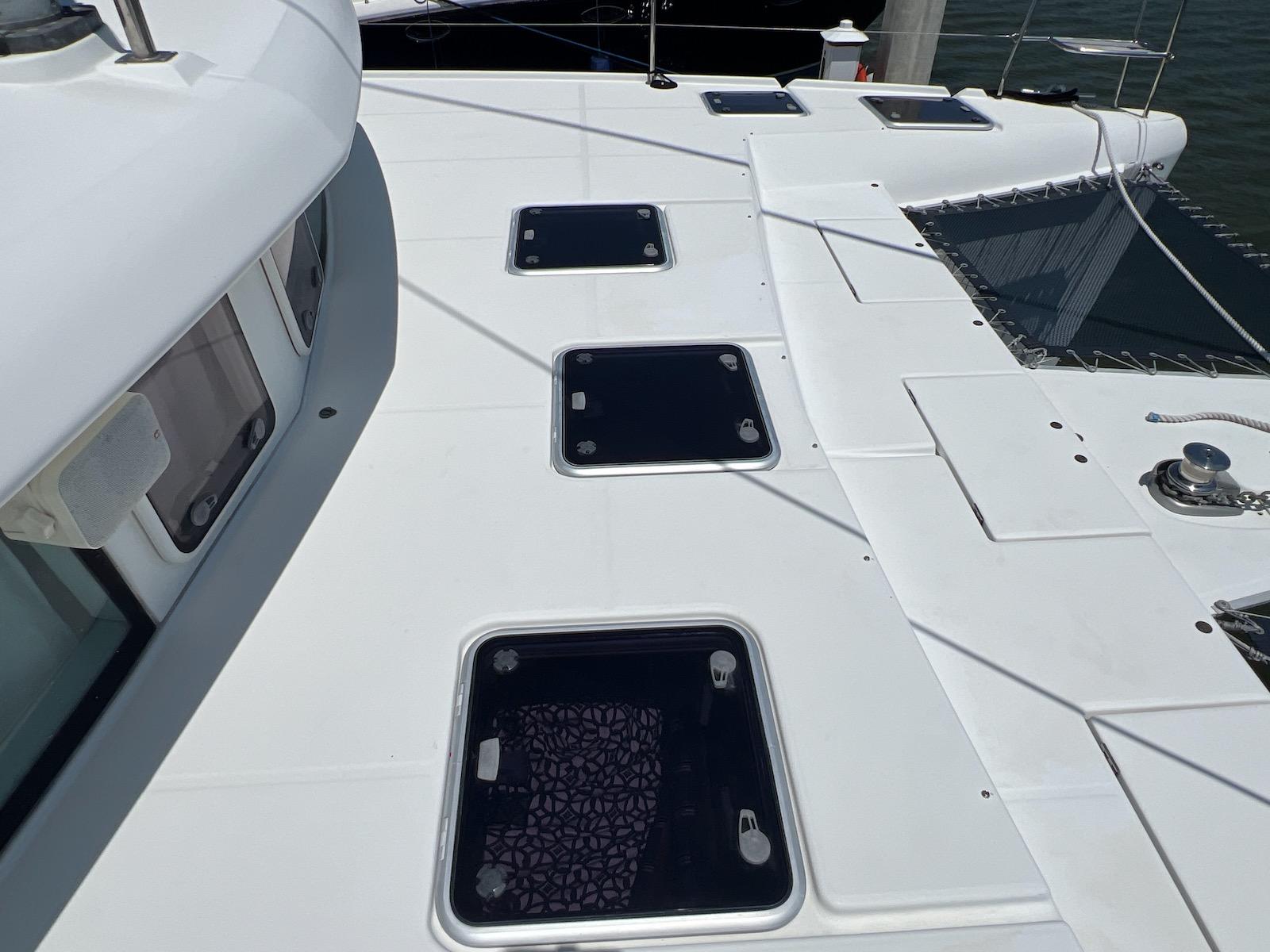

All Lewmar deck hatches (15) replaced in 2015

New Outland Hatch Covers 2015

New Quick Windlass 2016



Electronics

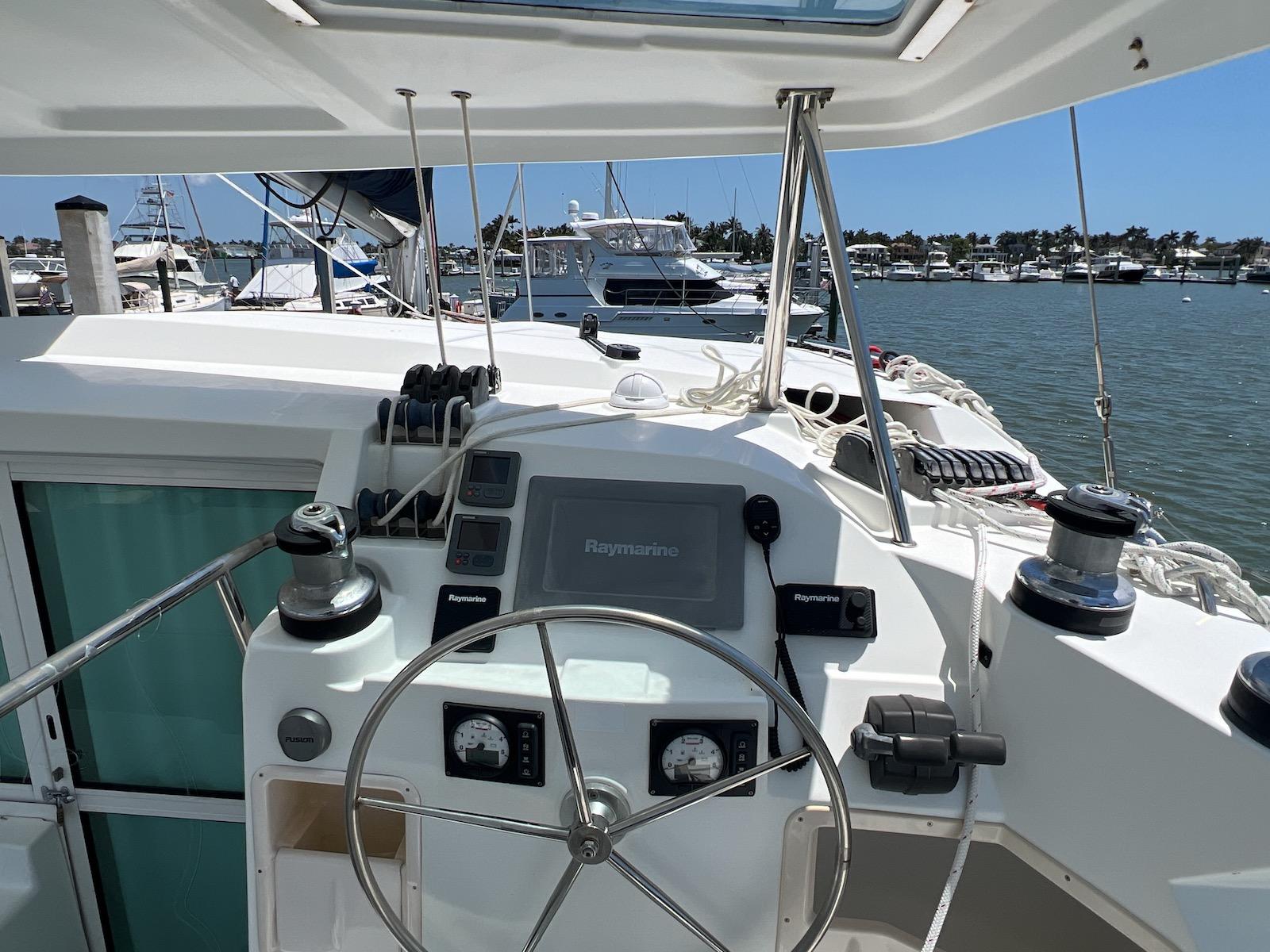

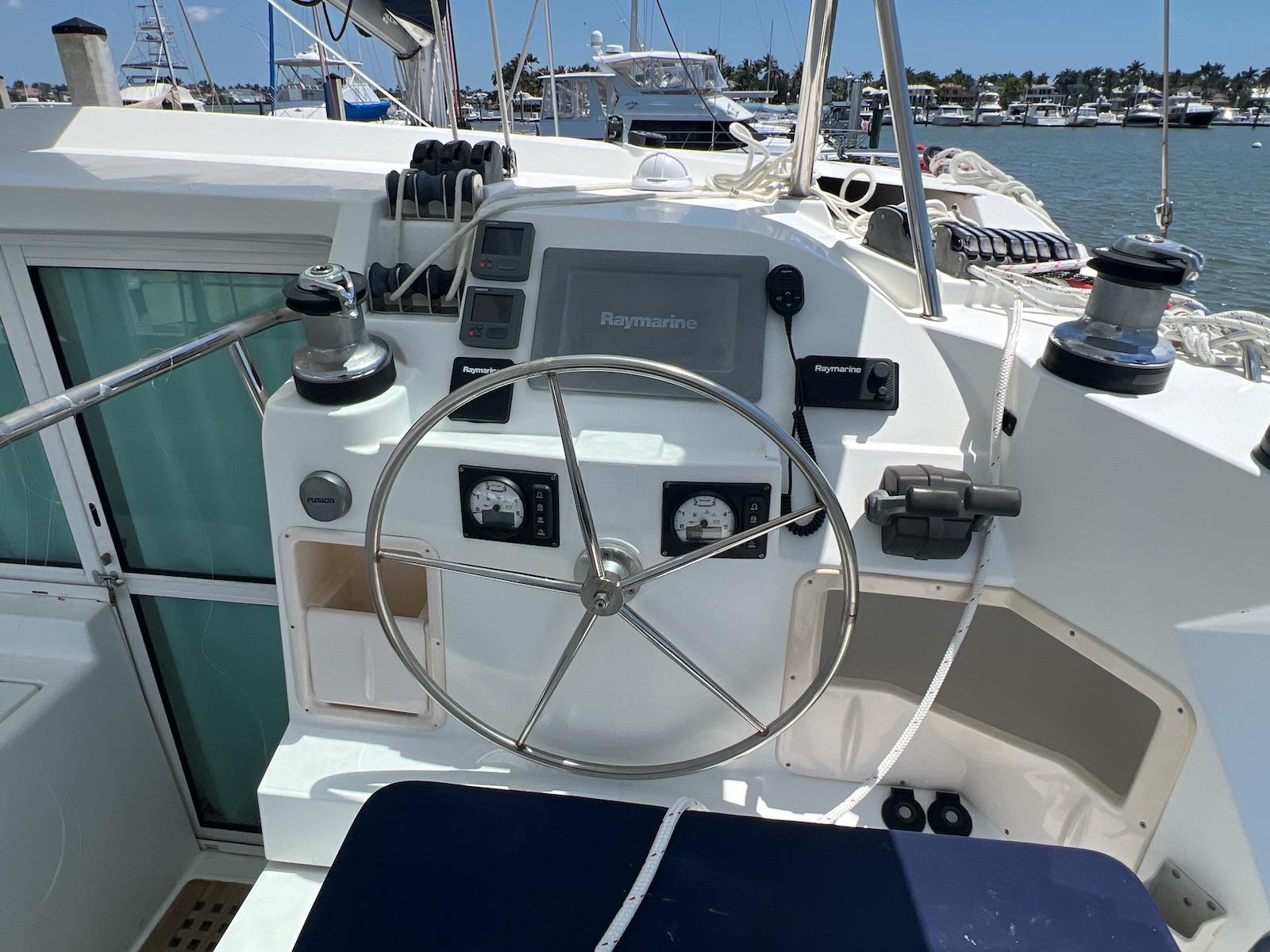

At Helm:

  - Raymarine E140W hybrid-touch with Plotter, Radar, Wind, Depth

  - Raymarine ST70 Wind Instrument

  - Raymarine ST6002 Autopilot with remote

  - December 2024 Raymarine  Ray53 VHF replaced at the helm by Sea Tech, Naples

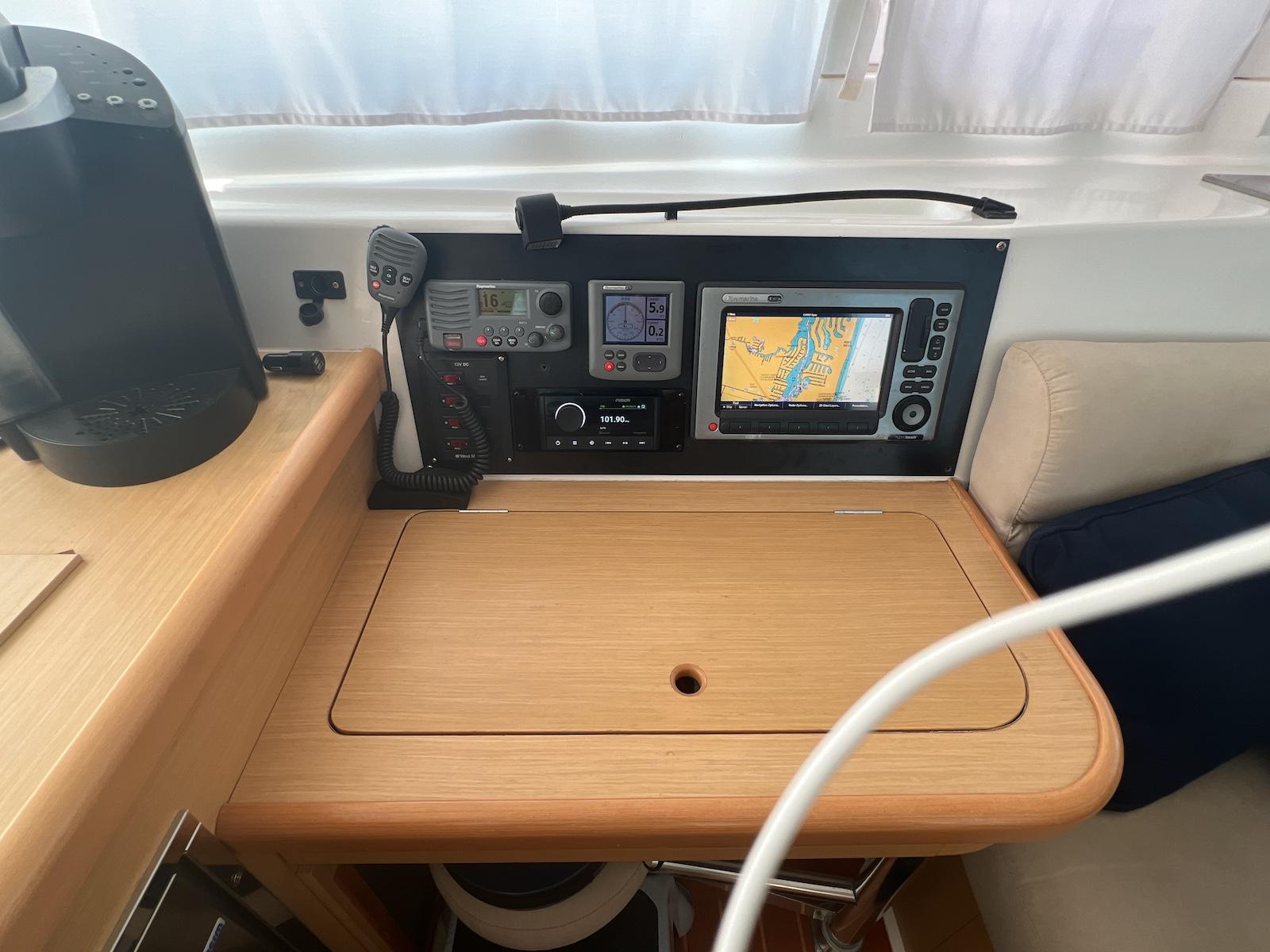

At Nav Station:

  - Raymarine E 90W hybrid touch with Plotter, Radar, Depth, Wind

  - Raymarine 55 VHS (2015)

December 2024 Fusion MS-RA670 Apollo Marine Entertainment System installed at Nav station, replacing prior Fusion system by Sea Tech, Naples

Rogue WiFi  Extender  2014

KVH-M1 Satellite TV Receiver

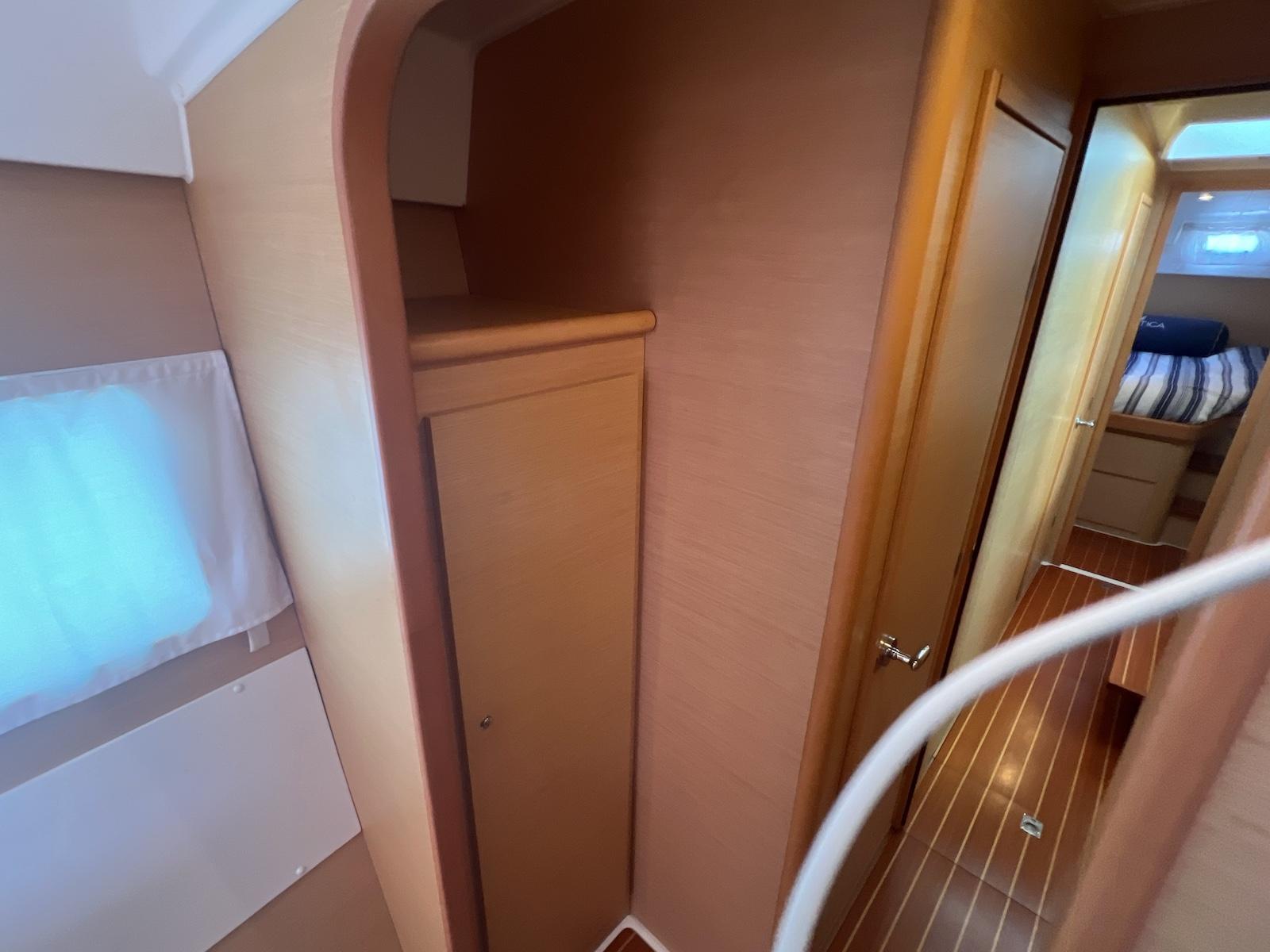

 Accommodations

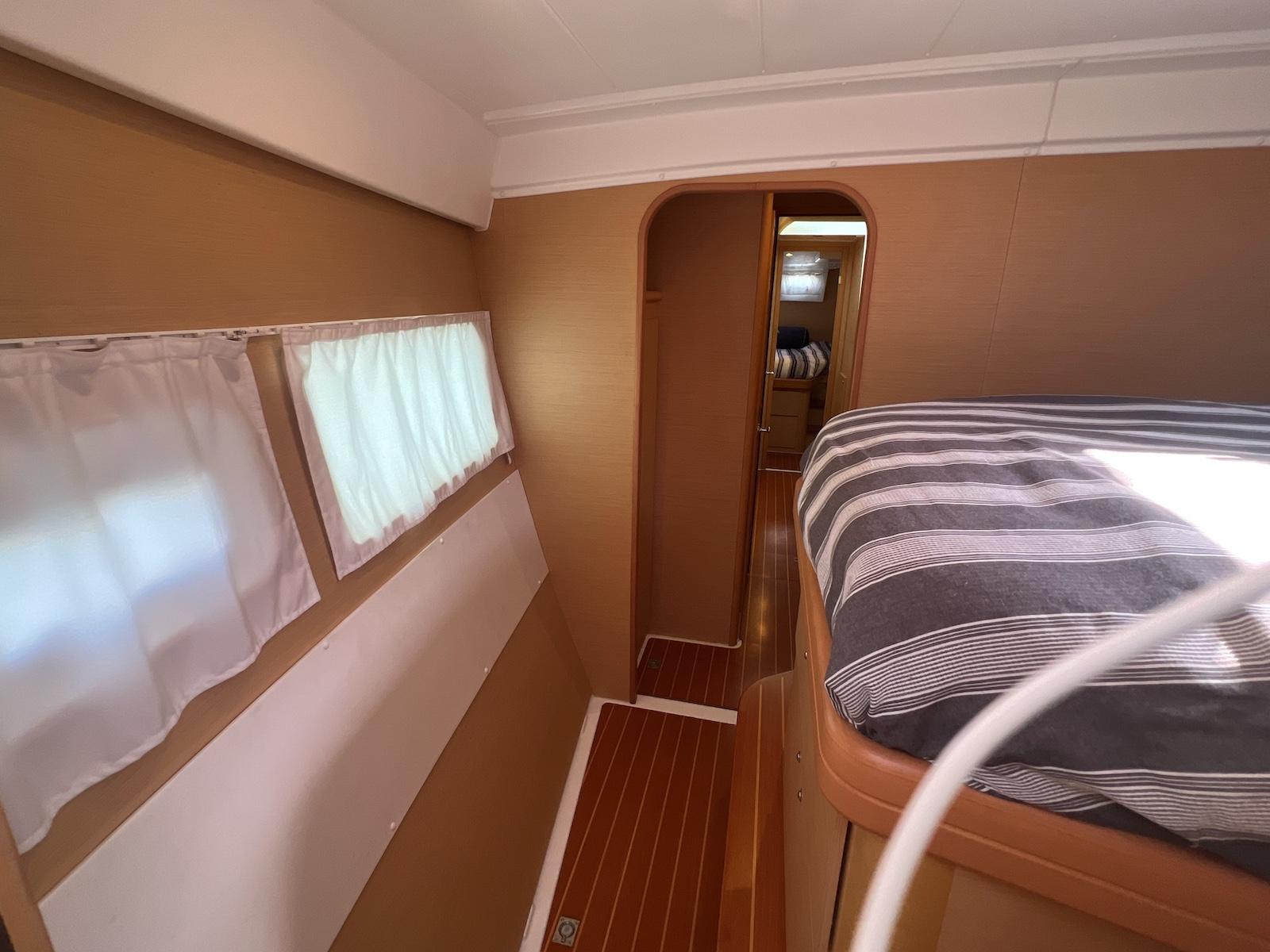

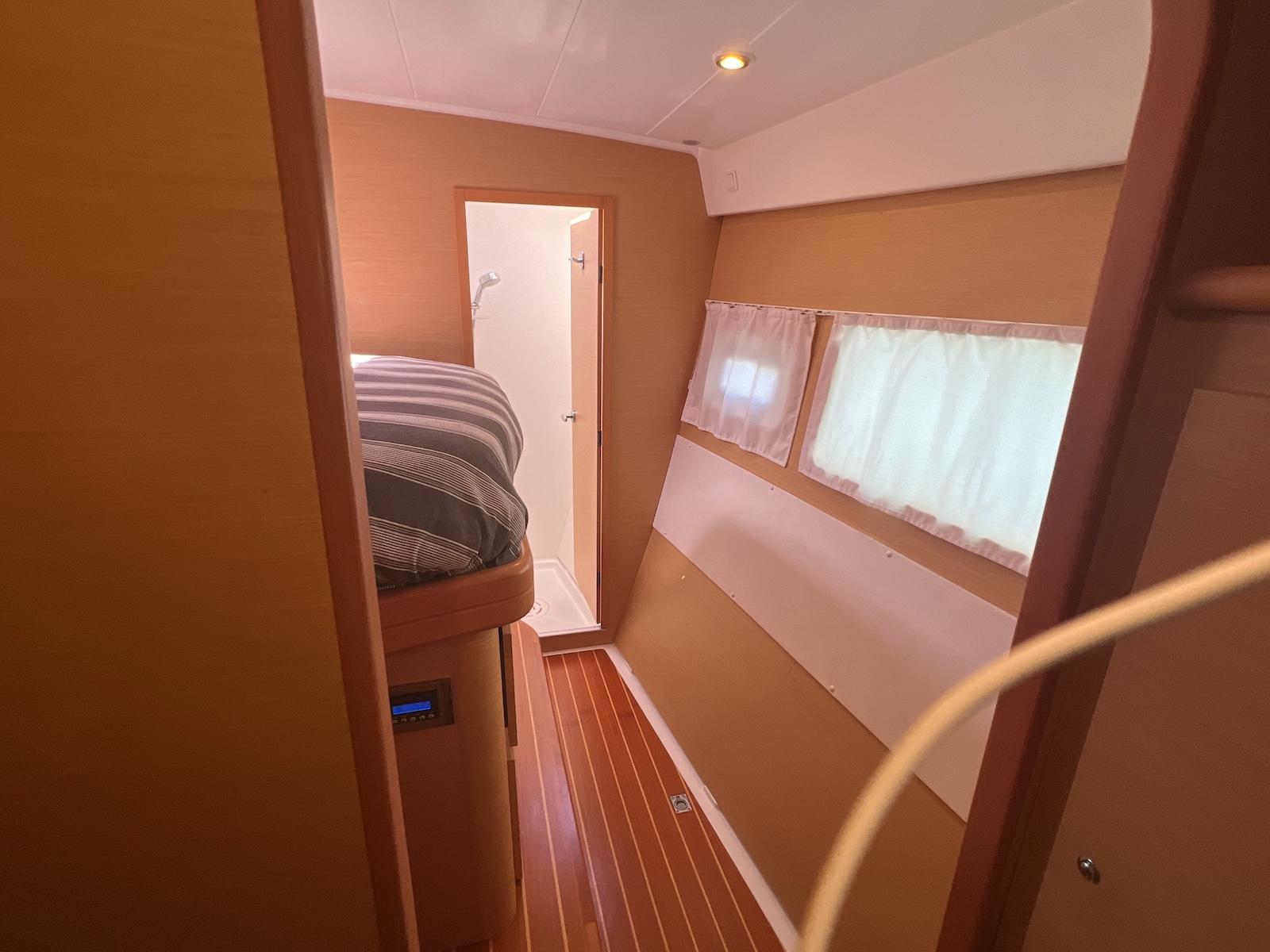

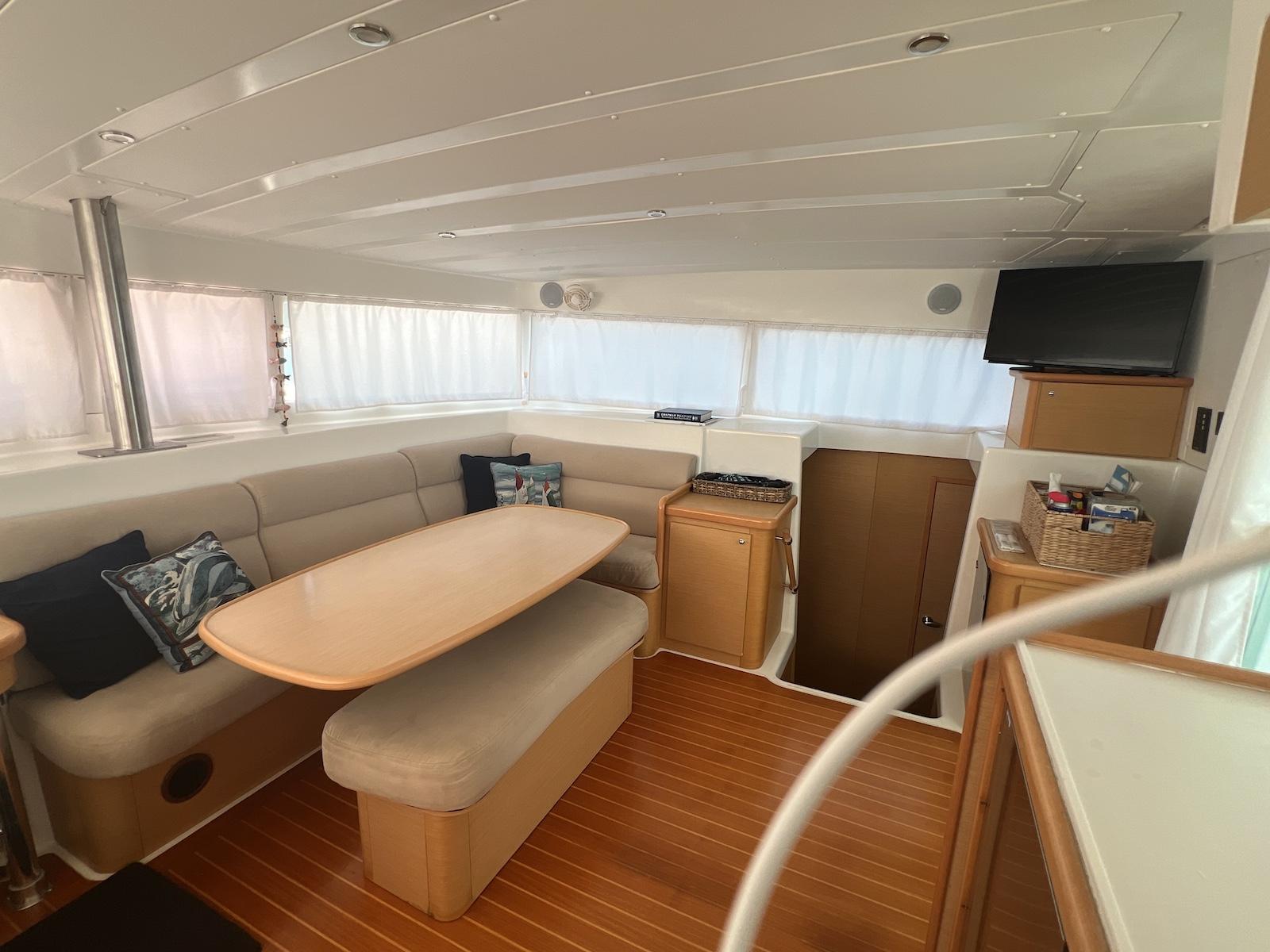

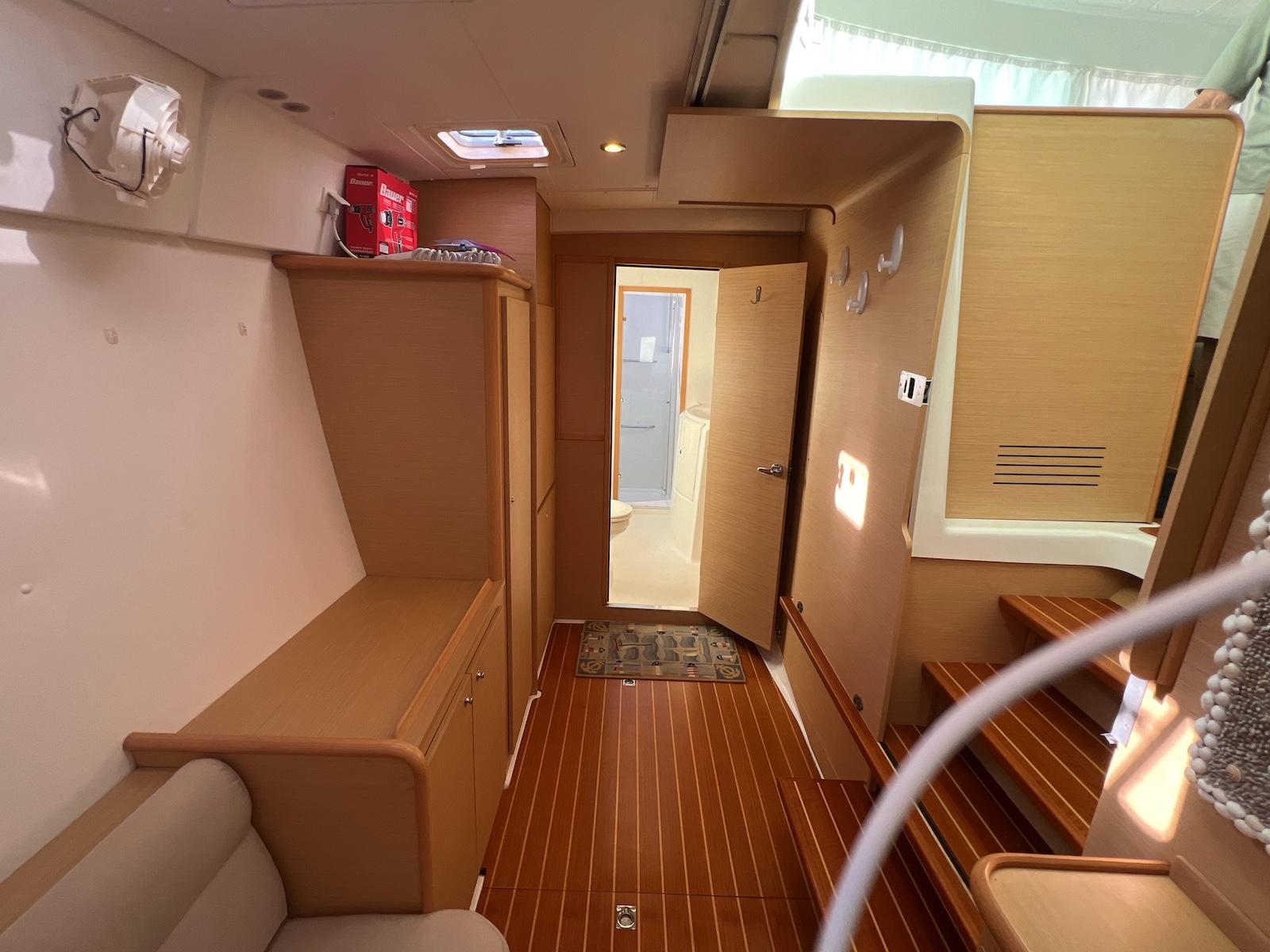

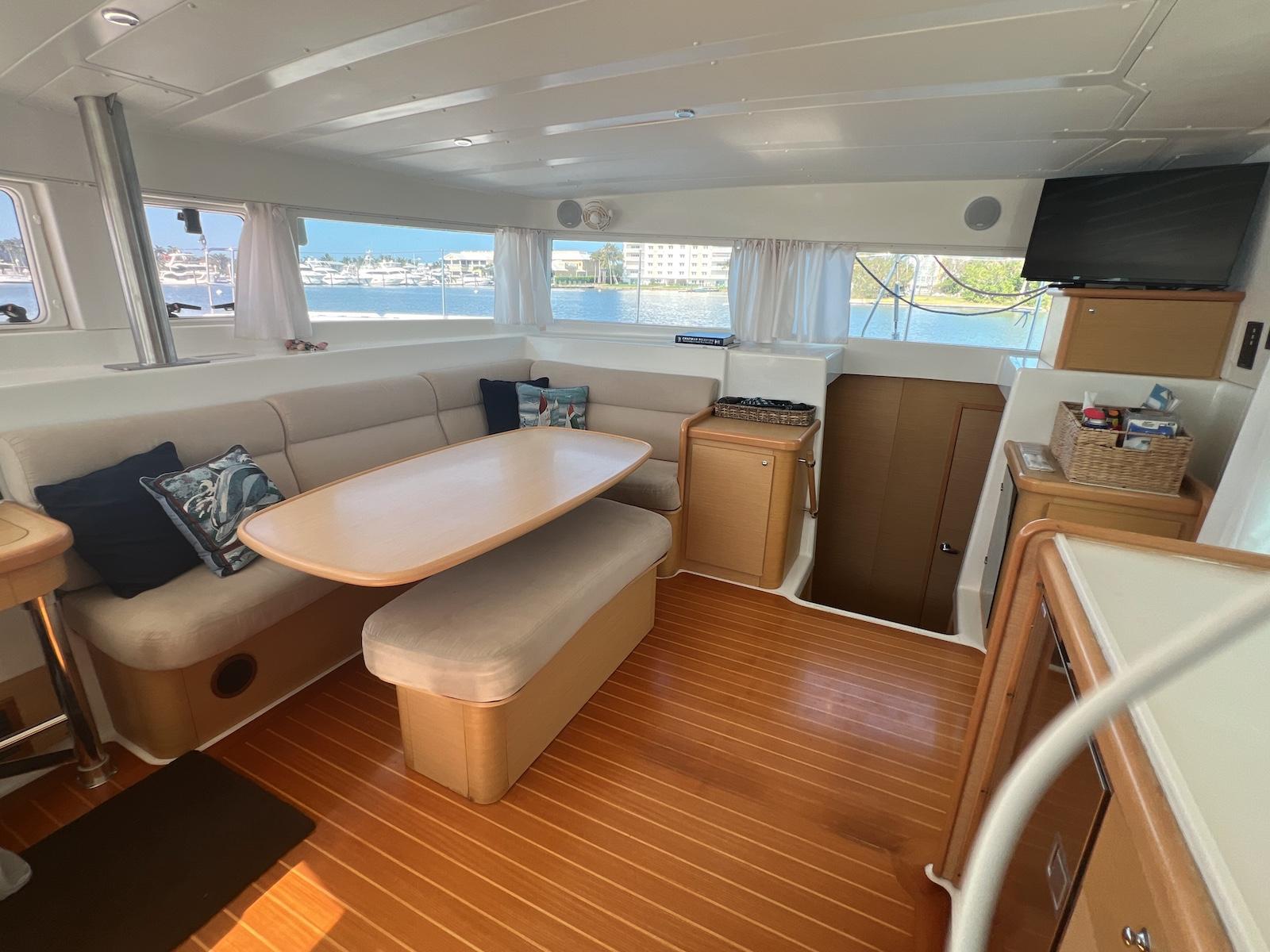

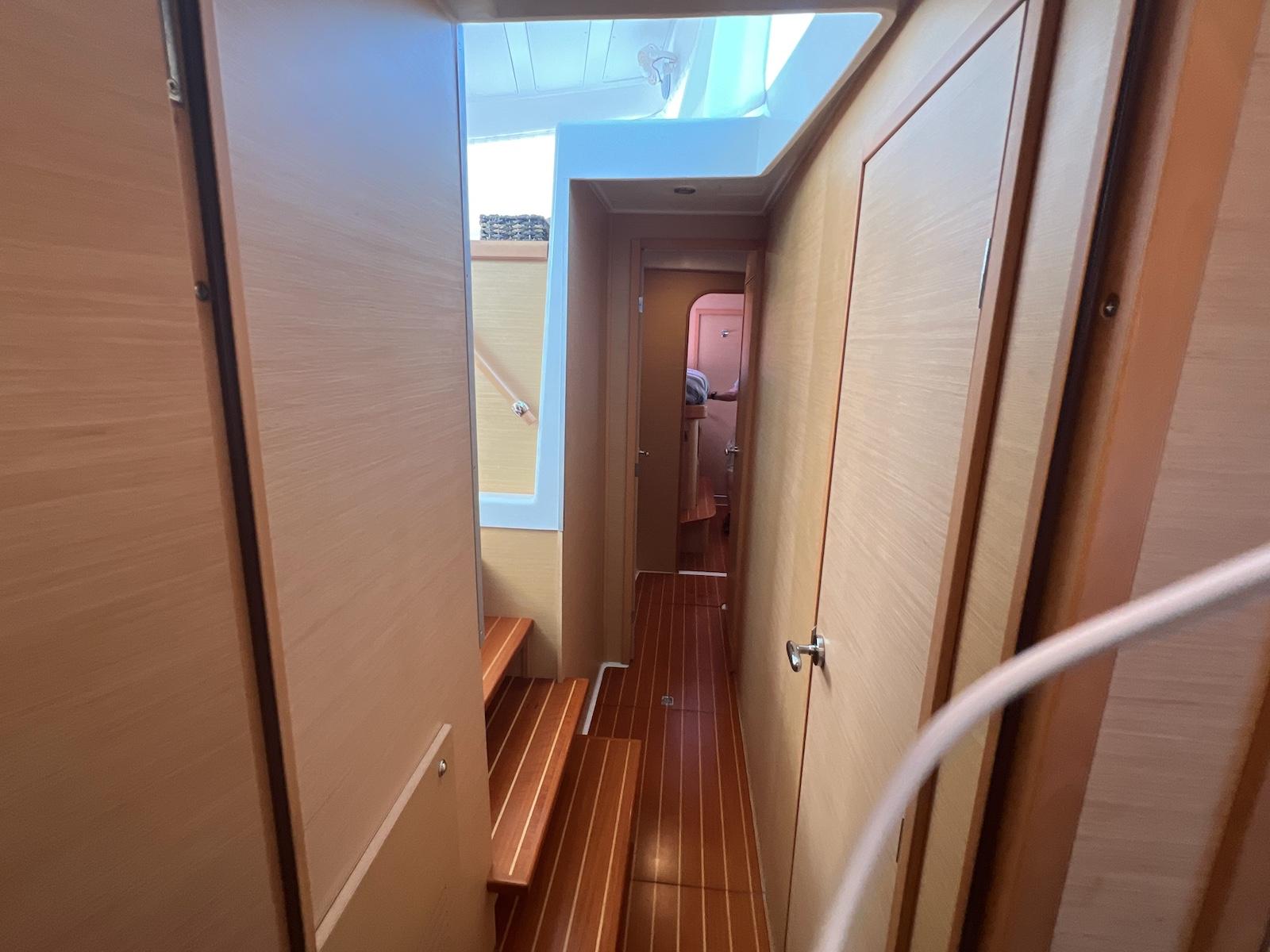

Priority has been given to comfort when designing the interior of the Lagoon 420. The light oak Alpi woodwork and the new teak and holly floor give a modern and relaxing feel. Access into the saloon from the cockpit through a sliding glass door on the same level. The longitudinal galley opens directly on the cockpit, it is the most social and practical area, fully equipped with numerous lockers. Standing room of 6' 7" and horizontal windows surrounding the salon provide a large, airy, and bright atmosphere. The port hull of the 3 cabin owner version is in fact a suite: large bed, sofa, numerous lockers and hanging lockers, washroom with separate shower. In the Starboard hull there is a central double bed in each cabin, a washroom with separate shower for each, large hull windows, and generous lockers.

Air Conditioning/Heating:

18,000 BTU Salon/Galley

10,000 BTU Owners Suite

7,000 BTU Forward Guest Cabin

7,000 BTU Aft Guest Cabin



Both forward air conditioning units replaced since 2021

All forward air conditioning plumbing crossing from starboard to port and back replaced 2023

Forward air conditioning plumbing manifold replaced 2023

Starboard aft air conditioning unit fan replaced 2019

Galley

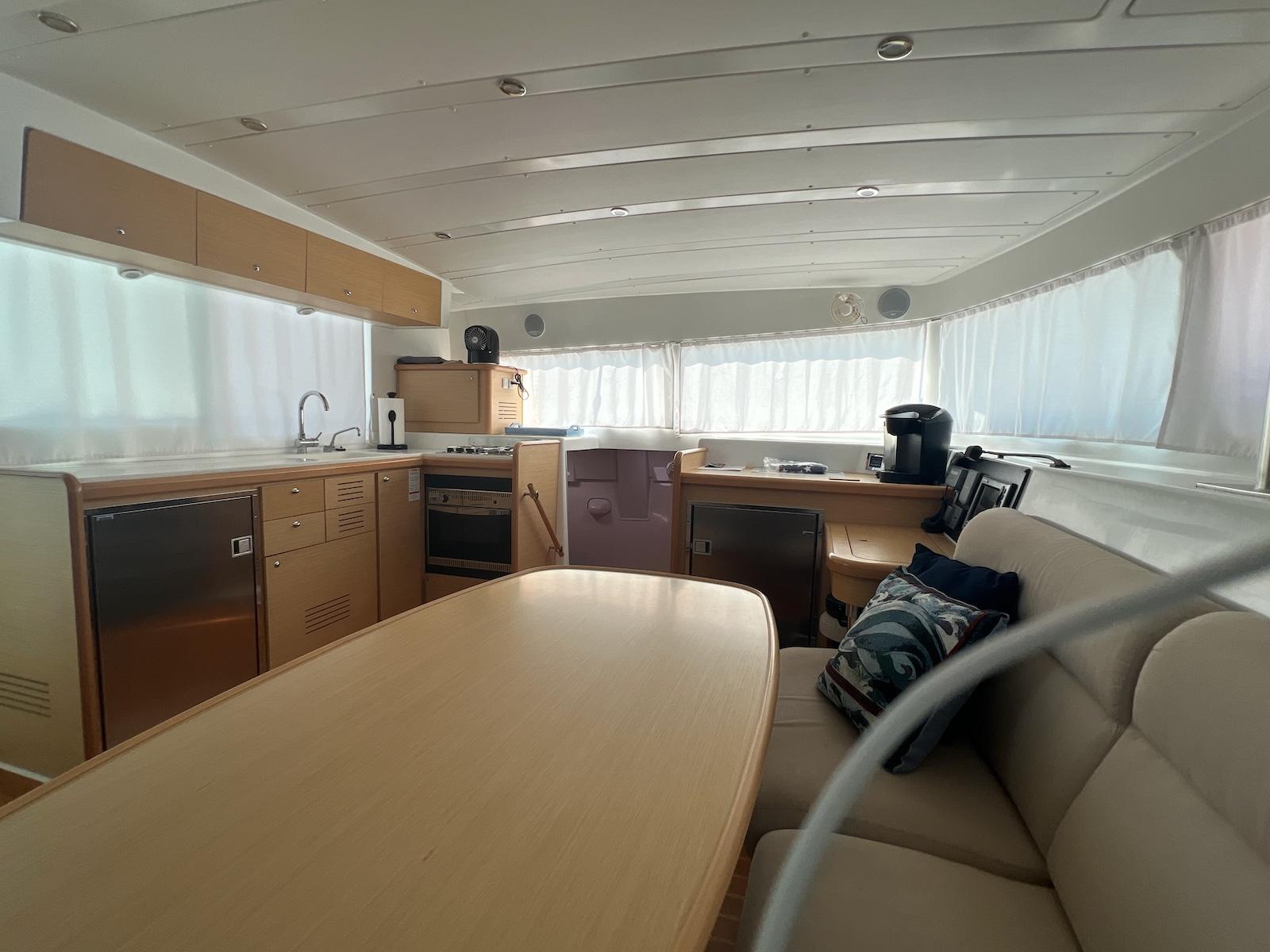

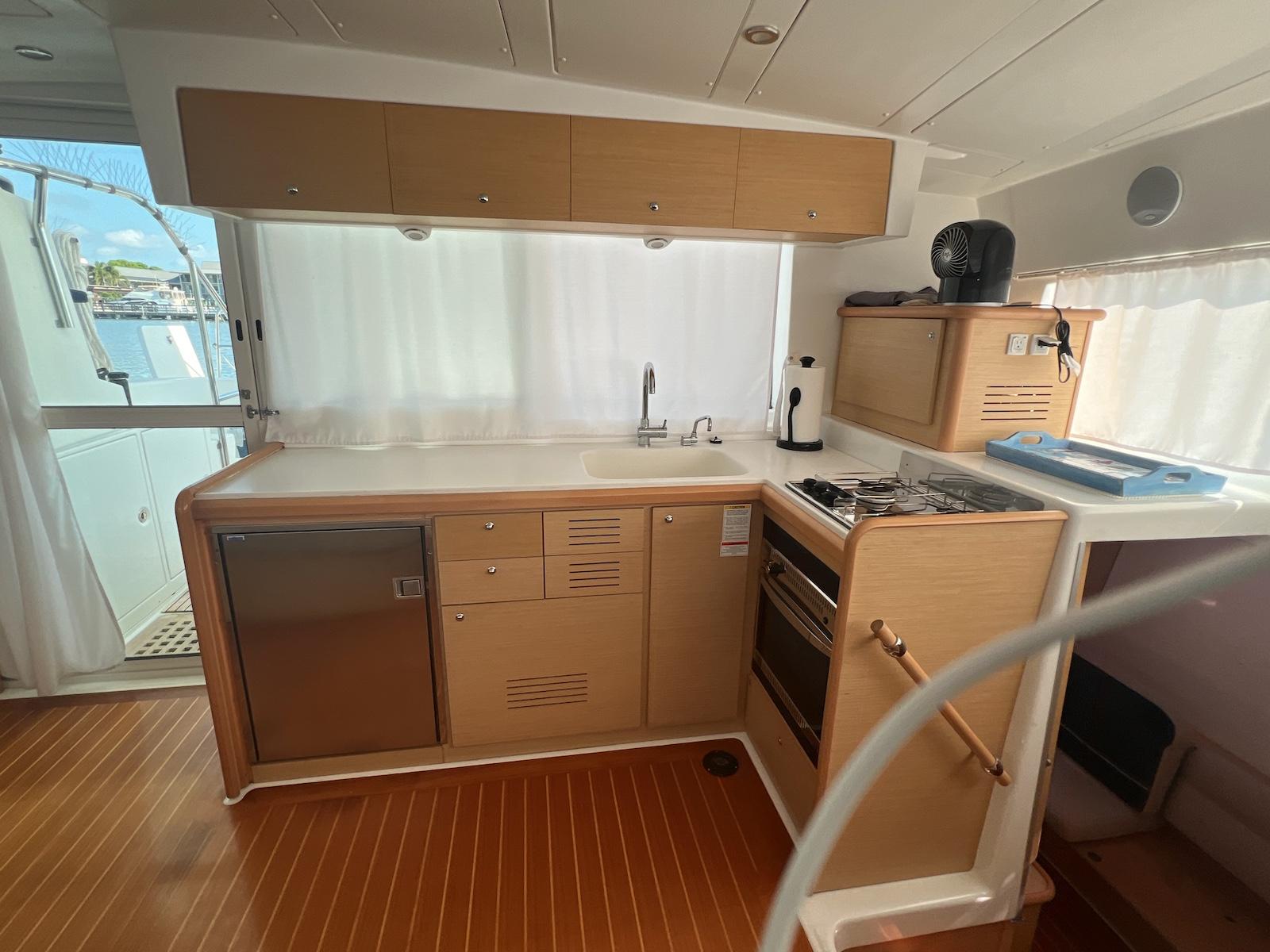

A new Corian Counter with integral large and deep sink were installed in 2014 including a modern faucet. New Isotherm refrigerator and freezer were installed in 2014-both dual voltage. A new propane Eno stove and oven with electric start installed in 2014 Everything is arranged to allow easy access from the dining area and outdoor salon (cockpit).

New LED lighting added throughout in 2015.

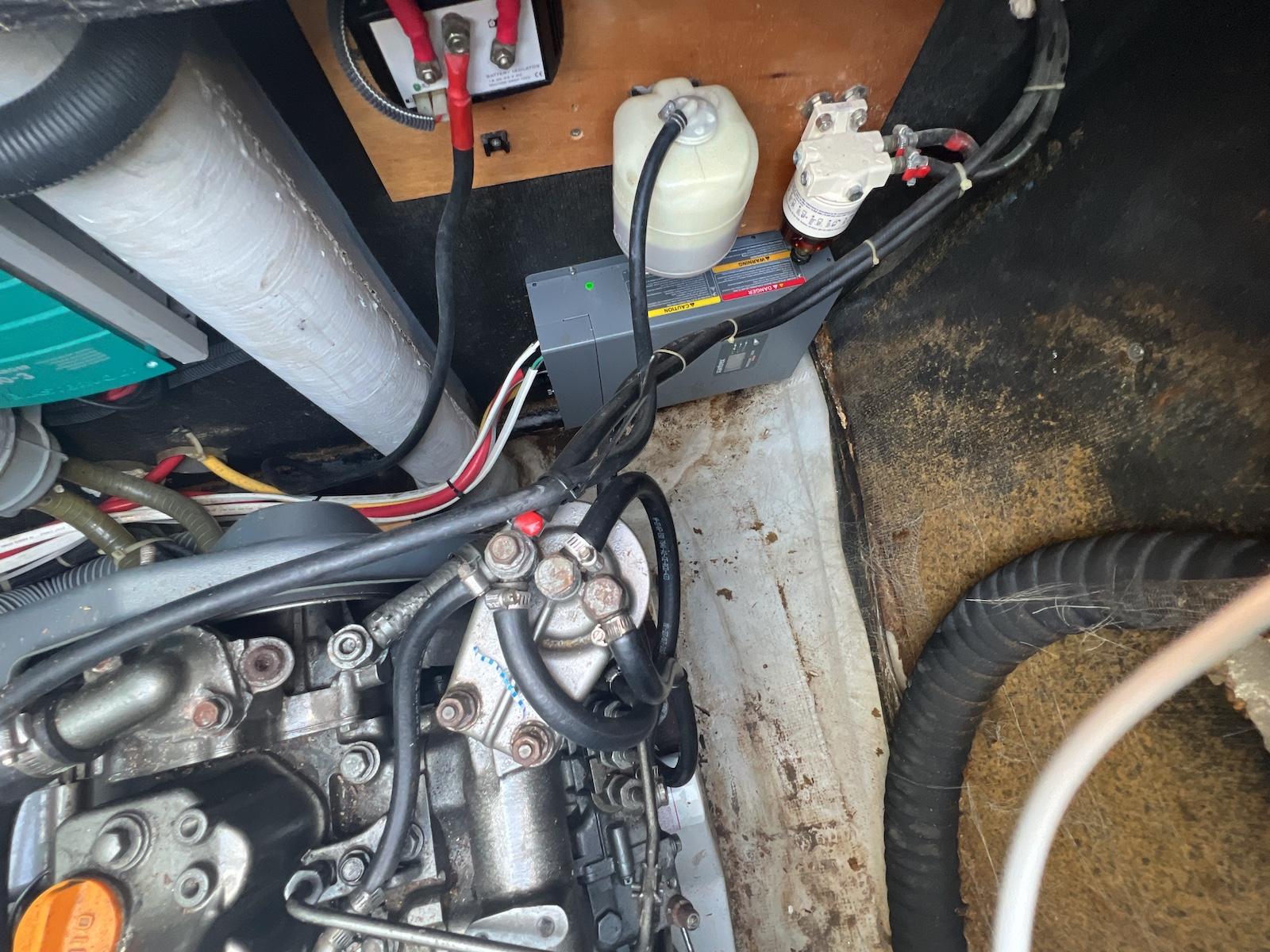

 Engines/Saildrives

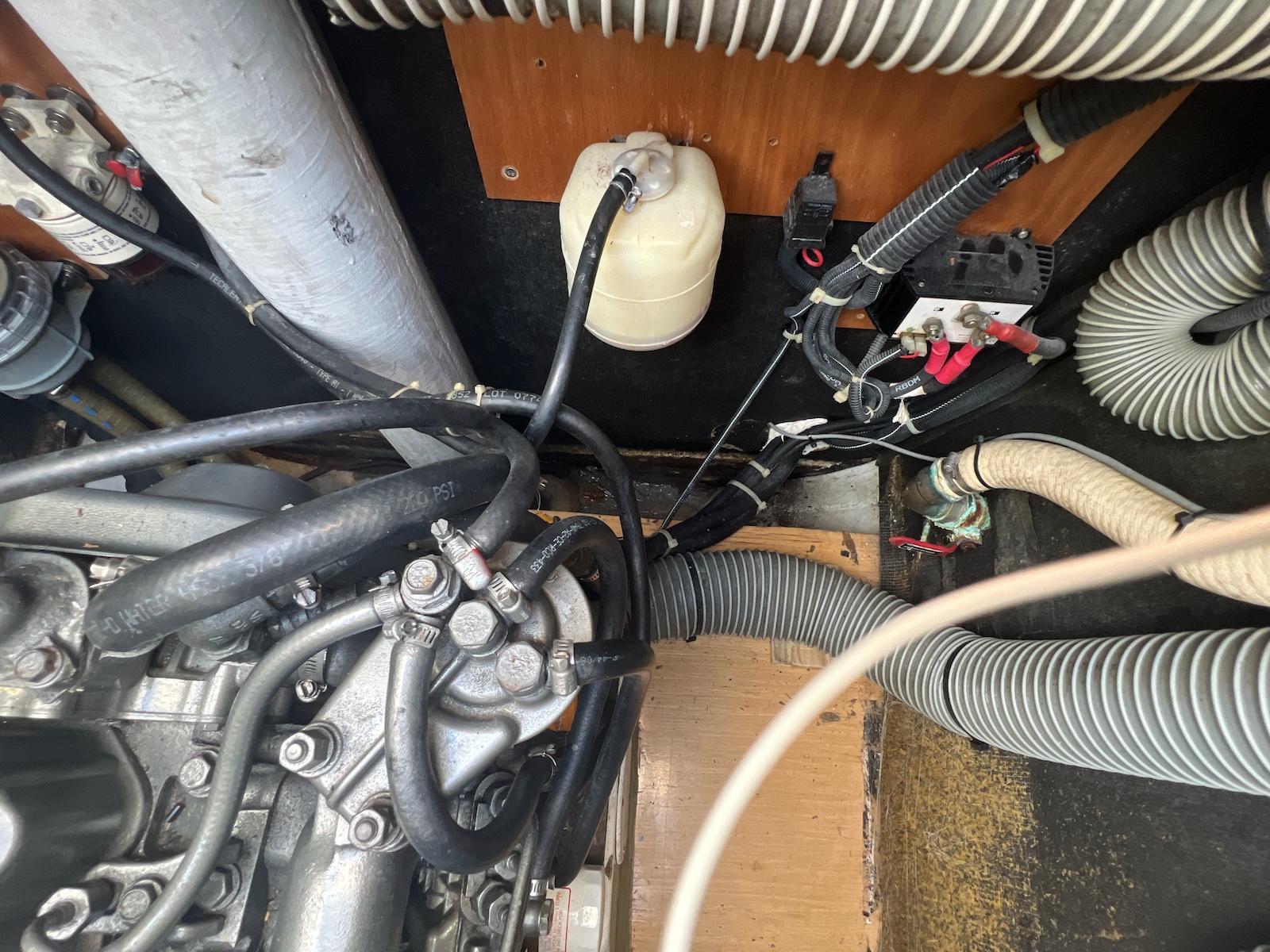

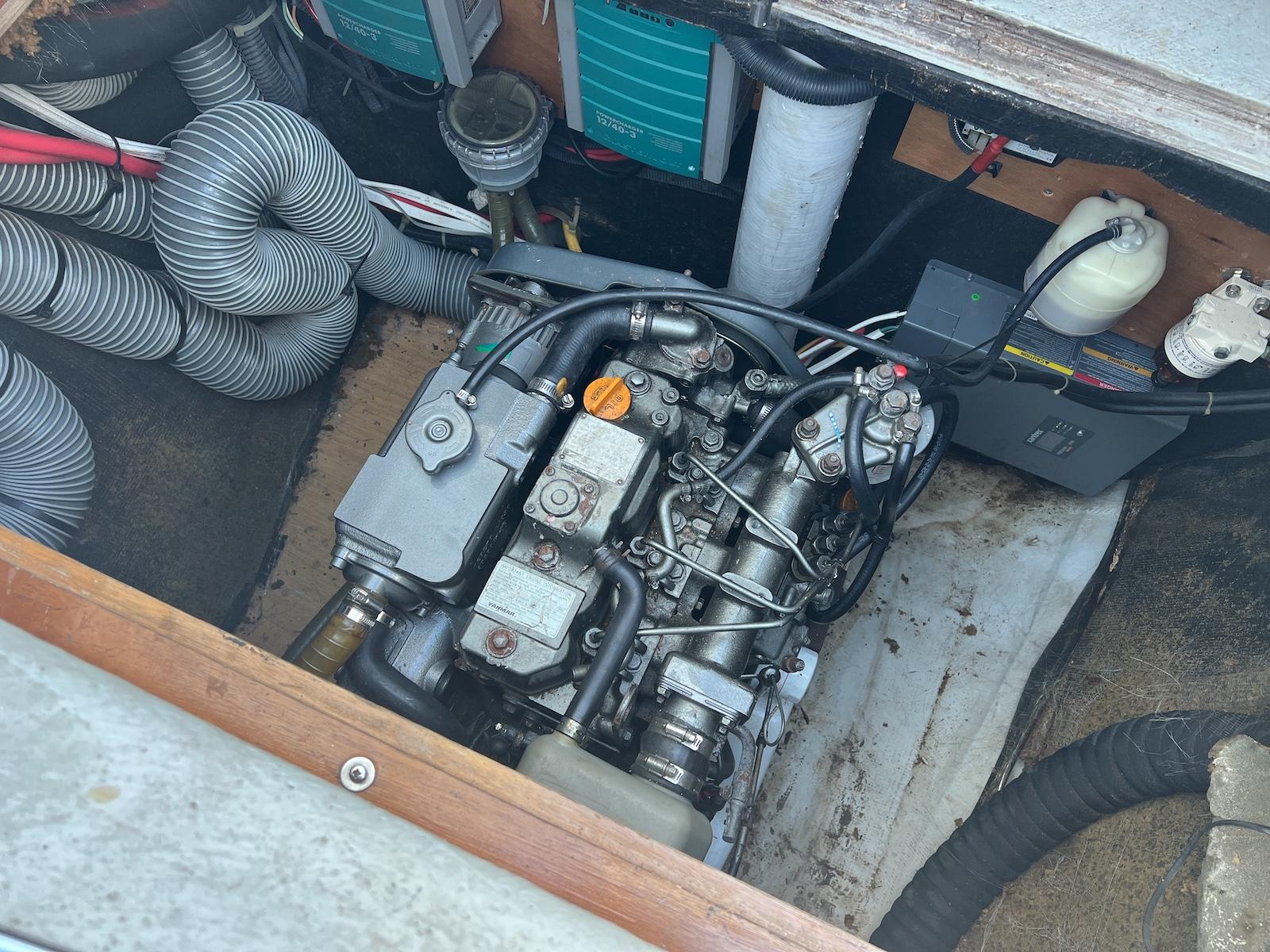

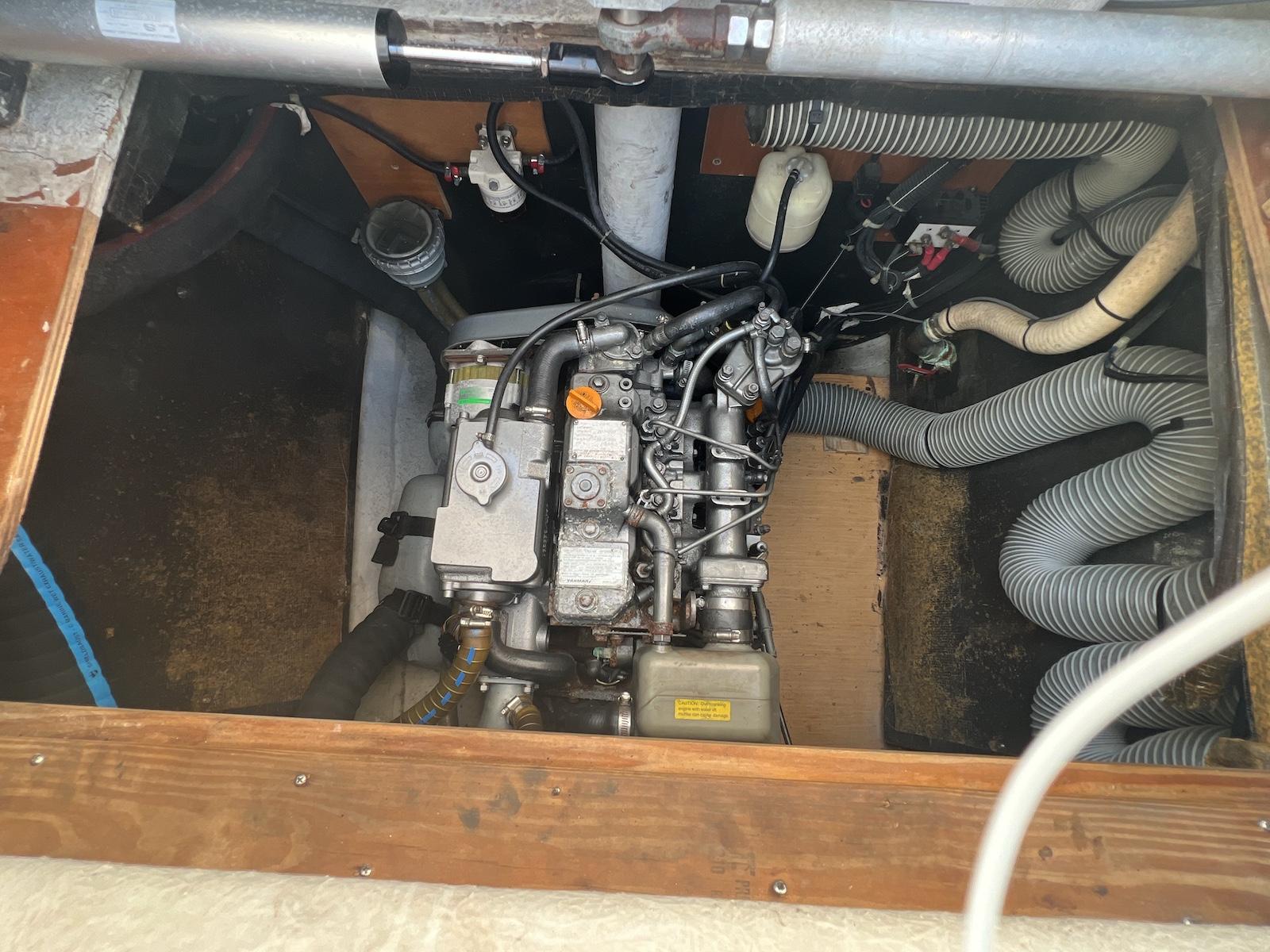

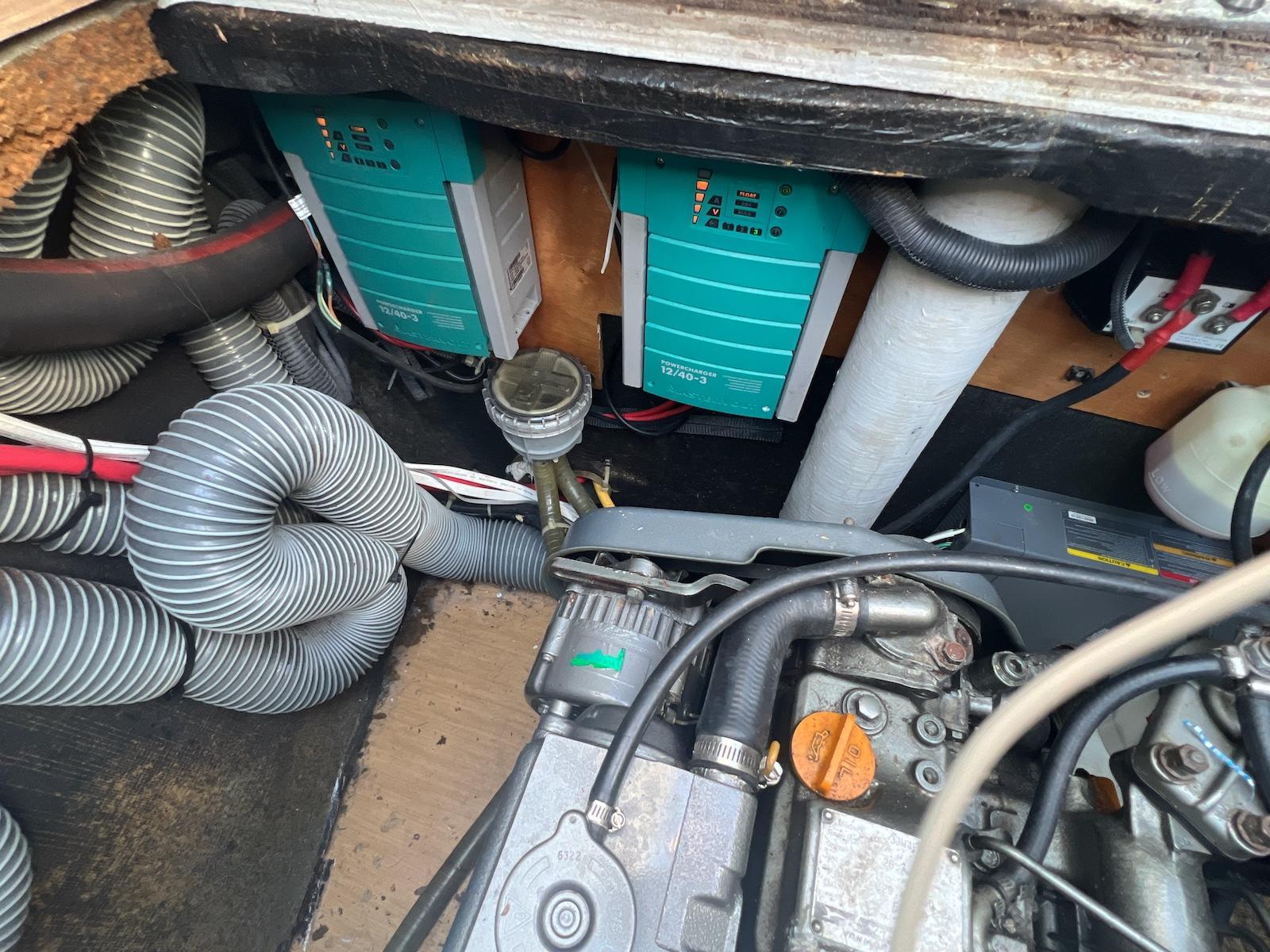

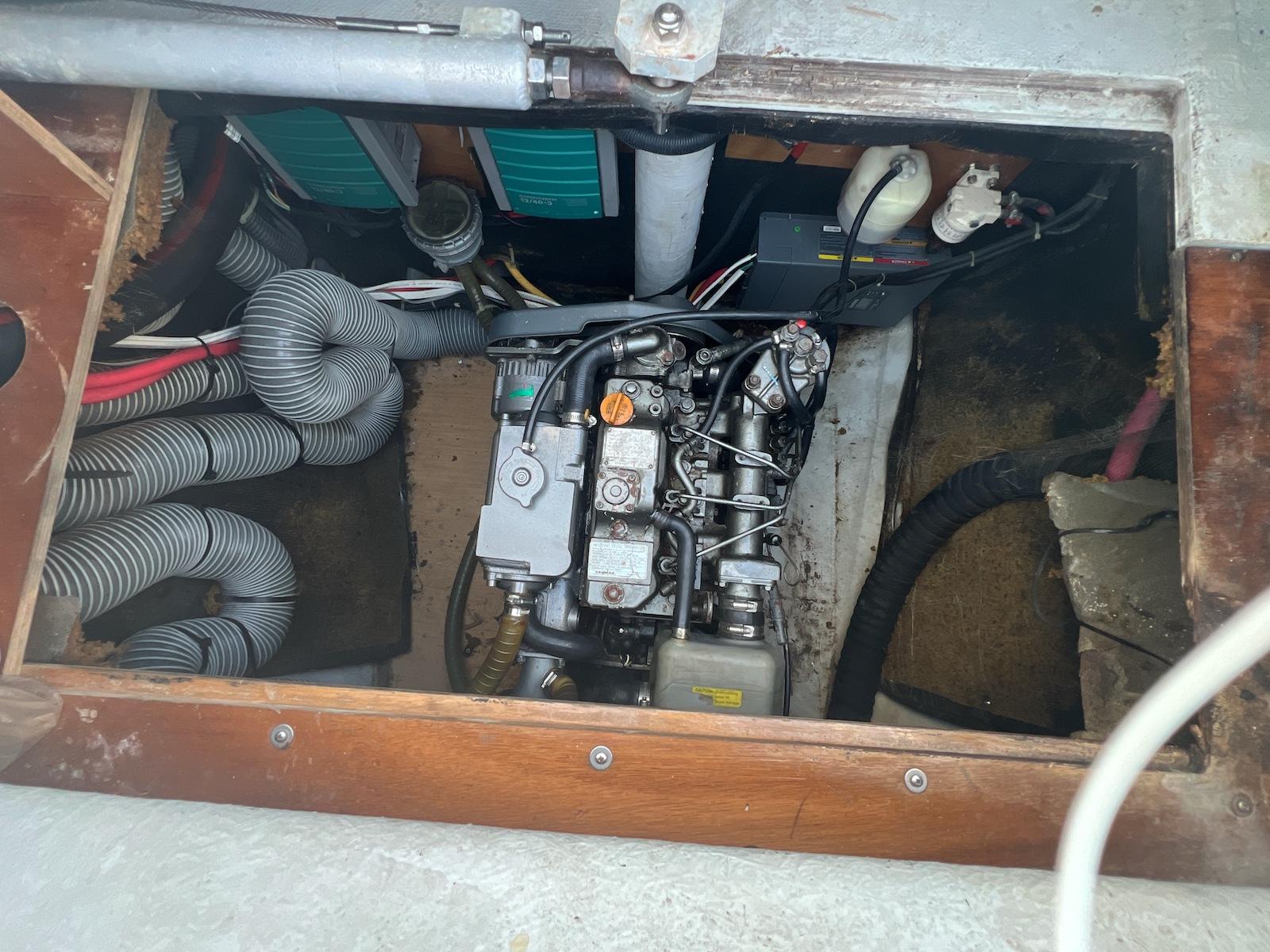

Twin Yanmar 3JH4E 40 Hp diesels provide reliable power, and since they are located outside the cabins, they are very quiet.

Both engine heat exchangers, exhaust elbows and exhaust hoses replaced 2022

Standard 80-amp alternators port and starboard.

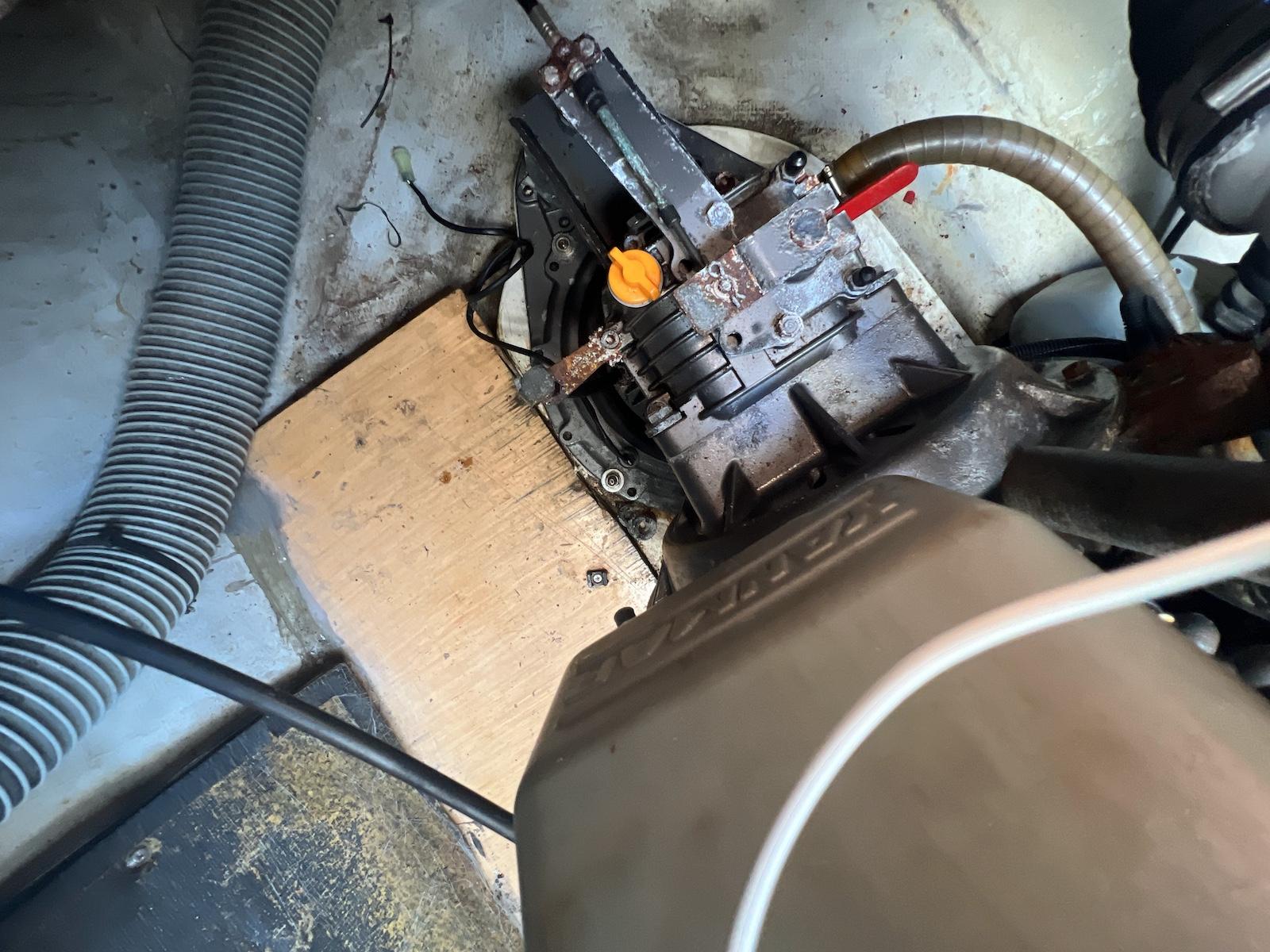

New SD 60 sail drives 2022, still fewer than 50 hours of use (SD-60s).  Saildrive oil first change scheduled at 50 hours.   Propspeed on saildrives and props (all running gear) when new, and renewed a year later with an additional coat

Flexfold 3 Blade Props new 2013

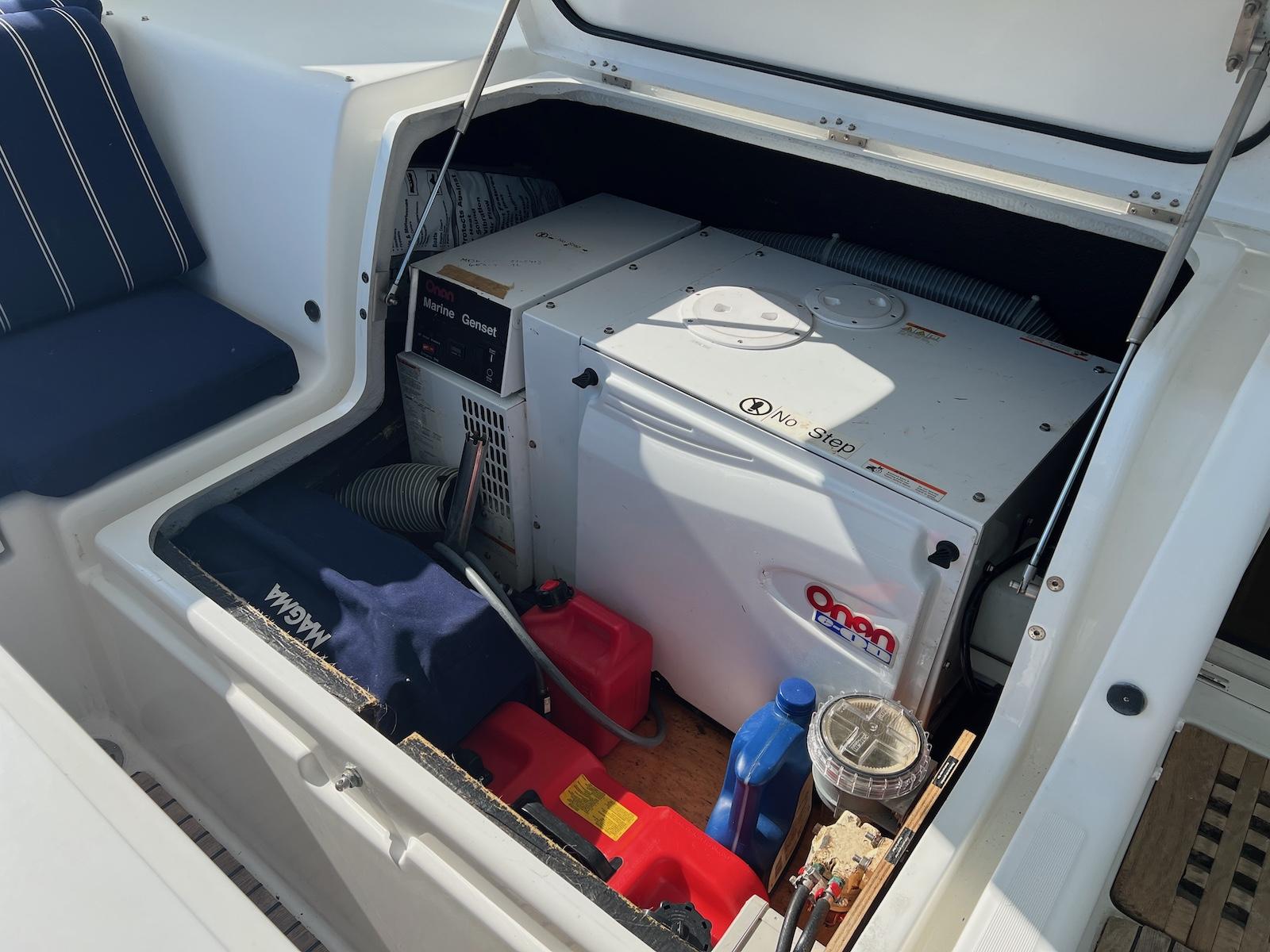

Onan diesel generator has 2700 hours.  The raw water flow monitor was replaced in 2024, and the generator was serviced with cleaning of heat exchanger and replacement of impeller in Apr 2025.

Sails

Fully Battened Main with Stack Pack for handling

1.    1 Full batten large roach mainsail, 62 m2 / 667 sq ft.

2.     Furling genoa with UV protective band, 35 m2 / 377 sq ft

Two Genoas-110 and 130- Estimated age: 2012

New Profurl  for Genoa 2016

Spinnaker for flying between hulls

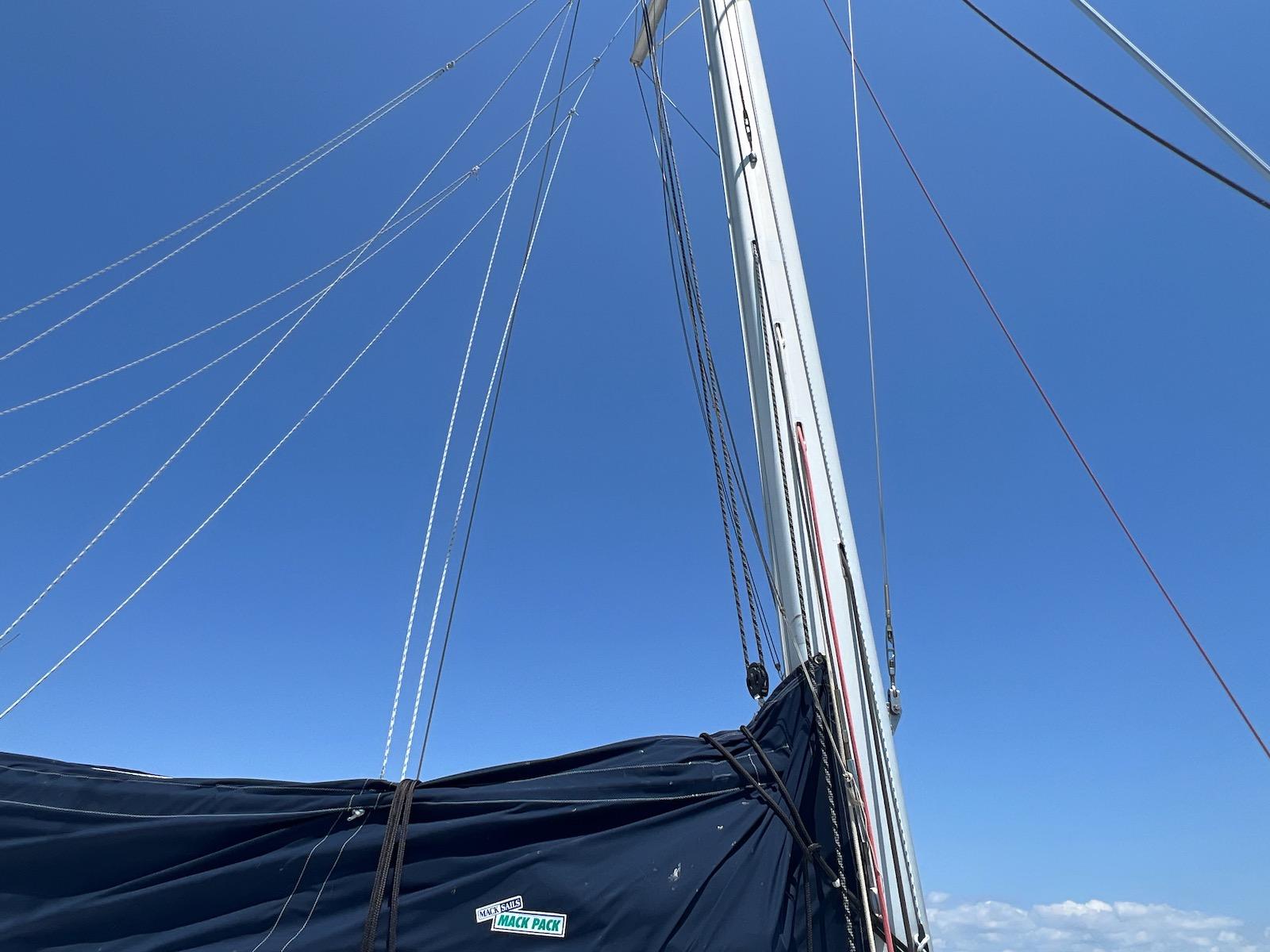

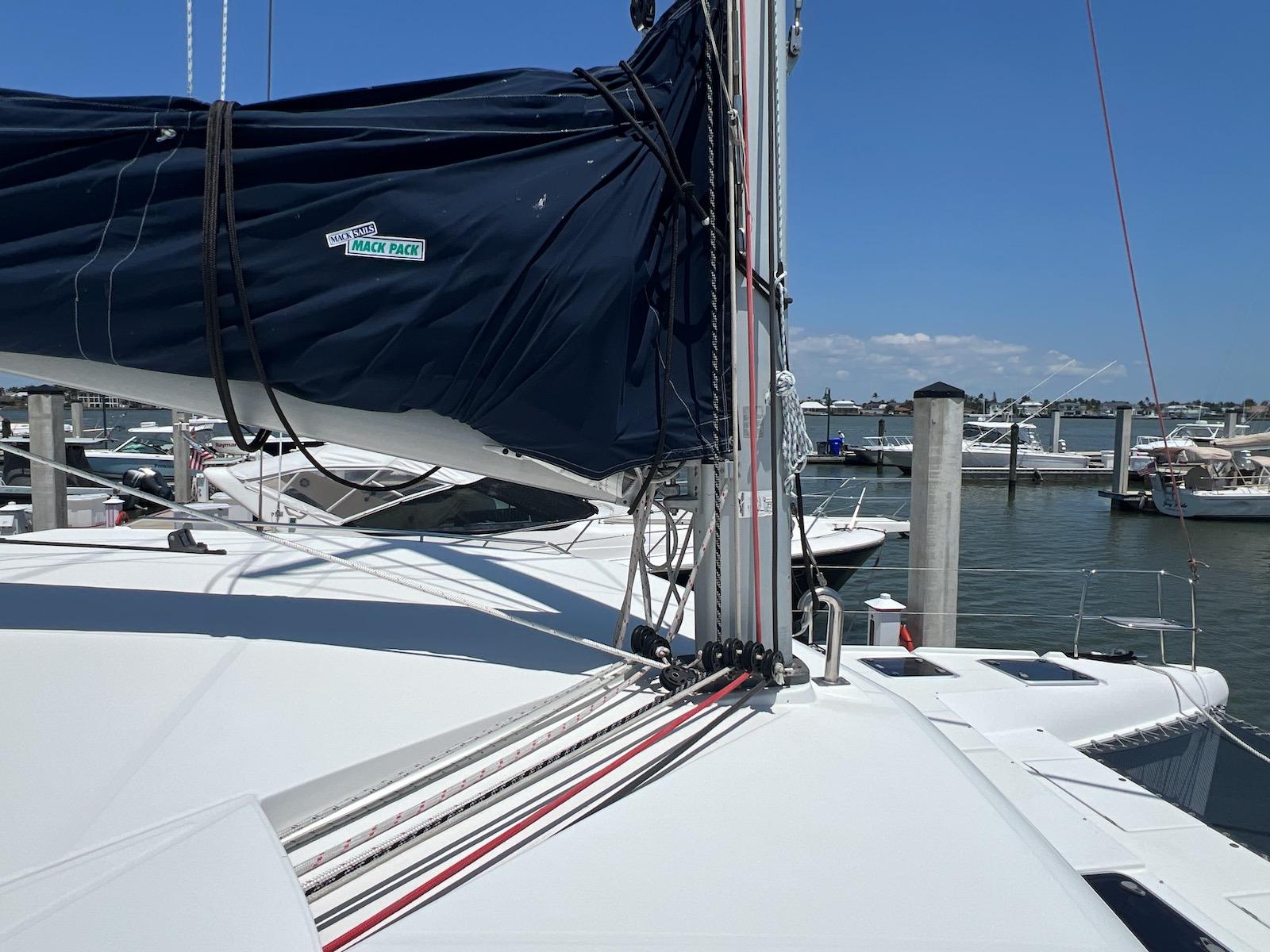

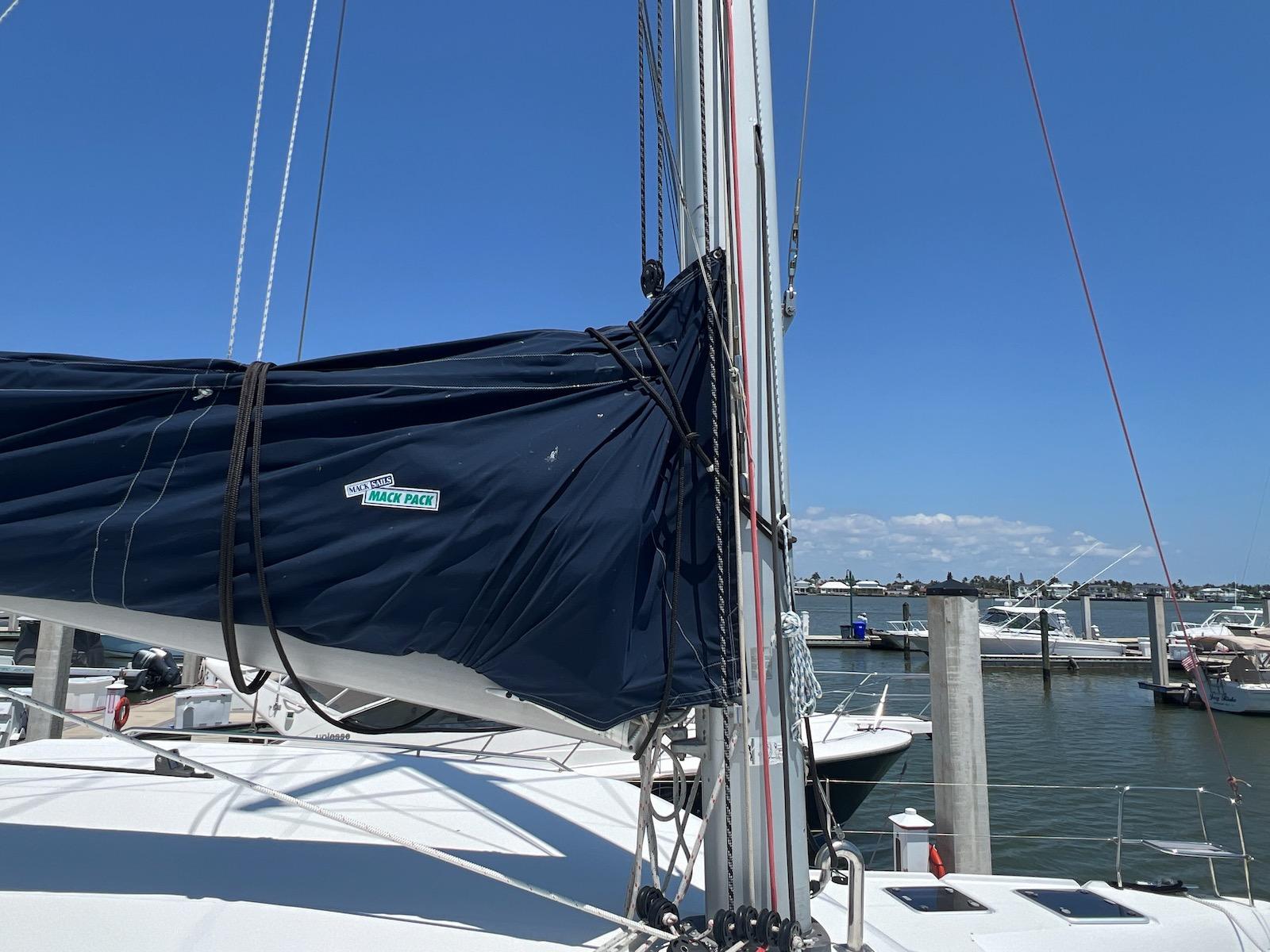

New Mack Sails Mack Pack sail cover and lazy jacks 2022

The sail inventory includes an additional genoa in a bag, a symmetrical spinnaker with all equipment necessary: halyard, guys, sheets and turning blocks  for sheets to be handled at cockpit winches, and an asymmetrical light air spinnaker in a sock, near the size of the genoa, but much lighter, that is approximately a Code 0, in addition to the symmetrical spinnaker.



All running rigging has been cleaned in May 2025.

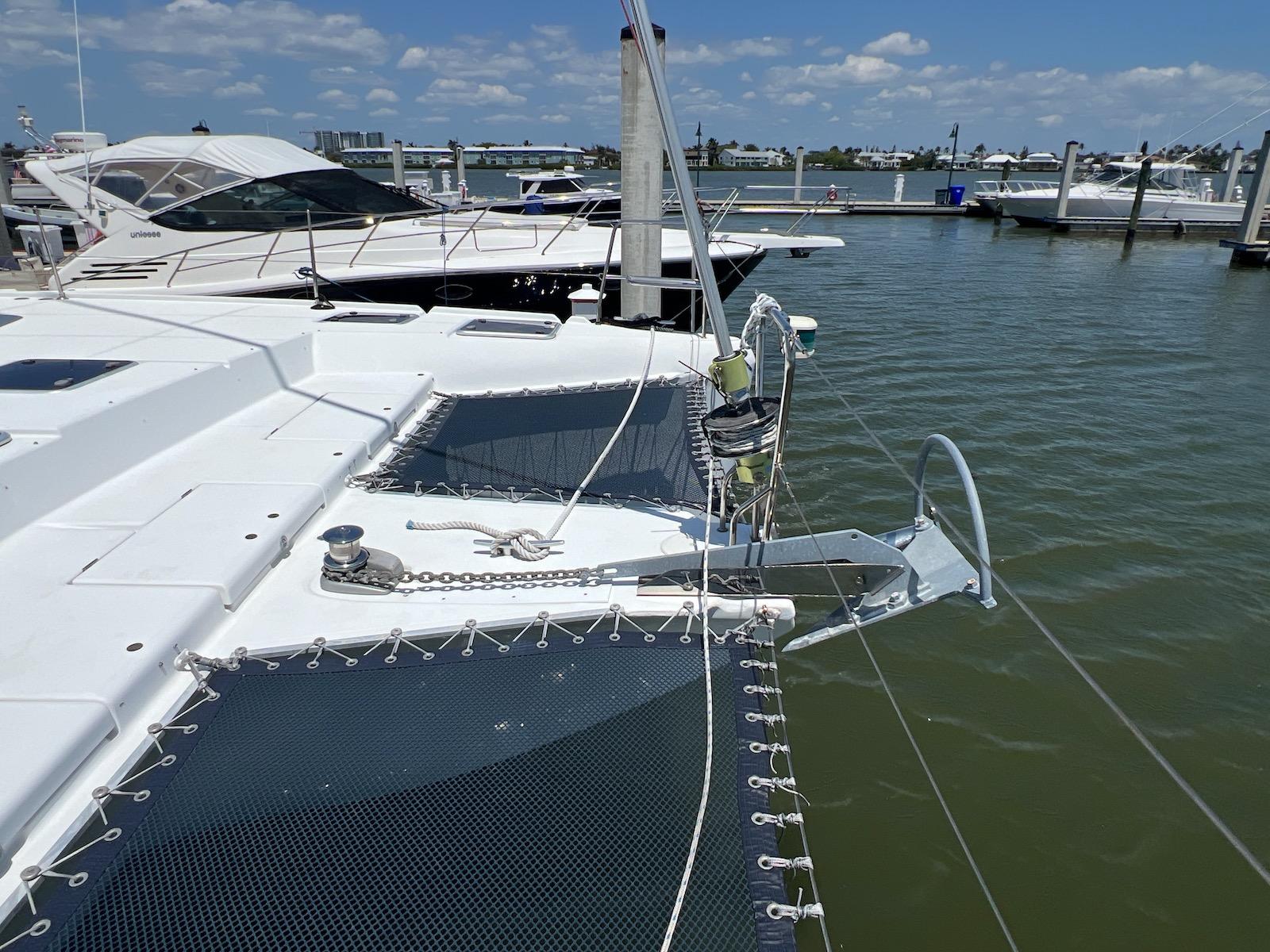

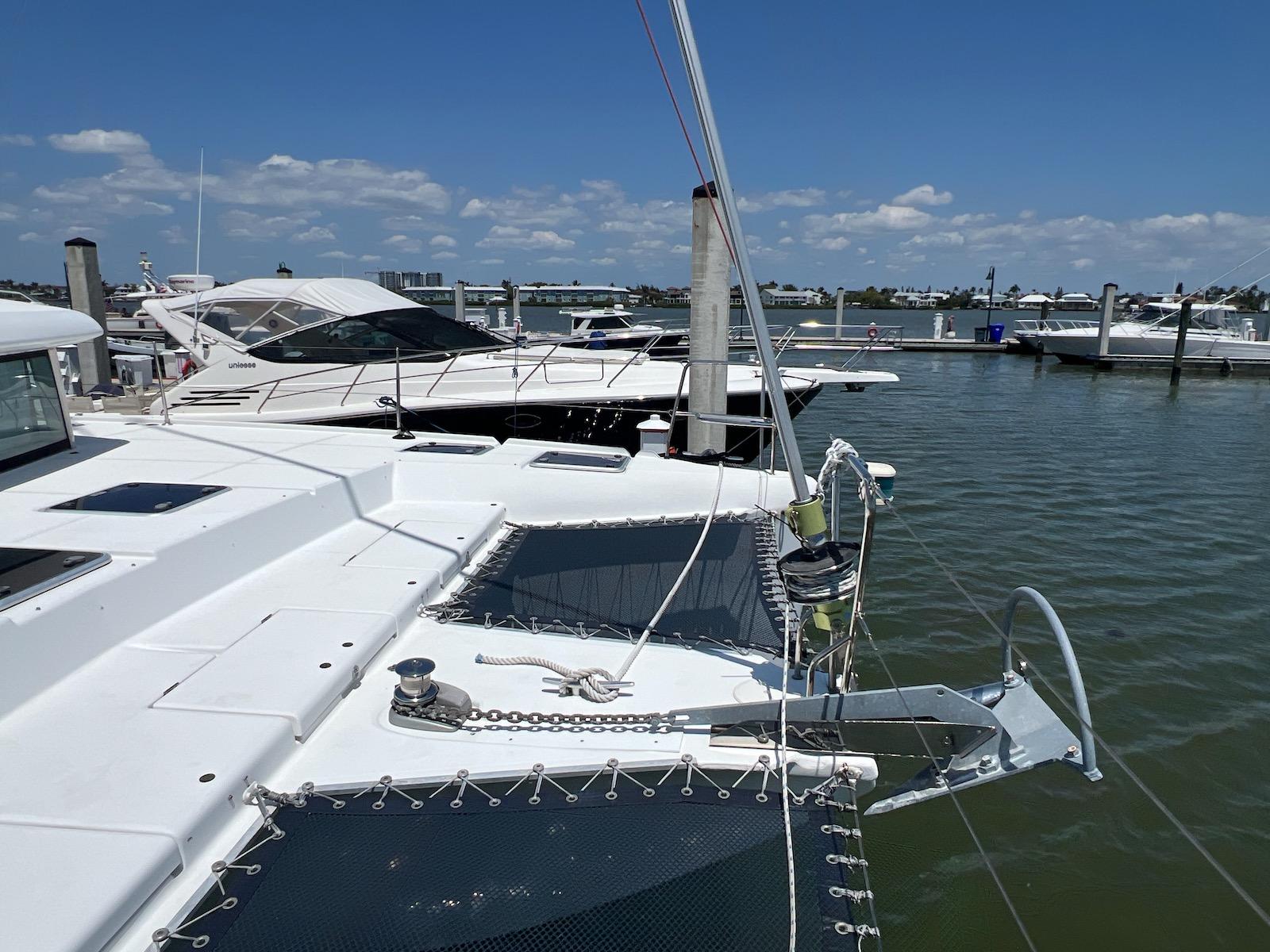

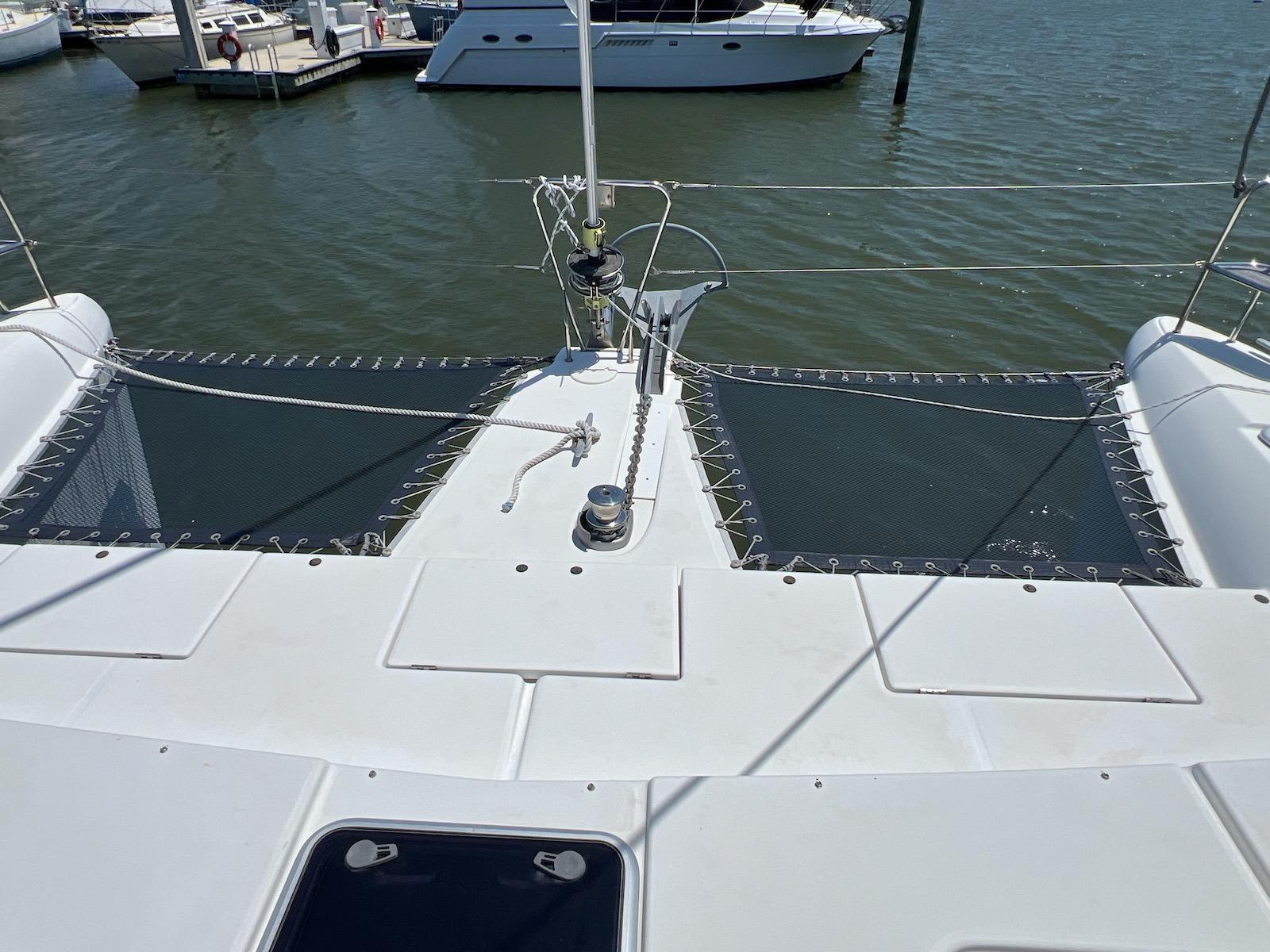

Installed new trampoline nets in 2021: Sunrise Yacht Products Offshore 3/8" Polyester Open Net, Vinyl Coated,Sewn Borders, Coated Navy Blue. GROMMET FORWARD BORDER INSTEAD OF SLEEVE, with Dynema lashings.



Rigging

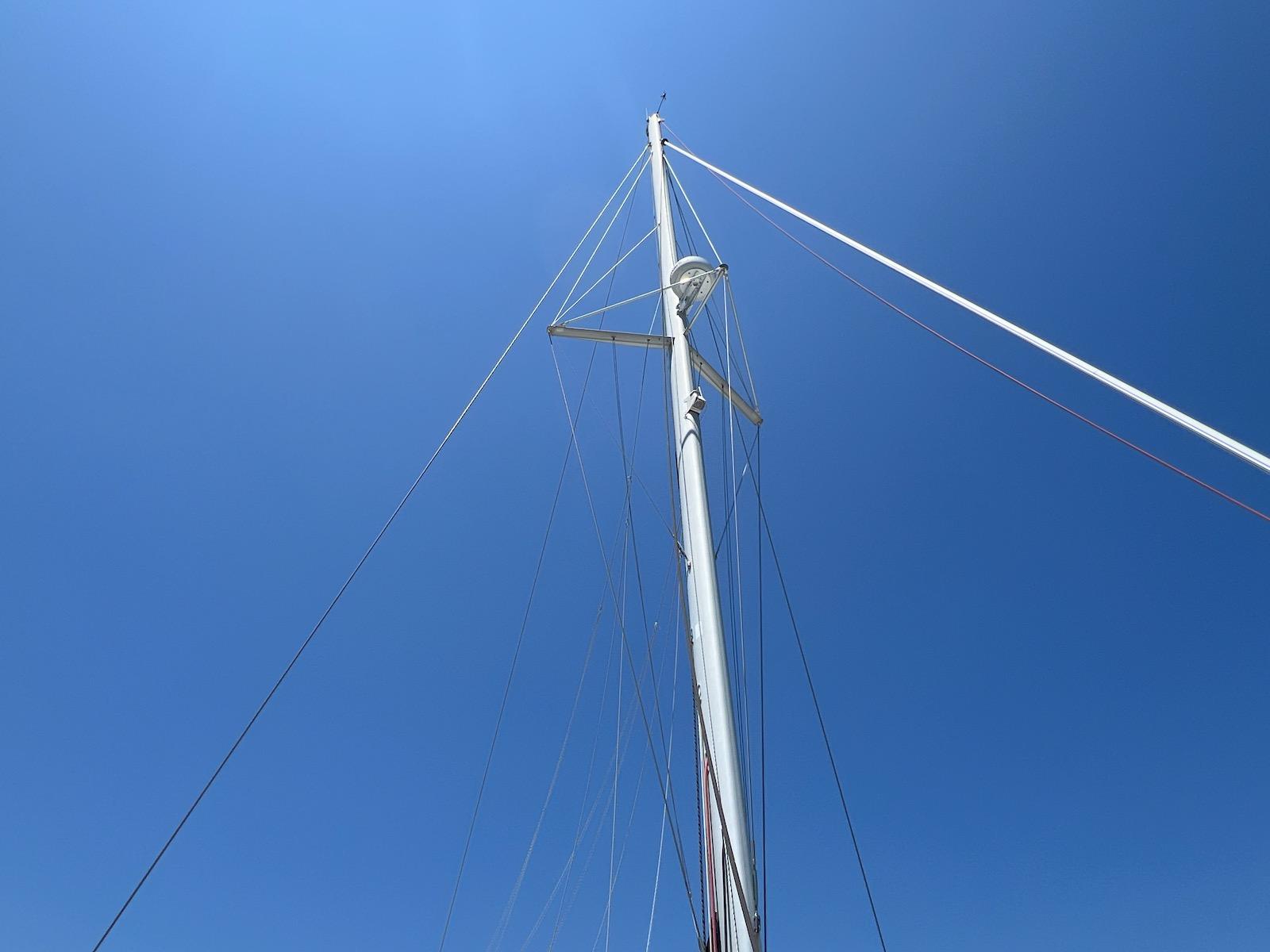

2022 Mast cut down by 2 ft 9 in to 62 ft for ICW passage with all new standing rigging and modification of mainsail.

STANDING RIGGING

1.    Mast-anodized aluminum deck-stepped mast with mainsail luff cars

2.    Single spreaders

3.    Anodized aluminum boom

RUNNING RIGGING

1.    1 Double purchase main halyard

2.    1 Genoa halyard

3.    1 Double purchase mainsheet led back to helm station, mainsheet traveler and car on hard top bimini.

4.    2 Genoa sheets

5.    2 Genoa sheet tracks

6.    3 Winches at helm station:

7.    1 Winch 46.2ST for: - Port mainsheet traveler line - Starboard mainsheet traveler line - Port genoa sheet

8.    1 Electric Winch 44.2STE for: - Main halyard - Genoa halyard - Spinnaker halyard - Boom topping lift

9.    1 Winch 46.2ST for - Main sheet - Reef 1 (automatic) - Reef 2 (automatic) - Reef 3 (conventional) - Starboard genoa sheet - Genoa furling line

10.    3 reefing lines (2 automatic and 1 conventional)

11.    1 Genoa furler line

12.    Stack Pack for easy handling of main

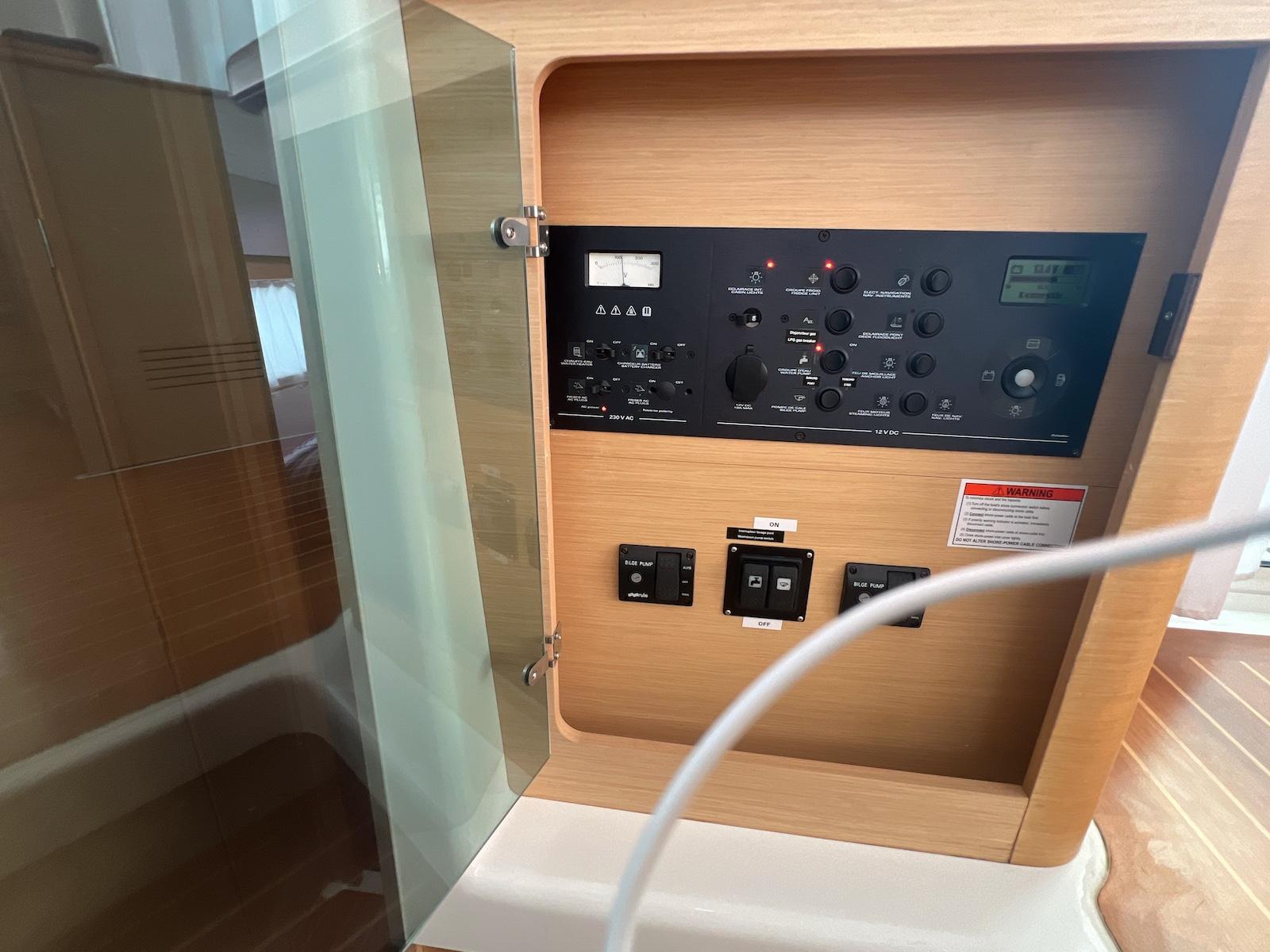

Electrical

Dual 12 Volt, 110 Volt systems

Onan Generator 11kw with 2700 hours

All house batteries replaced 6/2023 Lifeline 210 Ah 4D AGM

All 3  engine start batteries (Group 27 AGM) replaced 2022-2023

All 3 engine start batteries, (port and starboard) elevated out of bilge  up into framework of aft berths

2020 Felix Marine SI Marine Pico battery monitoring system installed - bluetooth control

2020 Felix Marine Xantrex 3000W inverter installed

2020 Felix marine Balmar Duo Charge installed to maintain charge on generator battery

50-Amp Shore Cord

Construction- for Durability

1.    Polyester and vinylester FRP construction

2.    Foam core composite hulls - white gel coat

3.    Solid glass FRP under waterline

4.    Balsa core composite deck and bridge deck

5.    Solid or felt core composite interior FRP hull & roof liners

6.    FRP reinforced marine ply bulkheads; tabbed or glued to hull

 Bottom Paint 2023 Trinidad XSR Black bottom paint and second coat of Propspeed clear coat on running gear

Ground Tackle

Mantus 55 lb. Anchor with 100' chain and 200' rode

Fortress Anchor with 100' chain and 200' rode

Mantus snubber hook

There is a very heavy duty Mantus Marine anchor chain bridle and back up anchor and anchor lines in the anchor chain locke

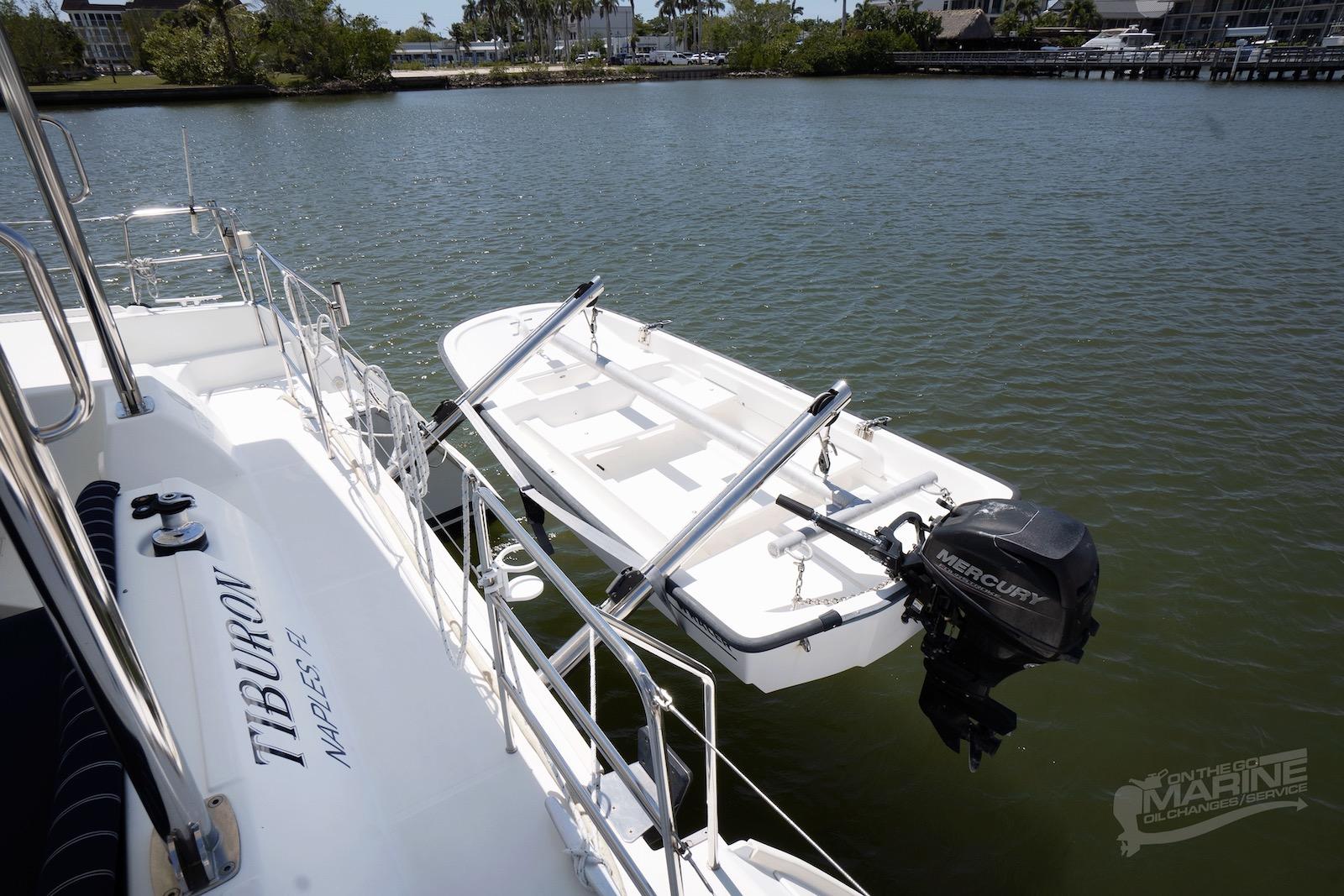

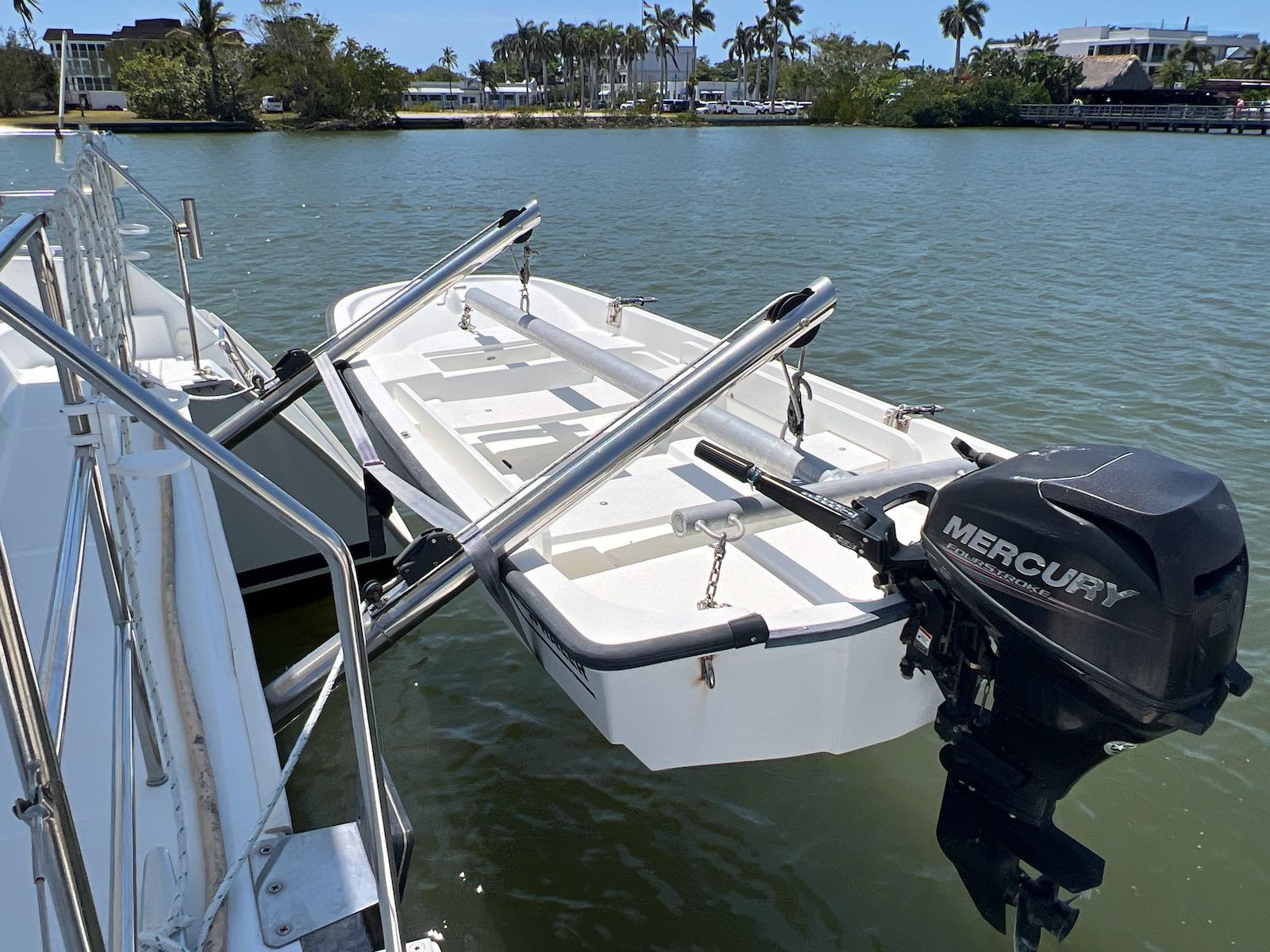

Tender

Boston Whaler 11' 4" Tender 2000

20 Hp Mercury 4 Stroke 2016 – under warranty

Lagoon Davits

2024 The Boston Whaler dinghy's 20HP Mercury outboard was torn down and serviced, with a new primer bulb and a new carburetor

2025 Both cockpit electric winches were removed and serviced, and new toe switches were installed for the dinghy winch.





 Pumps

2022 Rule 2000 HD 12v DC bilge pump wired to cigarette lighter style port with 25-feet of wire and lanyards to permit lowering the pump into any space on the boat as an emergency pump

 2022 Rule 1800  HD 120v AC bilge pump wired with 25-feet of wire to standard AC plug,  ready to have lanyards applied to permit lowering the pump into any place on the boat as an emergency pump

 2022 New Rule 2000 GPH HD bilge pumps with Ultra Mini external float switches, port and starboard, with multiple control lines arranged for easy retrieval for maintenance or replacement

Port Johnson Viking Power 16 bulkhead mounted bilge pump replaced

2025 House water foot pump in galley replaced with new

Tankage

Fresh Water:  two 90 gallon tanks

Fuel:  two 80 gallon tanks

Waste:  two 20 gallon tanks



New house Aqua Jet Flow Master WPS 5.0 water pump installed 2022

New whole house water filter installed 2022

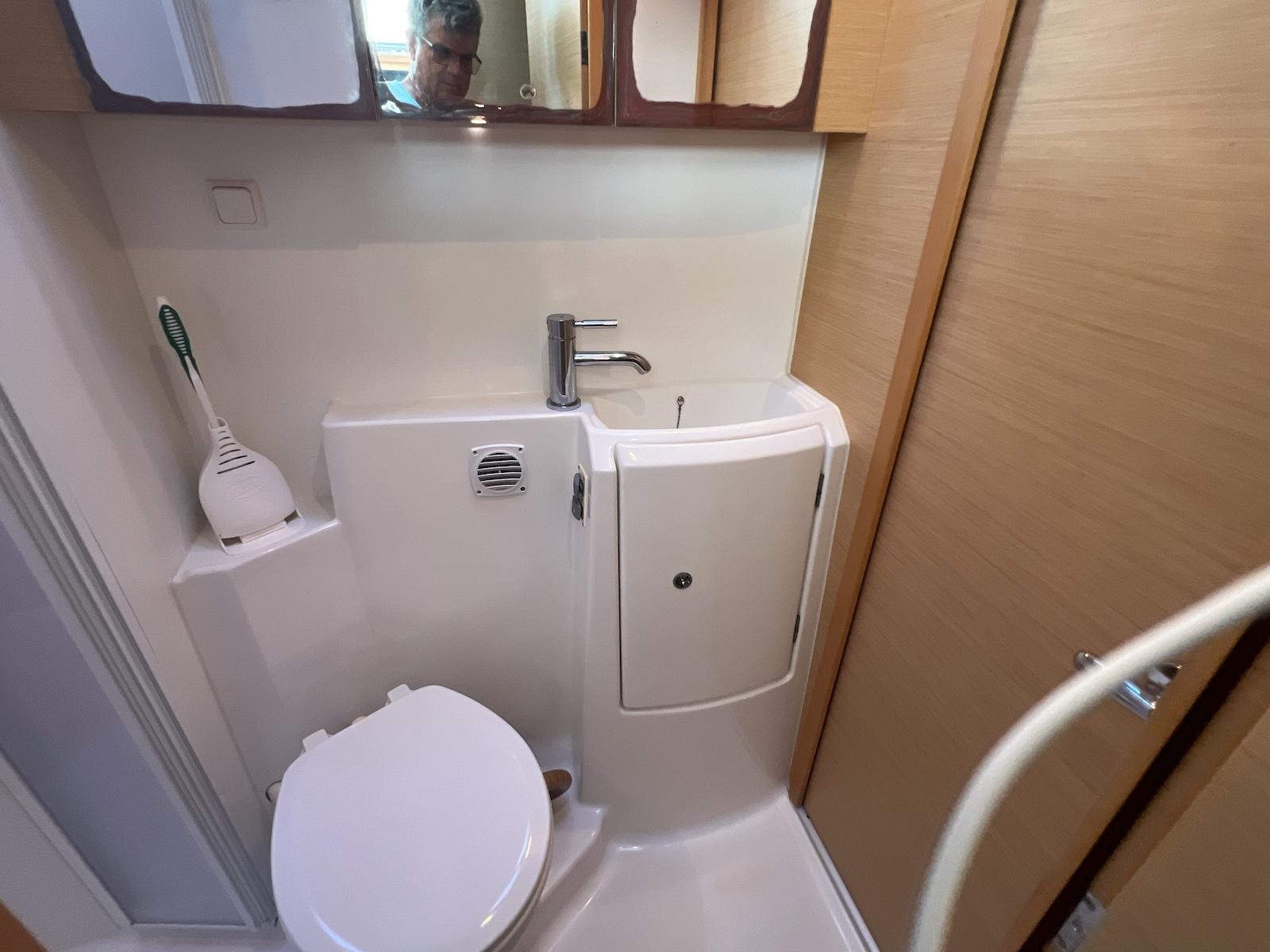

All three toilet macerator pumps replaced with new, and/or service kits annually.  New OEM Jabsco macerator pump and toilet base installed in Master head May 2025

Shower sump relays replaced as needed - new spares in a locker

 Disclosures

 At the survey for the current owner, the port engine panel showed 15.9 hours and the starboard showed 3207.2 hours.  The port alternator had been replaced recently.  The surveyor estimated engine hours at approximately 3200.  Because of changes in the current owners’ plans, the engines have had fewer than 100 hours of operation since purchase.  Both engine control panels and the port alternator have been replaced in 2023-2024, so current hour readings are not accurate.

The valve at the bottom of the port engine compartment that diverts the generator exhaust from out the port side above the water level to under the water discharge under the boat on the side of the hull between the hulls, near the port aft AC raw water discharge, requires replacement, but it can only be replaced out of the water.



There is a single garden hose for the portable emergency pumps and they both have garden hose adapters.  New owner might consider another hose so both portable emergency pumps (both AC and DC pumps) can have their own hoses



We can’t confirm Rogue Wave WiFi instrument is functioning, but if not, the wire to the router in the electronics cabinet could serve to pull wire for a different instrument.



At purchase, the KVh antenna and the TV provided good TV service, but we did not renew the subscription, so we do not know the current status of the KVH and TV

We have never used hot water, so we do not know the status of the hot water heater.

Disclaimer

The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
