2005 Jeanneau Sun Odyssey 40.3
Yacht price :
- Overview
- Specifications
- Gallery
- Descriptions
Overview
ON DISPLAY AT KENT NARROWS BOAT EXPO
10/10-10/12 10/17-10/19 10/24-10/26
GOOGLE NARROWS BOAT EXPO FOR DETAILS
Bluewater Cruiser – fully equipped for Chesapeake Bay cruising or blue water crossings.
Comfort – spacious 3-cabin layout
Performance - incredibly stable at 7.5+ knots
Reliable – well-maintained 57hp Yanmar engine w/ 1425 Hours
Turnkey Condition – just hop aboard and set sail!
Don’t miss this chance to own a proven 40-foot Jeanneau sailboat!
Aftermarket Highlights:
Self-tailing winches
Featherstream propeller
Dyneema running rigging
Interior-Exterior sound system & speakers
New Muffler 2023
New Cranking Battery 2023
Serviced Air Conditioning 2024
New Bilge pump 2025
New anodes 2025
New bottom-paint 2025
Serviced Sails and Engine 2025
New west marine 13’ hard-bottom dinghy and Yamaha 5hp outboard

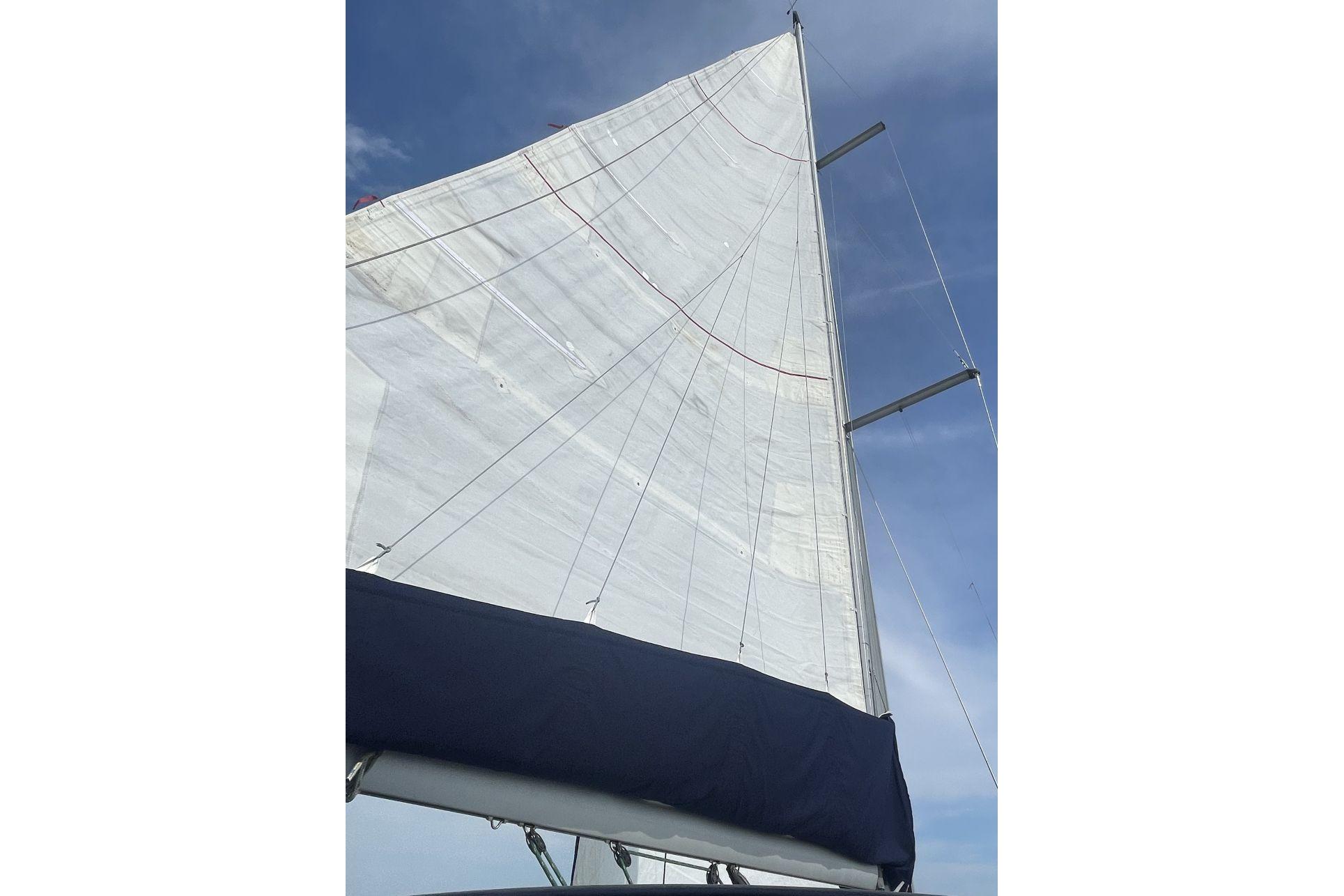

Main ~5yrs
Genoa ~5yrs
Async-spinnaker (brand new)
Yes, maintenance records from previous owner as well.
Specifications
Basic Information
- Manufacturer:
- Jeanneau
- Model:
- Sun Odyssey 40.3
- Year:
- 2005
- Category:
- Sail
- Condition:
- Used
- Location:
- Annapolis, MD, US
- Vessel Name:
- M 10390 CF
- Boat Type:
- Cruisers
- Hull Material:
- Fiberglass
- Designer:
- Daniel Andrieu / Jeanneau Design
Dimensions & Weight
- Length:
- 40 ft - 12.19 meter
- LOA:
- 40 ft - 12.19 meter
- Beam:
- 12 ft 11 in - 3.94 meter
- Draft - max:
- 6 ft 4 in - 1.93 meter
- Bridge Clearance:
- Dry Weight:
- 17,835 lb
Engine
- Make:
- Yanmar
- Model:
- Engine(s):
- 1
- Hours:
- 1425
- Cruise Speed:
- Range:
- Engine Type:
- Inboard
- Drive Type:
- Fuel Type:
- Diesel
- Horsepower:
- 57 (Individual), 57 (combined)
- Max Speed:
Tank Capacities
- Fuel Tank:
- 36 Gallon(s) - 1 tank(s)
- Fresh Water Tank:
- 85 Gallon(s) - 1 tank(s)
- Holding Tank:
- Gallon(s)
Accommodations
- Total Cabins:
- Total Berths:
- -
- Total Heads:
- 2
Gallery
Descriptions
Sail Area
I : 50.00 ft
J : 13.75 ft
P : 43.25 ft
E : 15.58 ft
Keel DetailsKeel #1
Keel Type: Shoal_Draft
Ballast: 5776 lb
Max Draft: 4.92 ft

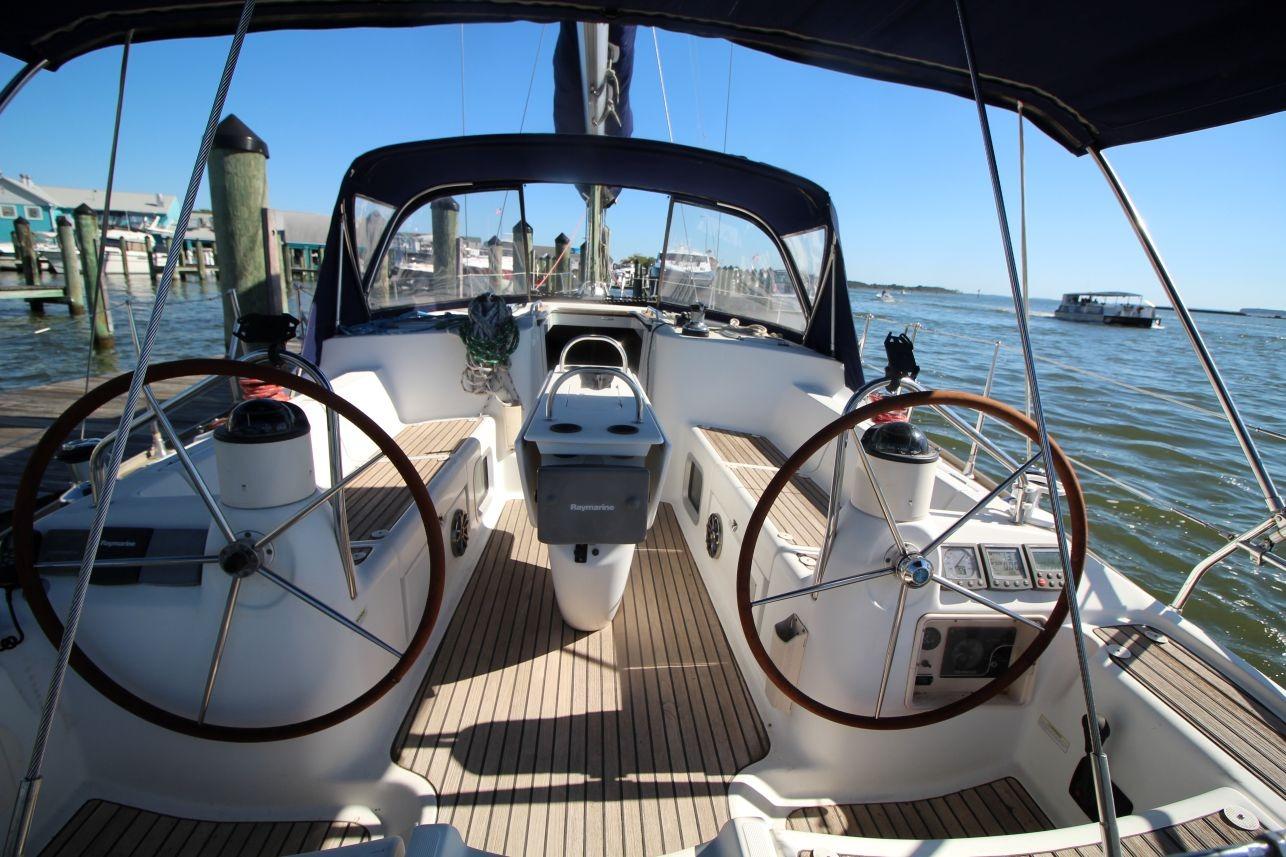

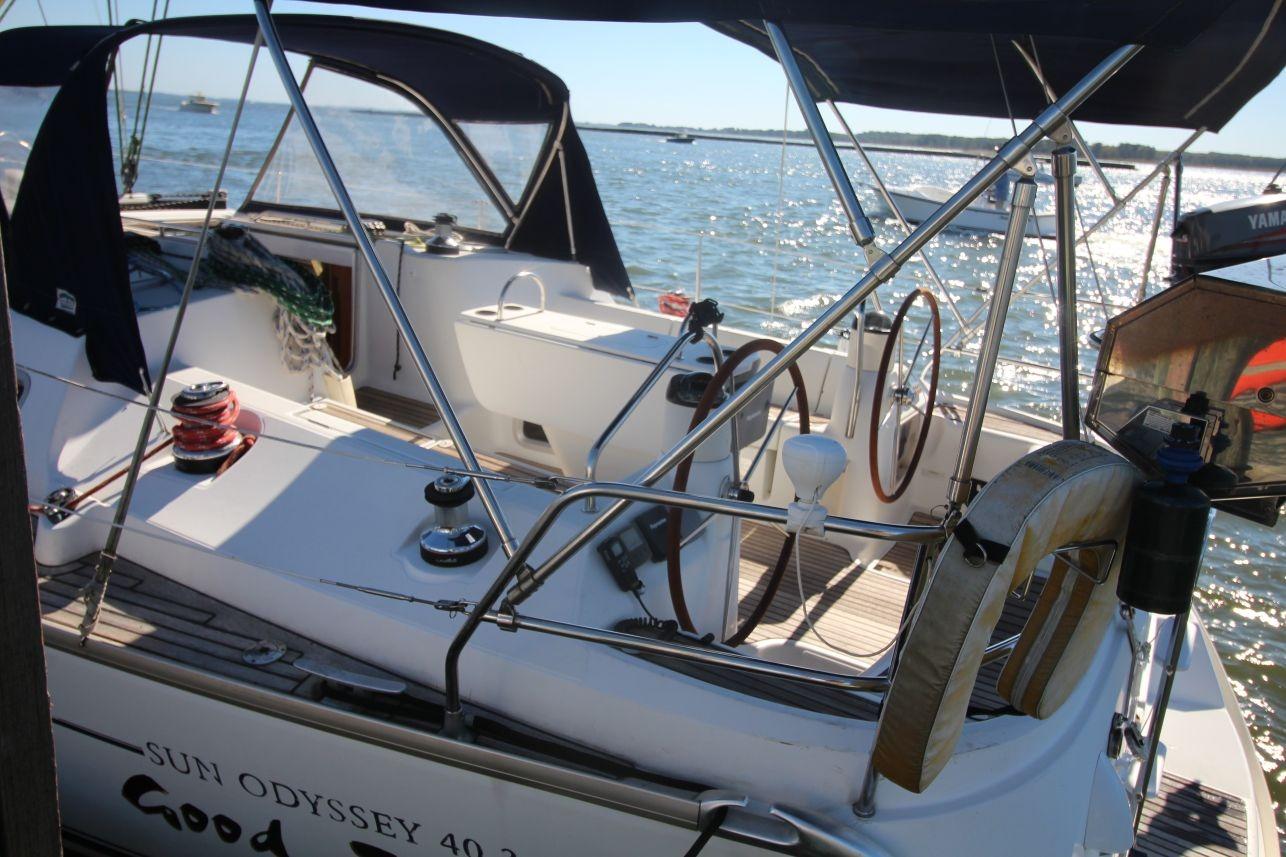

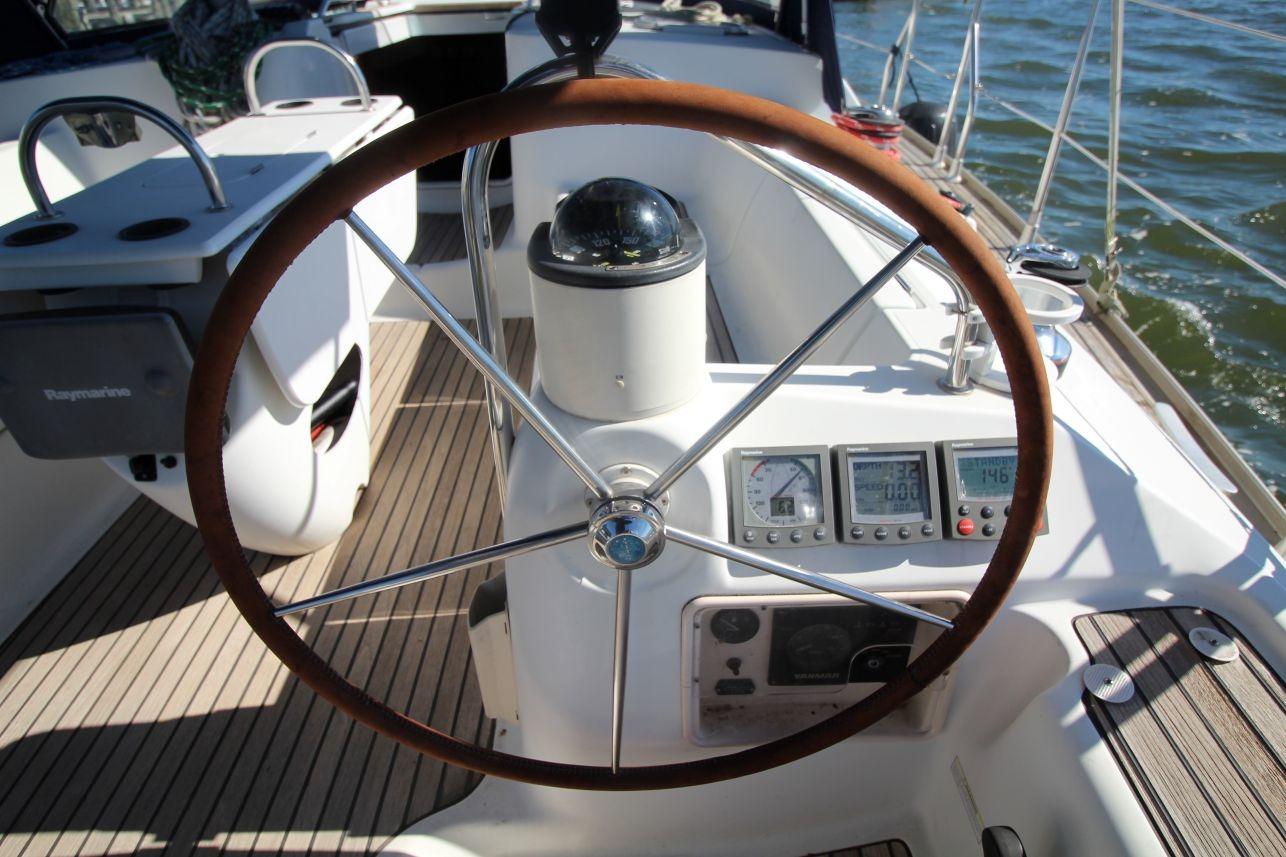

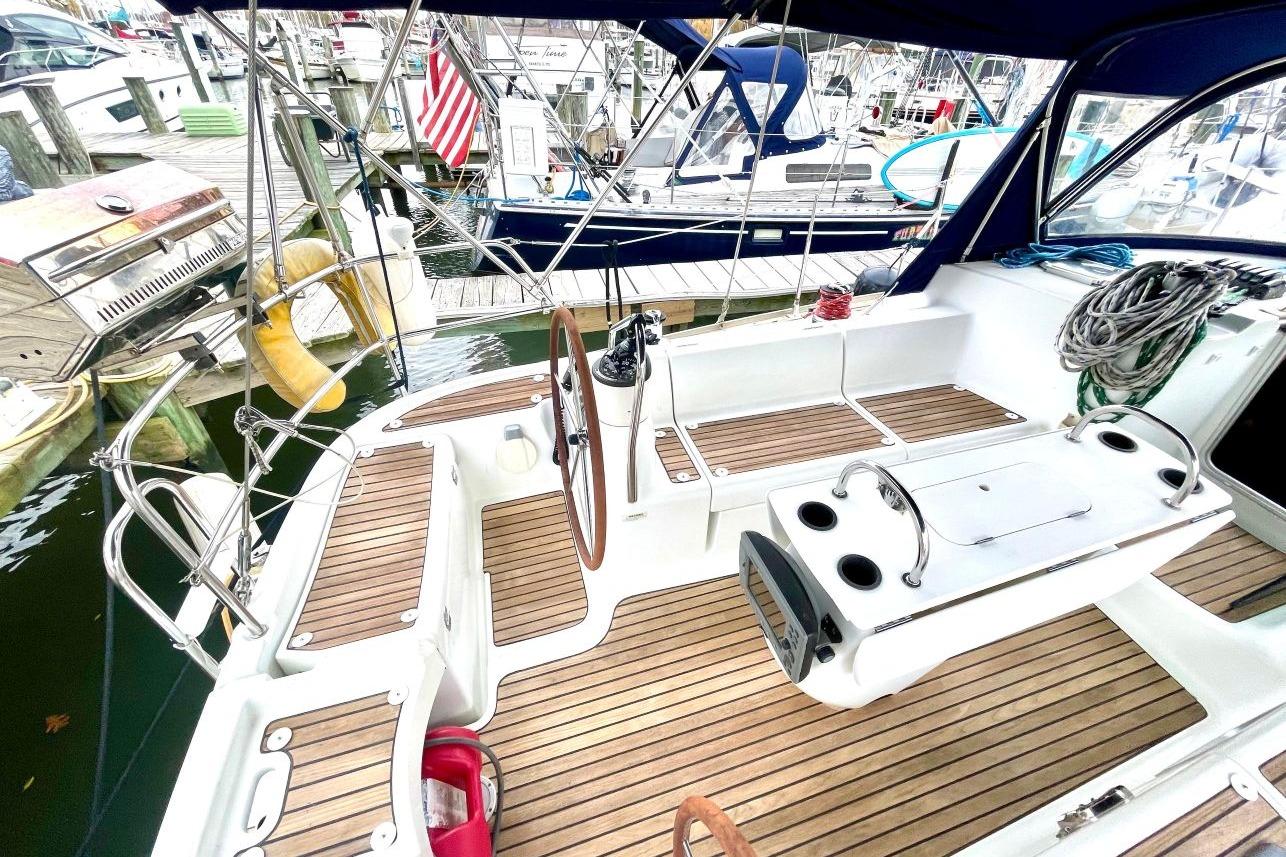

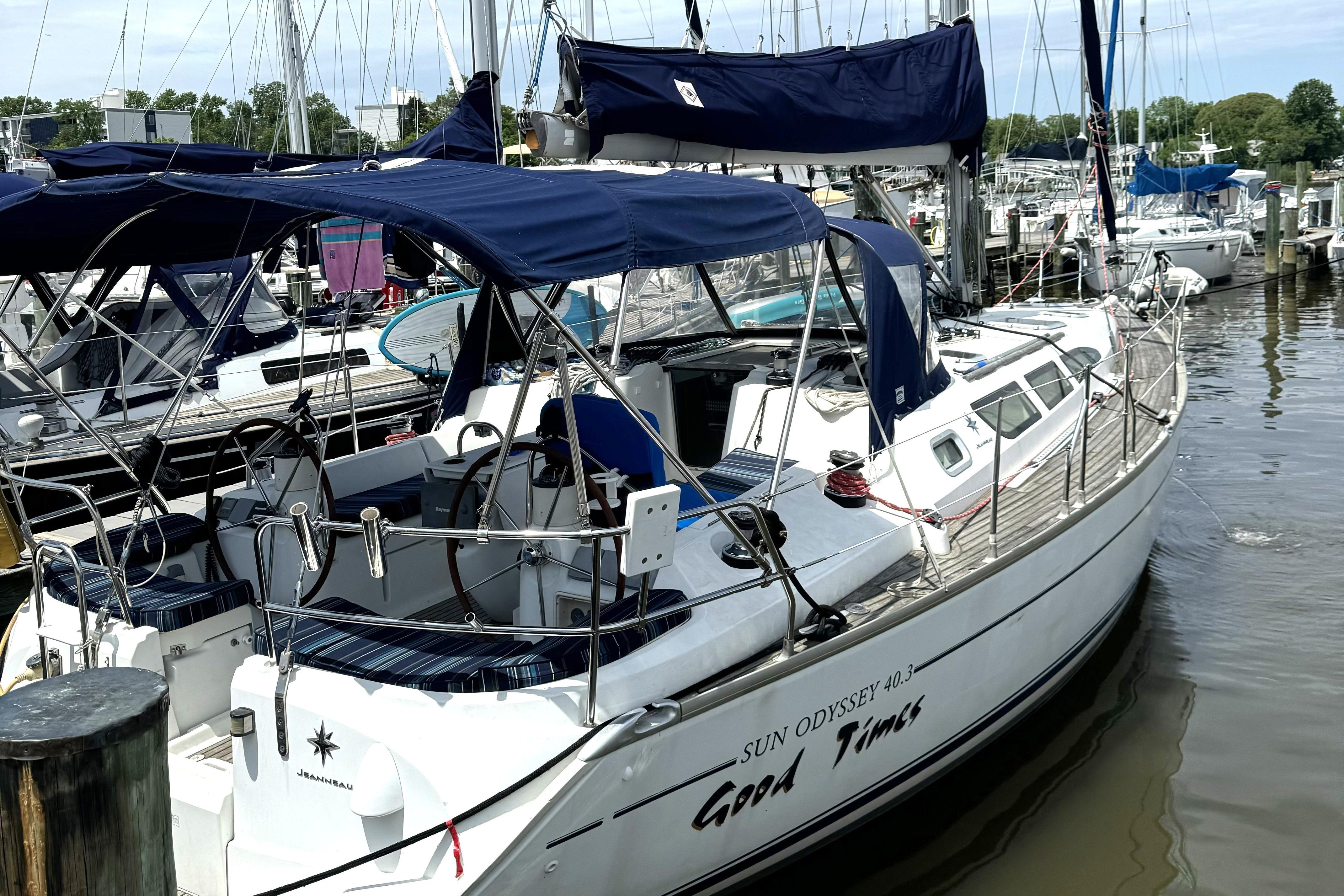

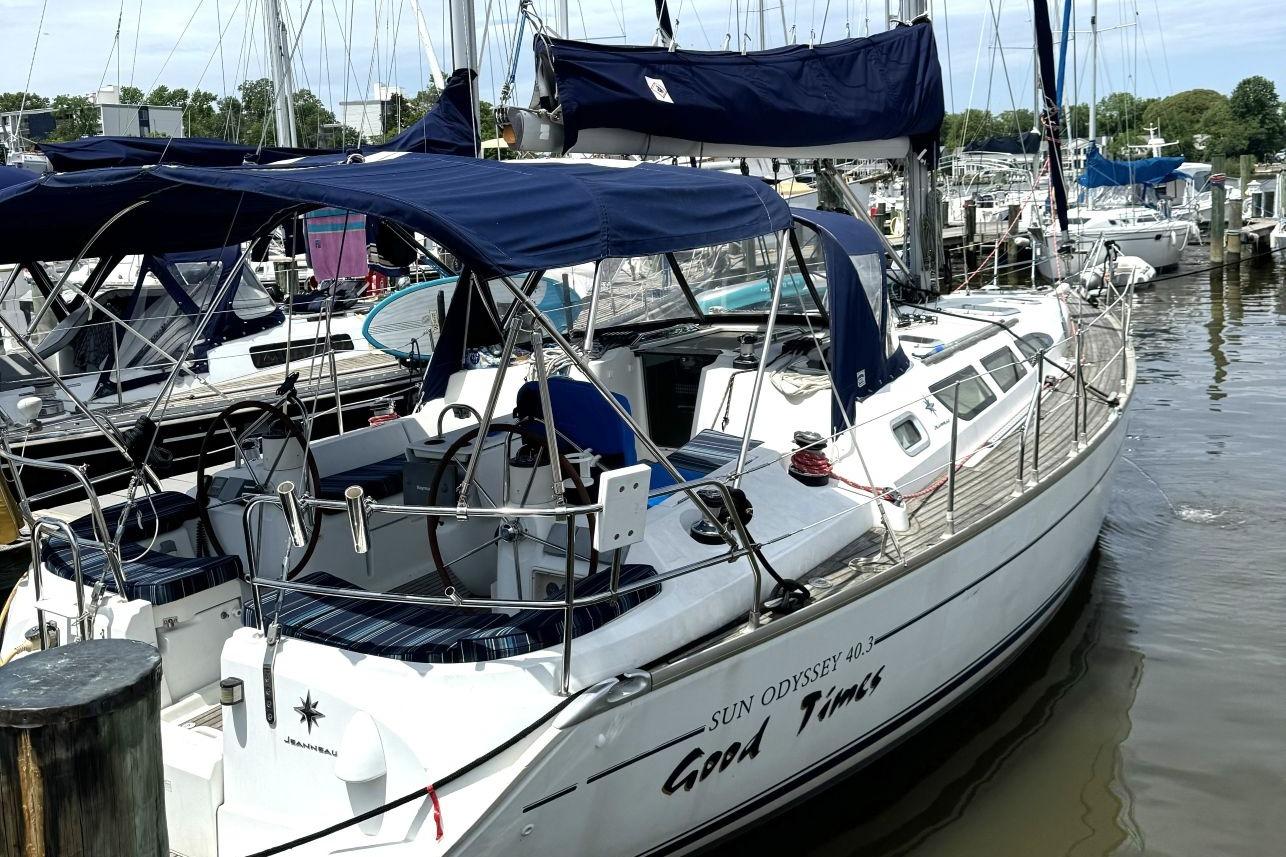

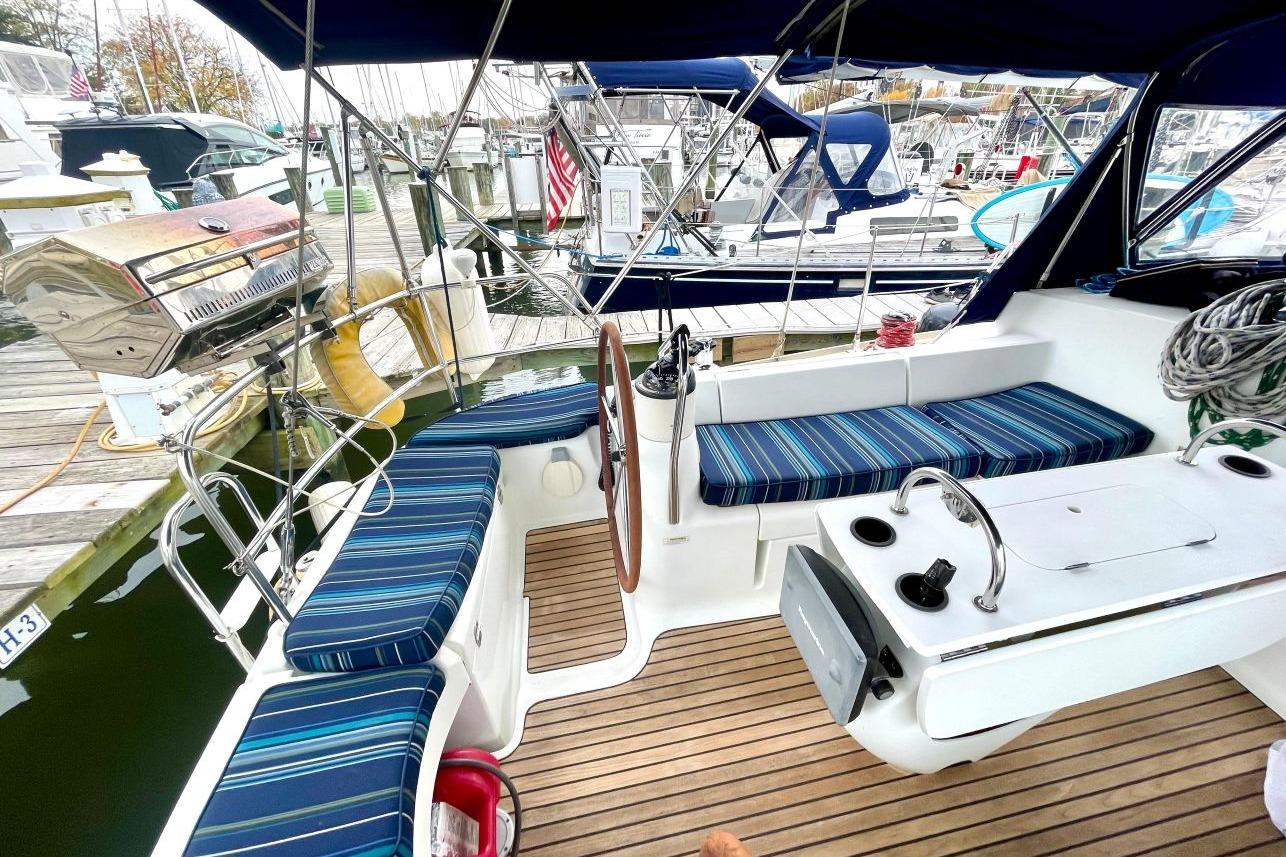

Additional DescriptionWide cockpit with pivoting helm seat for access to transom Twin leather steering wheels cover Two steering compasses, each with protective rail Teak cockpit seats and transom Gas bottle storage in starboard aft locker Liferaft storage in port or starboard locker Console mounted cockpit table / with drop-leafs + handrail Winch handle holder Transom shower with handrail Water transom shower Storage locker to starboard and port Locker under the port helm seat with access to rudder Protected engine panel at starboard helm station Double-action manual bilge pump Throttle/gearshift at starboard helm station Emergency tiller deck fitting Fiberglass rudder with stainless steel frame Solid stainless steel rudder post Two self-aligning rudder bearings

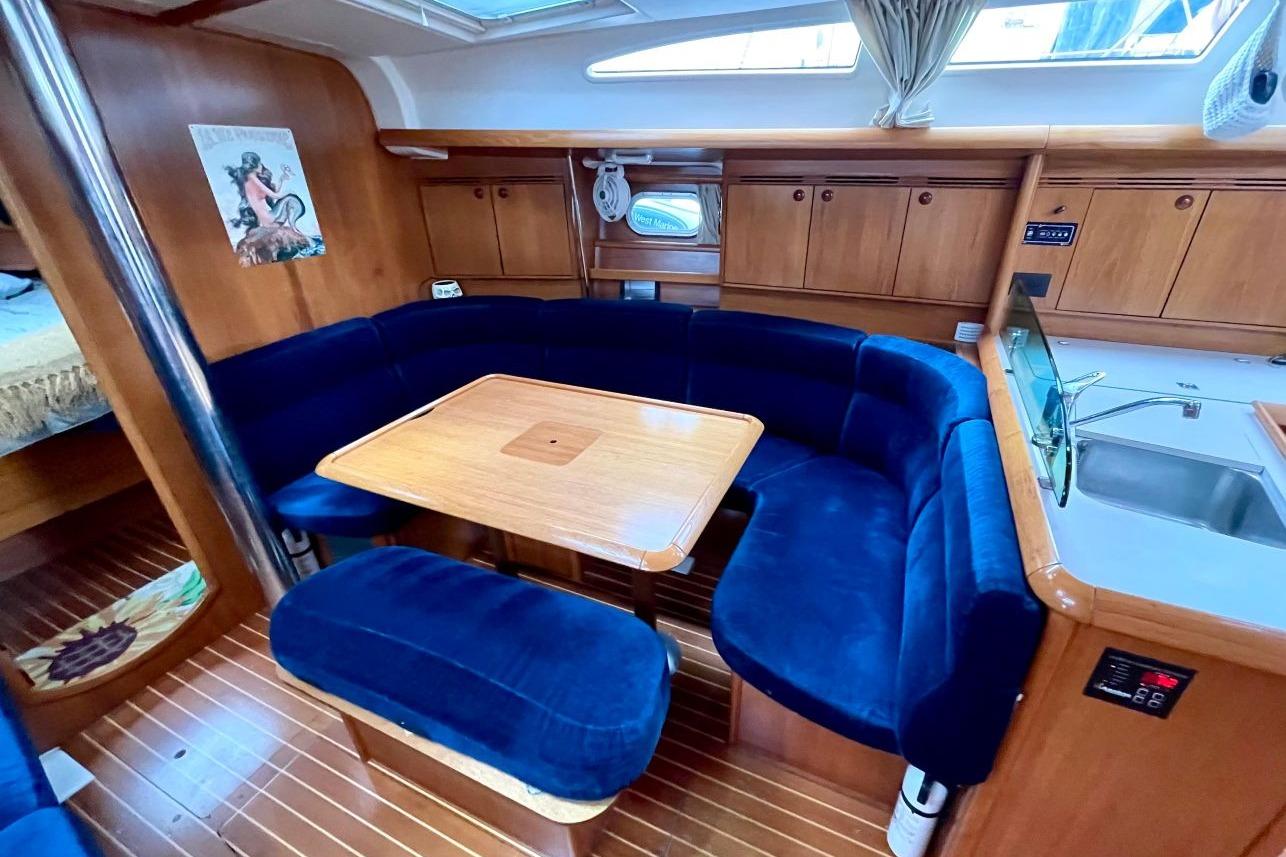

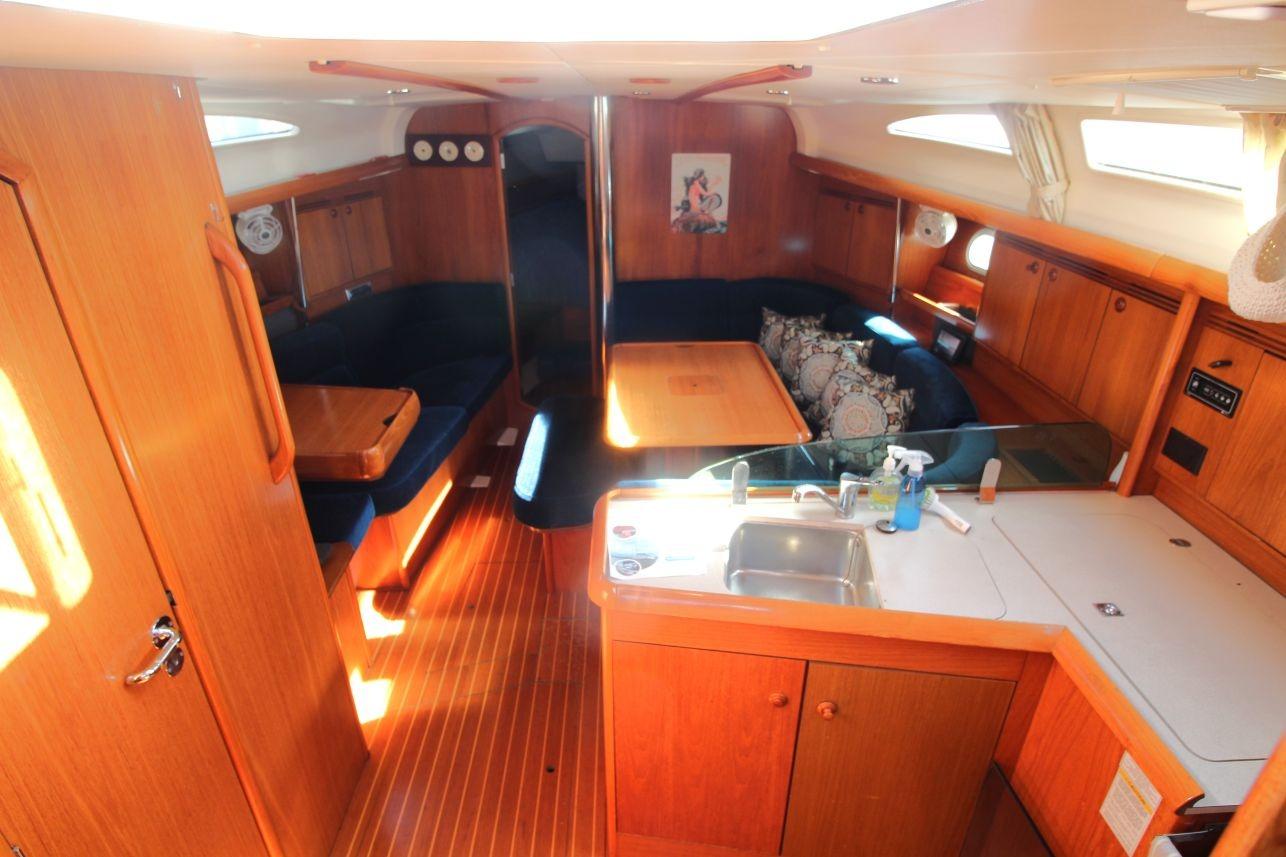

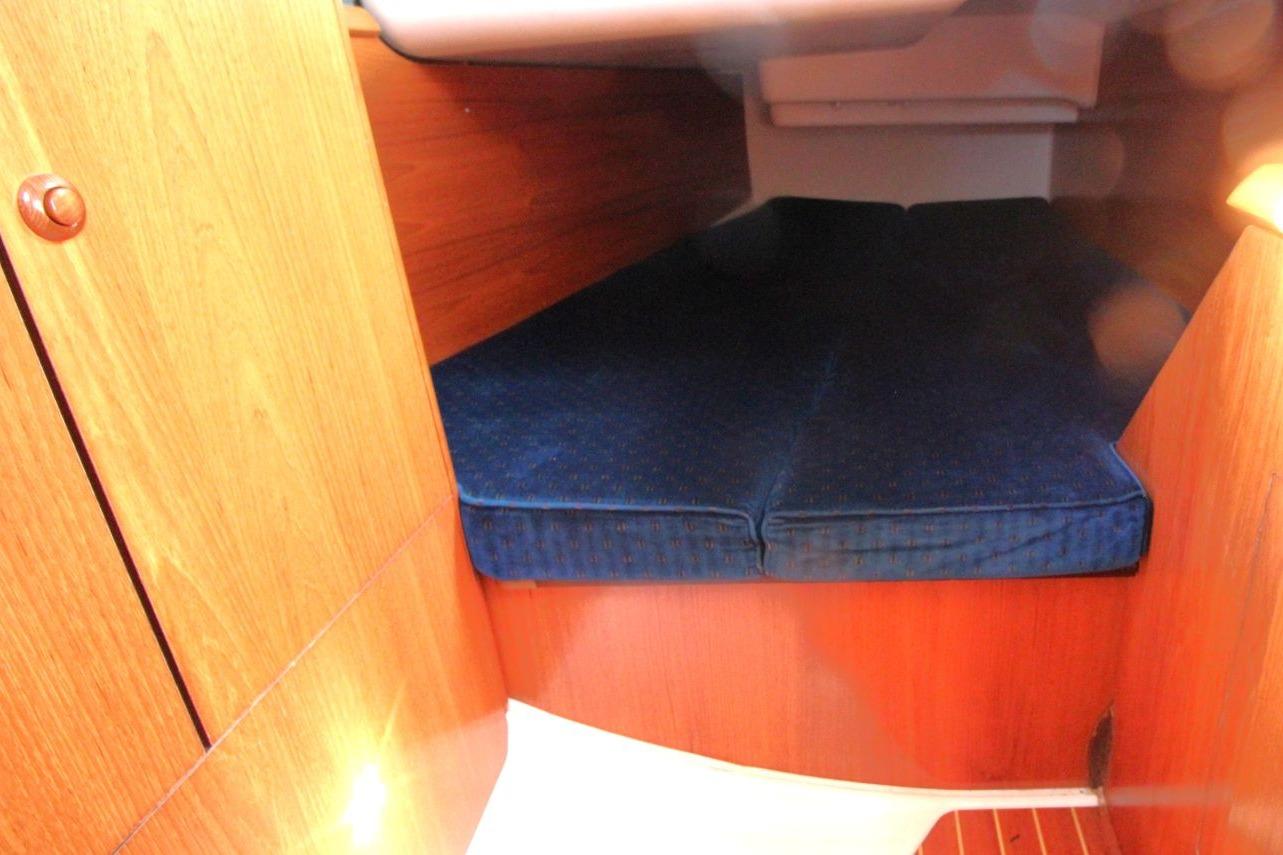

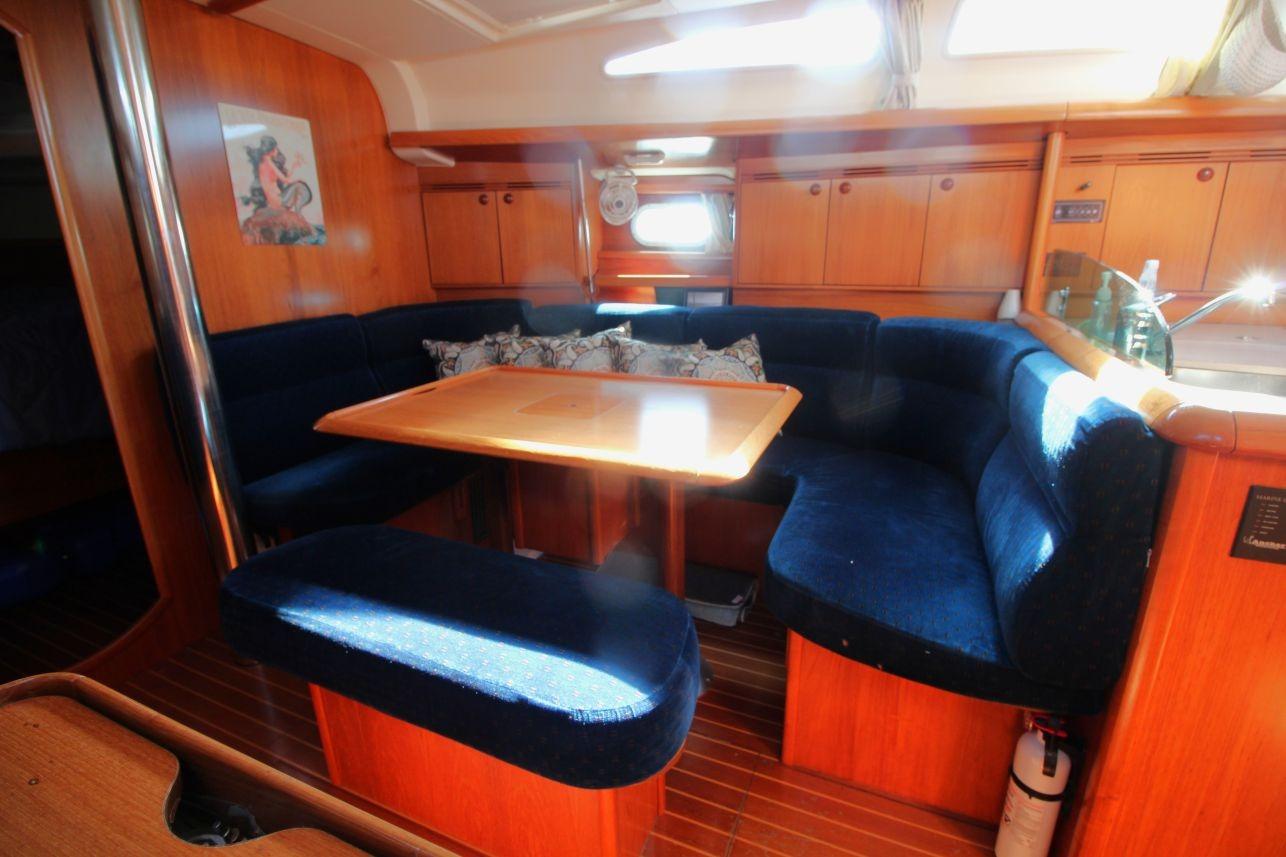

Additional DescriptionErgonomic U-shaped bench seat to starboard Salon table with central bar Removable table legs Storage compartments under seats Water heater under bench seat Storage lockers above backrests Shelves and equipment access panels behind seats Access panel to water distribution controls Handrail under roof windows Molded fiberglass deck with padding on the ceiling 2 opening deck hatches with blinds Cushions and backrests with removable fabric covers Removable floorboards Halogen ceiling lights Salon light 2 speakers Stainless steel compression post Fixed hull ports with curtains Bench seat with storage for salon table in 3 cabin version Coachroof windows with curtains Standing headroom : 1,88m / 6? 4? approx Accommodation available in two or three cabin layouts. 2 CABIN VERSION: with nav station Starboard Aft Cabin with double berth Forward Cabin Owner's Aft Washroom 3 CABIN VERSION: with nav station Aft Port and Starboard Cabins Forward Cabin Aft Washroom
Additional Description12 breakers + spares (3 12 V, 3 230 V) 1 12 V voltmeter with service, engine and auxiliary selector 112v outlet

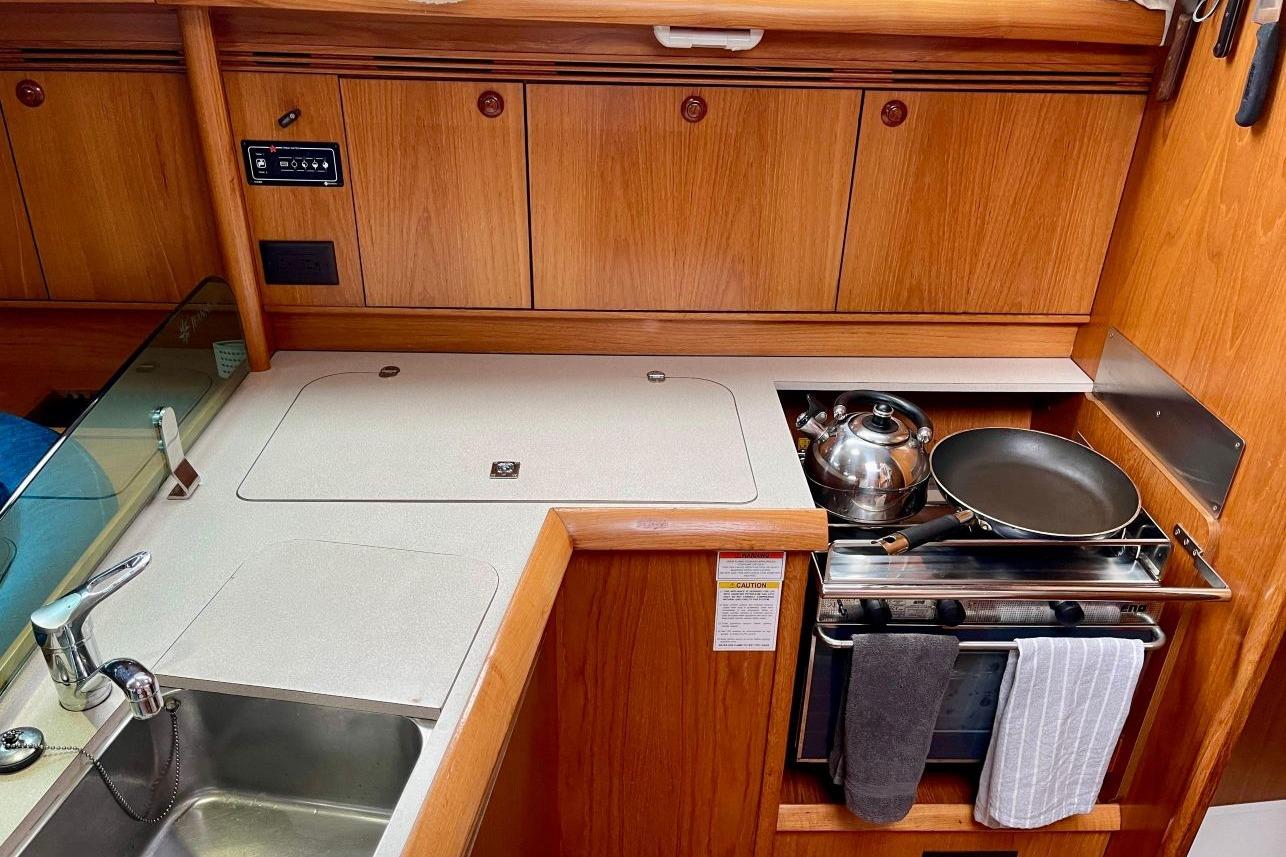

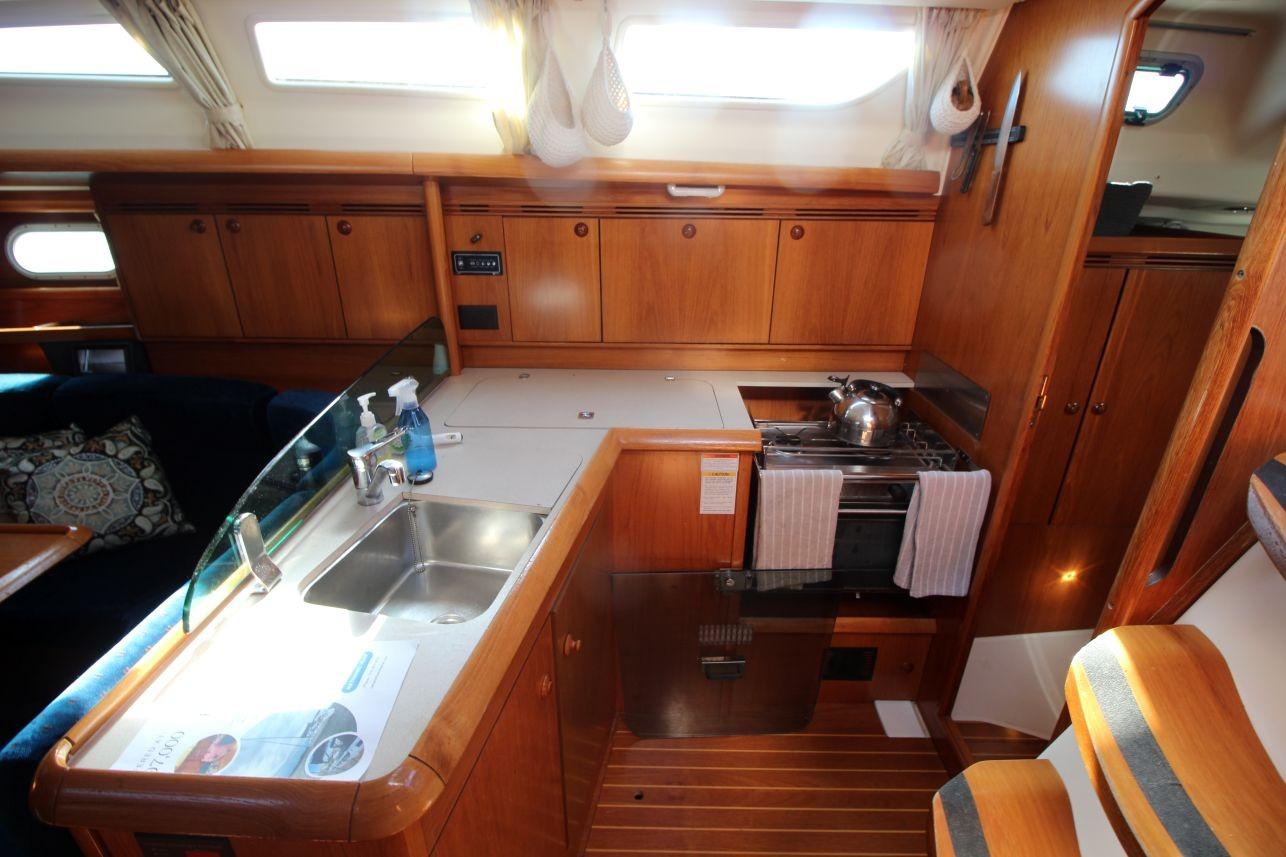

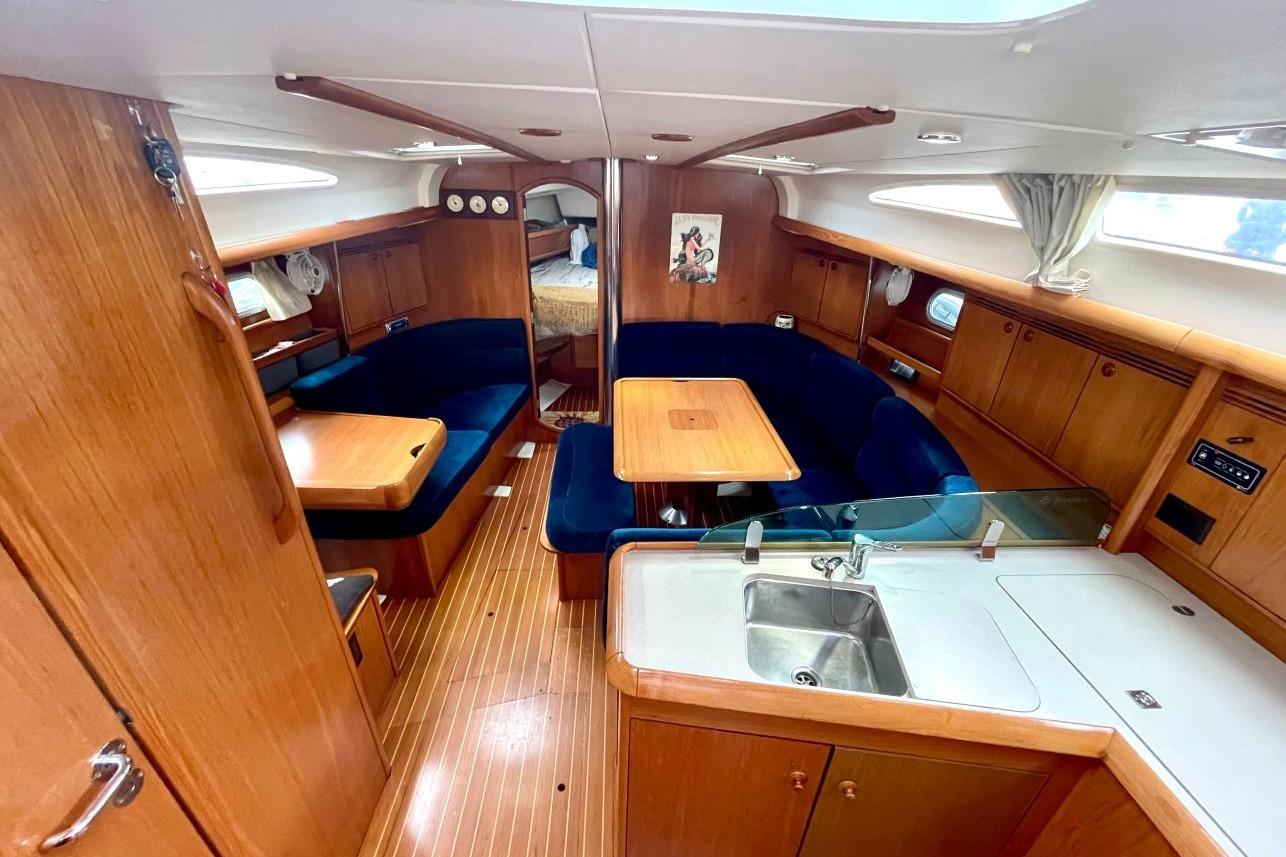

Additional DescriptionL-shaped galley to starboard Galley furnishings with laminated countertop Rectangular double sink Hot and cold pressure mixer tap Shelves, wastebasket and drawers under sink Storage lockers behind the countertop 1 2-burner stove/oven with safety bar 140 liter refrigerator with cold plate, top opening Galley light Halogen ceiling light Water meter and 230 V outlet Access to refrigeration compressor, gas shut-off under stove cut-out Handrail above galley Roof window with curtain Opening deck hatch Glass separating galley Standing headroom : 1,90 m / 6? 3? approx

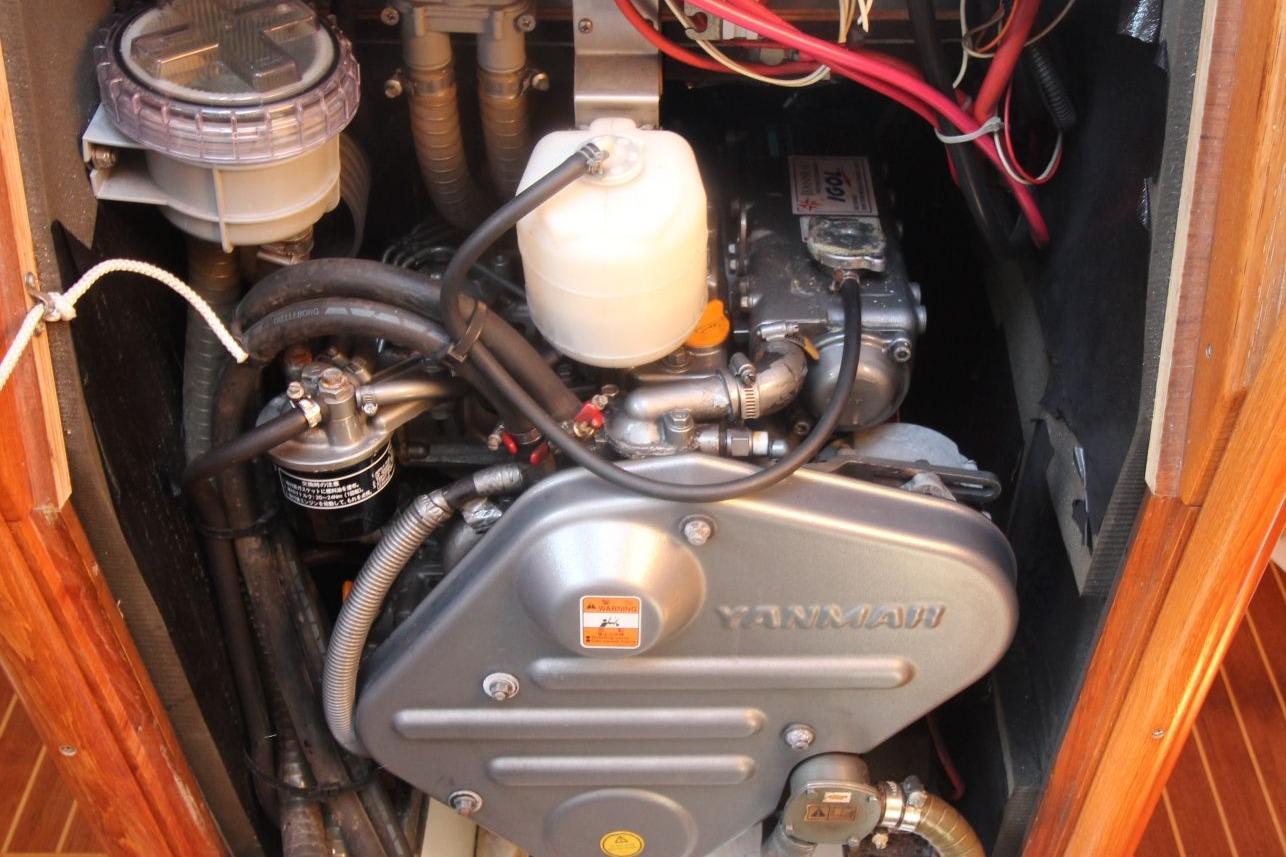

Additional DescriptionEngine compartment under companionway steps Soundproofing on entire engine bay Engine blower Access to engine compartment by removable panels Stainless steel propeller shaft Fixed 3-blade propeller Fuel filter/separator Raw water filter Anti-siphon valve Dripless stuffing box Battery charge distributor Turn water intake thru-hull valve Moulded fiberglass bottom of engine compartment

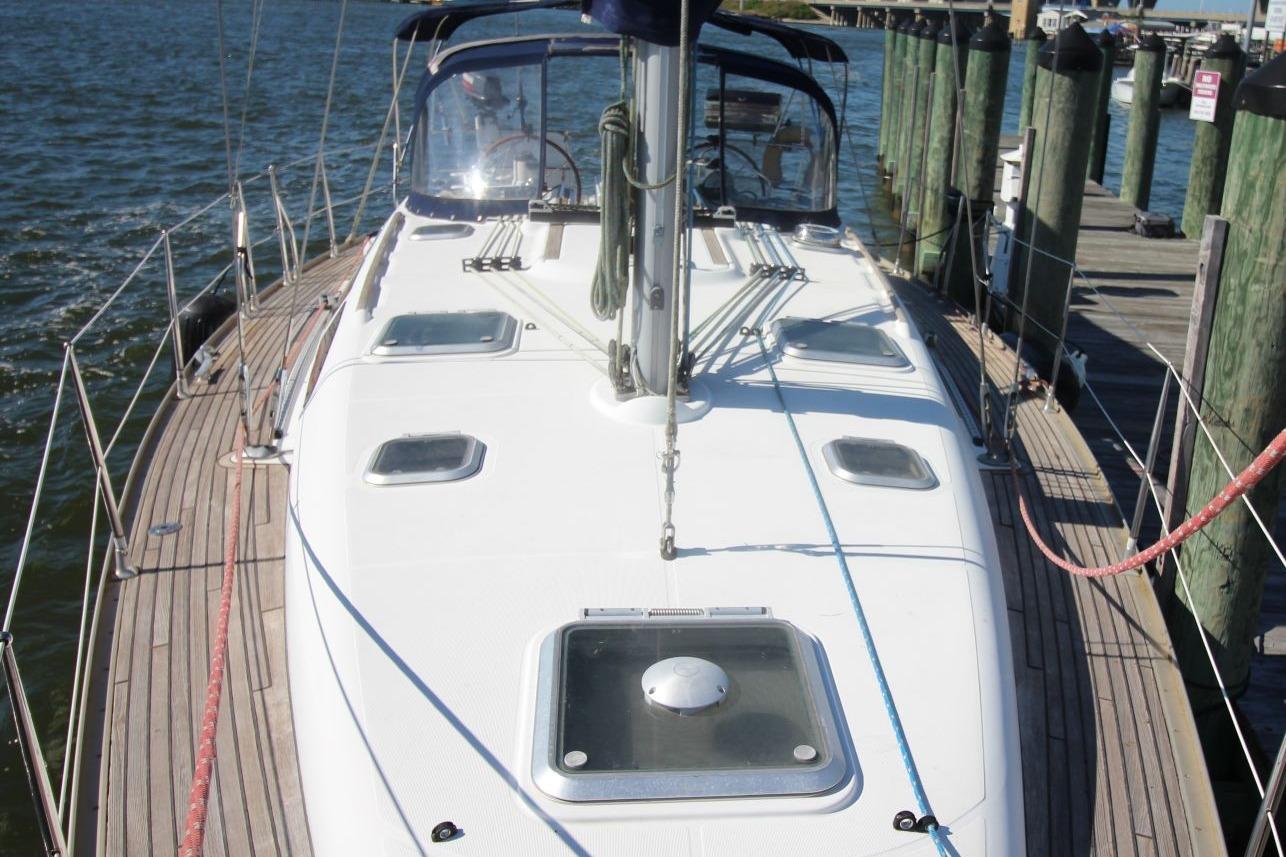

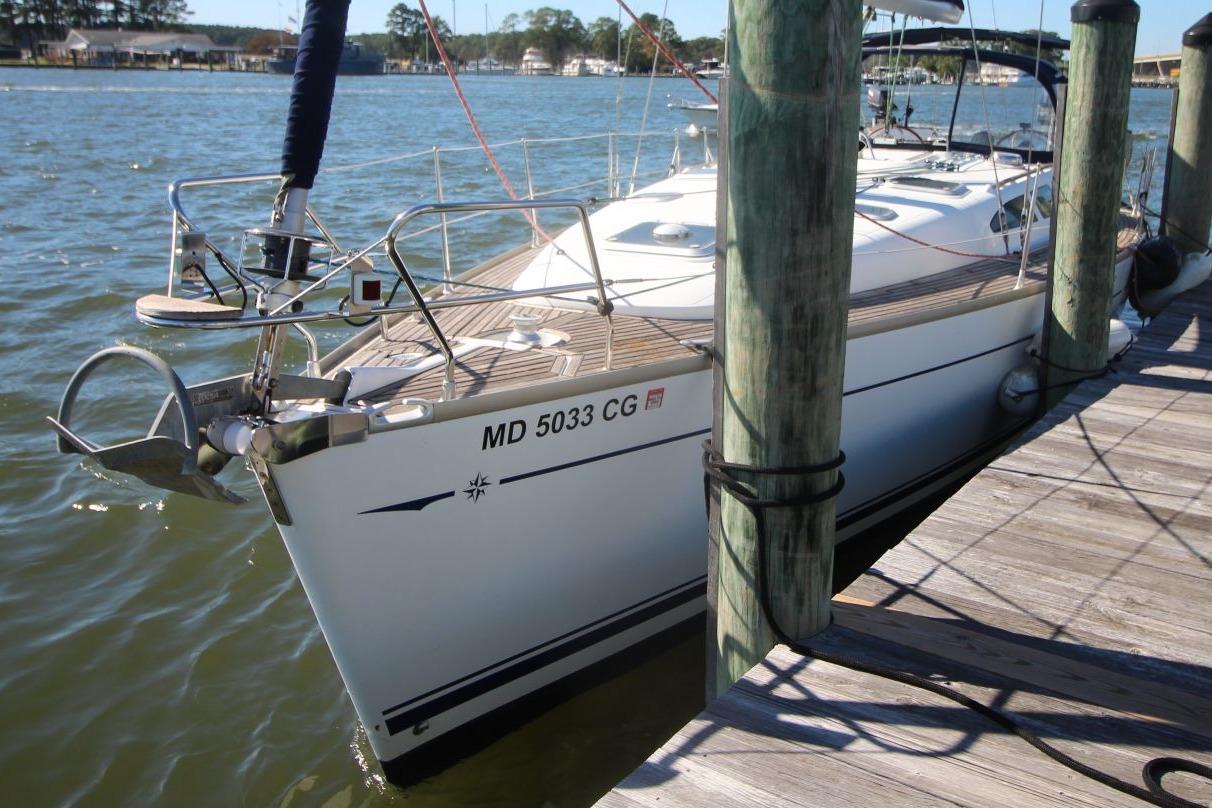

Additional DescriptionStainless steel stem fittings with 2 anchor rollers and swinging bow roller Stainless steel bow pulpit with running lights Stainless steel stern pulpit with buoy bracket Double lifelines 6 mooring cleats, with chocks Locking anchor locker cover Vertical electric anchor windlass in anchor locker Line stoppers on roof for halyards and control lines 2 winches on cockpit coaming for genoa sheets 2 winches on roof for halyards and control lines 2 6-sheave halyard organizers 2 deck-mounted genoa tracks with fairlead 1 mainsail traveler on roof Lower shroud chainplate Upper, intermediate, and aft lower shroud chainplates 2 backstay bridle chainplates on transom Mast step with blocks

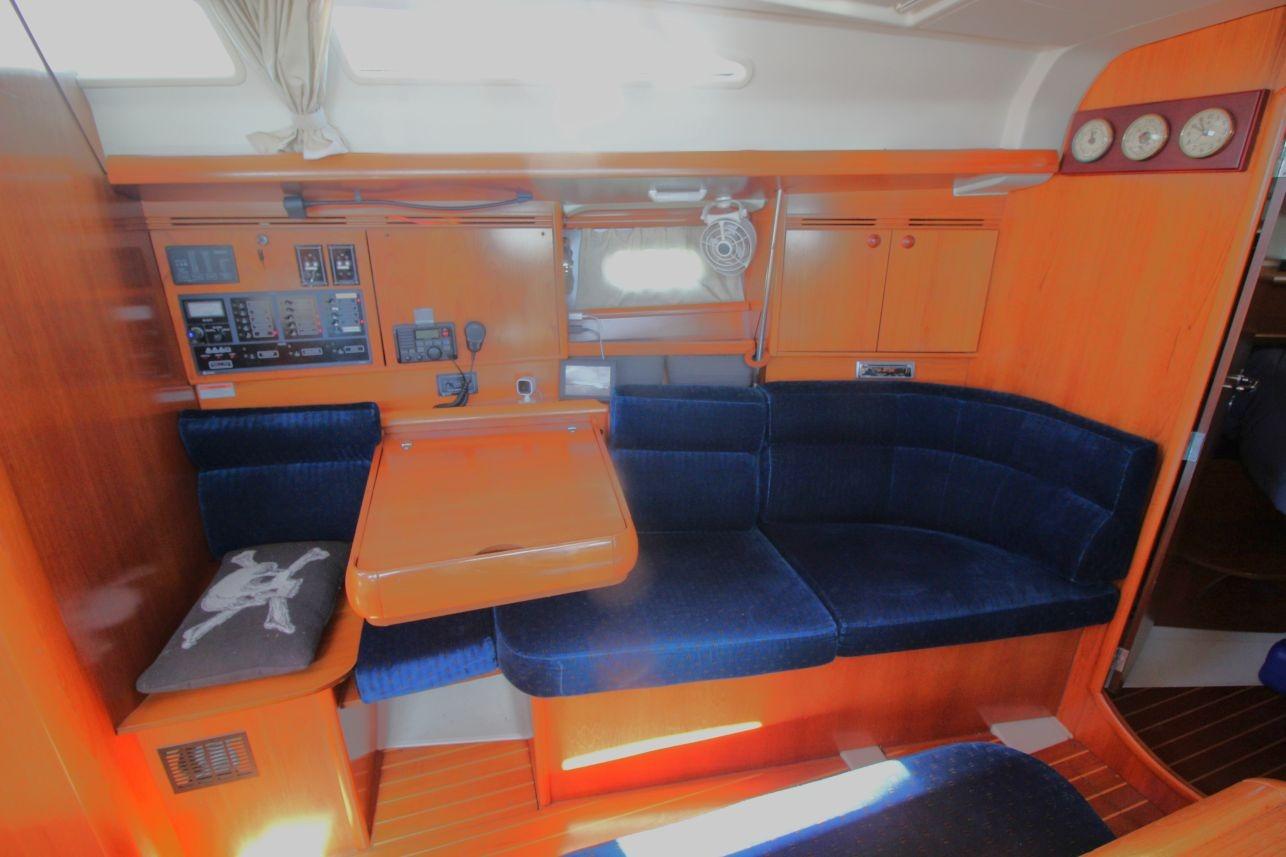

Additional DescriptionTwo Cabin Version: Navigation table to port, facing forward 2 seats with central bar Storage under navigator seat and bench seat Shelf and instrument mounting panel Storage above seats with radio / CD player Halogen overhead light Handrail under roof windows Nav light Electrical panel with easy access to connections 3 Cabin Version: Navigation table to port, facing forward Sliding chart table for more bench seat room Bench seat convertible to single berth Storage under navigator seat and bench seat Instrument mounting in overhead lockers Storage above seats with radio/CD player Electrical panel with easy access to connections Nav light Halogen overhead light Handrail under roof windows
RiggingStanding Rigging: Deck-stepped anodized aluminum classic mast and boom Double swept spreaders Stainless steel cable shrouds Backstay and bridle Above-deck genoa furler Running Rigging: 1 jib halyard 1 boom topping lift 1 main halyard 2 genoa sheets 1 mainsail sheet 1 mainsail outhaul 1 rigid boom vang Adjustable mainsheet traveler 1 genoa furling line 2 automatic reefs
Miscellaneous1 mainsail 1 furling genoa 1 lazy-bag with lazy-jack Owner?s manual Pressure hot water delivered by reinforced hose Bronze ball-valve thru-hull fittings 2 winch handles
DisclaimerThe Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
