1992 Jefferson Viscount 42 Sundeck
- 42
- Jefferson
- New Bern, NC, US
Yacht price :
- Overview
- Specifications
- Gallery
- Descriptions
Overview

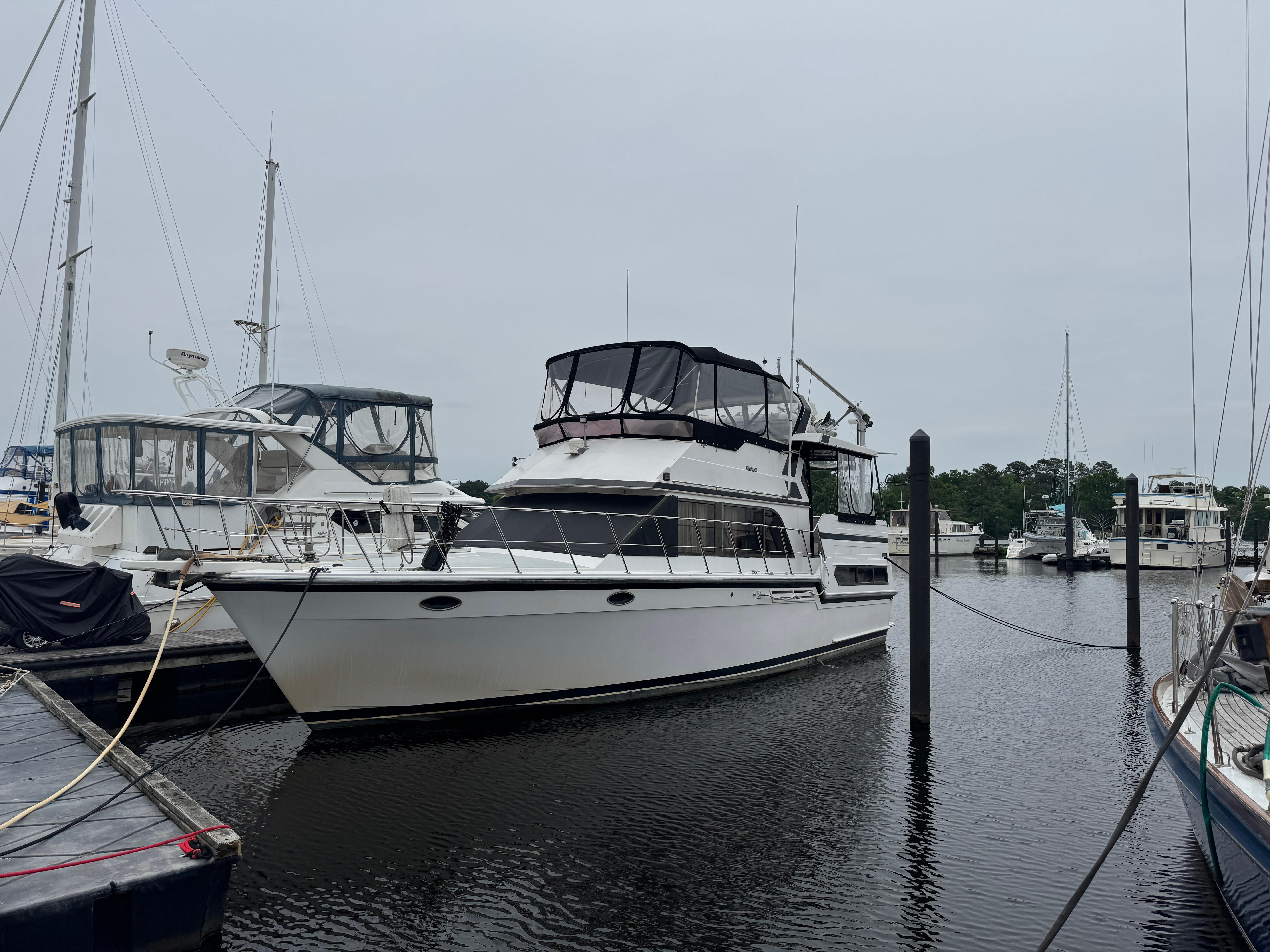

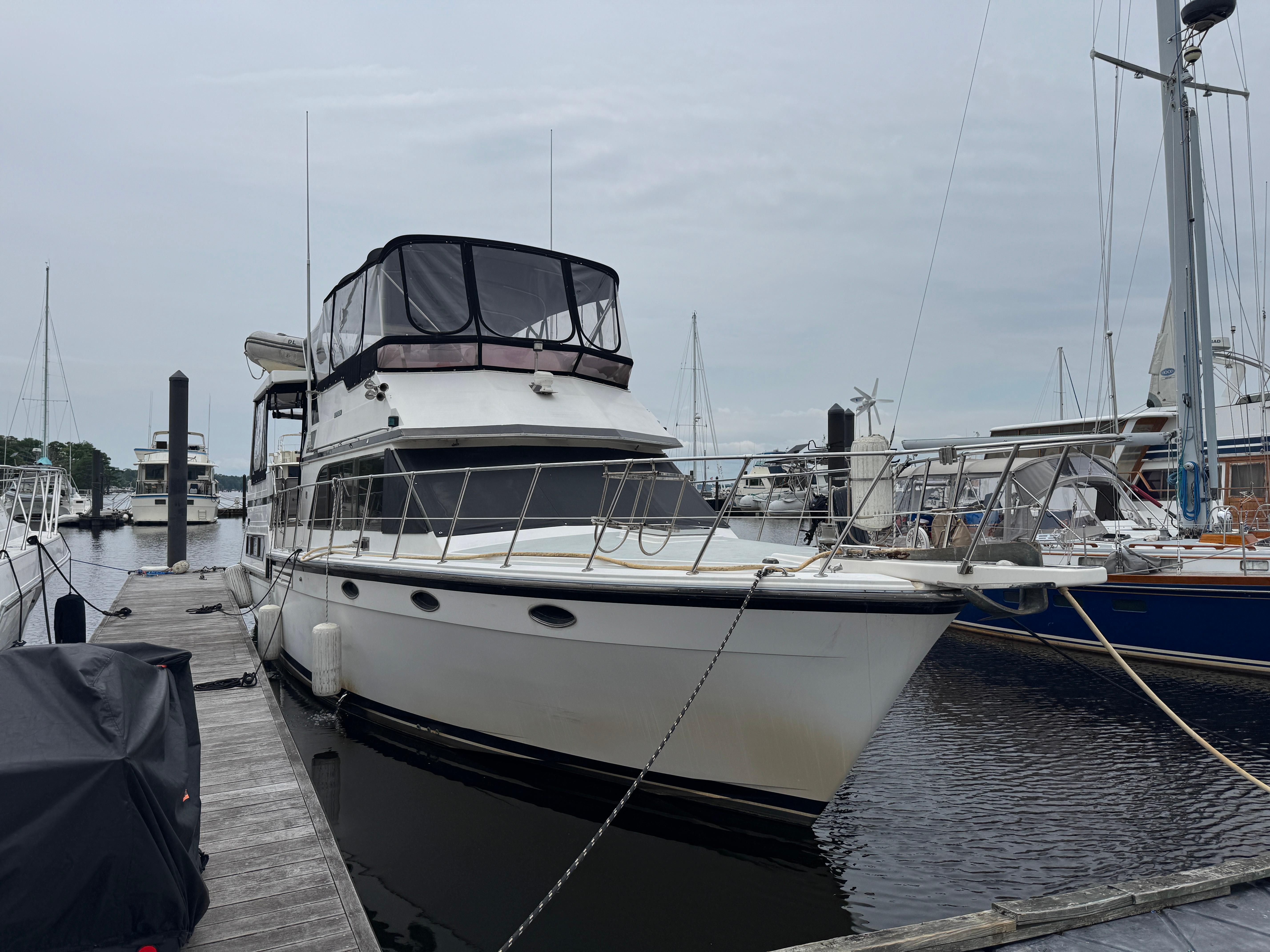

1992 Jefferson Viscount 42 Motor Yacht
Currently located in New Bern, NC. Contact the listing broker for more details.
A well cared for Jefferson Viscount 42 that has been updated over the last few years. A fastidious owner has maintained this one to higher standards. Update list at the end of this listing.

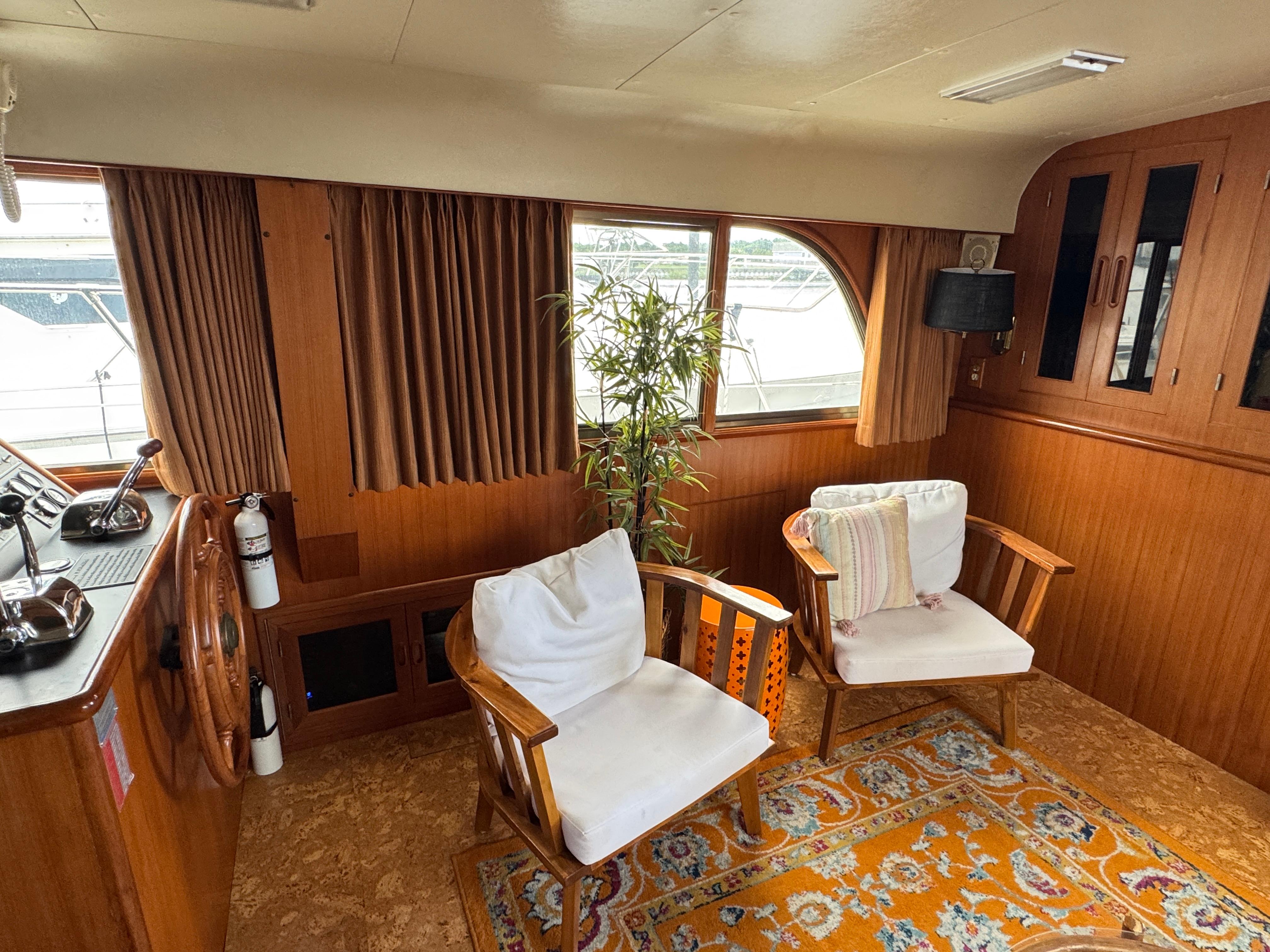

Popular 1990s Jefferson Motoryacht delivered traditional Motoryacht accommodations at a remarkably affordable price. Comfortable two staterooms, galley down teak interiors boats expansive salon with beautiful comforts. The main salon feature chairs, a teak settee, lower helm, and a built-in cabinet aft. The lower “U” shaped galley with generous storage and a convertible dinette offers an excellent space for food preparation and dining. A large aft master cabin features a combination shower and bath tub, electric toilet, and marble top vanity. The roomy aft deck features a wet bar and ample storage. Standard features included a swim platform, radar ach and integral bow pulpit.
Specifications
Basic Information
- Manufacturer:
- Jefferson
- Model:
- Viscount 42 Sundeck
- Year:
- 1992
- Category:
- Power
- Condition:
- Used
- Location:
- New Bern, NC, US
- Vessel Name:
- NC 9995 JP
- Boat Type:
- Motor Yachts
- Hull Material:
- Fiberglass
- Designer:
Dimensions & Weight
- Length:
- 42 ft - 12.8 meter
- LOA:
- 42 ft - 12.8 meter
- Beam:
- 14 ft 3 in - 4.34 meter
- Draft - max:
- 3 ft 7 in - 1.09 meter
- Bridge Clearance:
- 17 ft
- Dry Weight:
Engine
- Make:
- Cummins
- Model:
- 6BTA 5.9
- Engine(s):
- 2
- Hours:
- 3300
- Cruise Speed:
- Range:
- Engine Type:
- Inboard
- Drive Type:
- Direct
- Fuel Type:
- Diesel
- Horsepower:
- 300 (Individual), 600 (combined)
- Max Speed:
Tank Capacities
- Fuel Tank:
- 420 Gallon(s) - 2 tank(s)
- Fresh Water Tank:
- 200 Gallon(s) - 2 tank(s)
- Holding Tank:
- 40 Gallon(s)
Accommodations
- Total Cabins:
- Total Berths:
- -
- Total Heads:
Gallery
Descriptions
Additional Information
Accommodations:

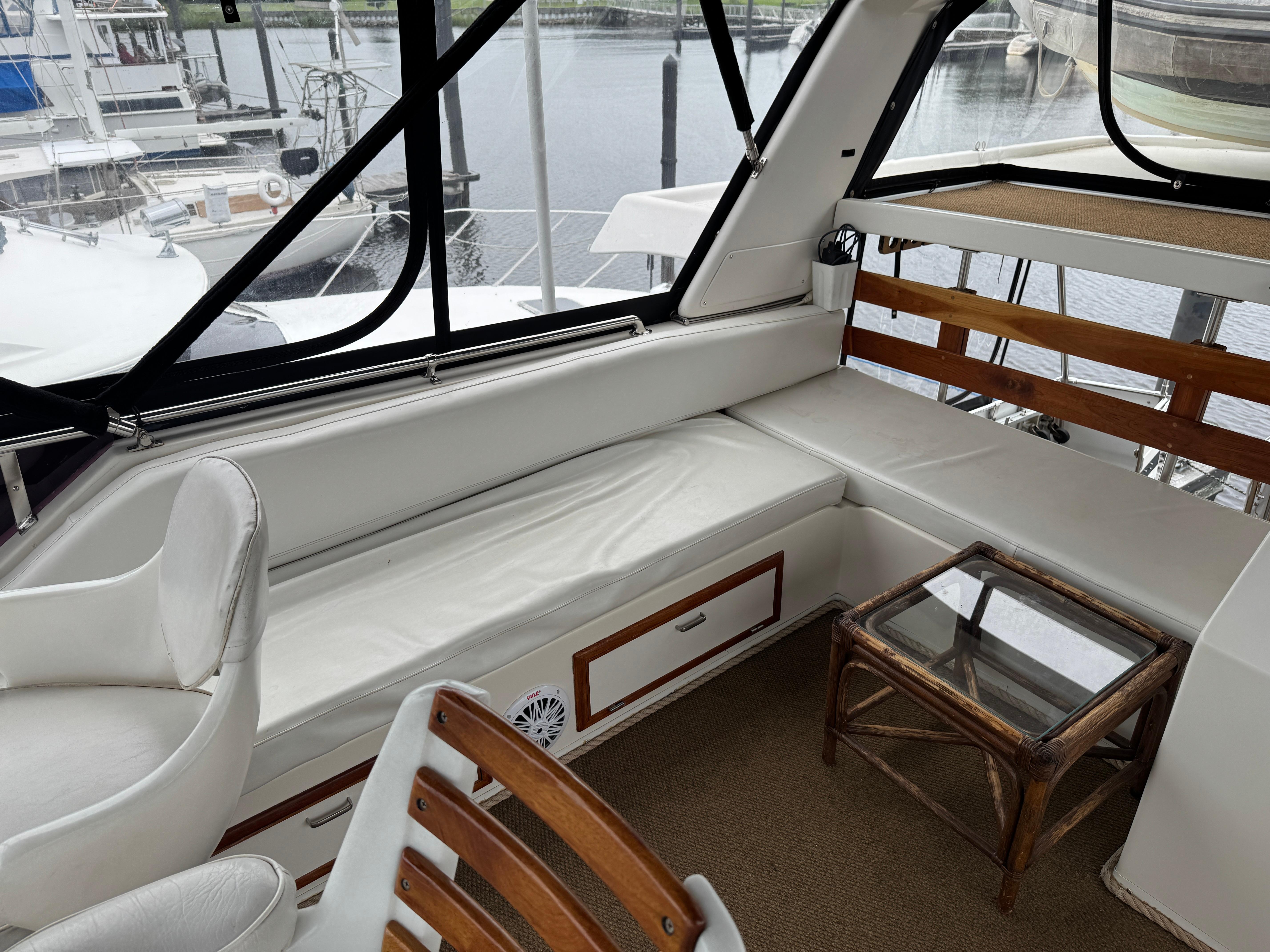

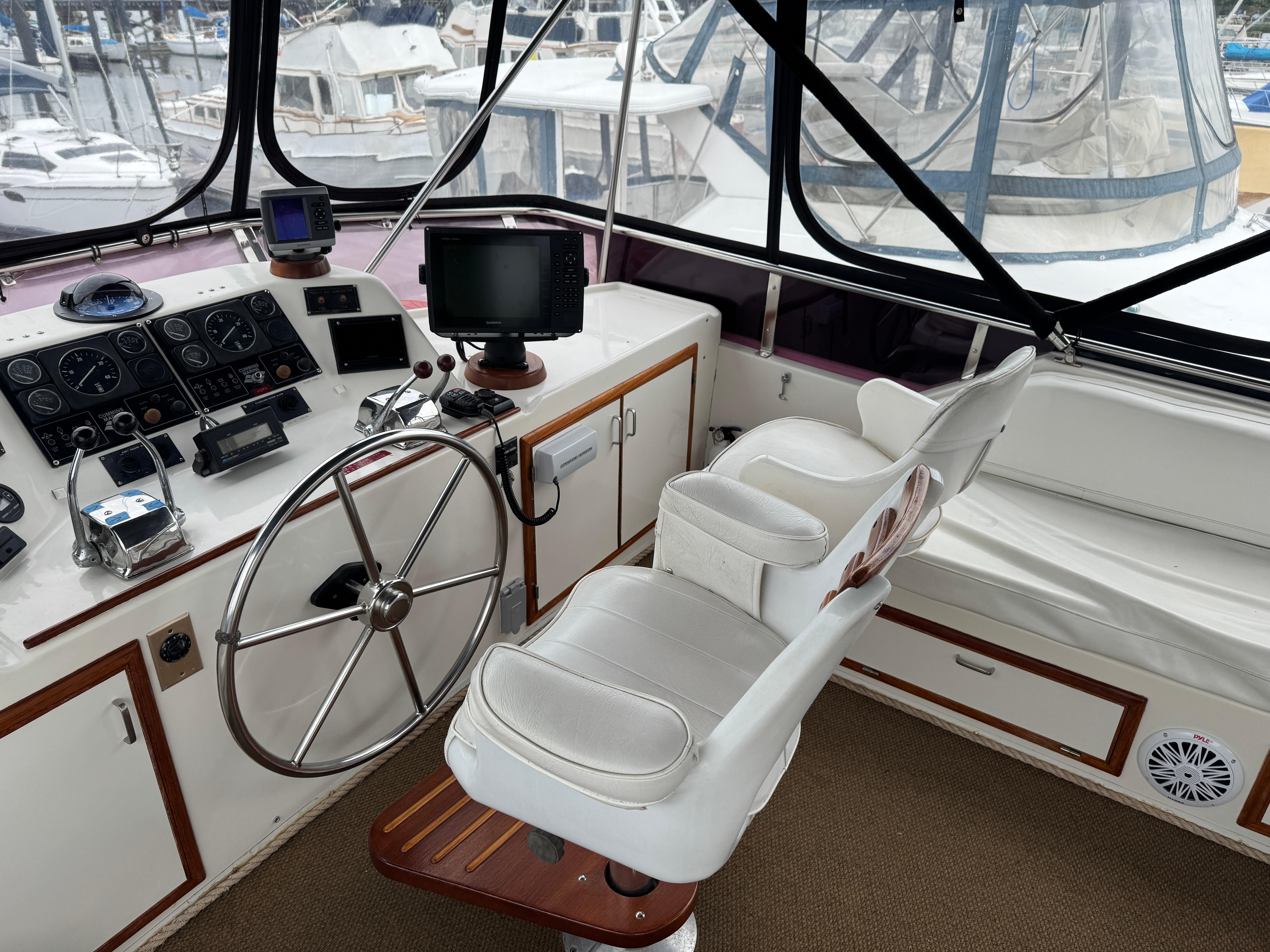

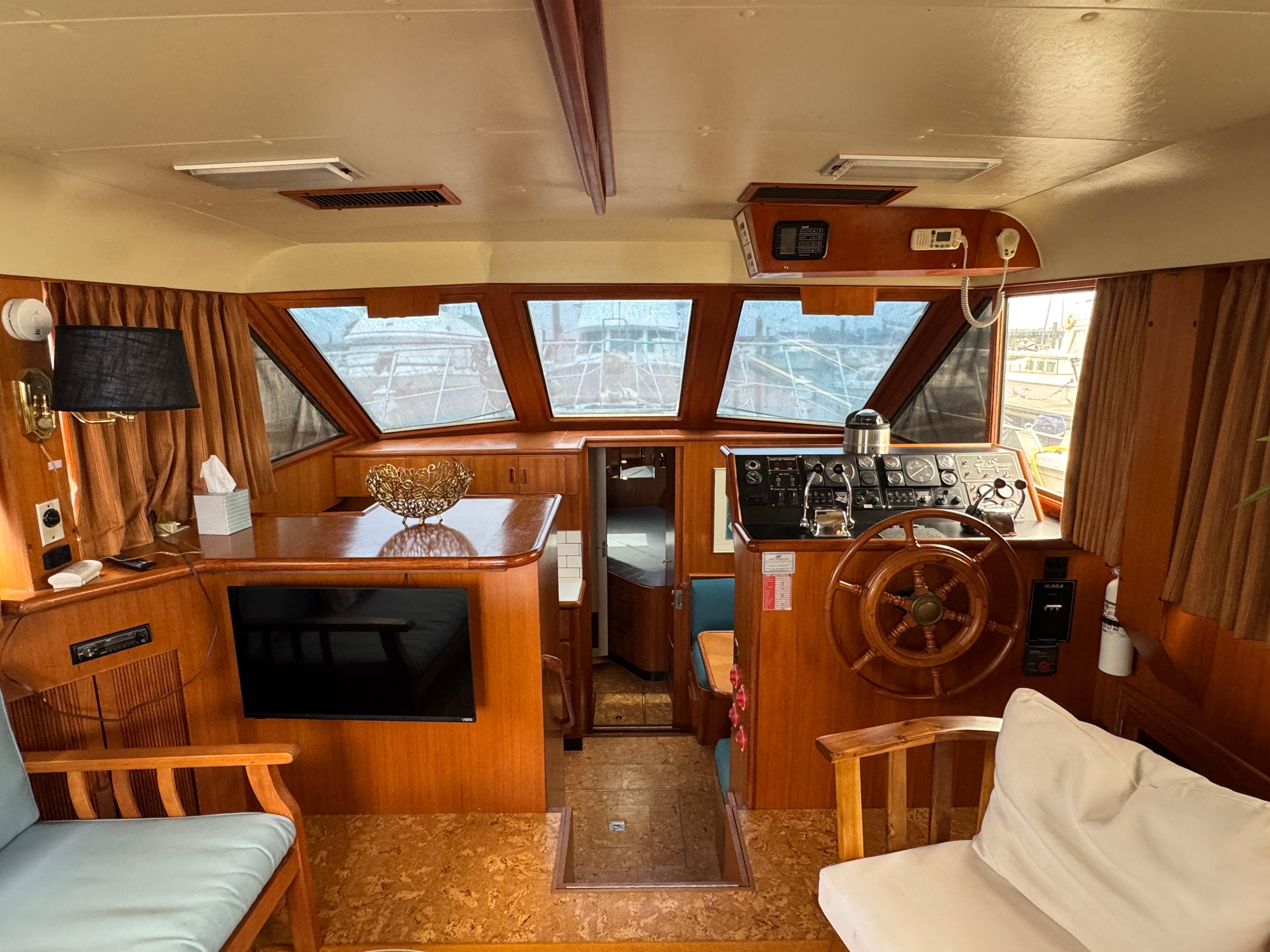

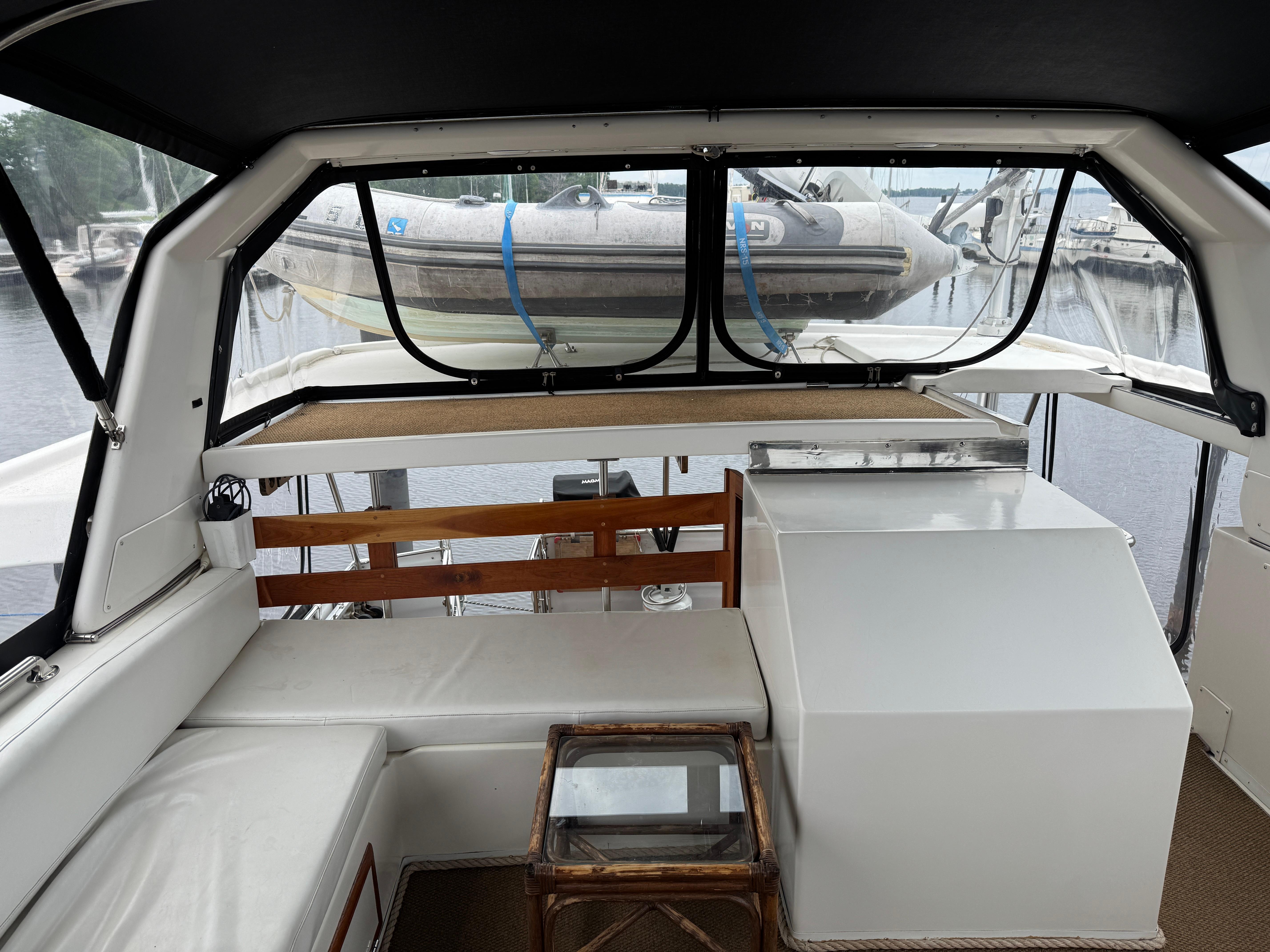

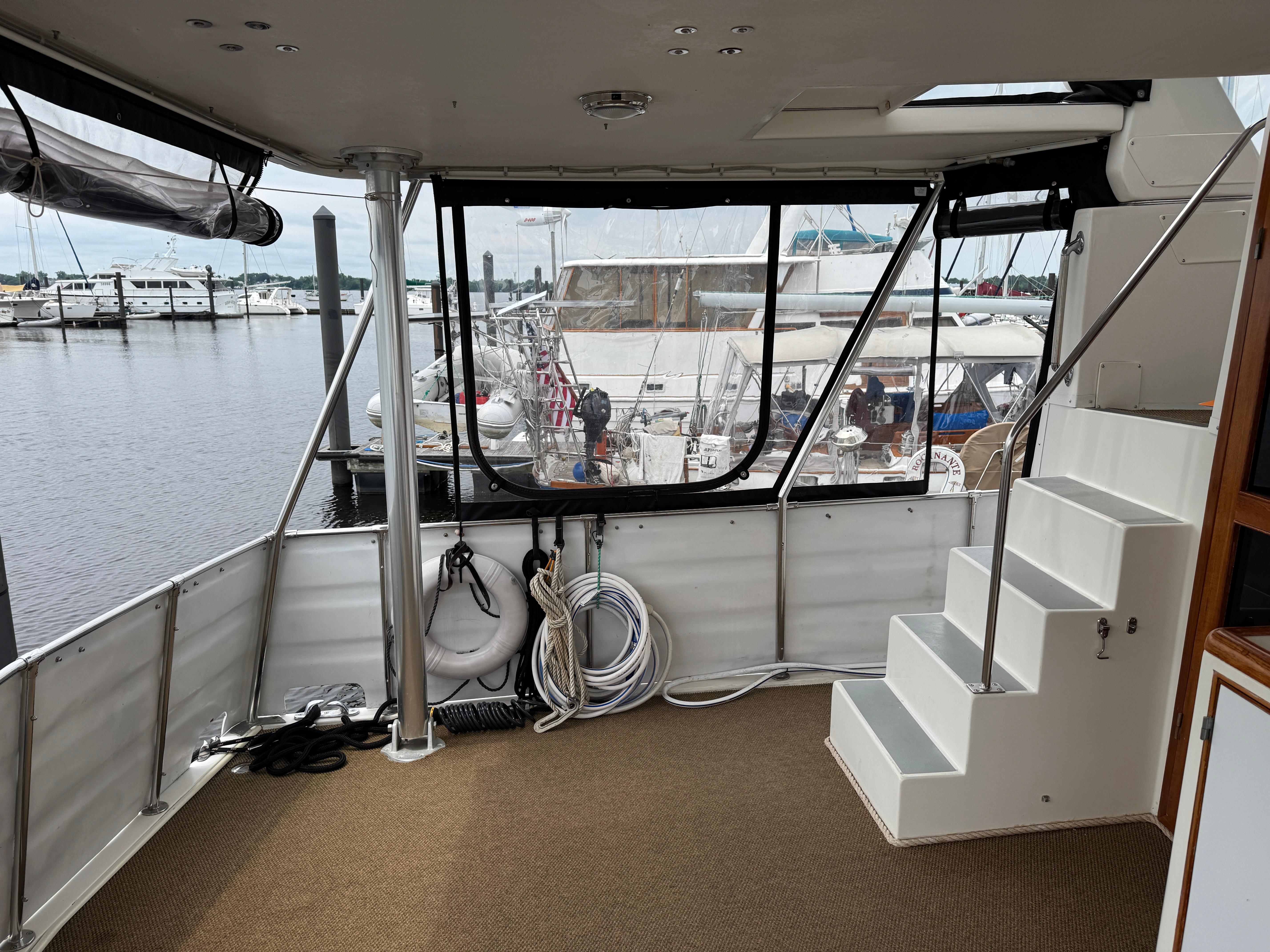

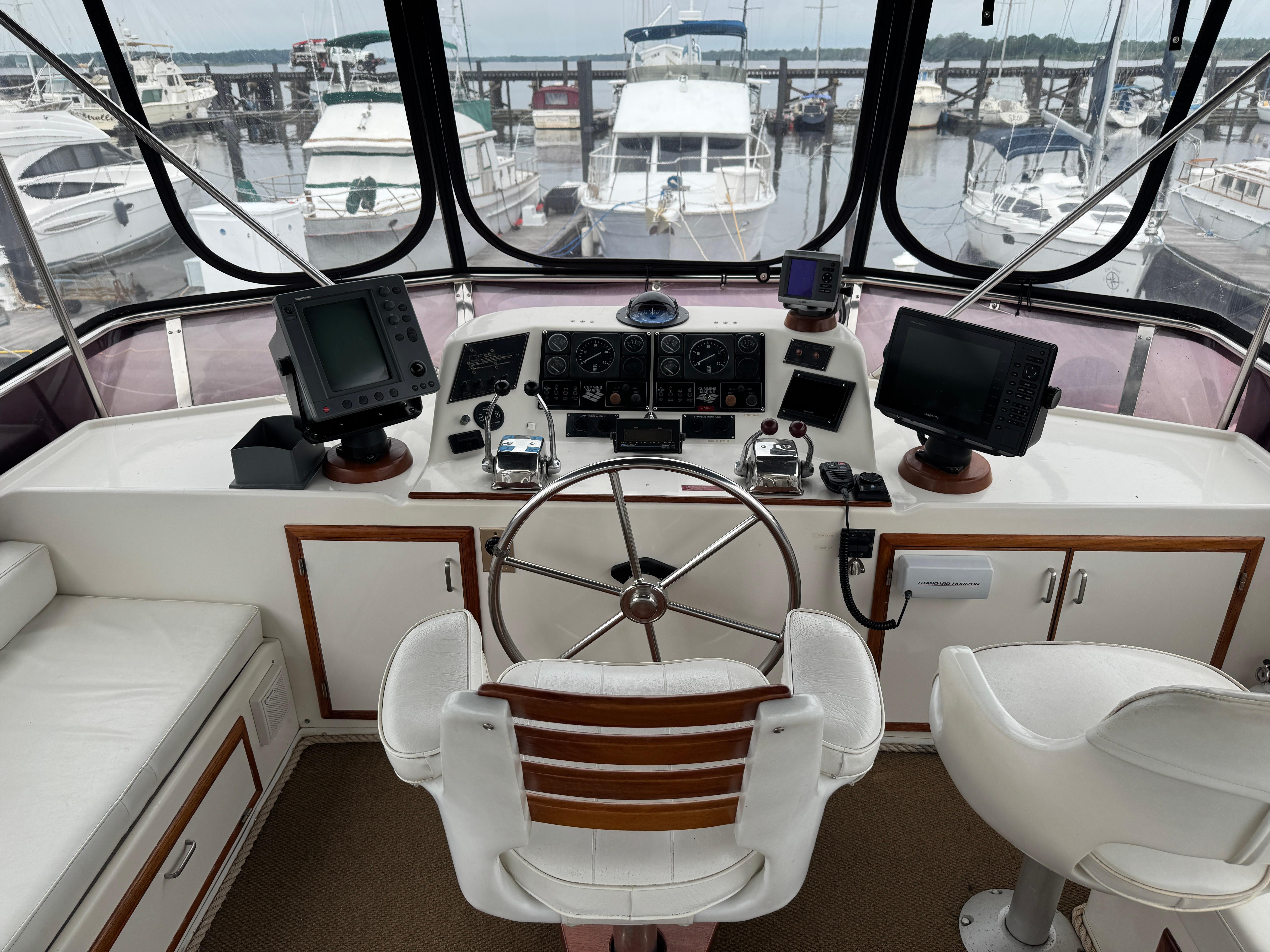

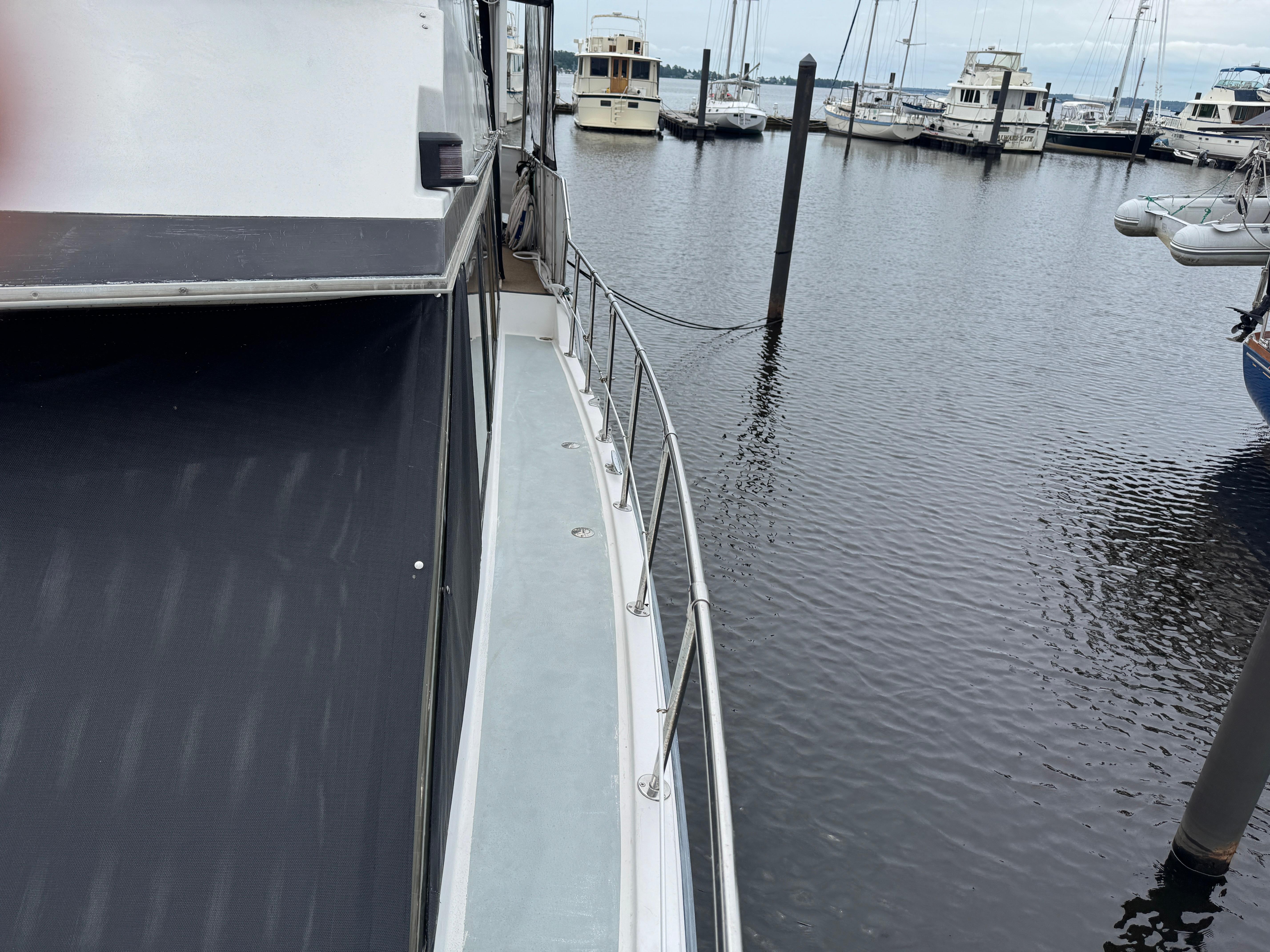

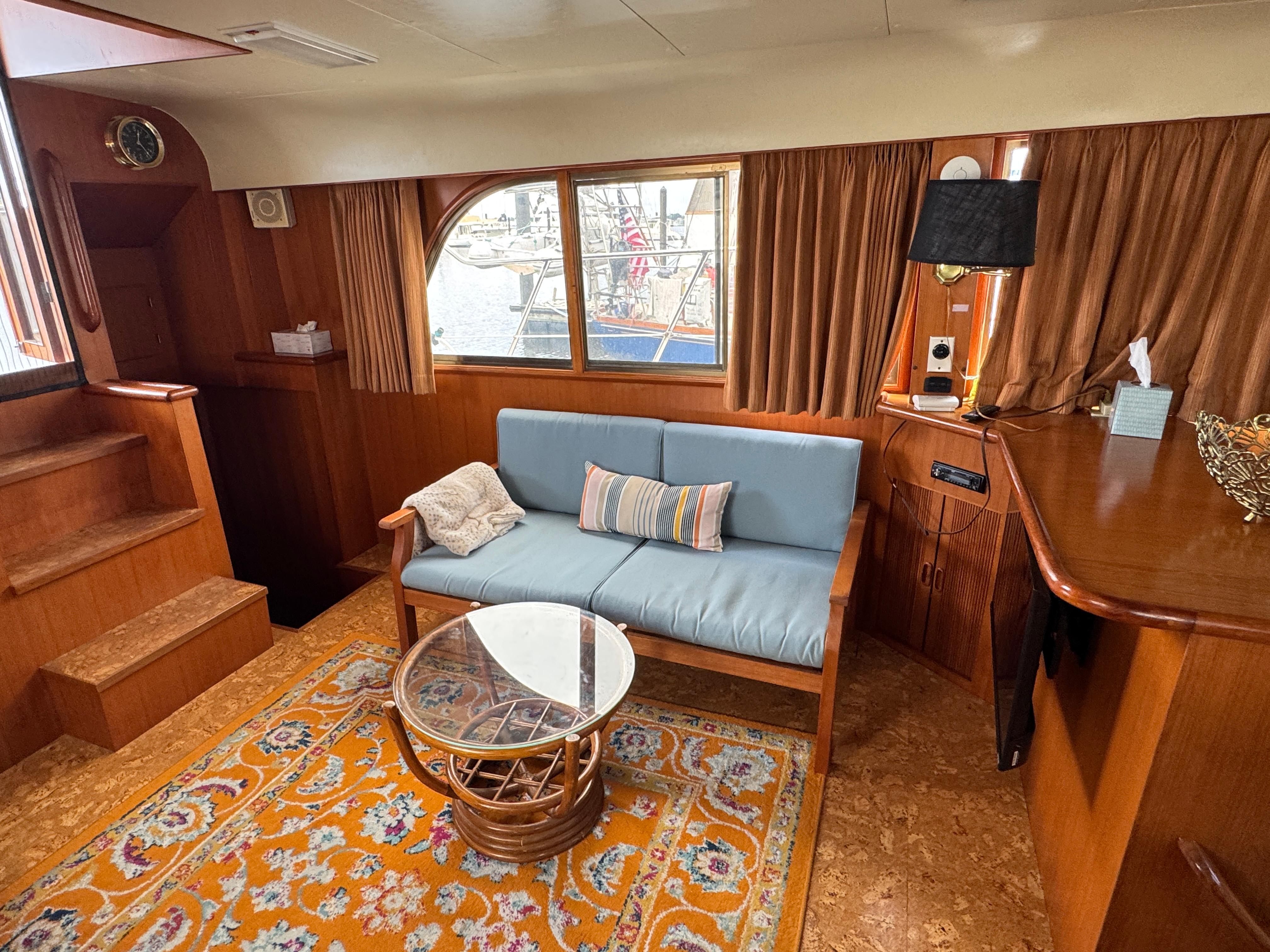

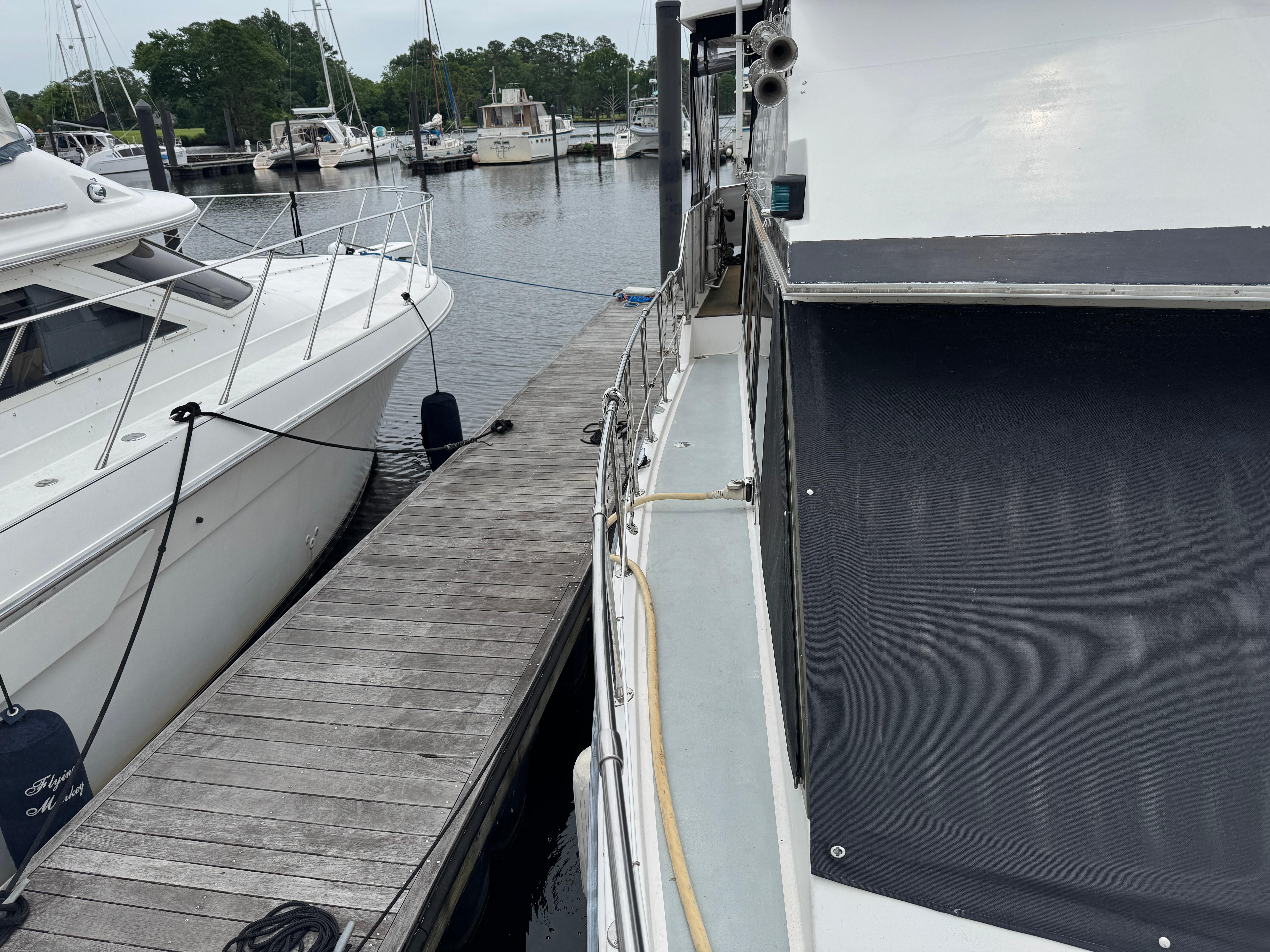

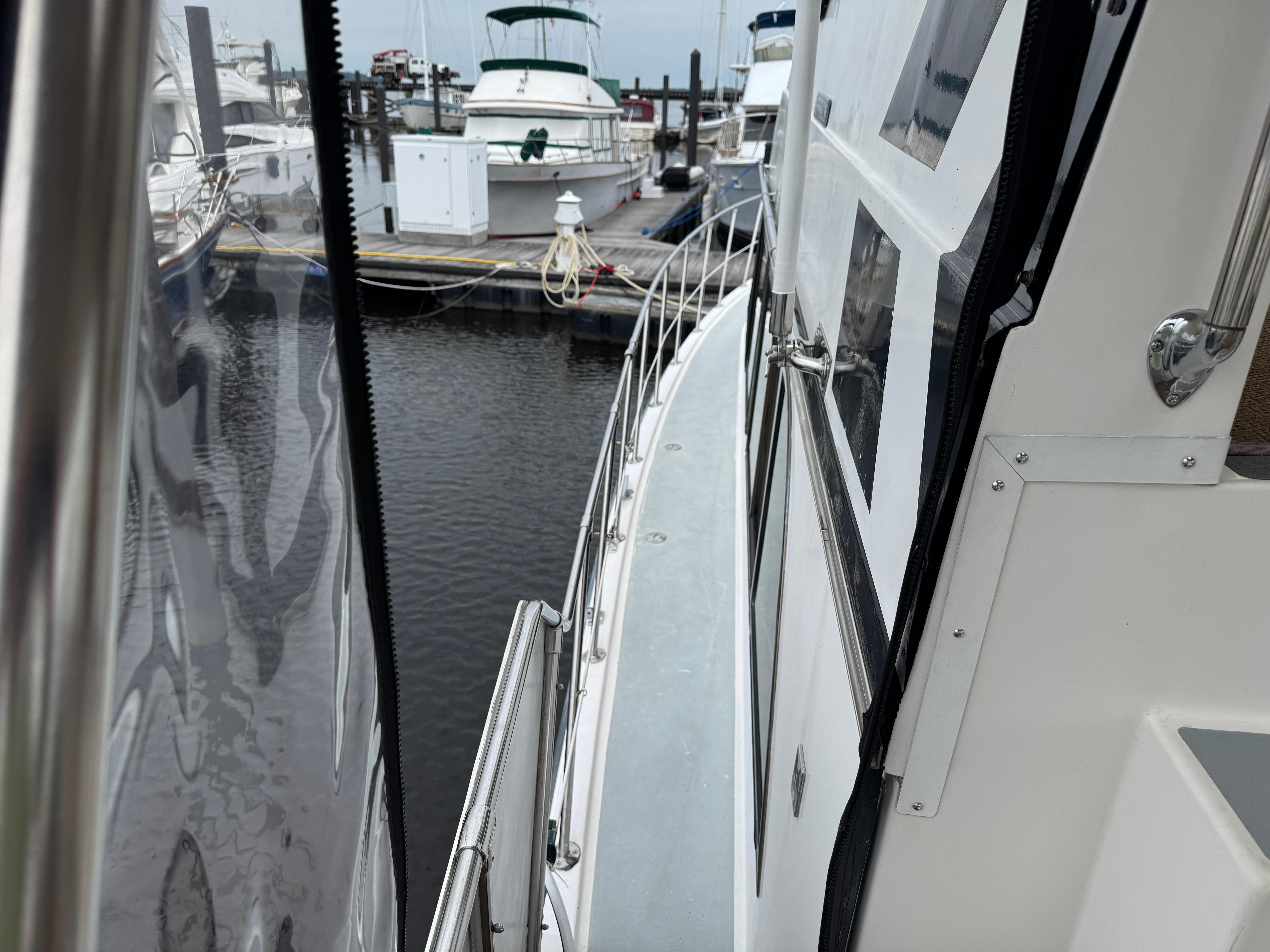

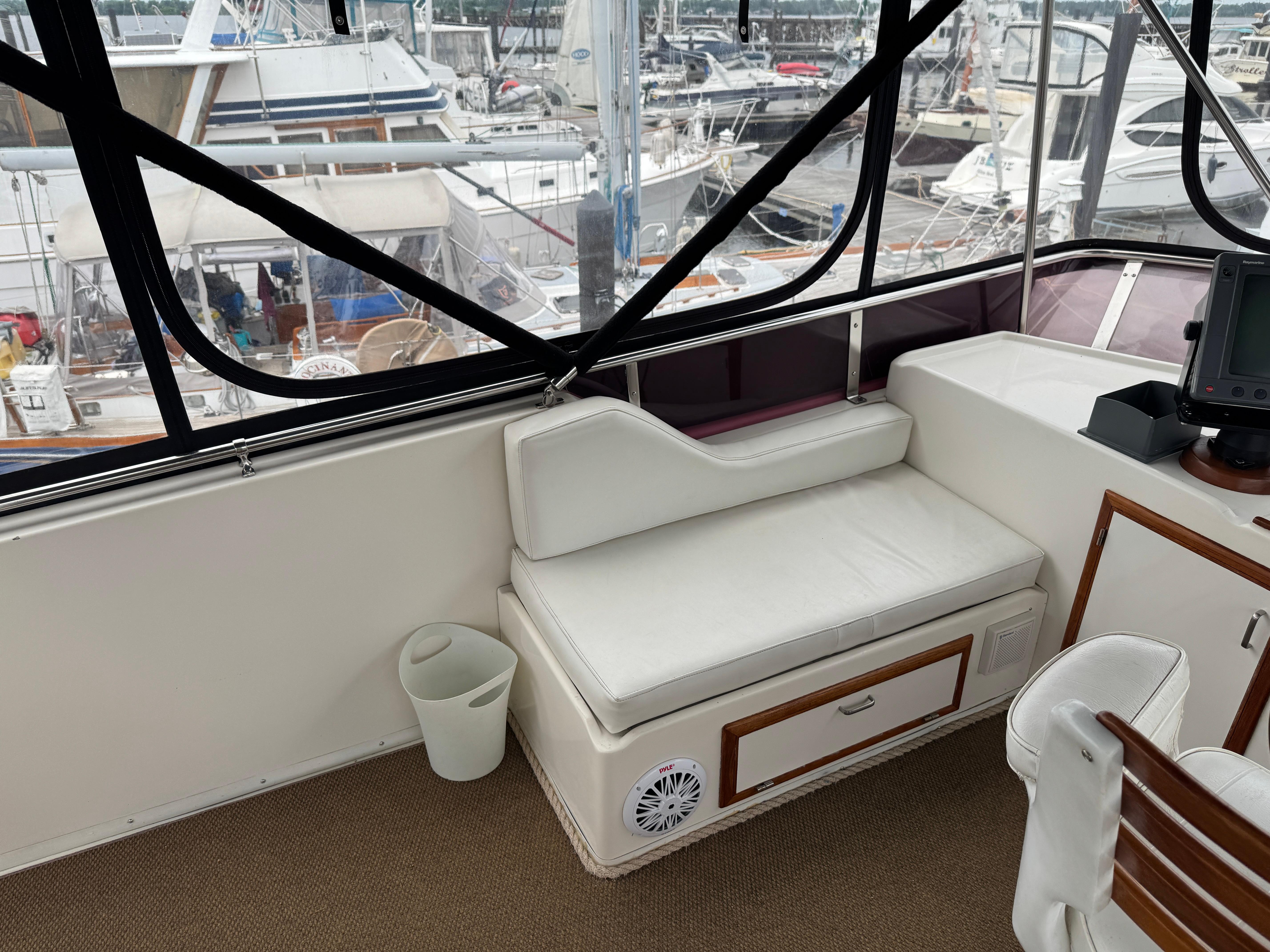

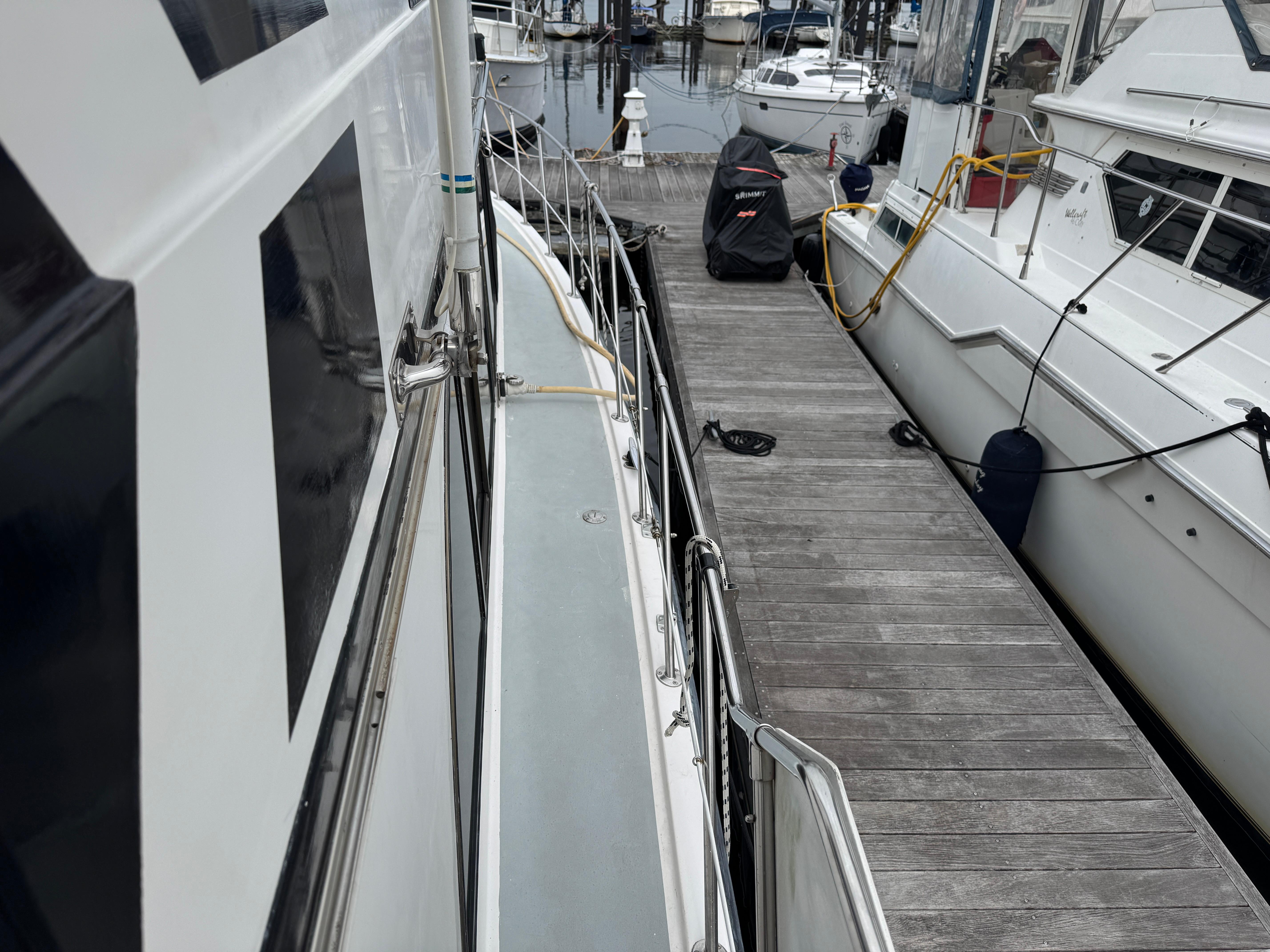

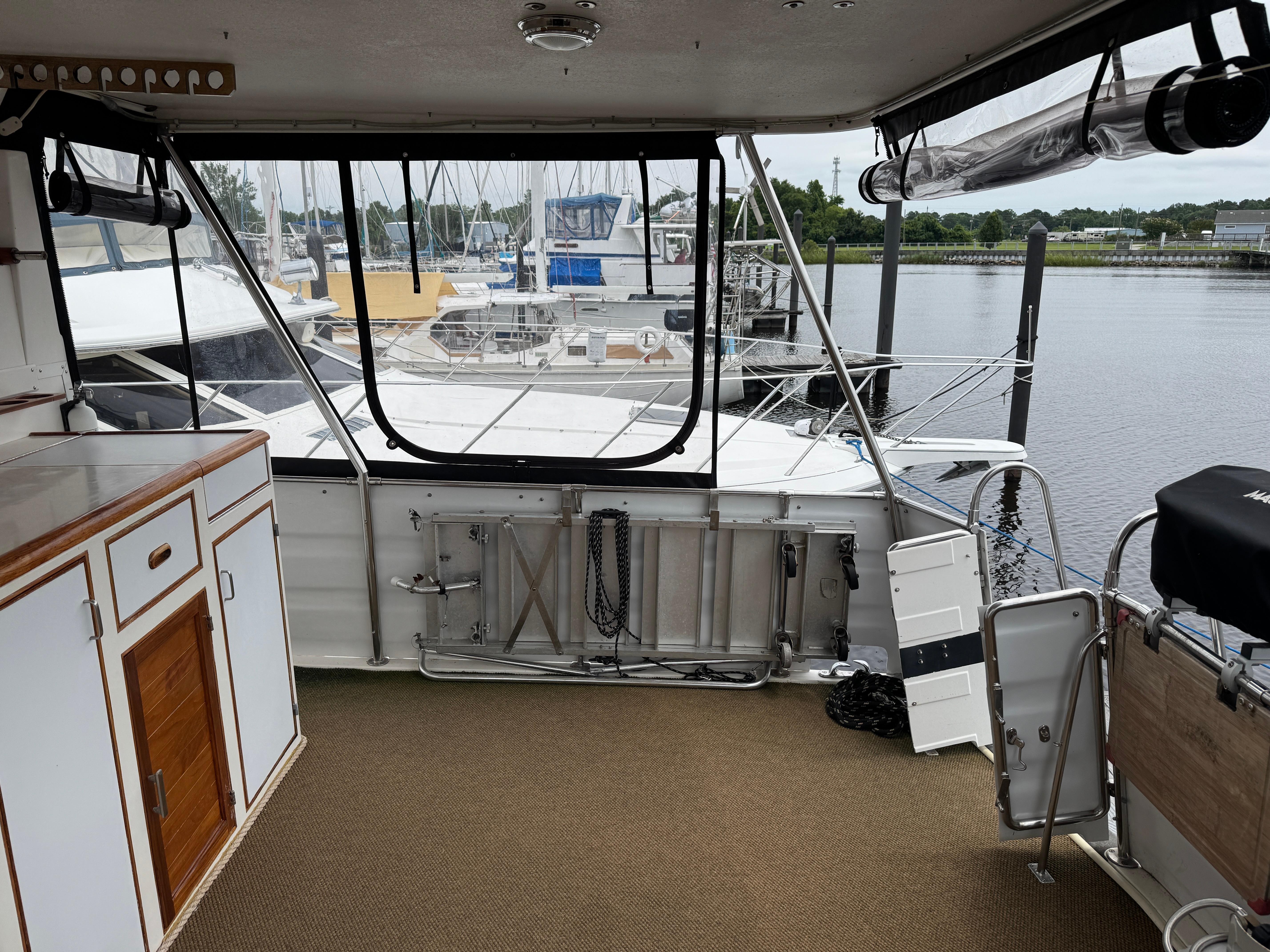

You can board the boat by way of the swim platform or through the port and starboard boarding gates. Boarding from the port side boarding gate the side decks are wide and offer easy maneuverability fore and aft. The bow deck is relatively flat. The aft deck can be closed off using the wing doors. The aft deck is large and fully enclosed. There is plenty of room for nice aft deck furniture. The aft deck cabinet to starboard has a wet bar with hot and cold water and plenty of storage in the bar cabinet. Access to the bridge is along the port side. The bridge deck is also large with a centered helm and helm guest chair. White upholstery on all settees with matching pillows. Custom outdoor carpet matches the fabrics well and makes the bridge deck luxurious. Along the port side there is a small settee and along the starboards side a large “L” shaped settee. Both settees have storage under the seats. Aft is an elevated pad perfect for reading a book or relaxing. 360-degree visibility from the helm makes it easy to operate and navigate from the bridge helm. Back to the aft deck and through the bi-fold doors you enter the main salon. To port is a teak love seat with cushions and to starboard are two teak matching chairs with cushions. Aft of the settee is a built-in cabinet with glass doors. Along the port side forward is a wonderful breakfast bar area that overlooks the galley and dinette below. To port and forward is the lower helm. The interior flooring has been covered with beautiful cork flooring. New drapes add to the luxury feel of the main salon. Down a few steps leads to the galley. To port is the “U” shaped galley with beautiful teak cabinets, dual voltage refrigerator/freezer and appliances. Across form the galley and to starboard is the convertible dinette with fore and aft seating and a large teak table and outboard storage. A little forward and to port is access into the day head, shared with the guest cabin. The head is large with plenty of room and an electric toilet, marble vanity and teak grate flooring. Starboard is the separate shower compartment with plenty of room and a built-in seat and a teak grate. The nice things about this arrangement are that two can be preforming separate tasks at the same time. All the way forward is the guest cabin with a queen berth tucked against the starboard bulkhead, a cabinet aft and above the berth, hanging lockers, and private access into the day head. An overhead hatch with screen and port holes provides natural light and ventilation.

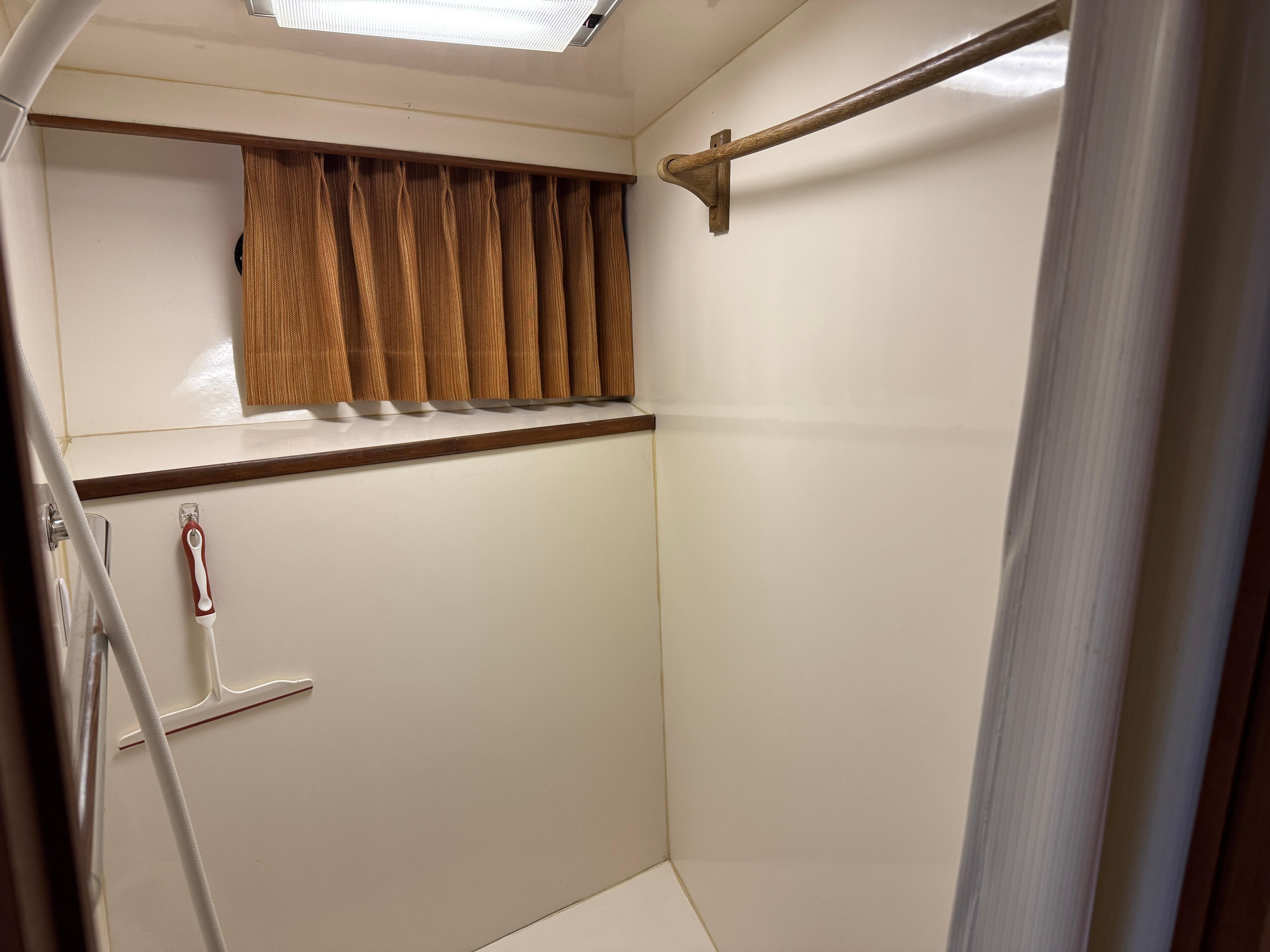

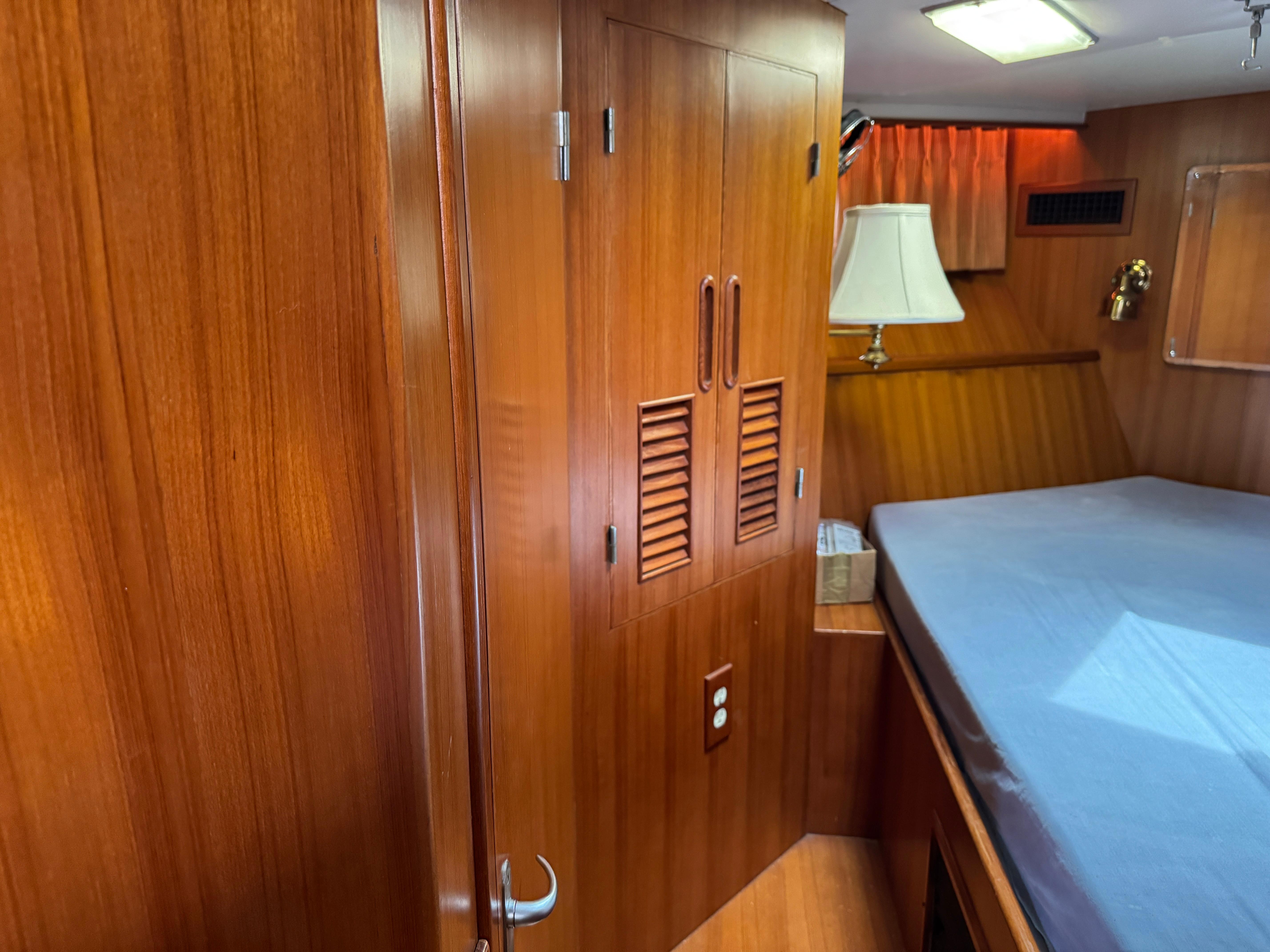

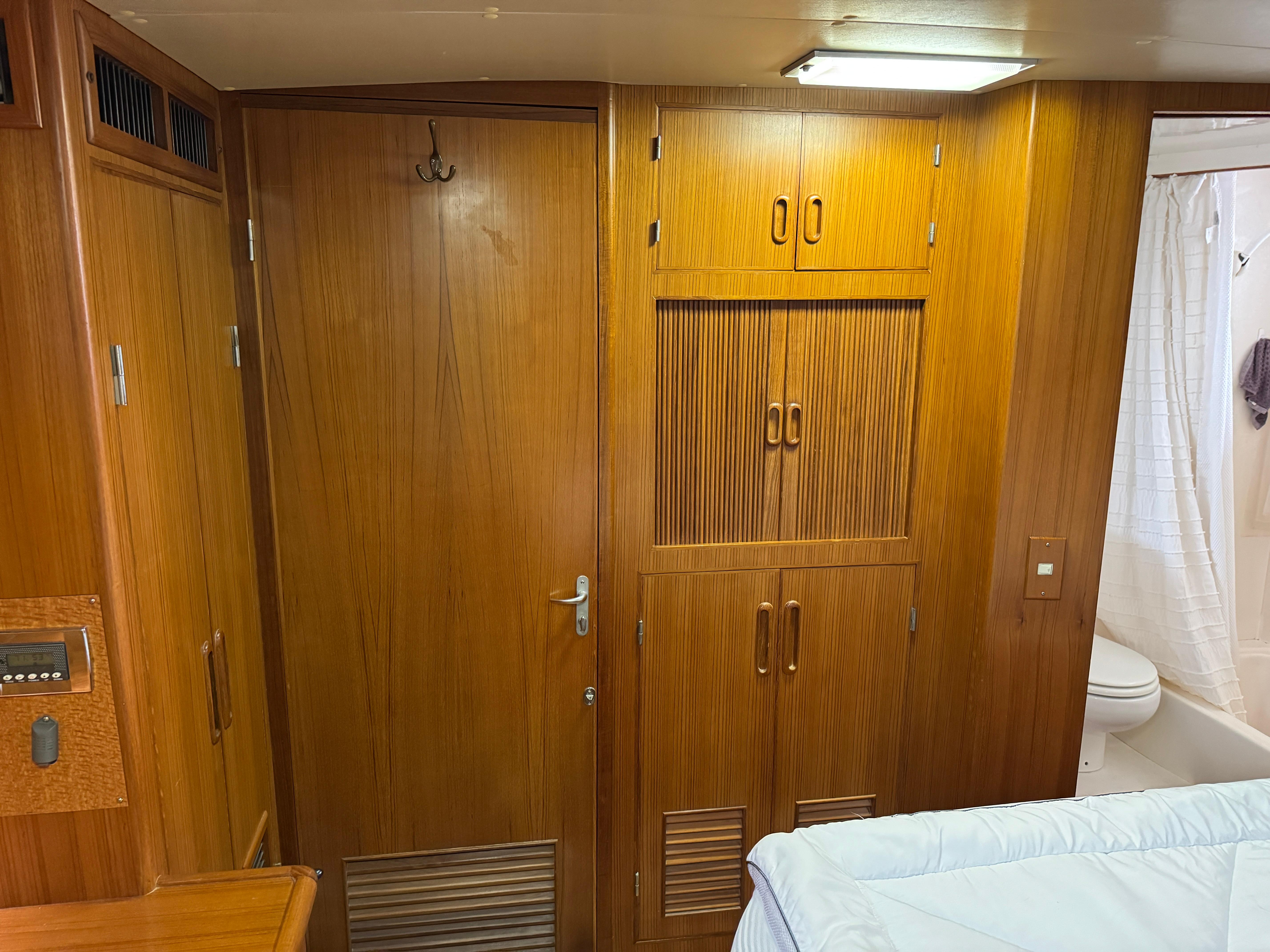

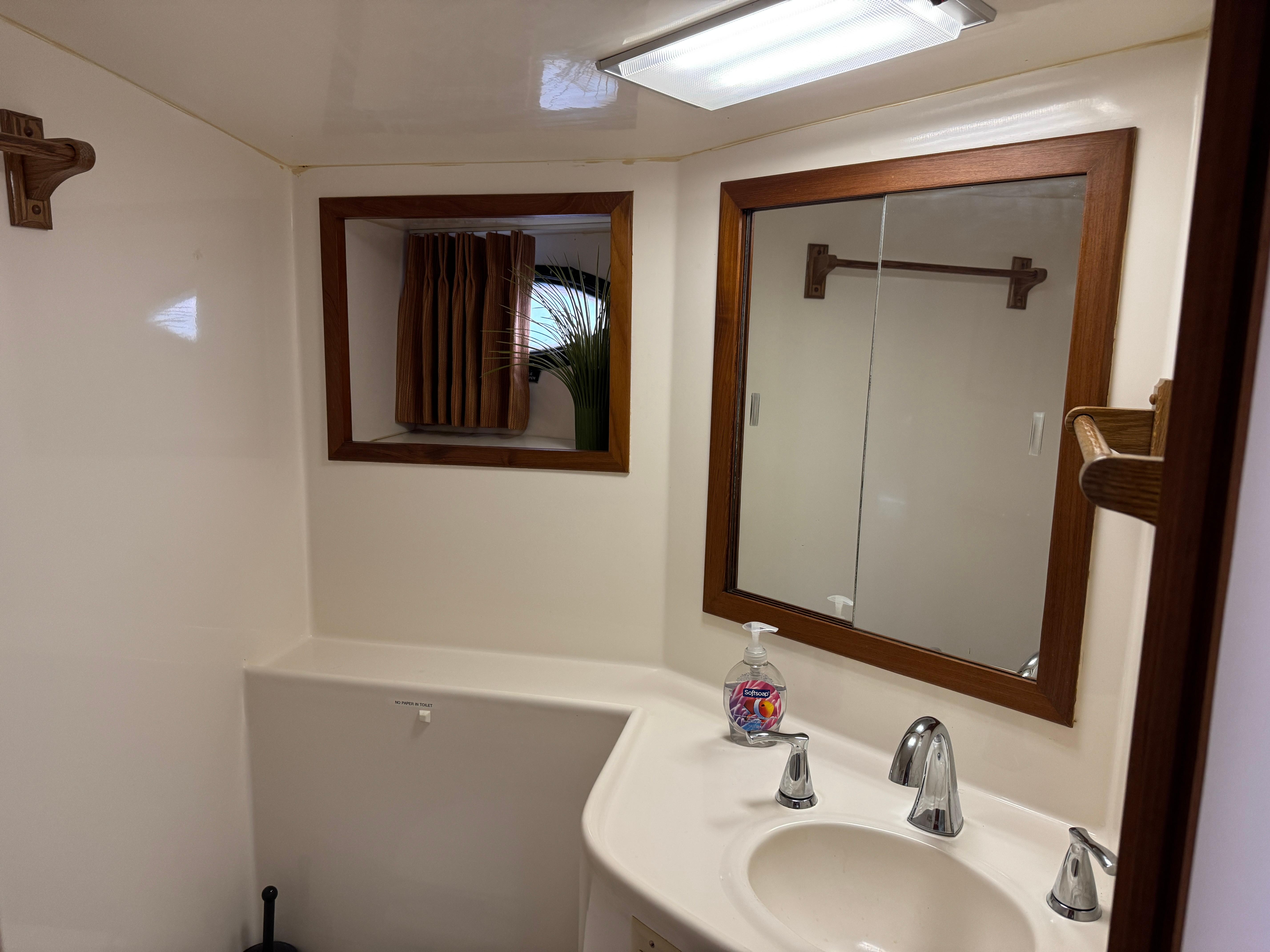

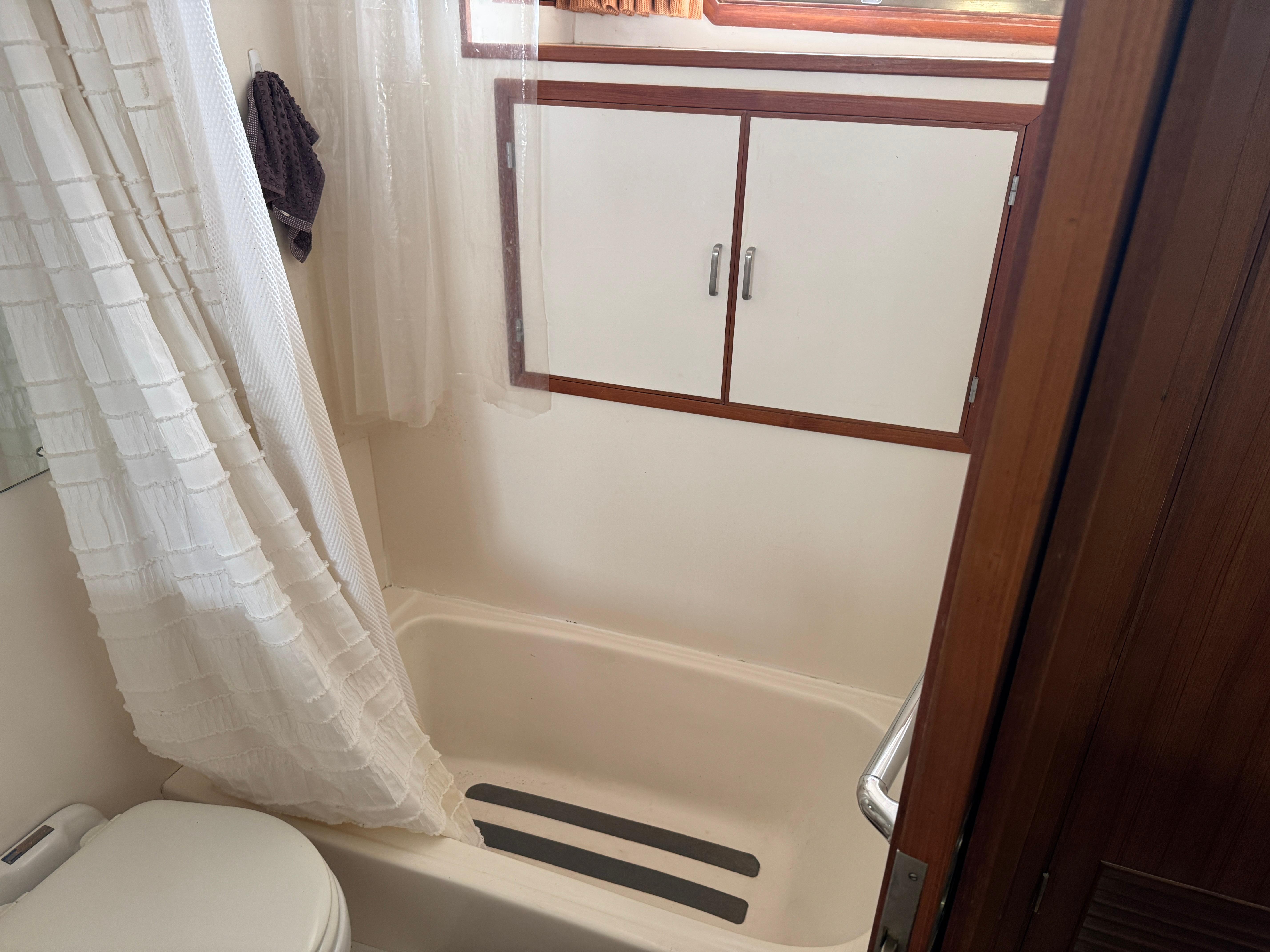

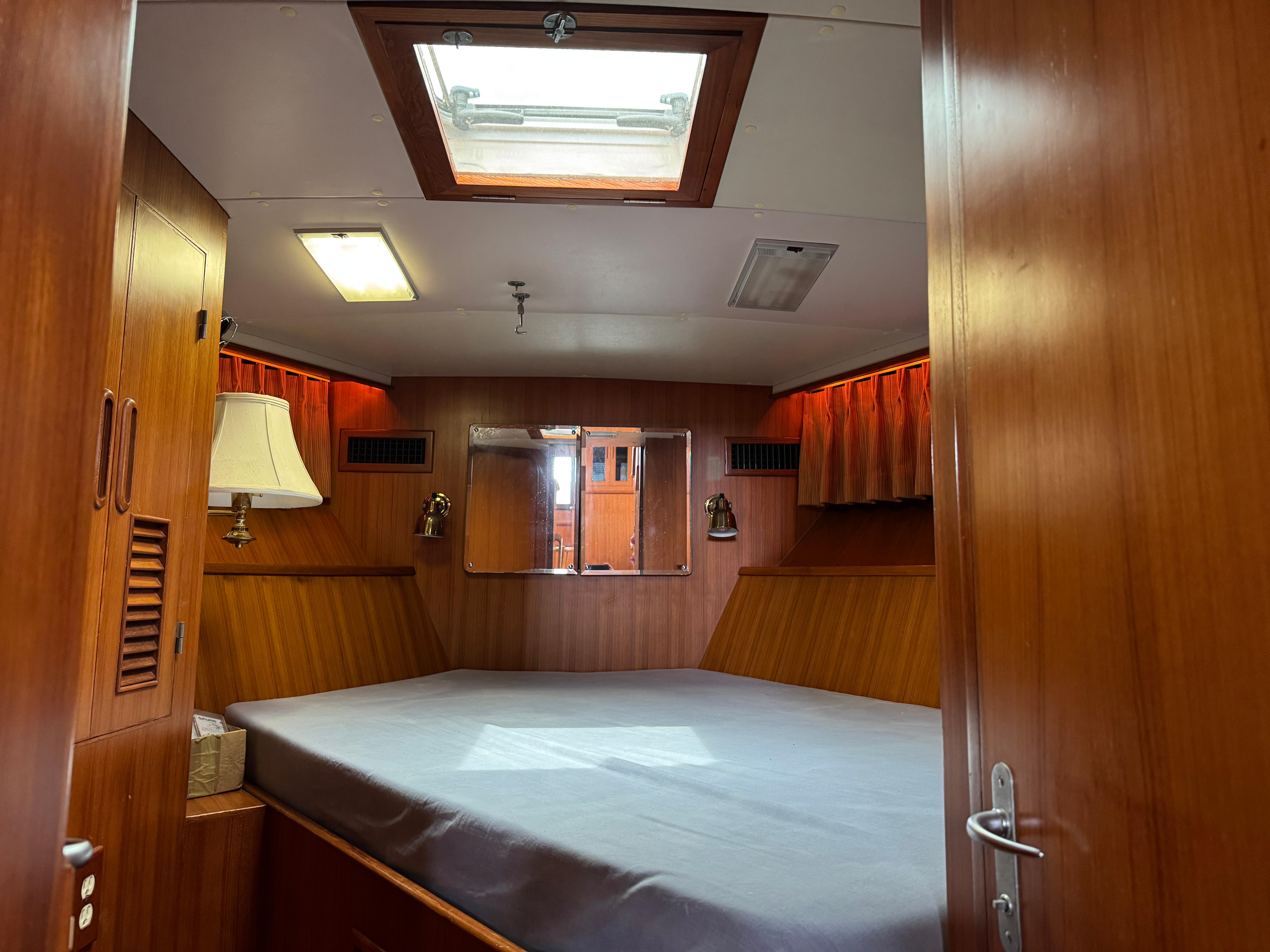

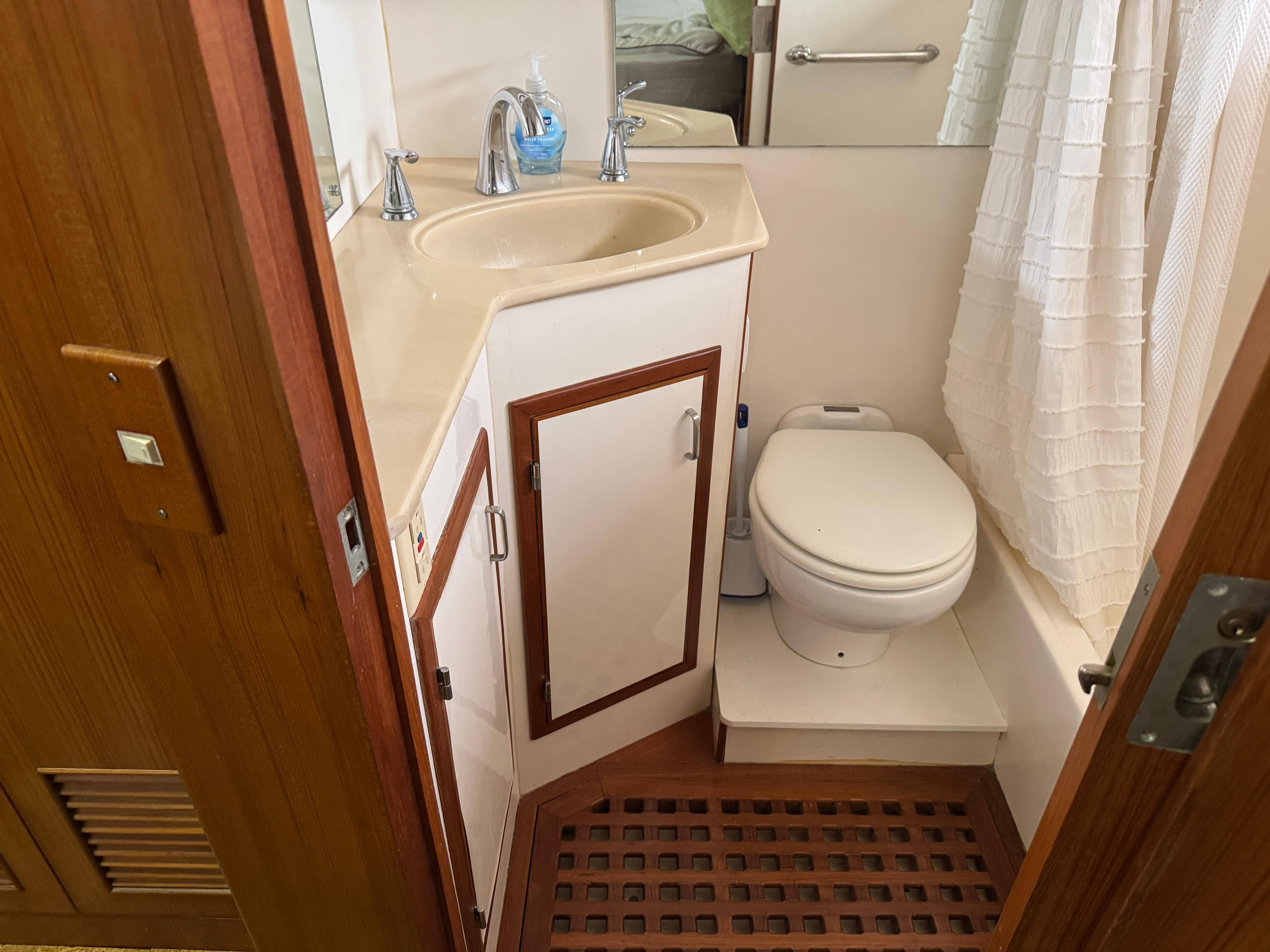

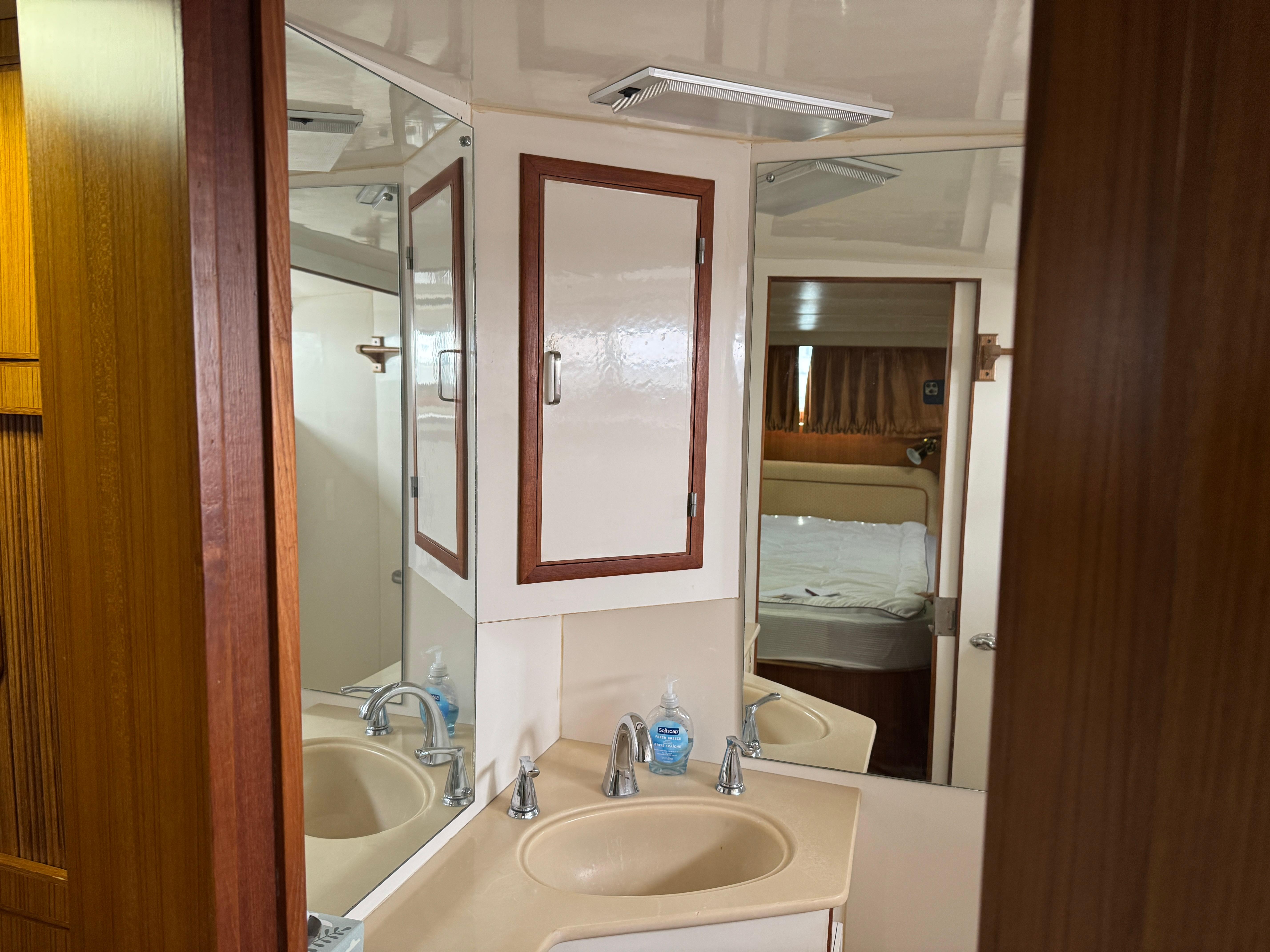

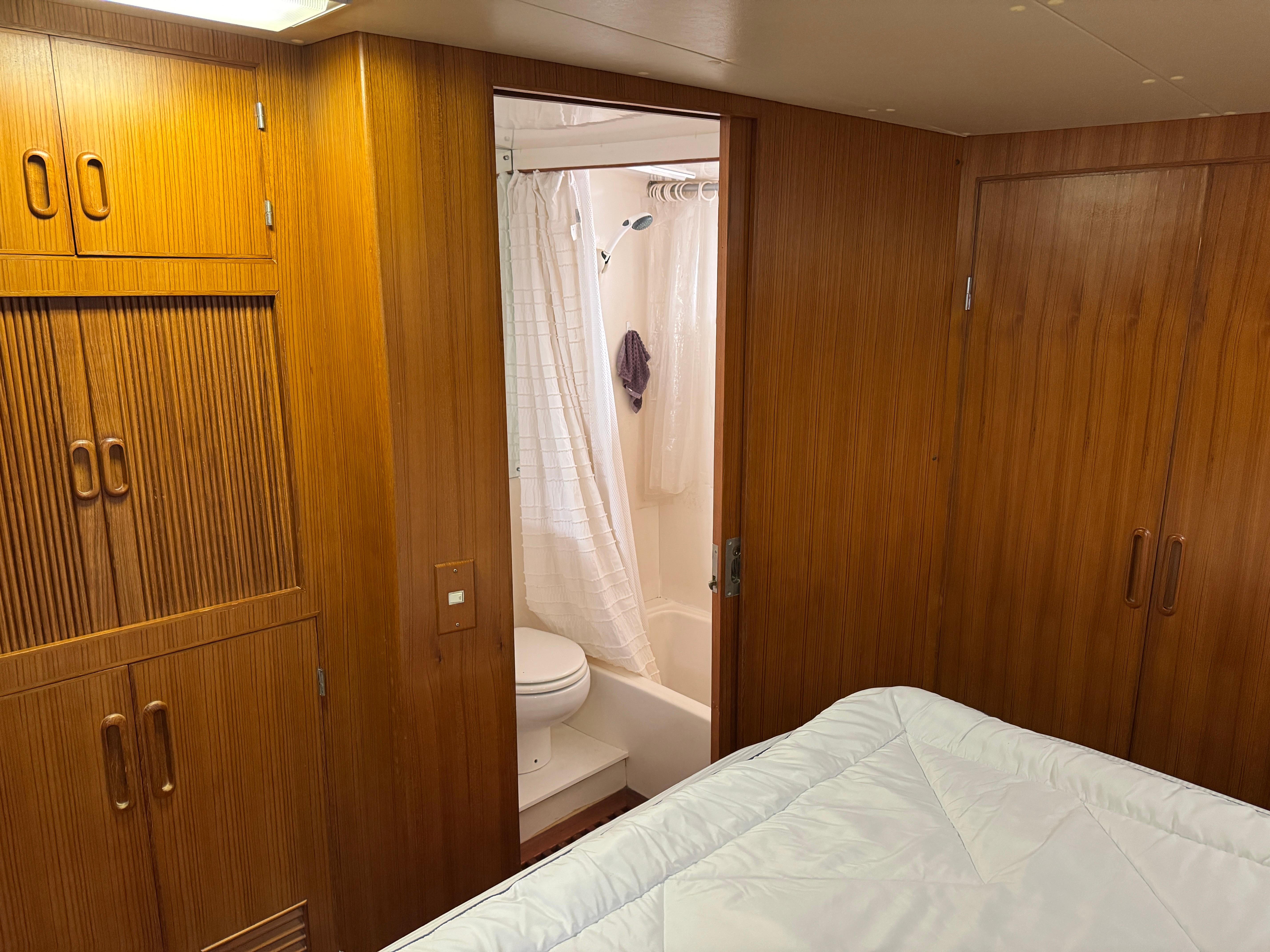

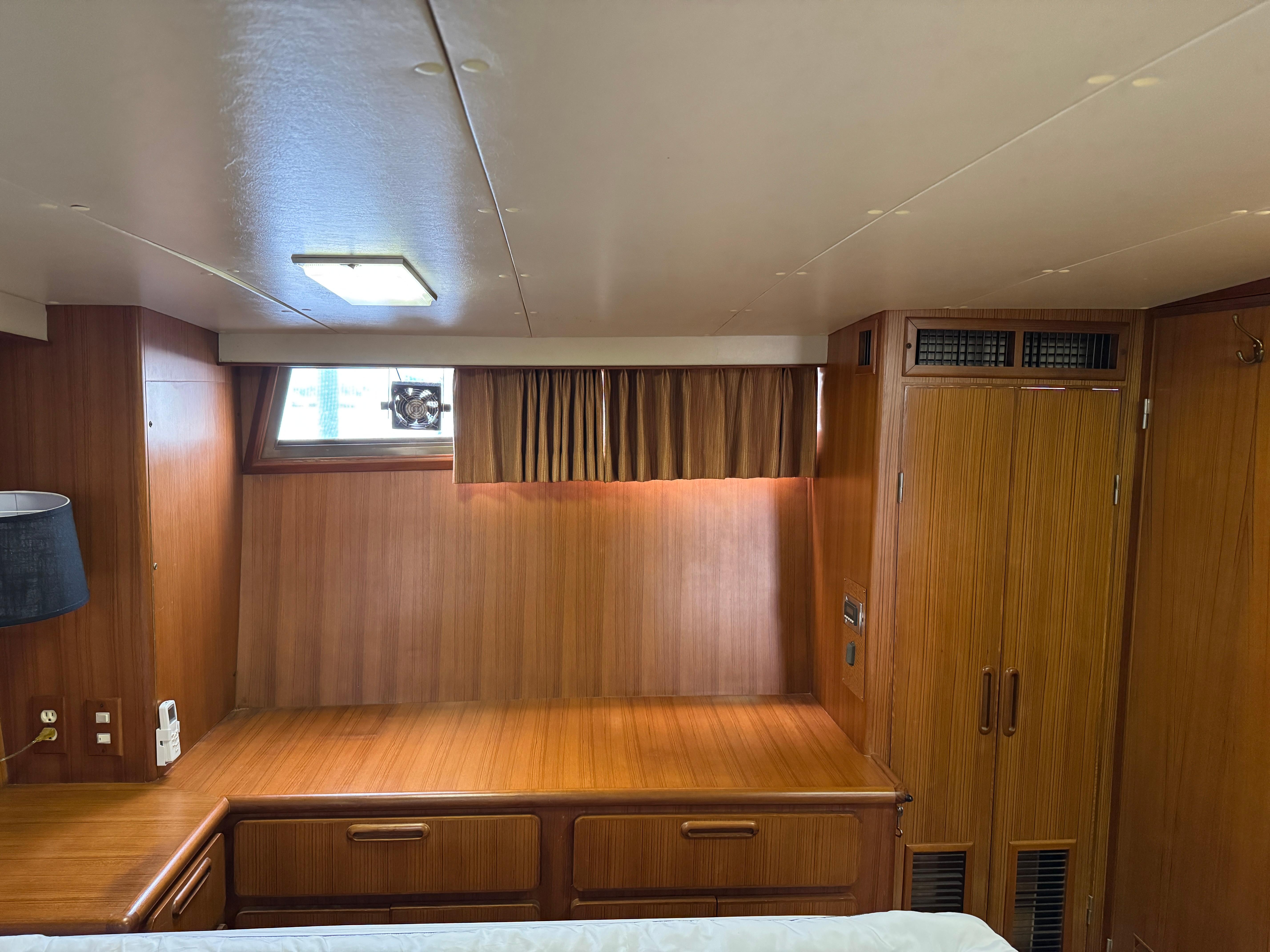

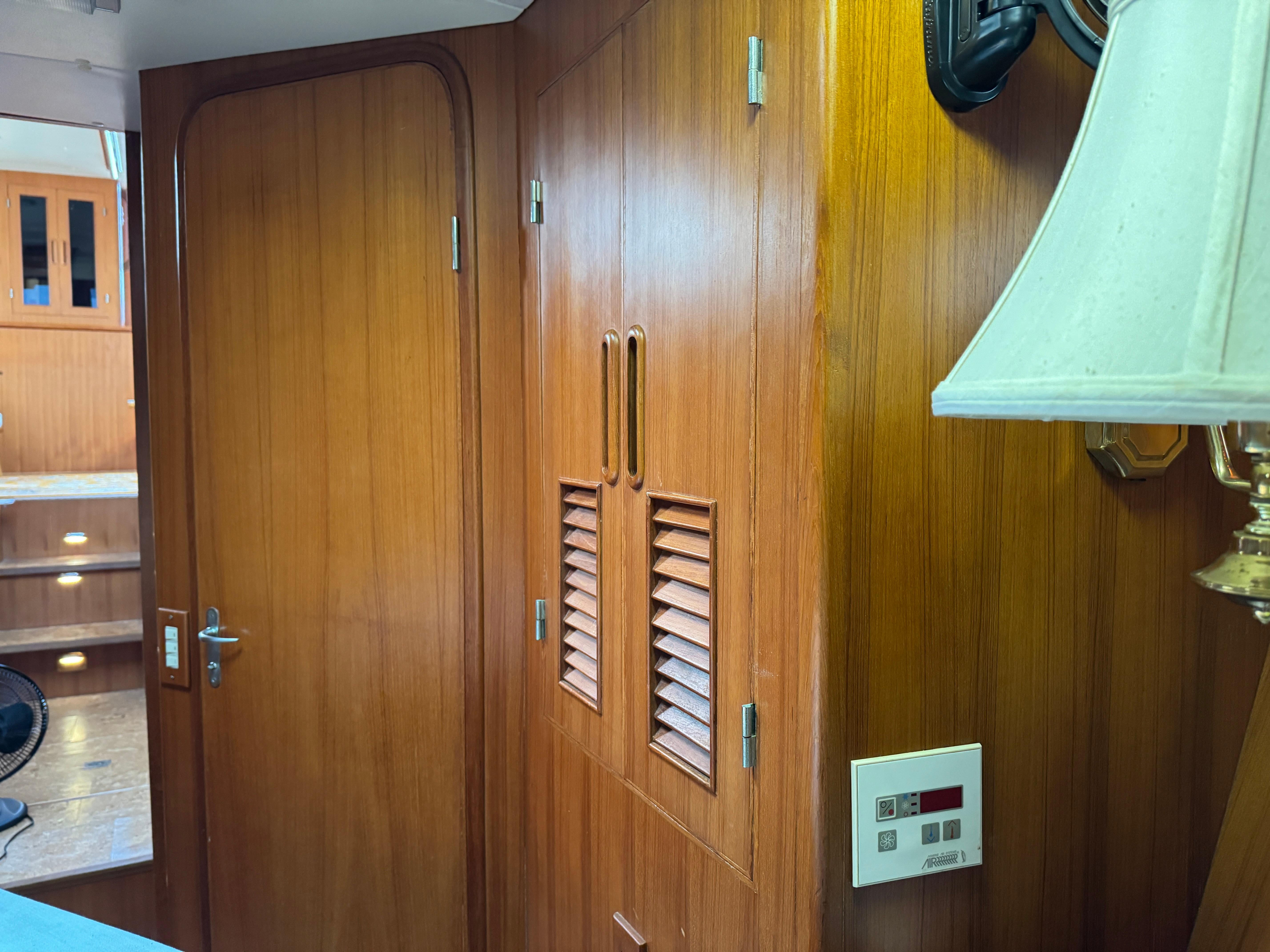

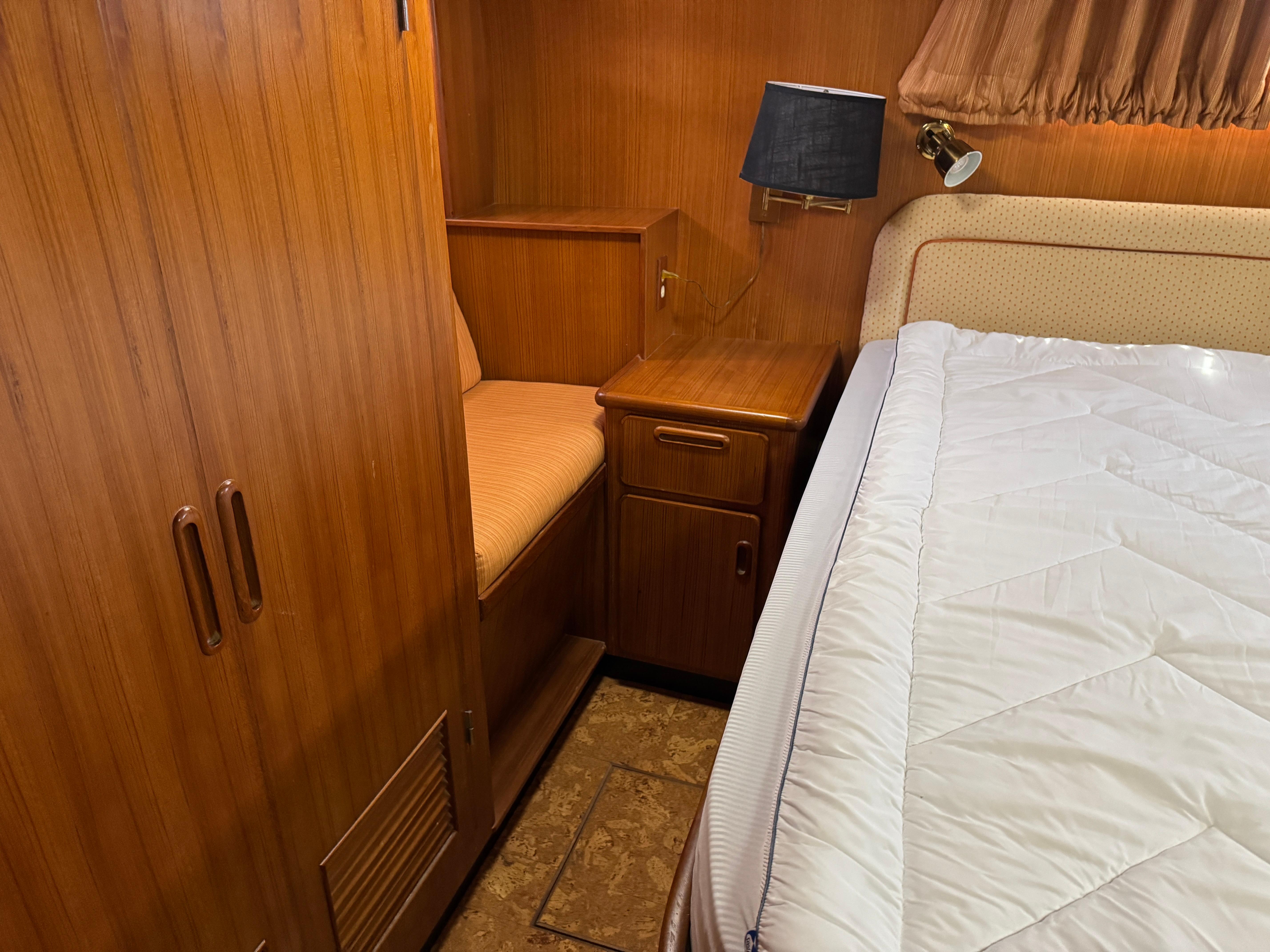

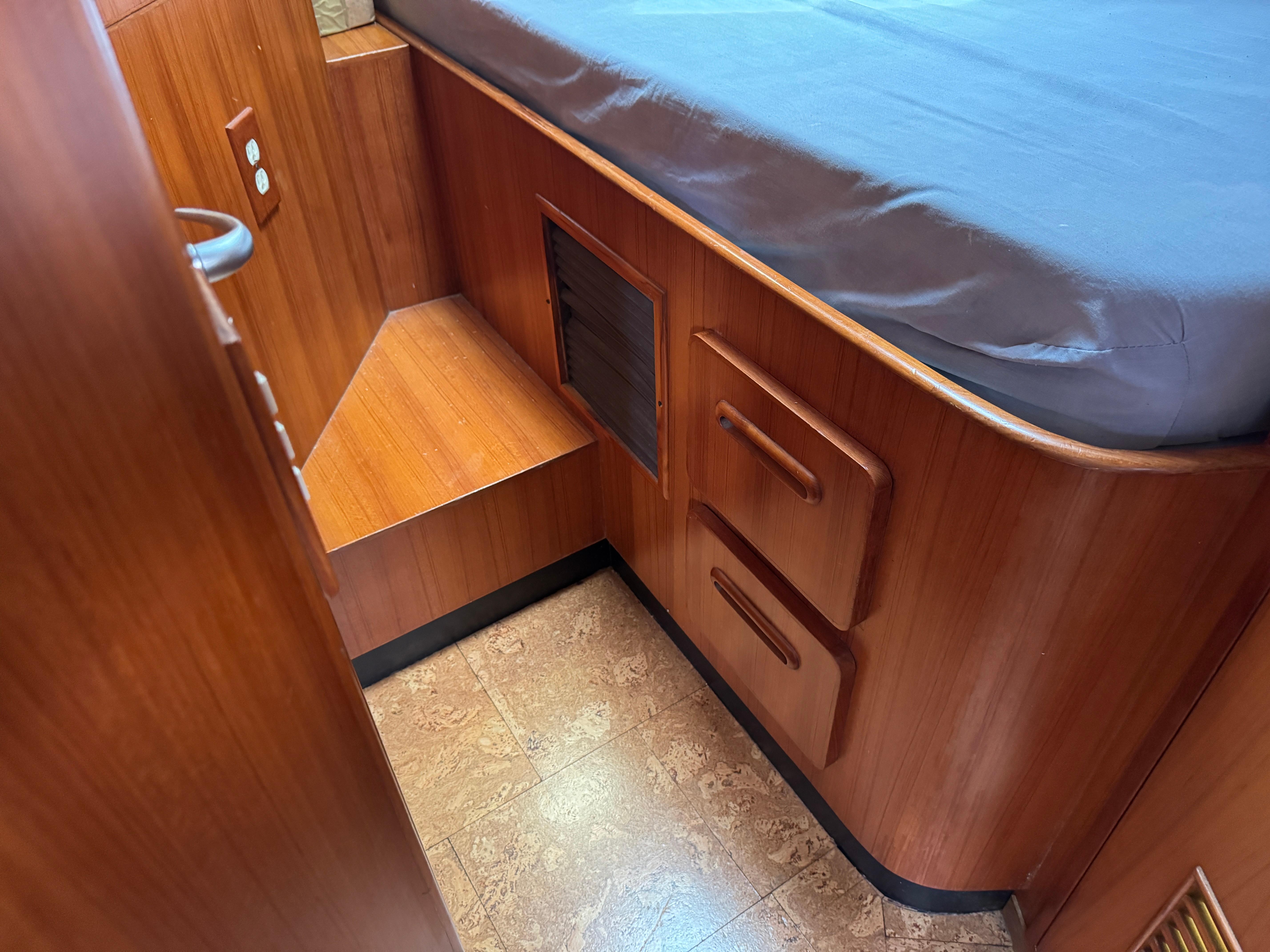

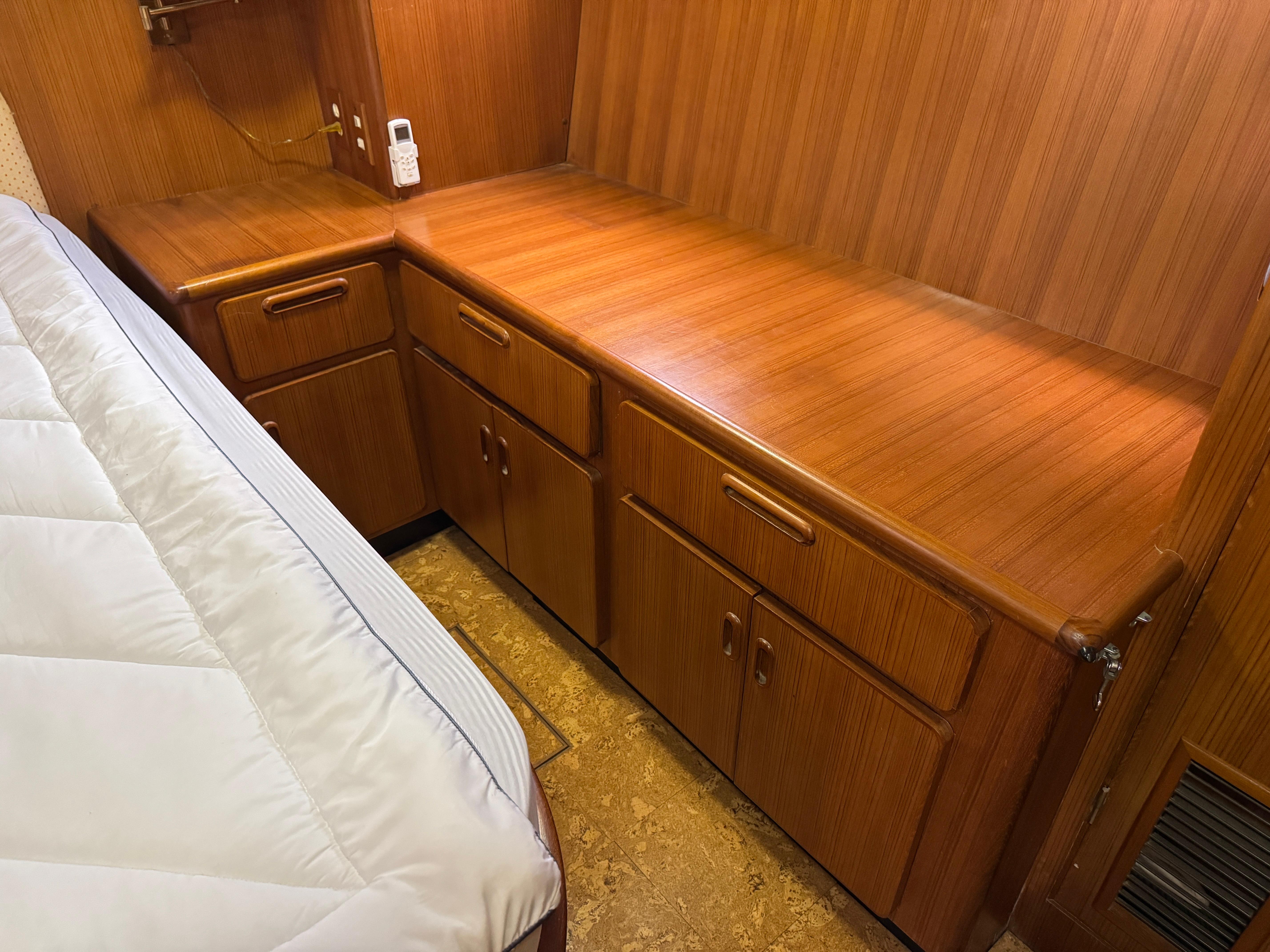

All the way aft in the main salon and port is access into the master. The master features as much room and amenities as most apartments. A queen center-line berth with built-in night stands and plenty of drawer, cabinets and hanging locker spaces. A small settee along the starboard side is perfect for relaxing or putting on your shoes. The master ensuite head is expansive and features a tub and shower combination, electric toilet, teak grate on floor and a beautiful marble vanity and molded sink.

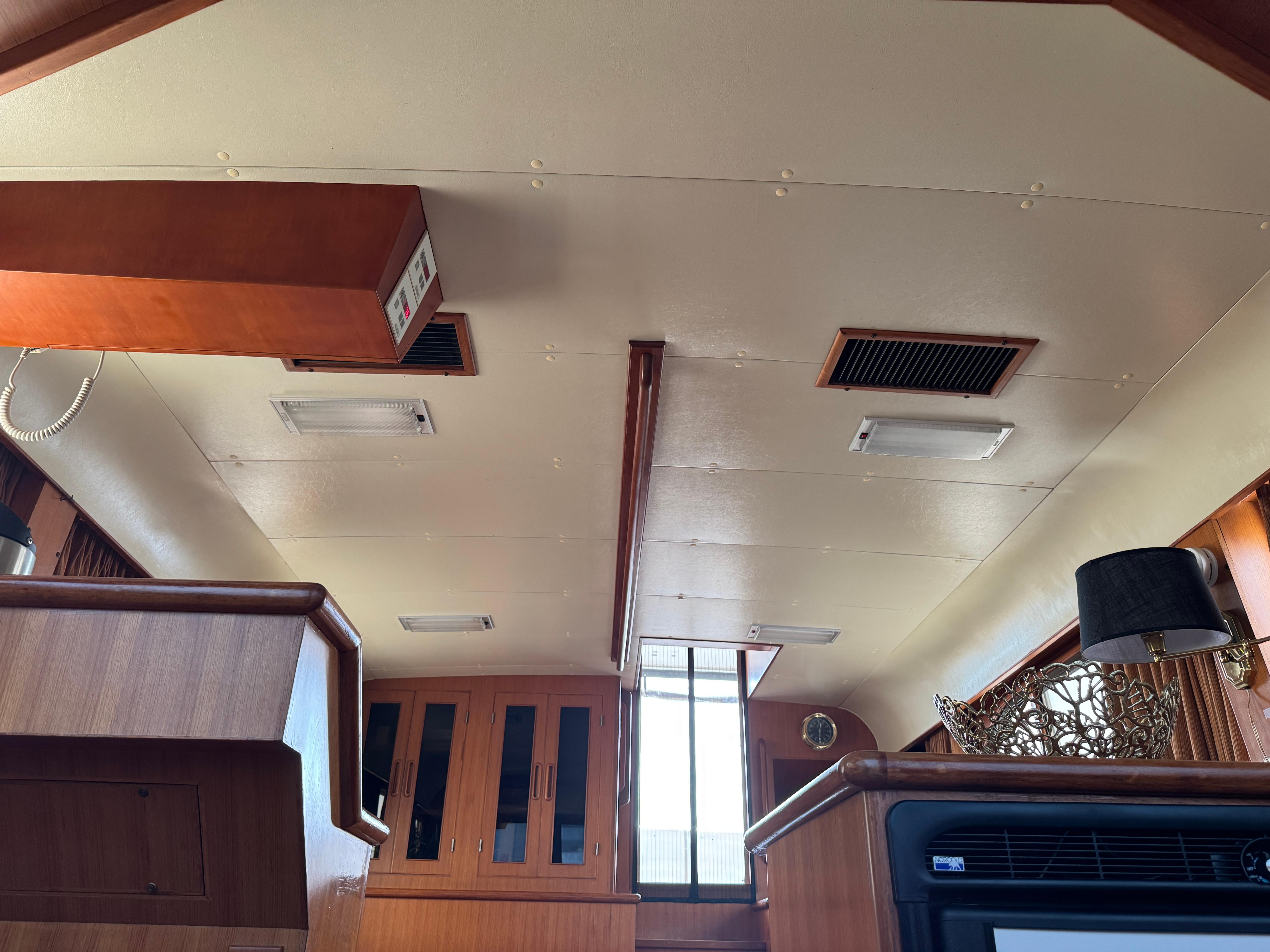

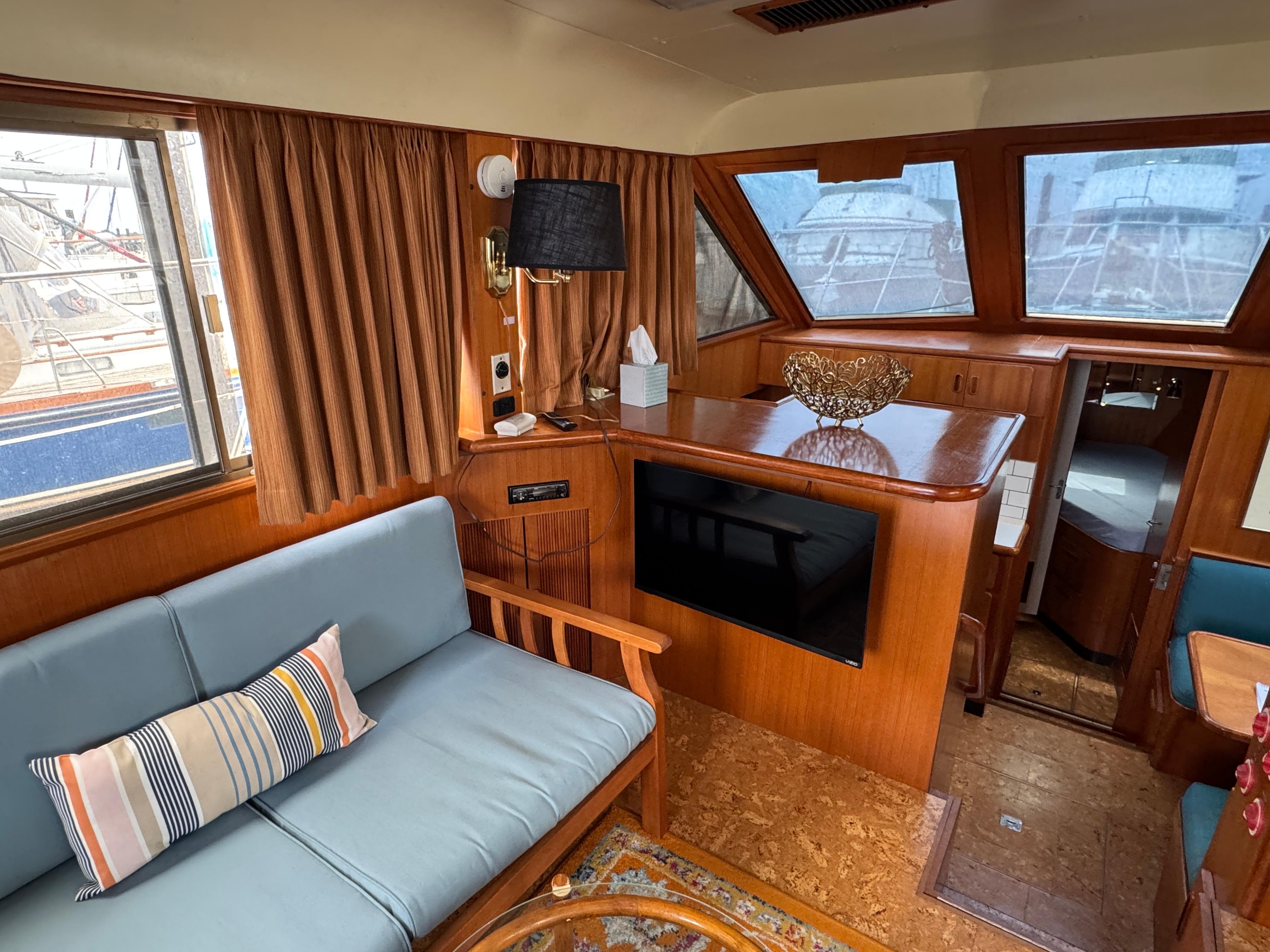

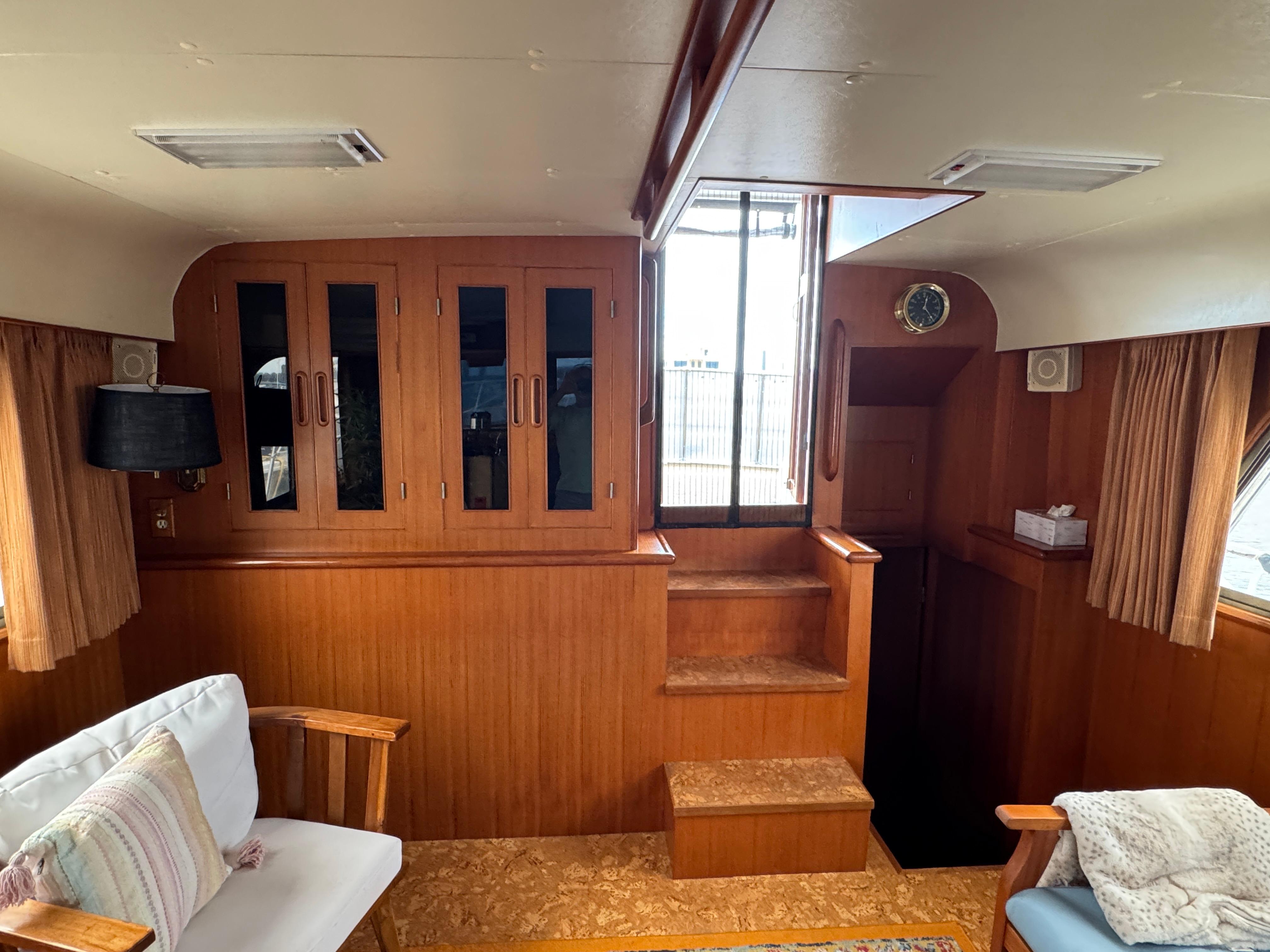

The updated and beautiful selection of fabrics, furniture, cork flooring, accent rugs and pillows, the main salon will be your favorite gathering and relaxation spot.

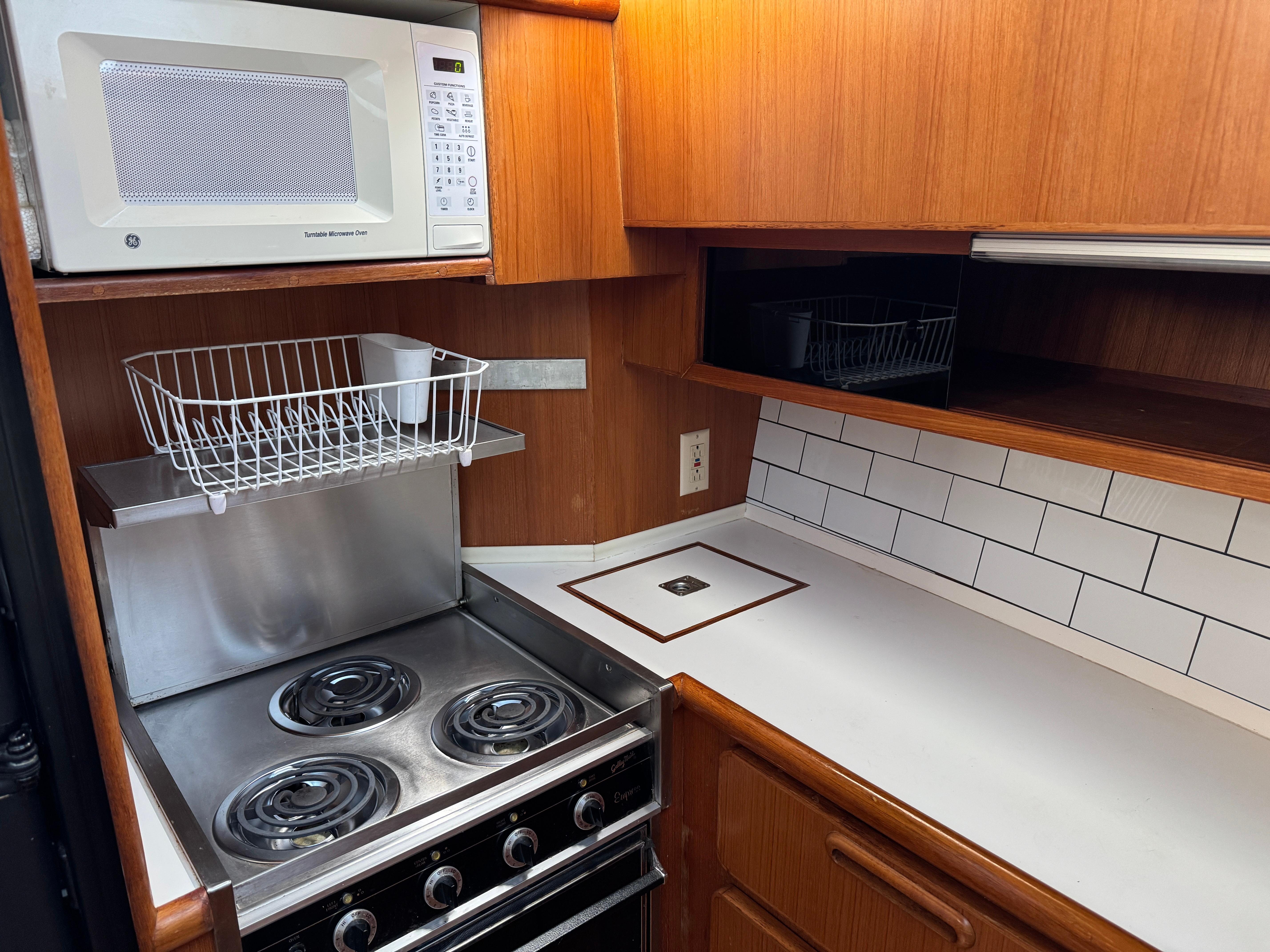

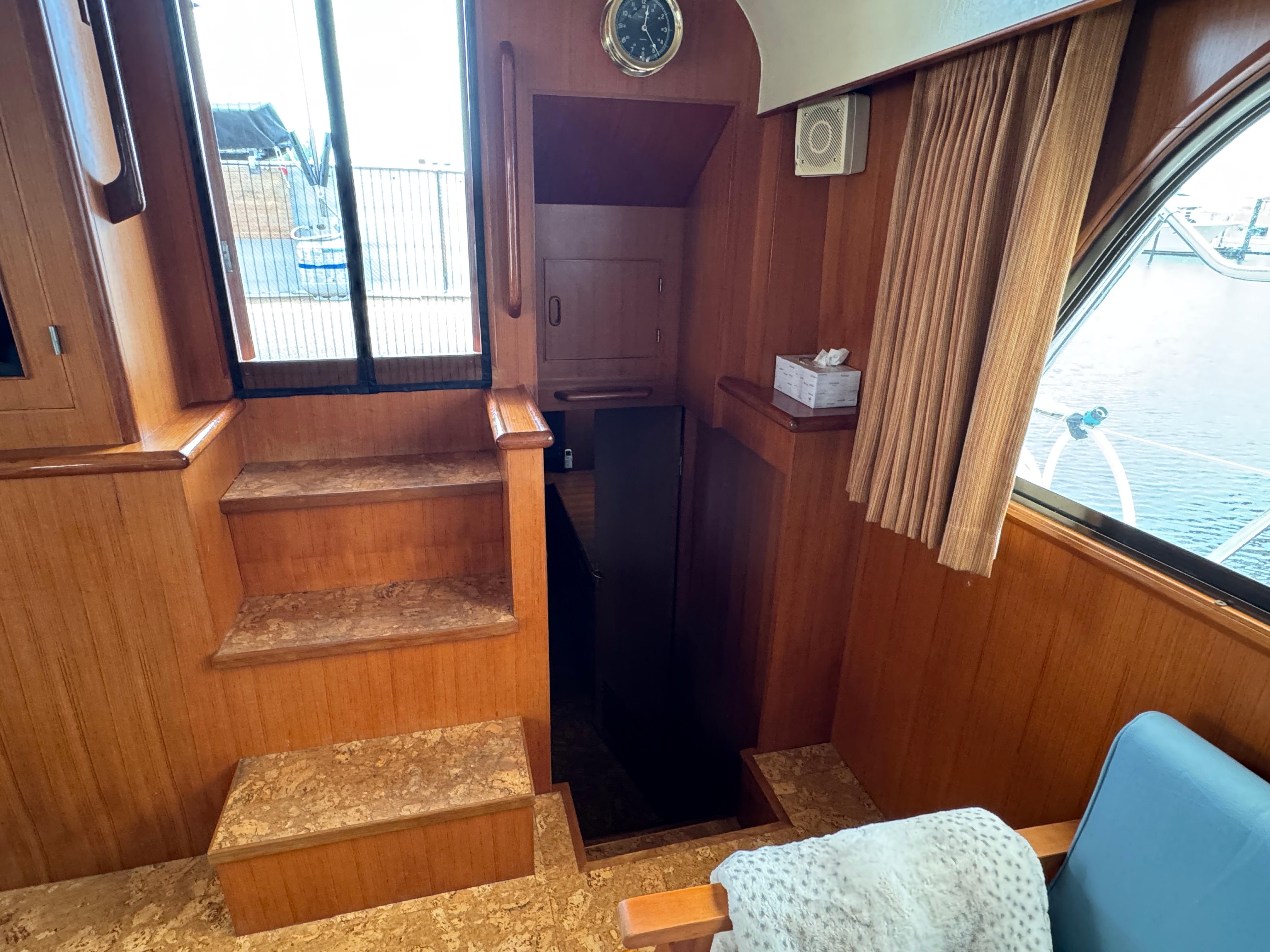

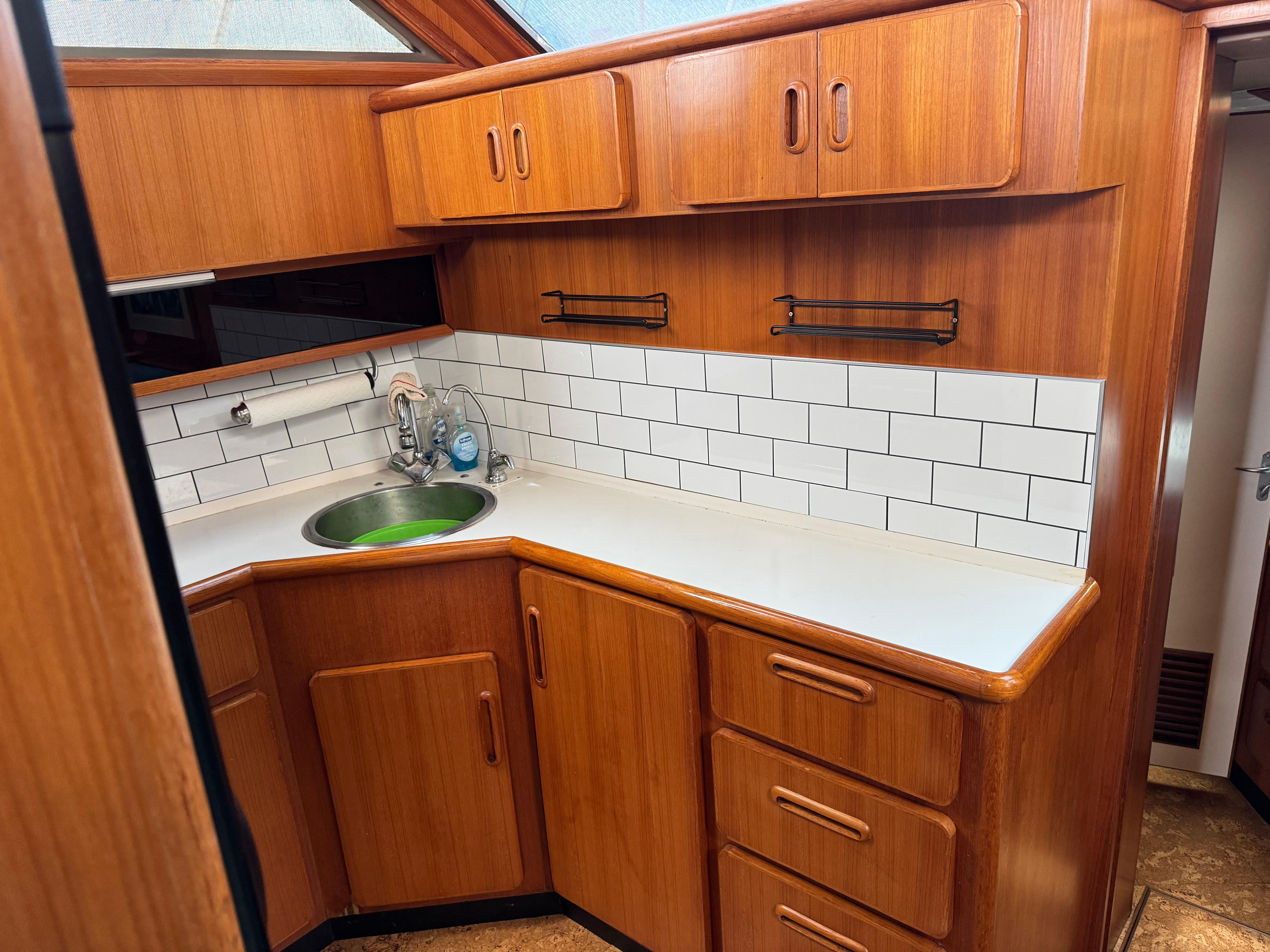

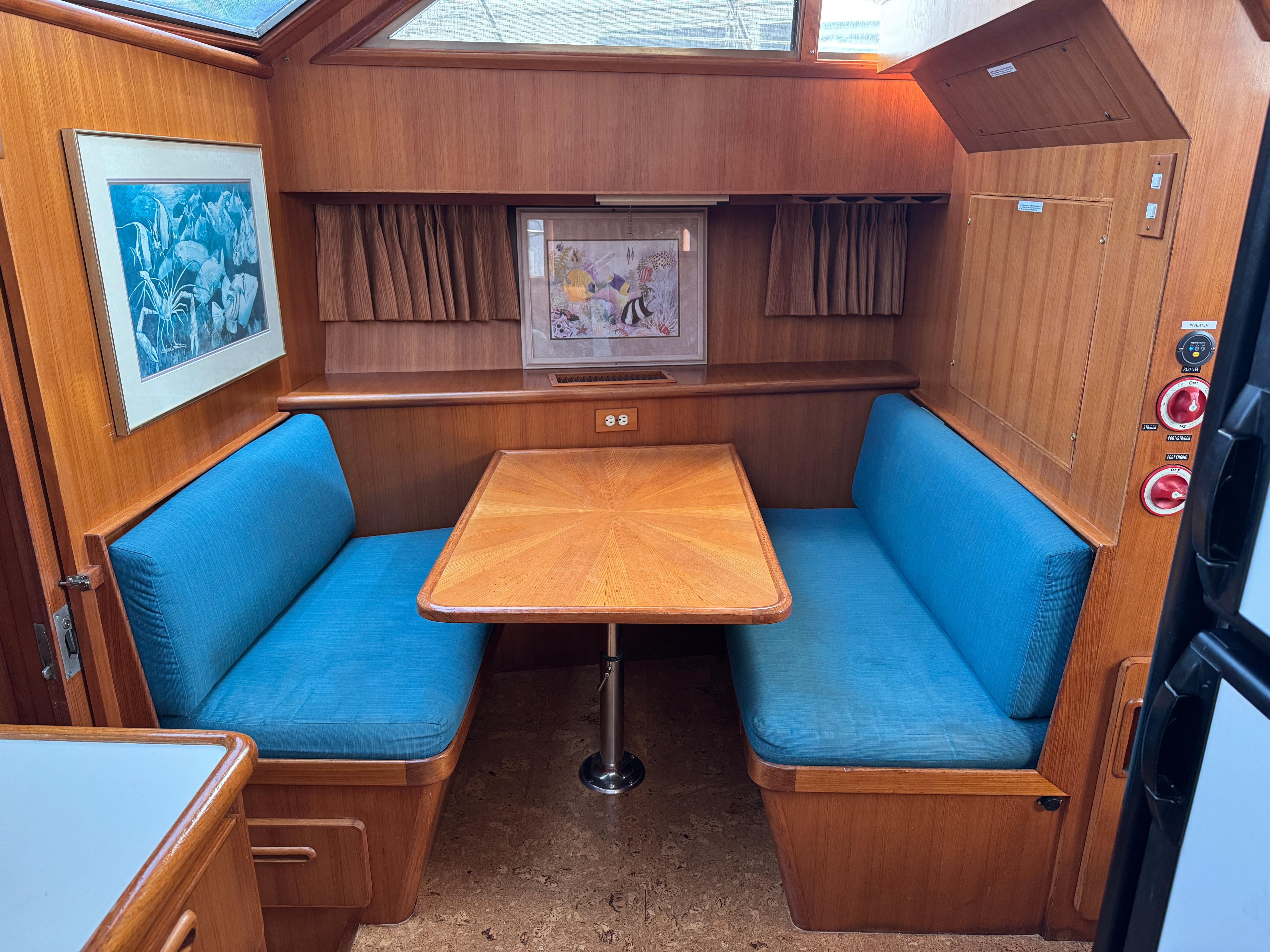

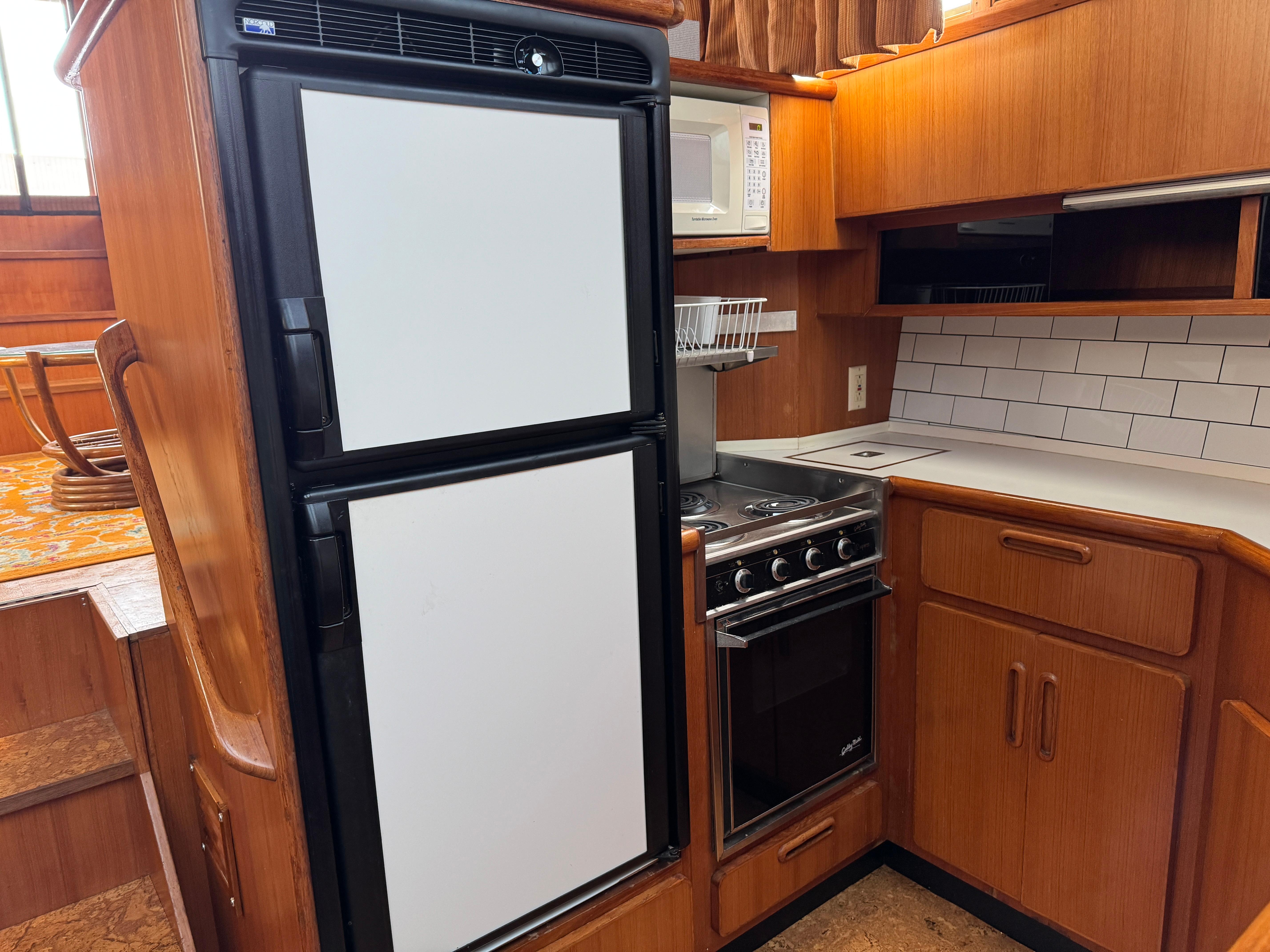

Galley: Two steps down from the salon, the U-Shaped galley is located on the port side while the convertible dinette is to starboard. Ample countertop and food storage capacity, the galley will please even the most discriminating onboard chef.
Formica white countertops with wood fiddles
Single stainless steel sink with faucet
Whale, filtered cold water faucet
Galley Maid Empress electric (3) burner stove top and oven, with cover
Norcold dual voltage refrigerator and freezer
GE Turntable microwave oven
Ample drawer storage
Ample cabinet storage

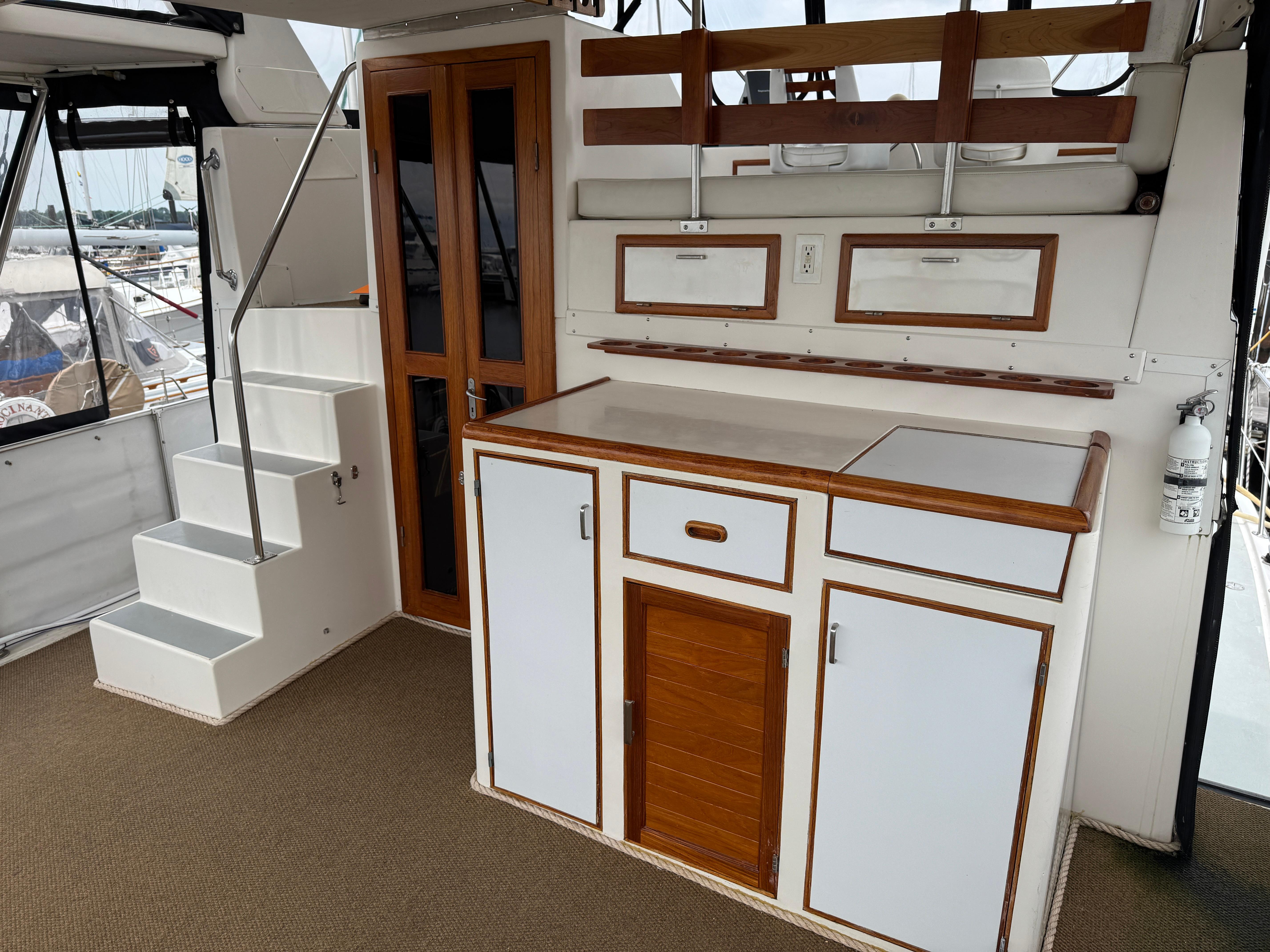

Aft deck wet bar with stainless sin and hot/cold water
Built-in bottle storage at wet bar

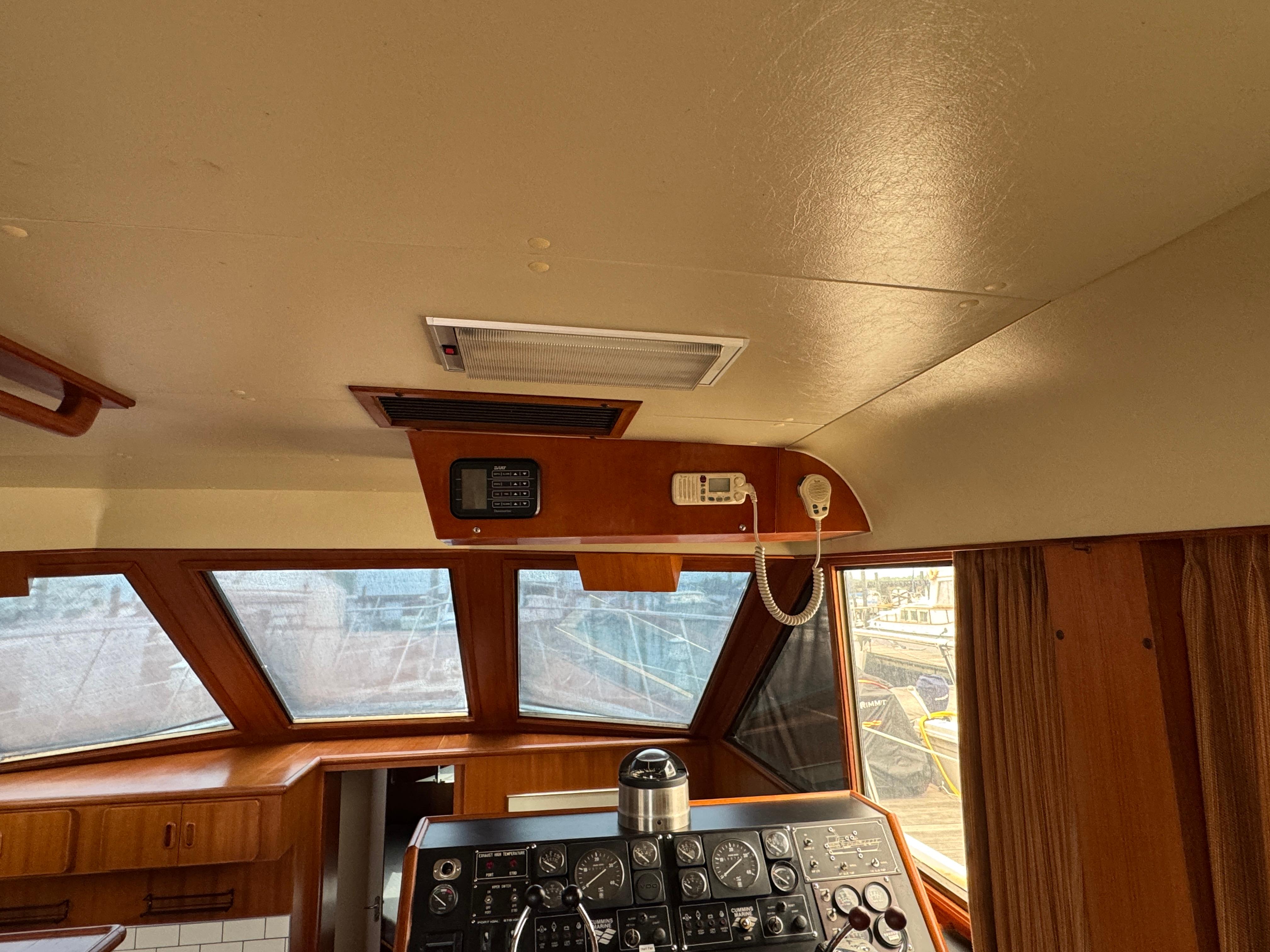

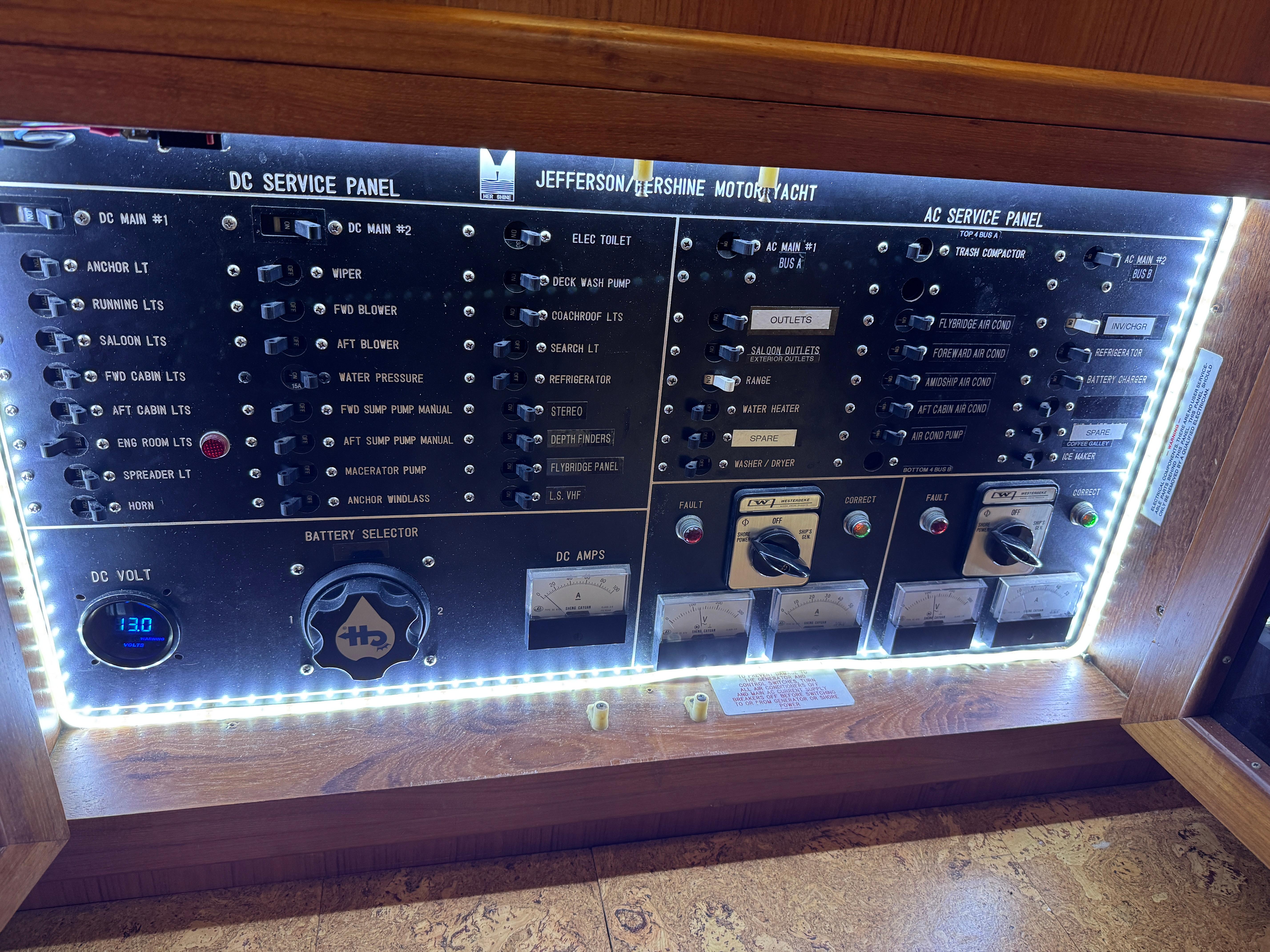

Electrical: The electrical panel is in the main salon on the port side near the lower helm. It is protected in a cabinet with glass door and automatic lighting.
Jefferson light indication panel at lower helm
120-volt DC and120/240-volt AC power
Power distribution panel with circuit breakers
AC Volt LED meter and amp meter
DC volt and amp meters
50-amp shore power cord connects amidship on starboard side

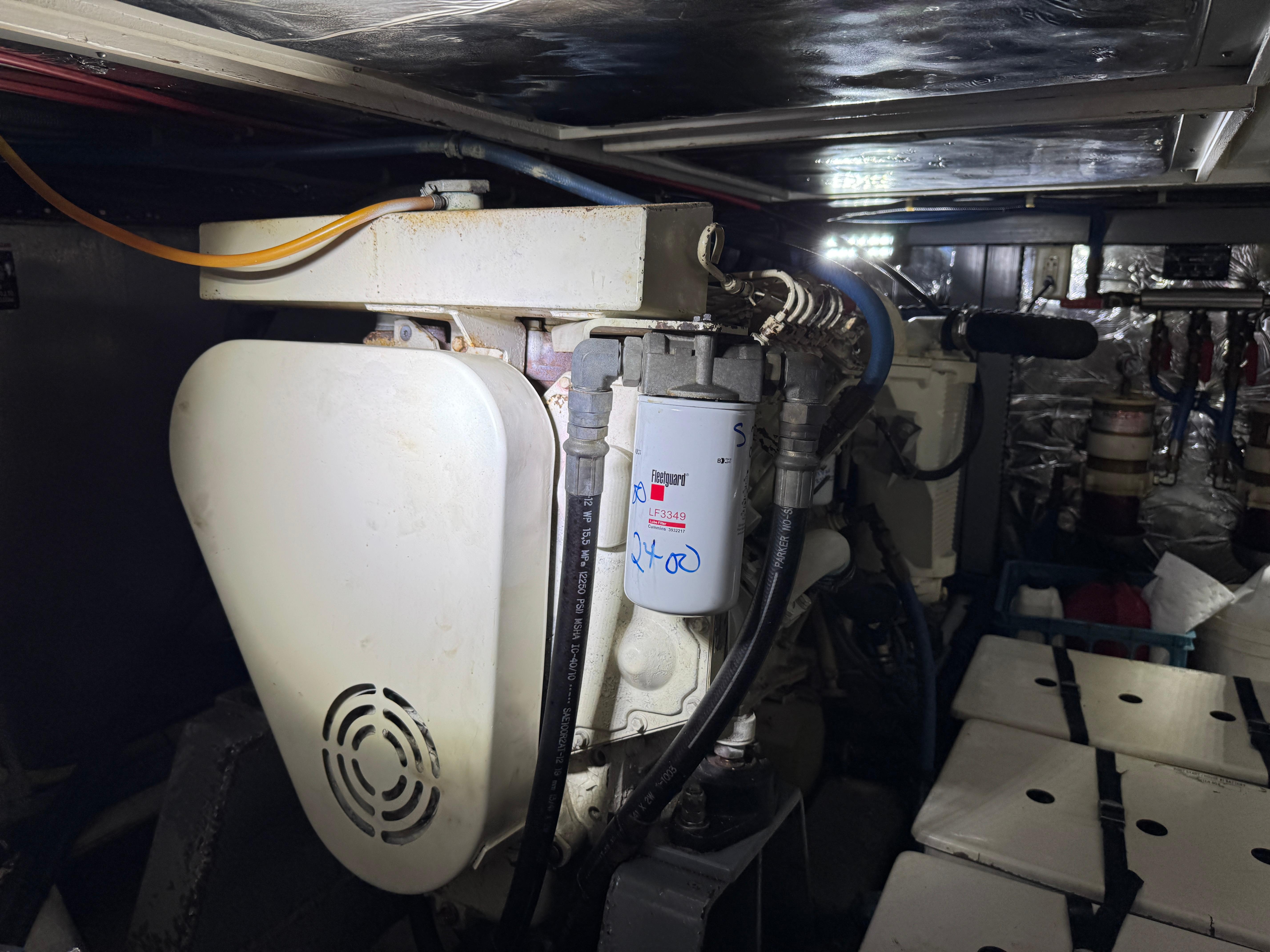

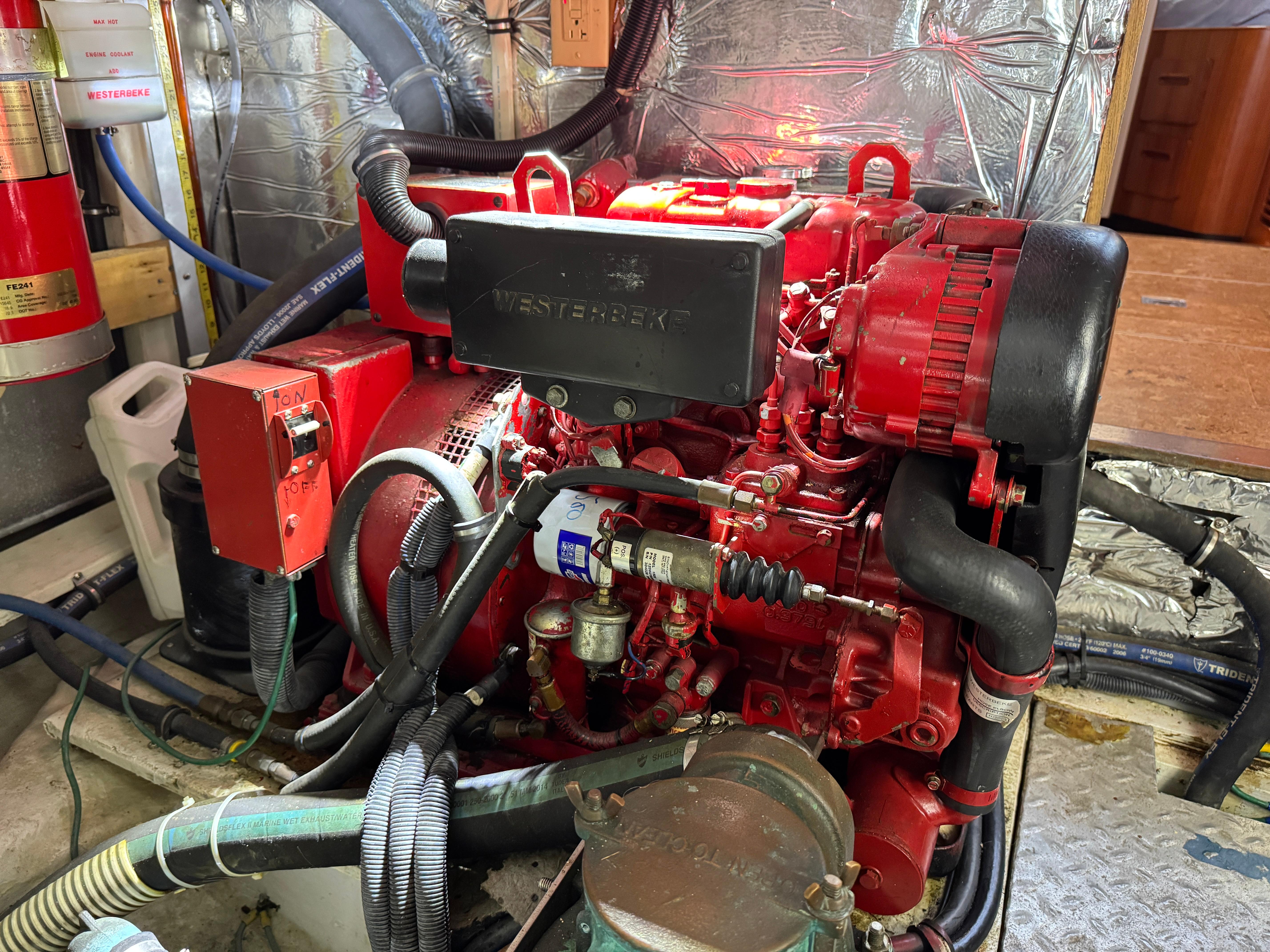

Westerbeke 8 kW diesel generator with 2300 hours

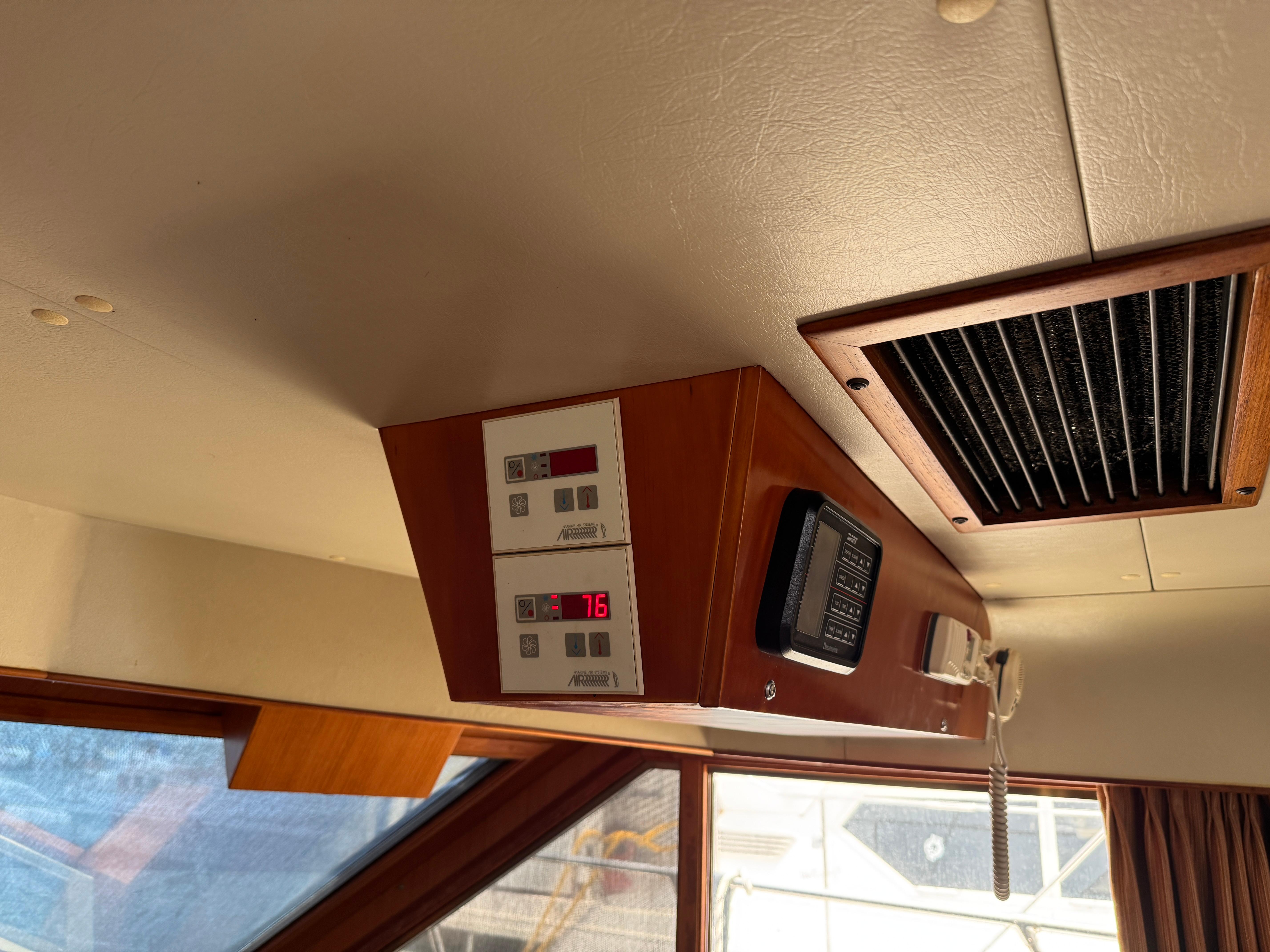

(3) Marine Air reverse cycle heat and air conditioning units with electronic controls

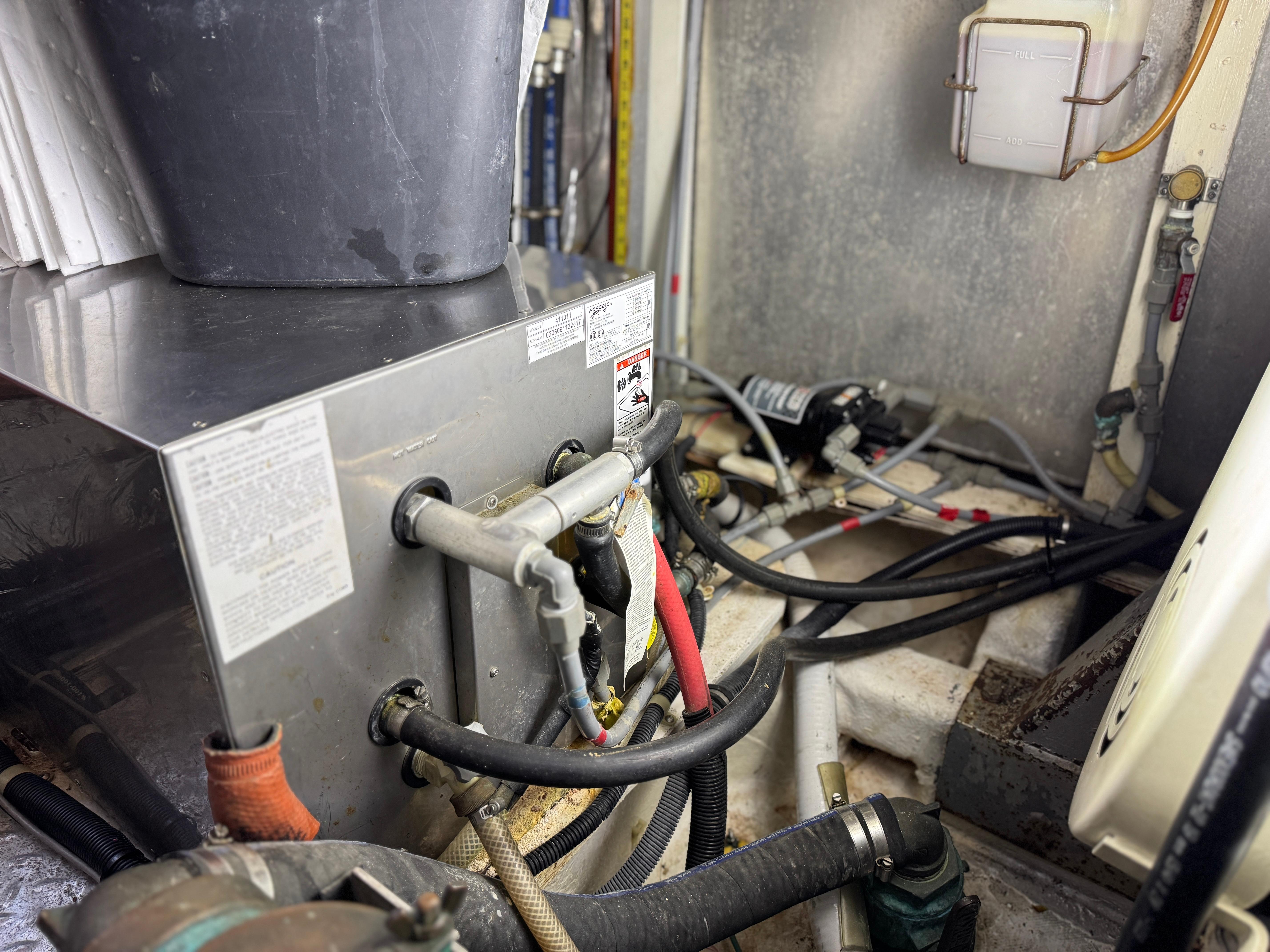

Attwood stainless steel 11-gallon hot water heater with engine heat exchanger
Vizio flat screen television in salon mounted below breakfast bar
Pyle PCMB29B AM/FM/CD radio with remote speakers
WEMA water gauge
Dual stainless steel trumpet horns
Added cell phone charging stations at helm and in salon

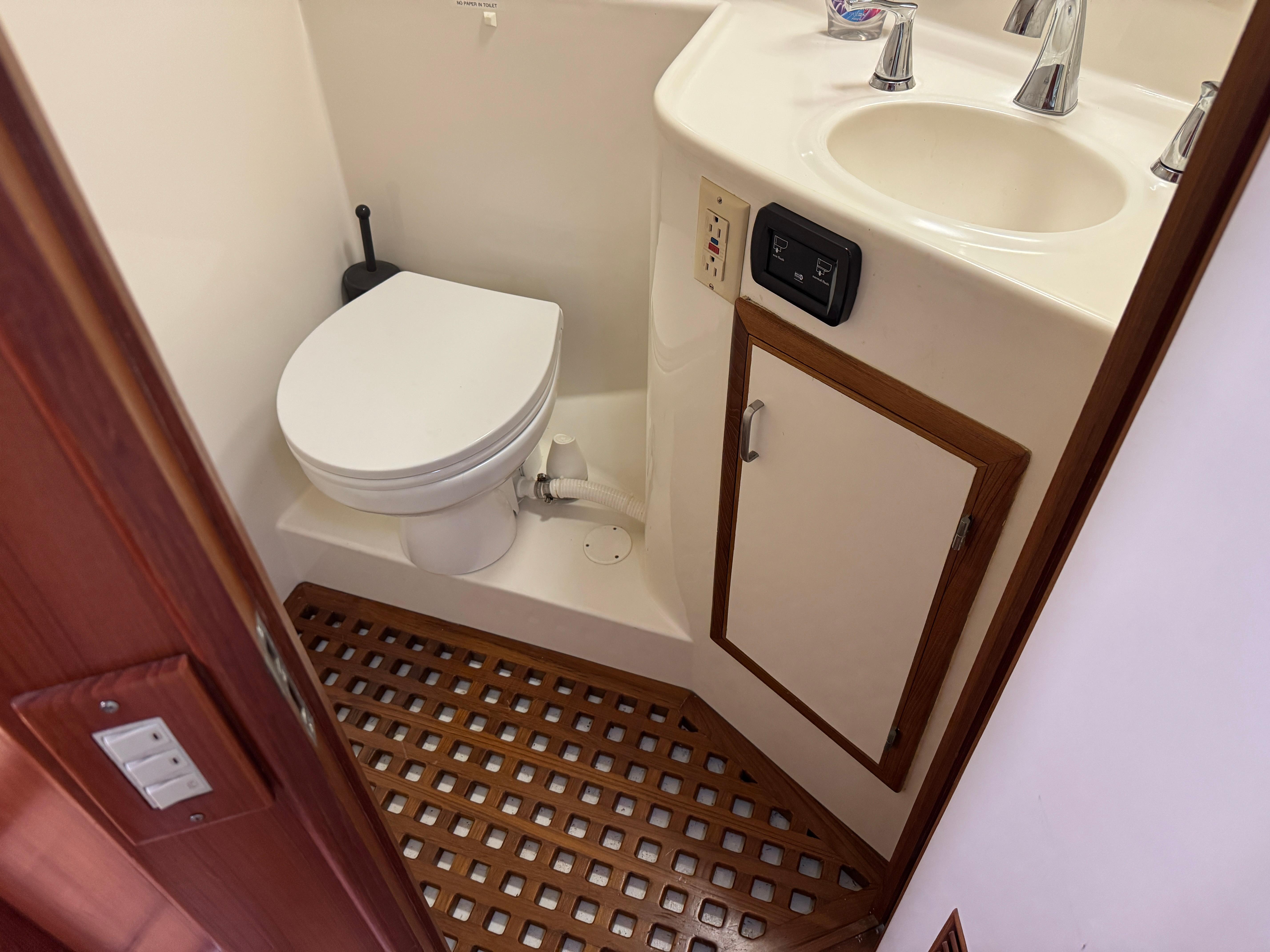

Jabso electric toilet in forward head, Raritan electric toilet in master head
High water bilge pump with alarm
Kidde smoke and CO2 detectors
Brass clock
Victron Energy Phoenix Smart Charger, 12V/50amp/3 outputs

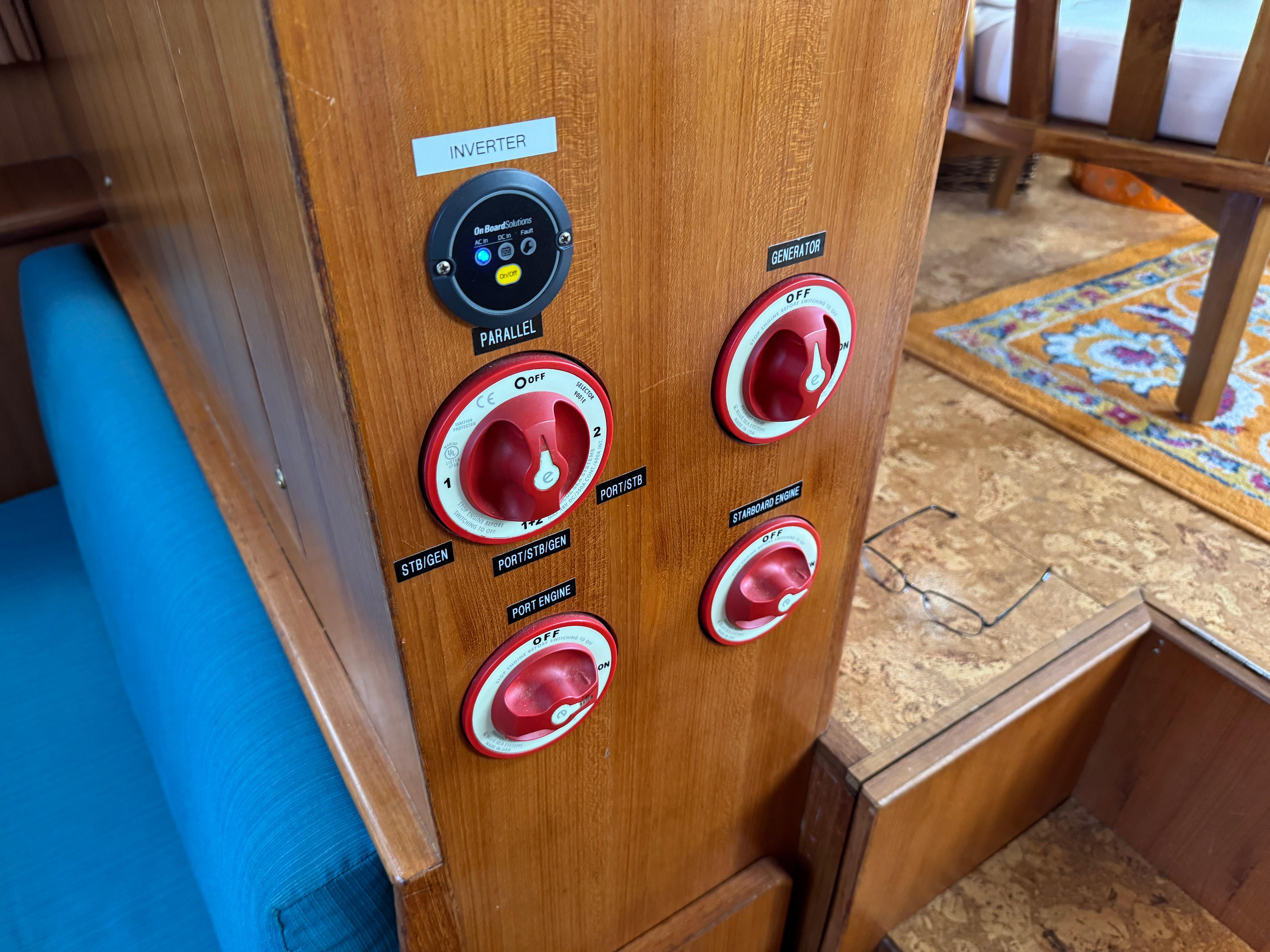

Pro-Mariner 2000-watt inverter with control at lower helm
Fiberglass battery boxes in engine
Group 31 start and house batteries
Group 27 generator battery
GFI protected electrical outlets
Electronics: All electronics are within easy reach of the upper and lower helms.
Ritchie Powerdamp compass at upper and lower helm

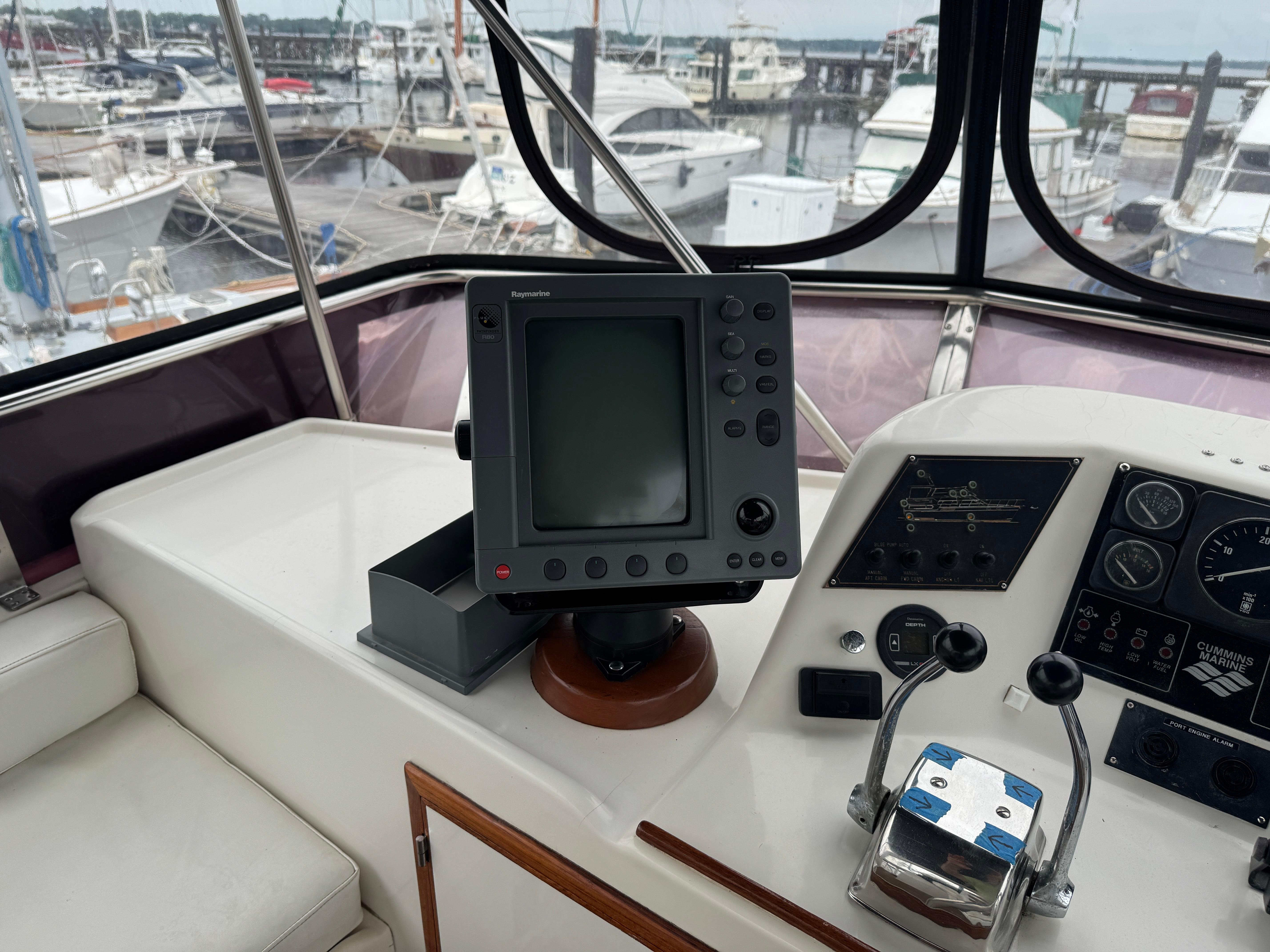

Raymarine R-80 color radar display
Raymarine 48-mile radar dome mounted on radar arch

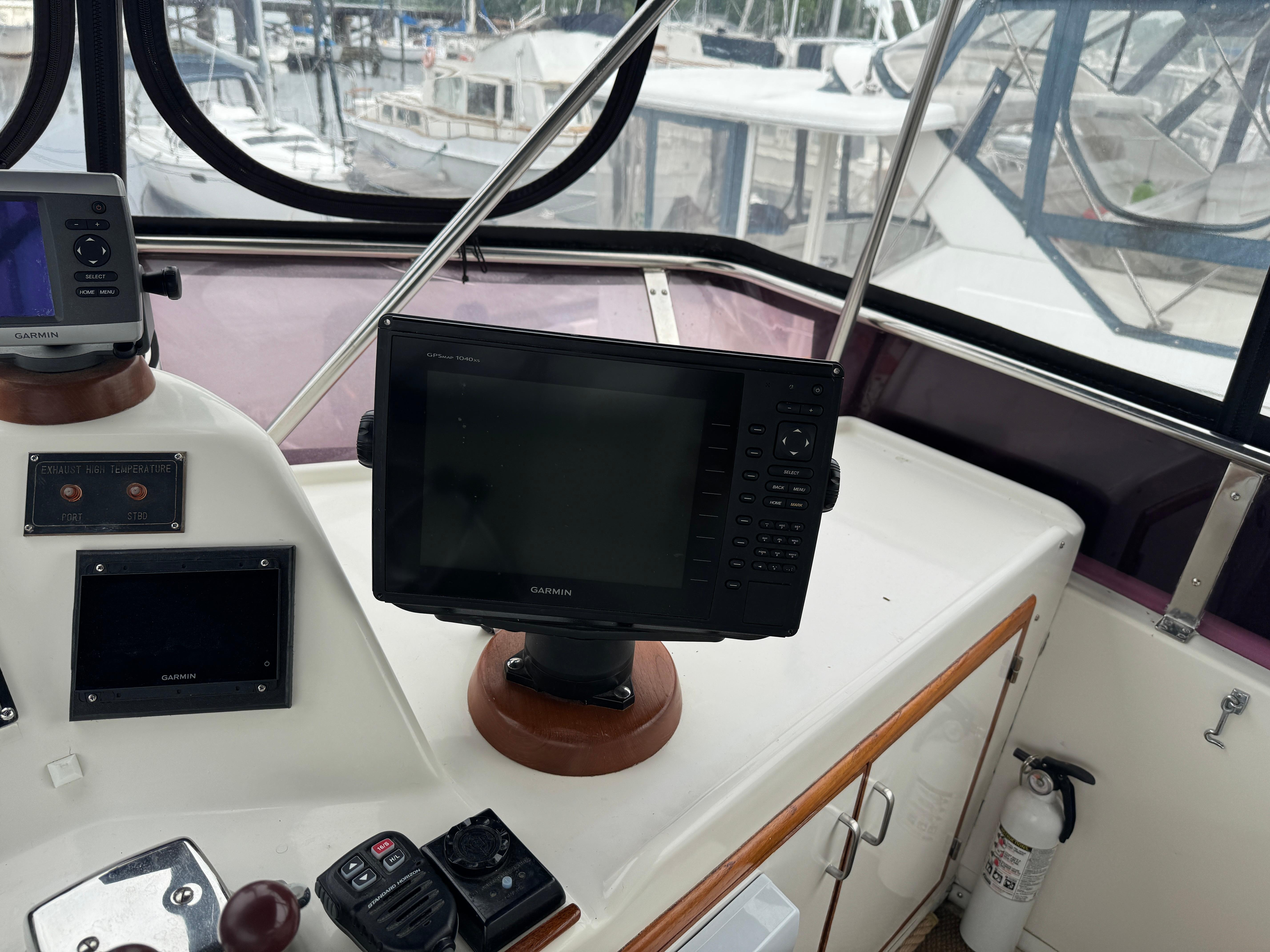

Garmin GPS Map 1040XS color chartplotter
Garmin autopilot
Garmin 800 AIS
Garmin Fish Finder 400C
Standard Horizon Matrix VHF radio with DSC and AIS
Digital Tach engine synchronizer
Data Marine depth indicator
Data Marine depth, log, speed, and water temperature indicator at lower helm
ICOM IC-402 VHF radio with DSC at lower helm
Bennett trim tabs both helms

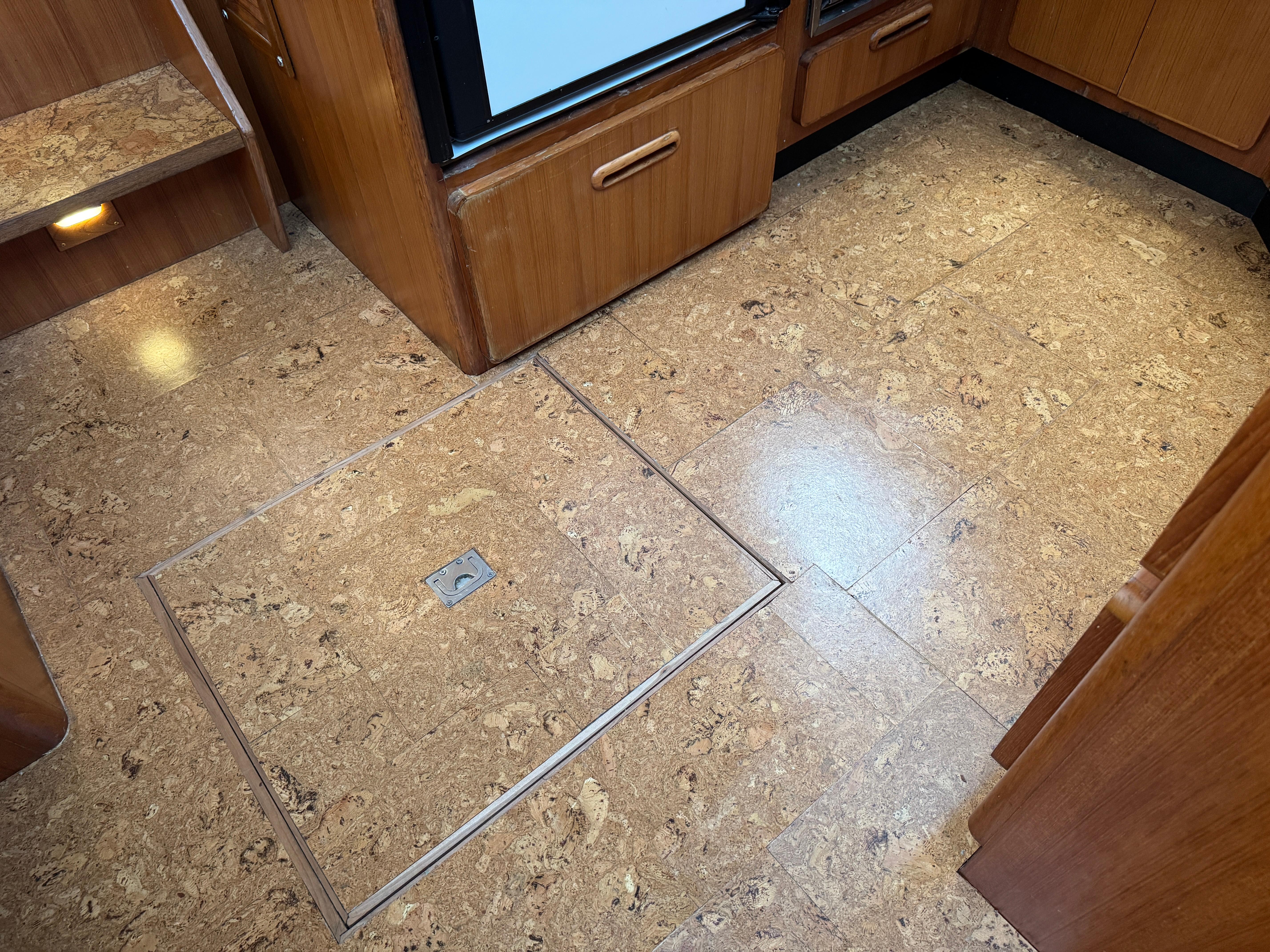

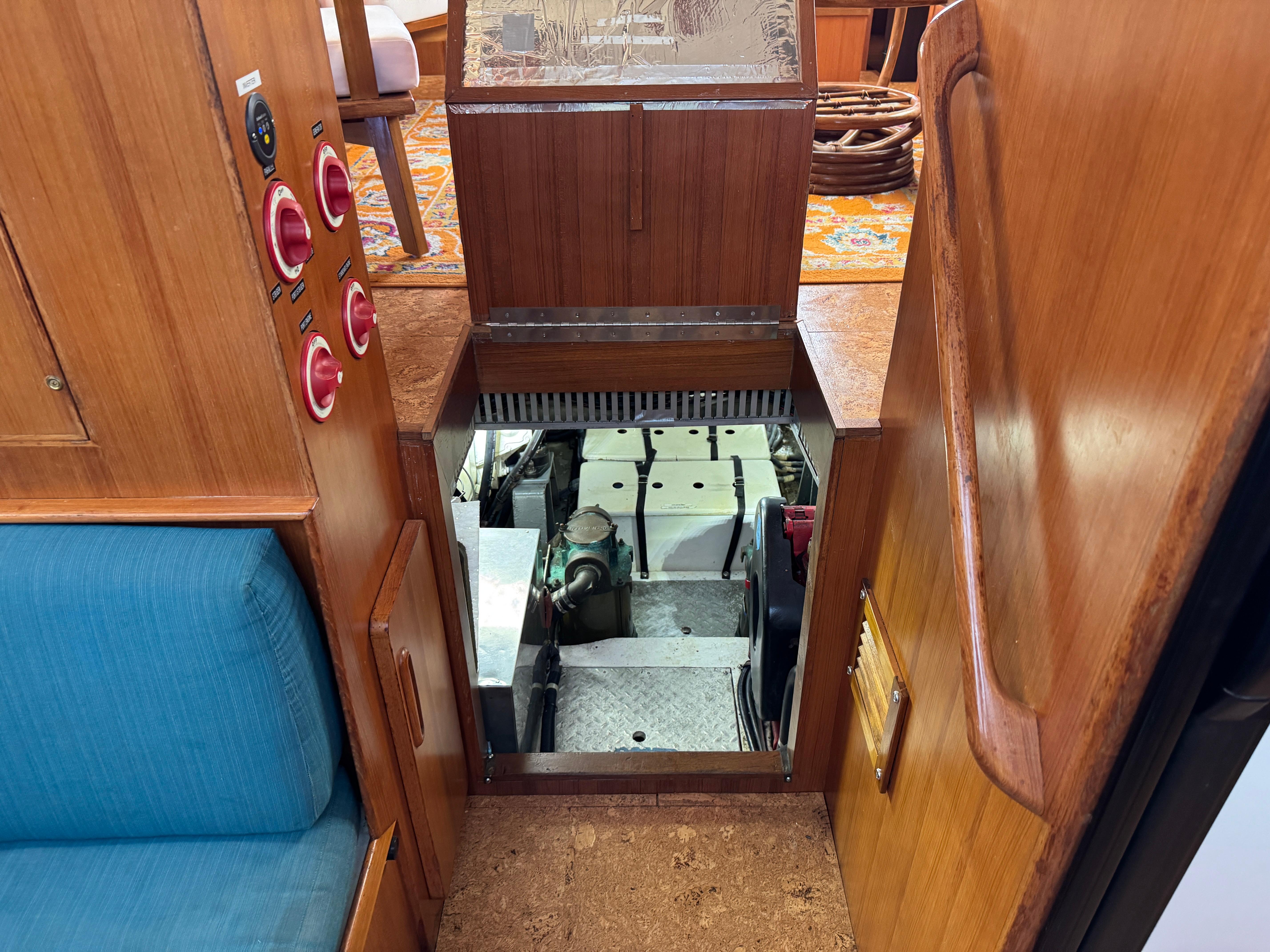

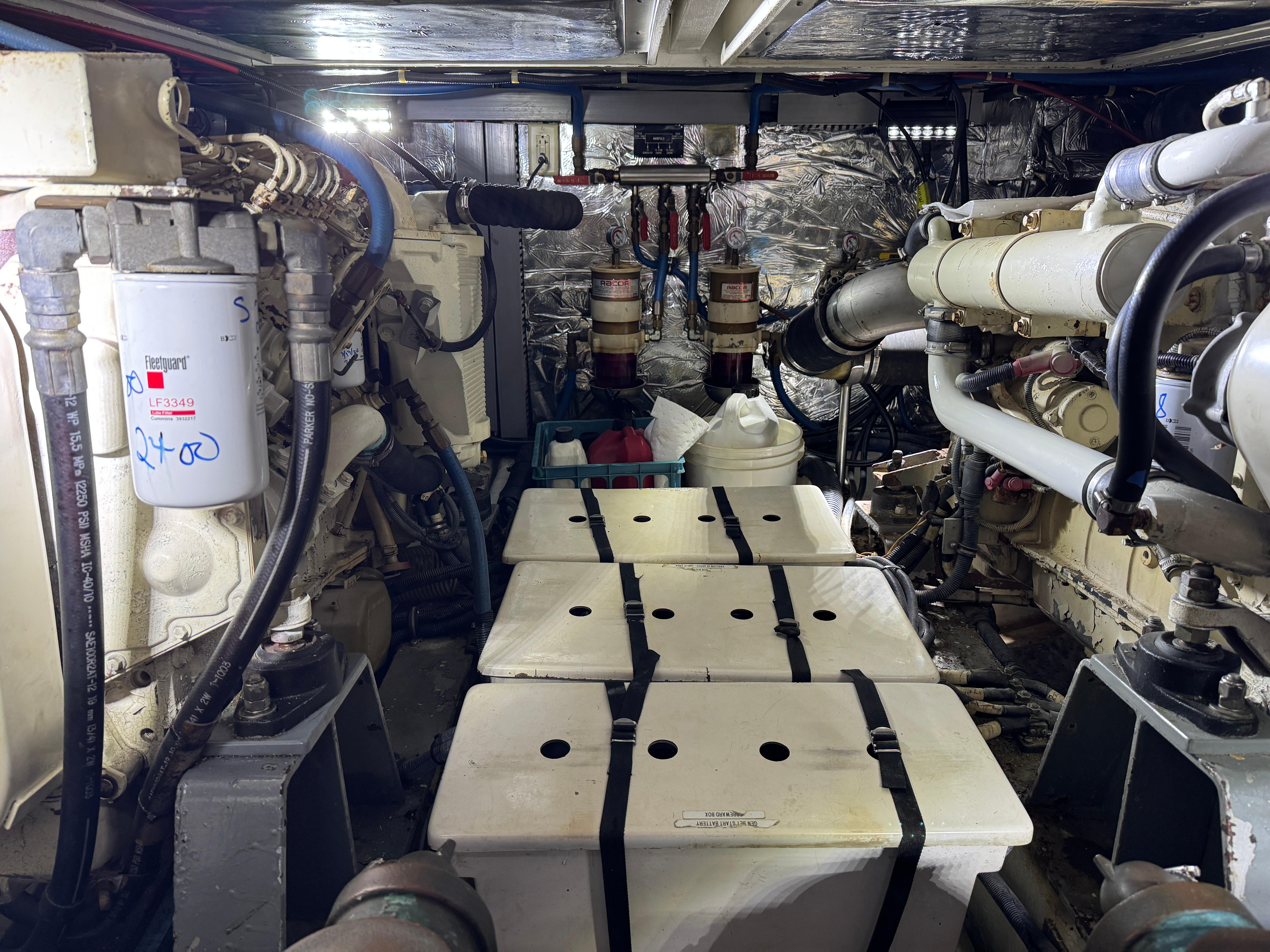

Mechanical: Engine room access through four hatches in salon flooring or by lifting the steps from salon to galley. Excellent room and lighting make maintenance and repairs a breeze.

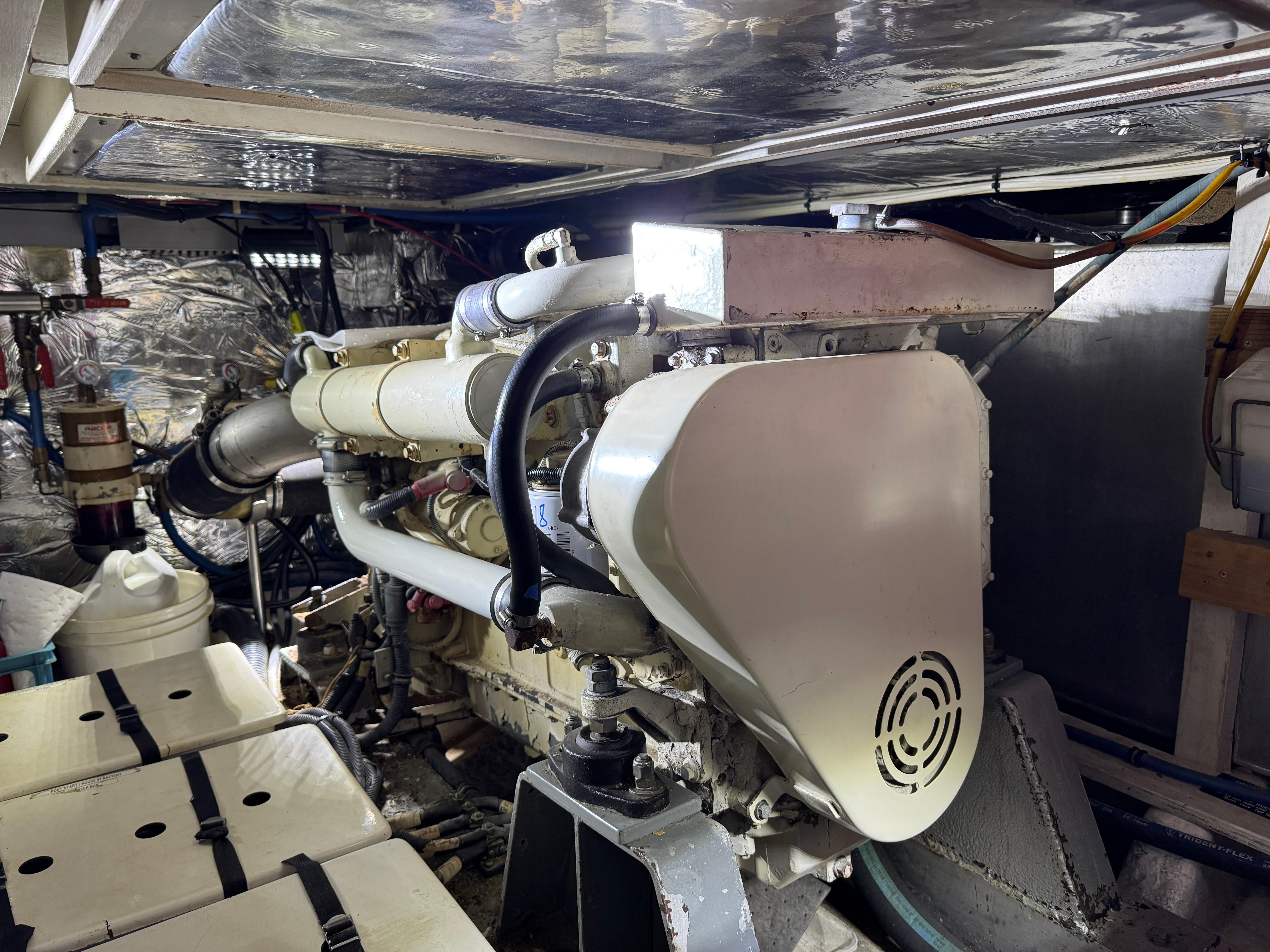

Cummins 5.9L, 6BTA 300 hp diesel engines with 3300 hours, fresh water cooled
ZF Marine transmission, Model IRM225A, 2.040/1 ratio
Dripless shaft logs
2-inch stainless steel shafts with (4) blade bronze propellers
Morse stainless steel marine transmission and throttle controls

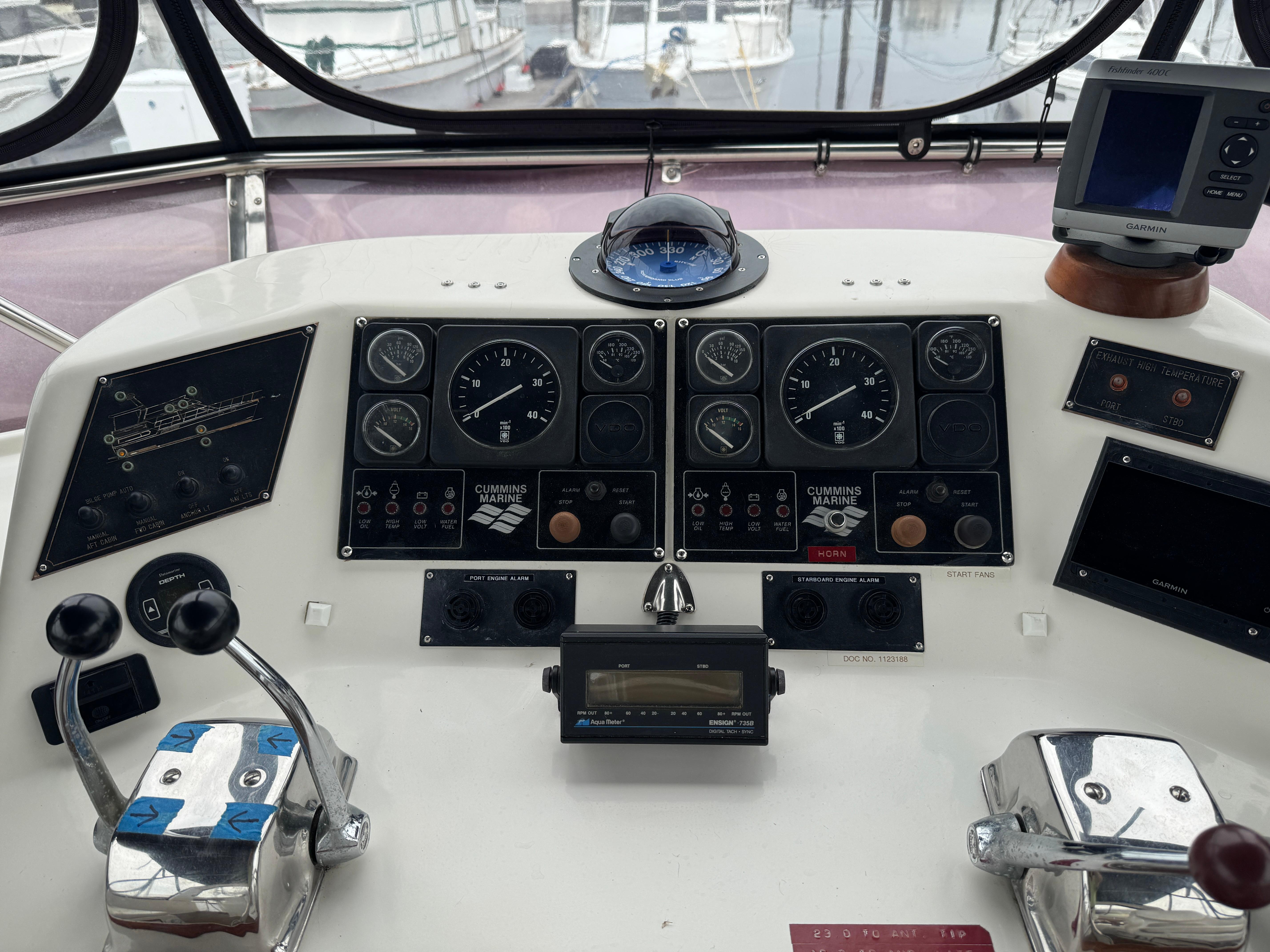

Cummins engine panels with RPM, oil pressure, volts and water temp gauges
Cummins engine alarms for water/fuel, water temp, volts and oil pressure
Dual primary fuel filters with vacuum gauge
Sea Star hydraulic steering system

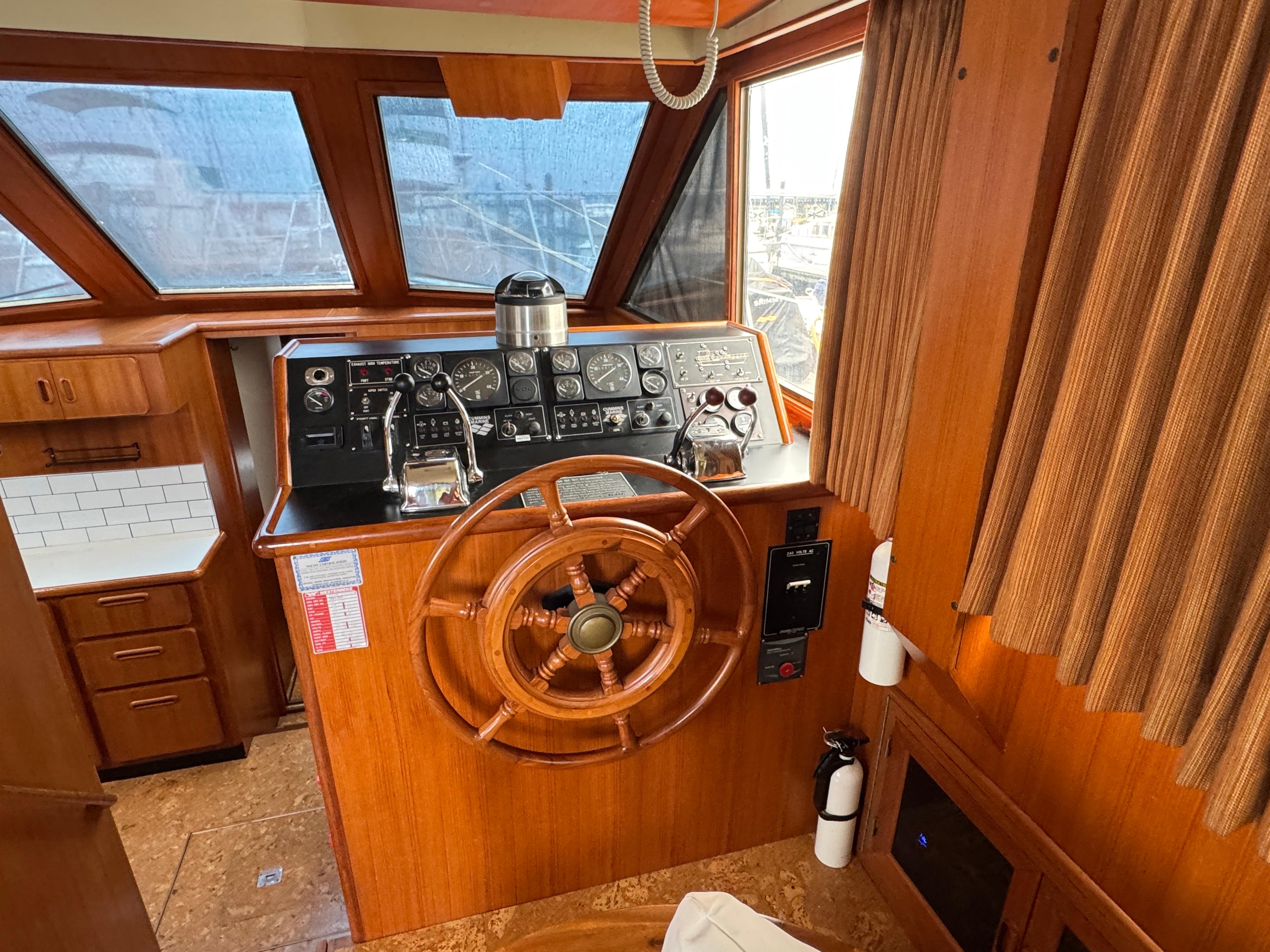

Stainless steel destroyer steering wheel on bridge, wood steering wheel lower helm

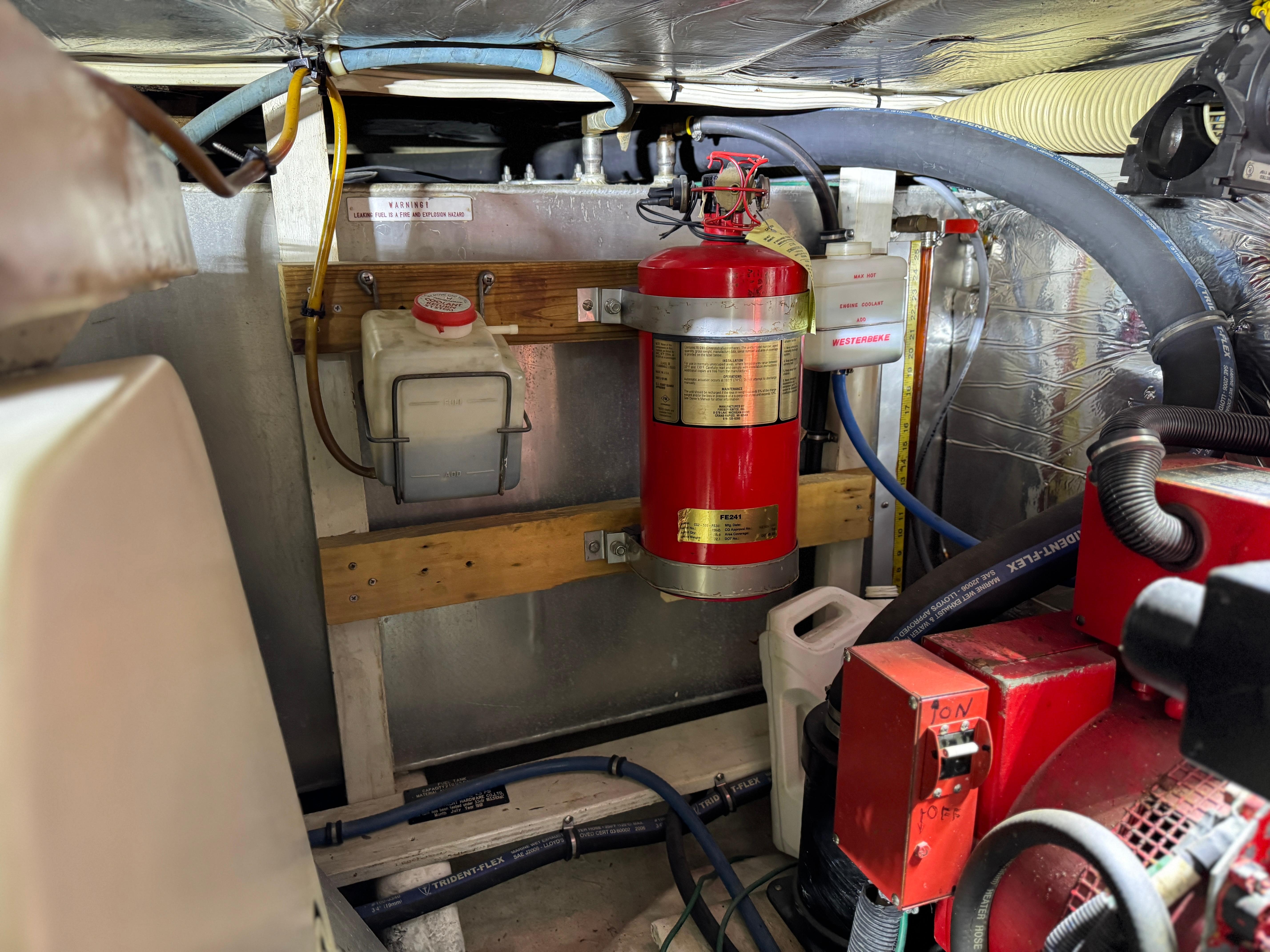

Fireboy engine room fire suppression system

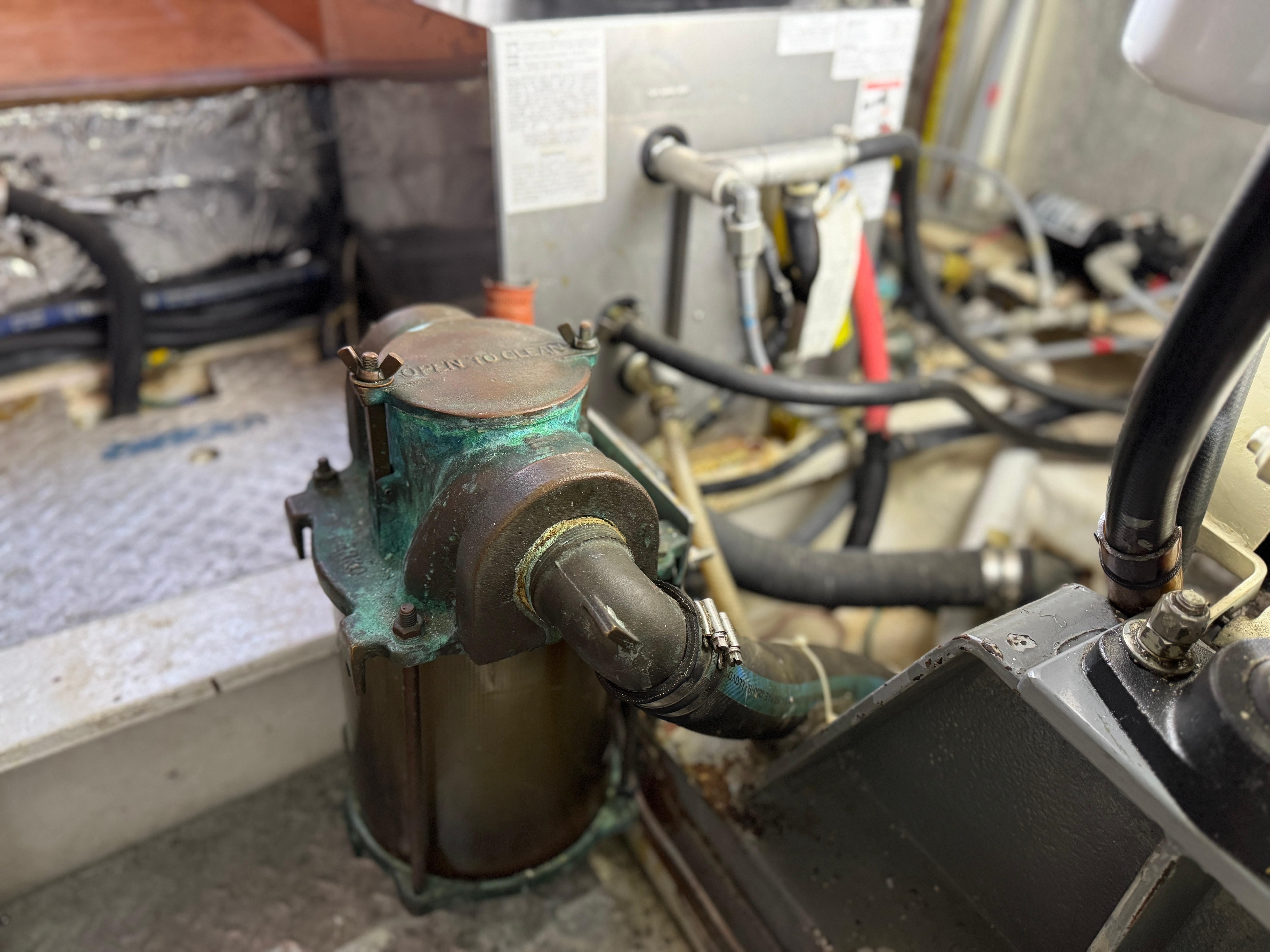

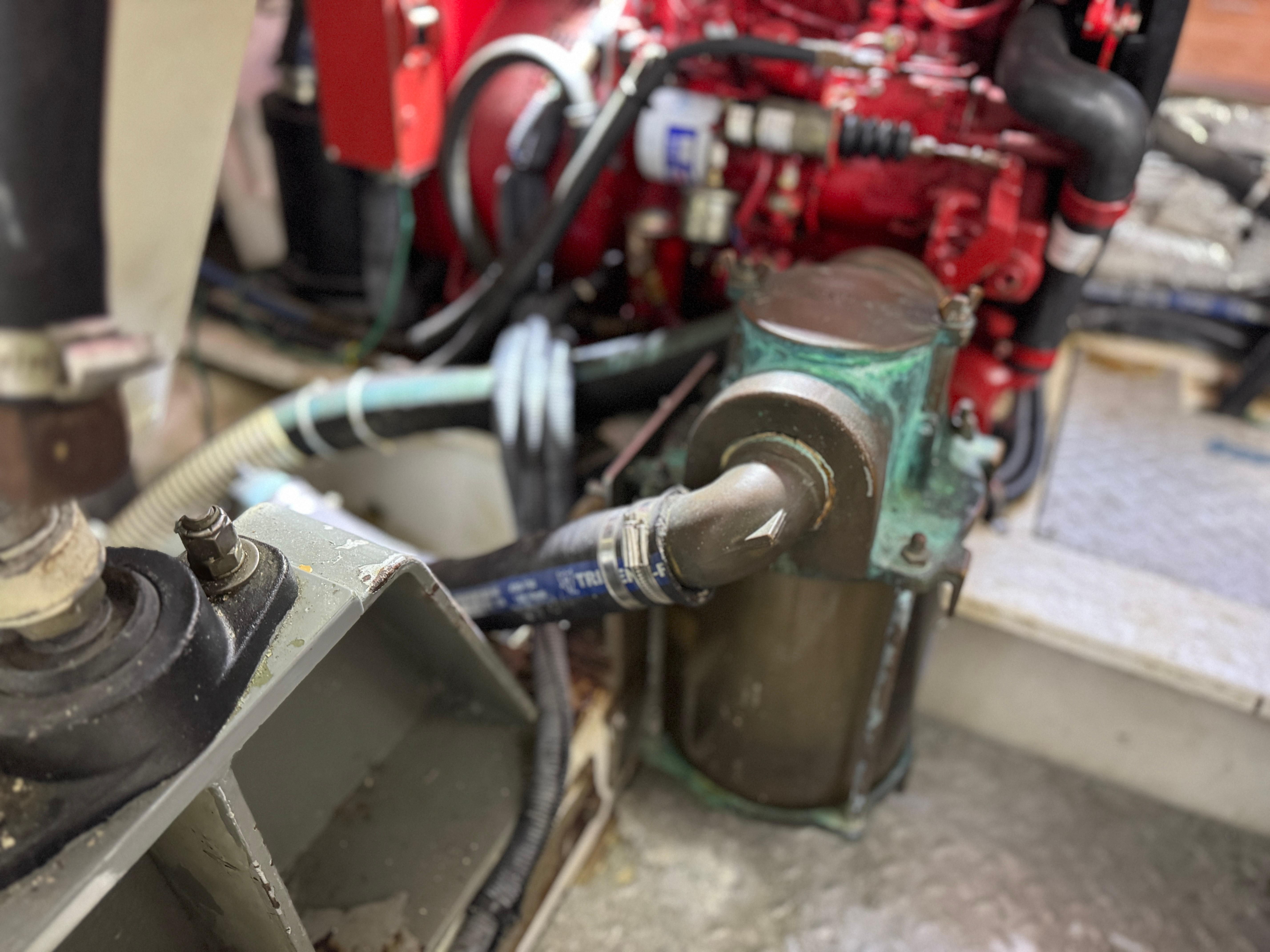

Oversize Graco sea water strainers
New port and starboard alternators
Deck and Hardware:

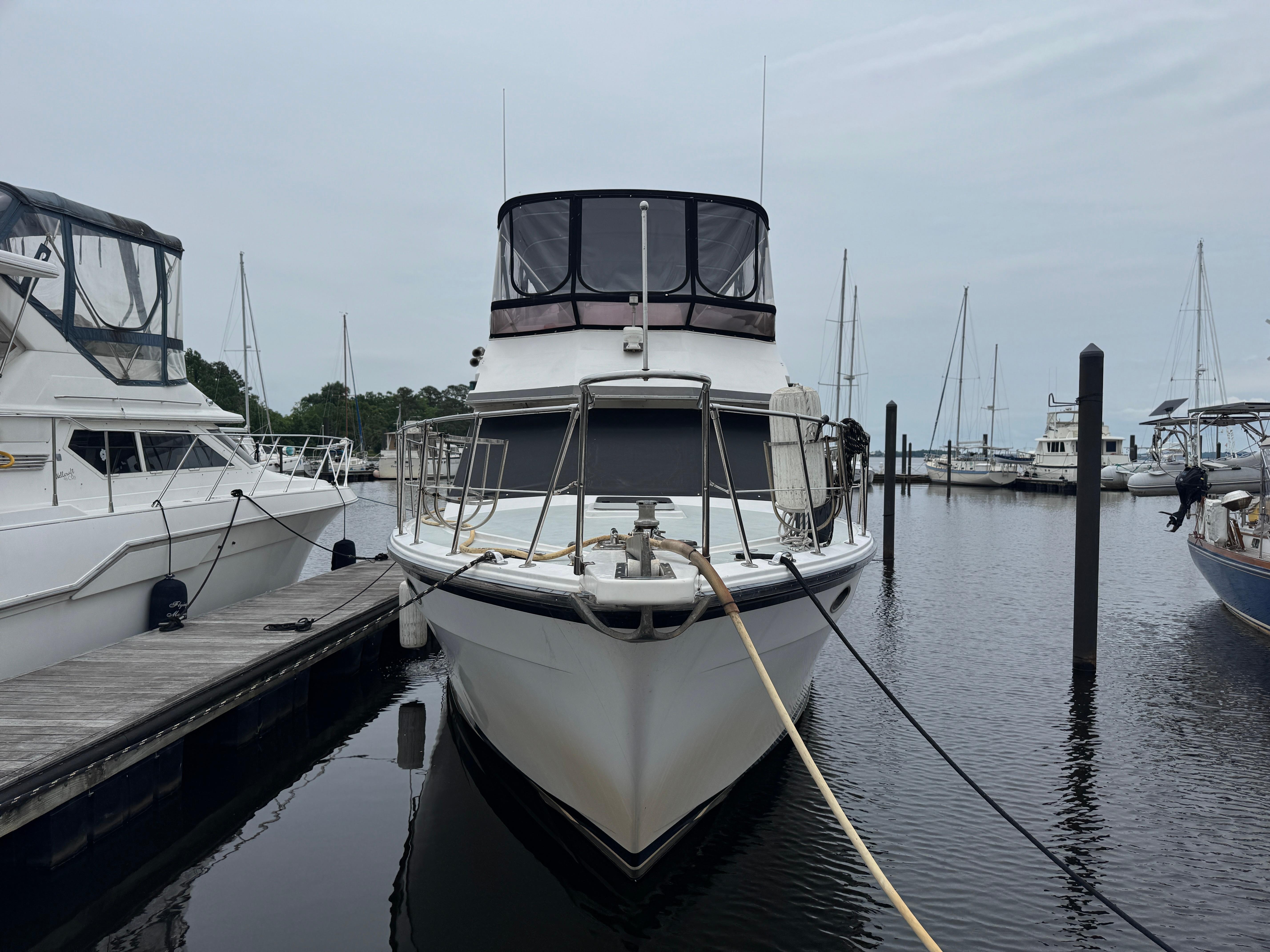

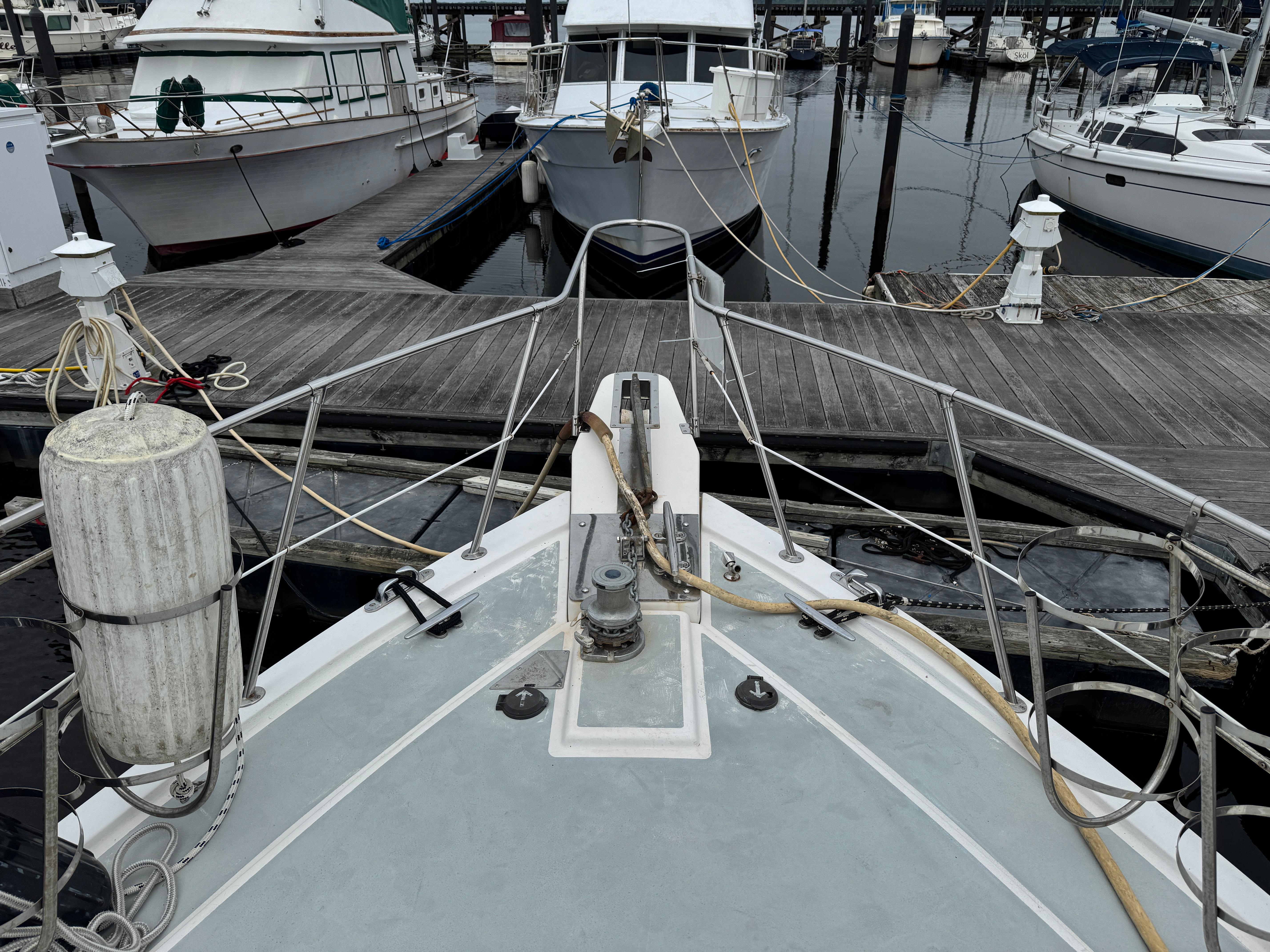

Fiberglass bow pulpit with single stainless steel anchor roller
Claw 30kg anchor with 175’ of new galvanized 5/16" chain and rope rode
Electric anchor windlass with foot controls
Bow washdown faucet
Stainless steel stanchions with single coated life line
Port and starboard boarding gates
Stainless steel deck hardware
Stainless steel hand rails on cabin sides
Full Black Sunbrella Plus bimini top on flybridge
Full Black Sunbrella enclosures on flybridge and aft deck

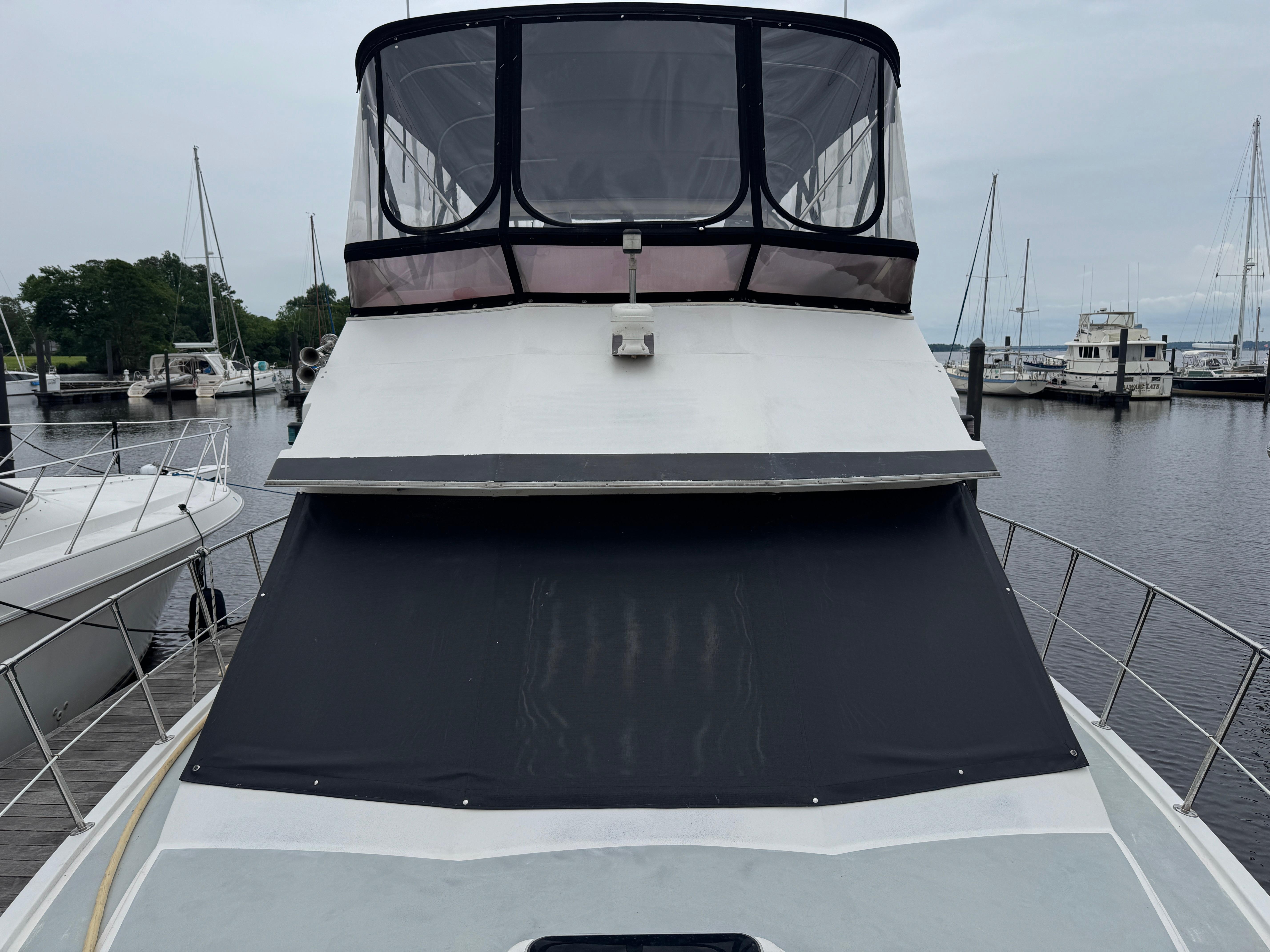

Textalene black salon windshield cover
Fiberglass aft deck coaming with bi-fold boarding gate from swim platform

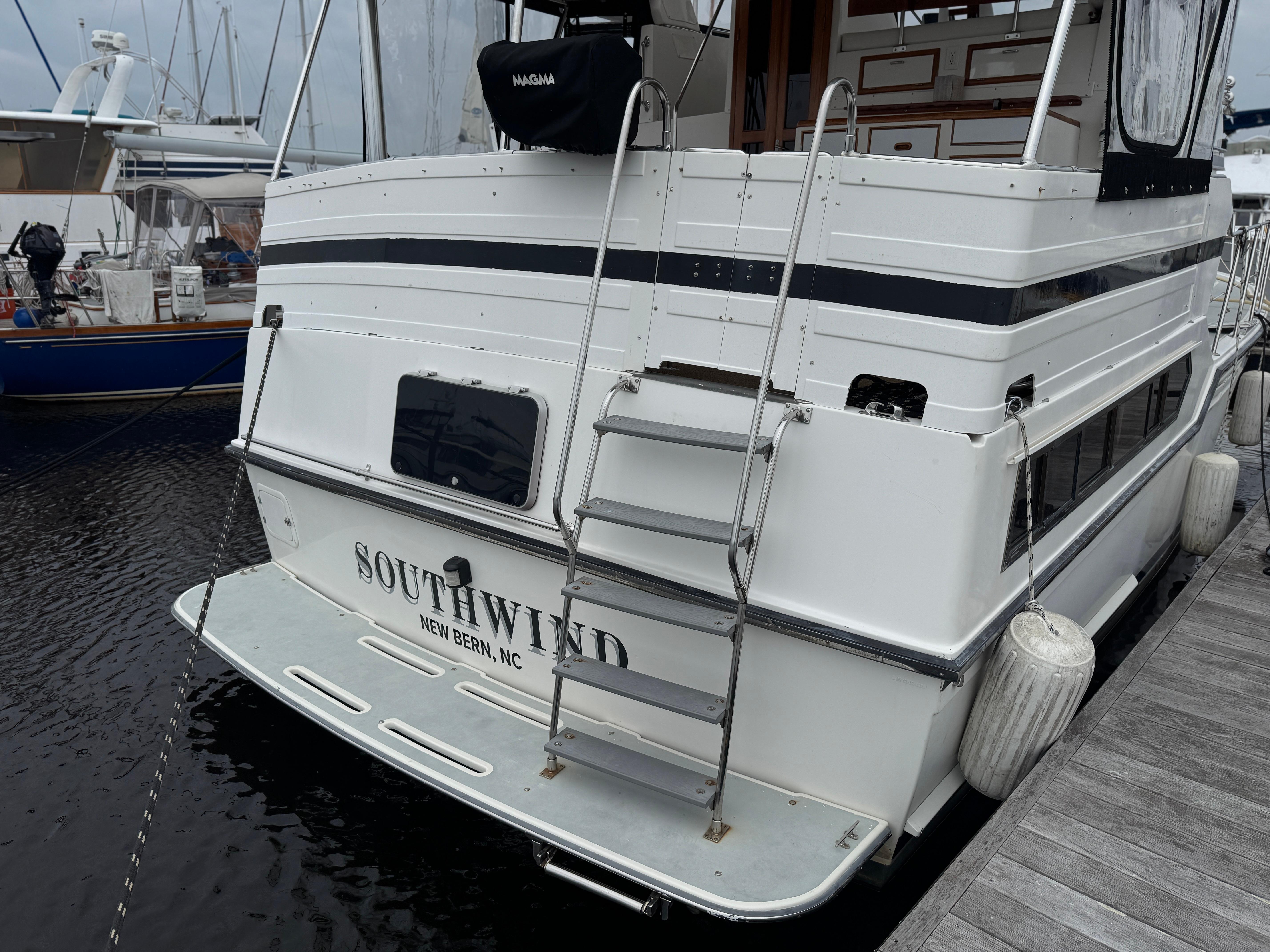

Swim platform with folding stainless steel swim ladder
Ladder from aft deck to swim platform
Marquip folding steps can be mounted port or starboard, stored on aft deck
Dingy electric davit on aft deck hard top with inflatable storage chocks
Bridge helm and guest chairs
Bow port and starboard stainless steel fender holders, (2) fenders each
Teak bi-fold doors from aft deck to salon with walk-through screen

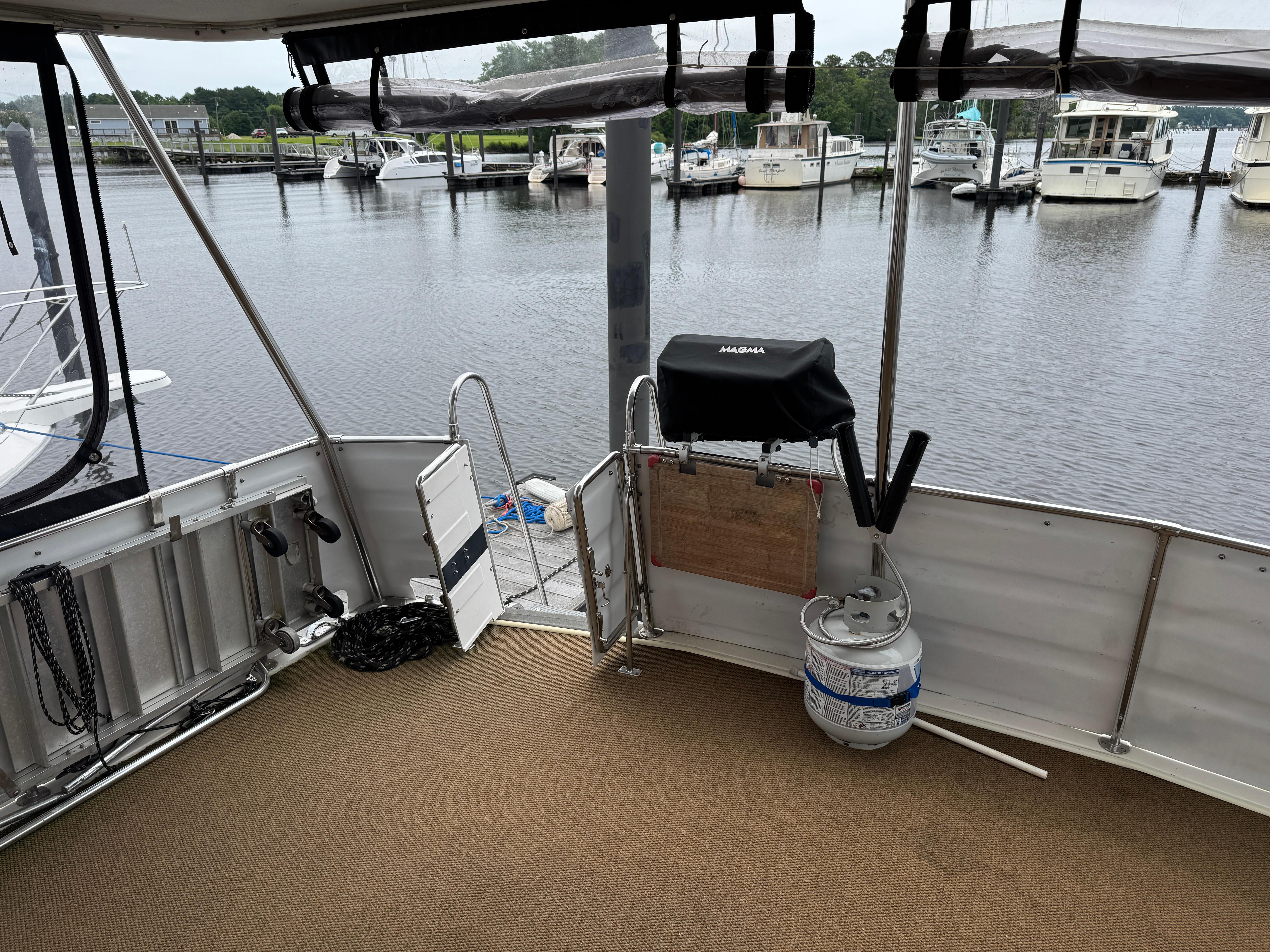

Mounted MAGMA BBQ grill on stern with fold down table for ease of preparation
Removable carpets on aft deck and flybridge
Broker Comments: Nicest 42 Jefferson on the market with continuous care and improvements. You will not be disappointed in this one! Manuals and invoices onboard for review.
Easy to see in New Bern, NC (EWN) with jet service via Charlotte, NC (CLT) on American Airlines.
Raleigh (RDU) about 1.5 hours away.
UPDATES AND MAINTENANCE:
Main engines serviced by local Cummins dealer in 2022, including after coolers, heat exchangers, fluids and filters, fuel injectors, and impellers
2022: New galley refrigerator/freezer
2023:
Galley tile back splash
Stainless steel grab rails
2024:
High water bilge alarm
Filtered water at galley sink
New head faucets
Garmin autopilot
Pro-Mariner 2000-watt inverter and control at lower helm
Electric heads
Cork flooring
Salon Vizio TV
New radio and remote speakers
Textalene salon windshield cover
275’ new galvanized 56/16" anchor chain
2025:
Foam mattress for master berth
Electronic charging stations
Galley step safety lighting
